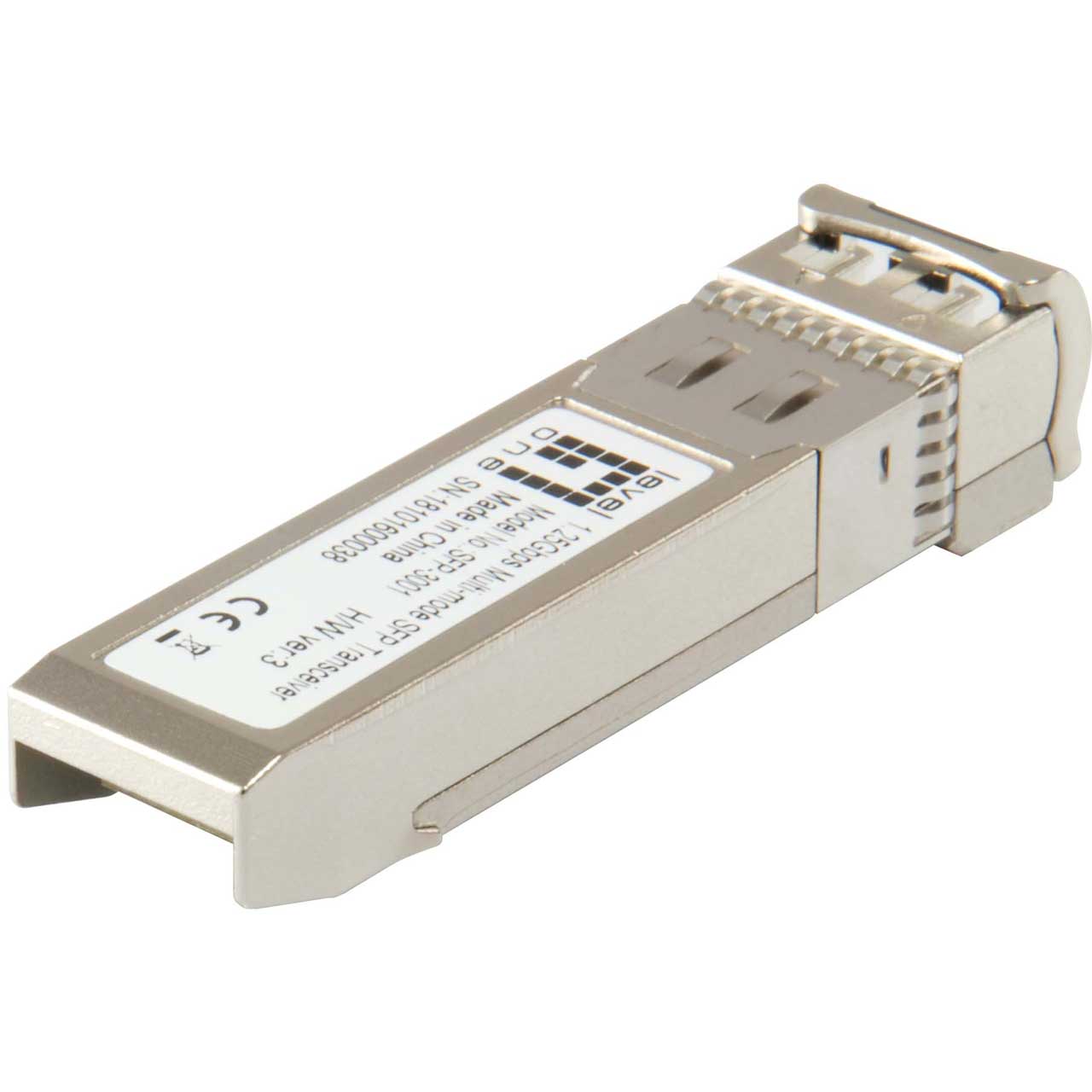

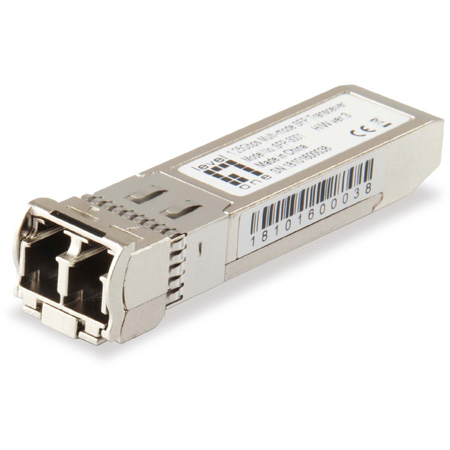

LevelOne SFP-3001 1.25Gbps LC Duplex Multi-mode SFP Transceiver - 500m - 850nm

SFP-3001 - Overview

• Features:

  • Supports Digital Diagnostics Monitoring Interface (DDMI) for easy status monitoring

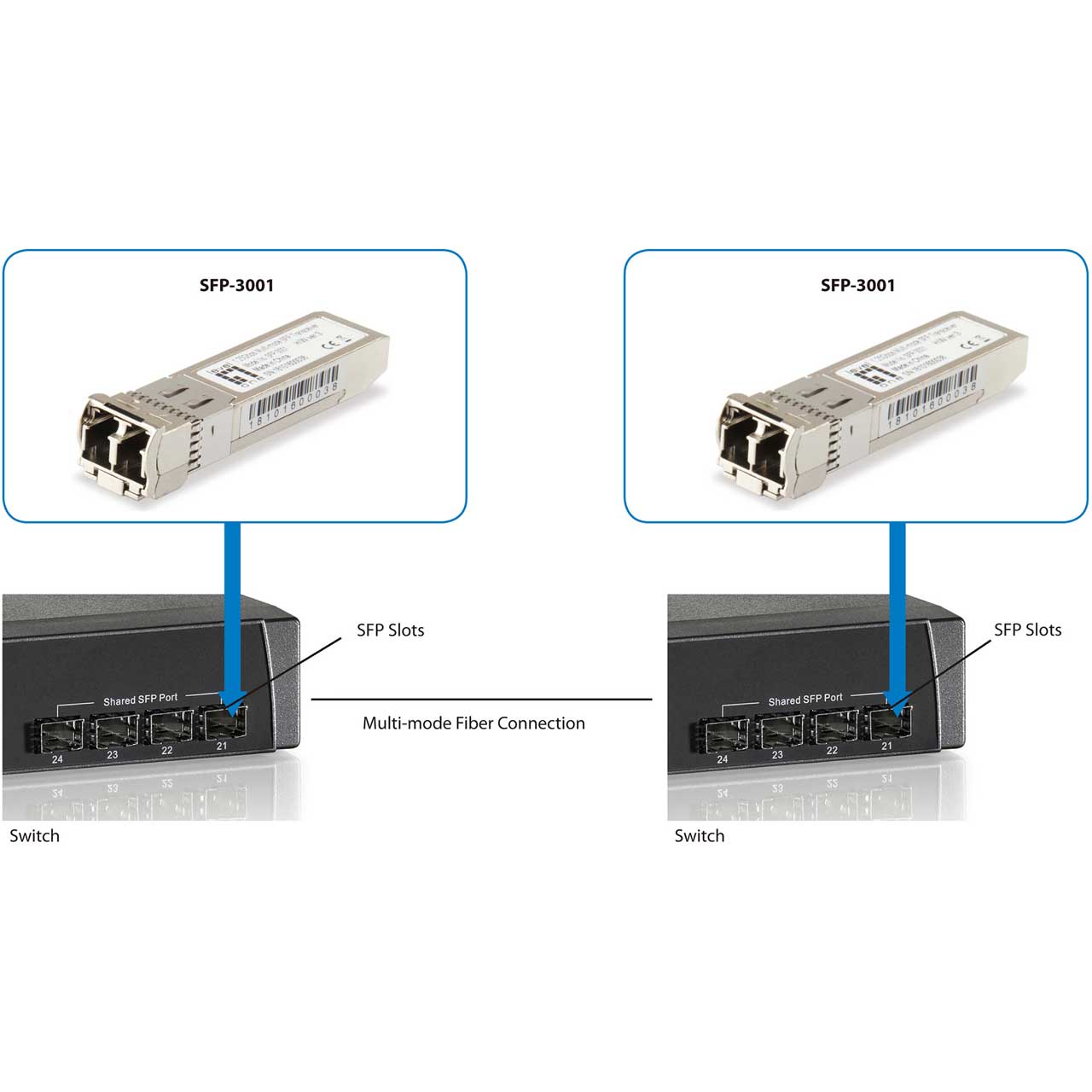

  • Provides duplex LC connector
  • 3.3V Single power supply
  • IEEE 802.3z Gigabit Ethernet compliant
  • Hot-swappable
  • RoHS compliant and Lead Free
  • Operating temperature: 0°C to 70°C


• Specifications:

  • Standards: IEEE802.3z 1000BASE-LX

    Port:
  • Duplex LC Connector
  • 50/125 Ým Multi-mode Fiber


  • Wavelength (nm): 850nm
  • Optical Receive Sensitivity: -18dBm
  • Optical Link Power Budget: 9dB
  • Power Input: 3.3V / 250mA
  • Power Consumption: 800mW
  • Data Rate: Up to 1.25Gb/s data links
  • Optical Transmission Power: -9 to -4 dBm
  • Operating Temperature (°C): 0°~70°C
  • Operating Humidity (Non-condensing): 0~85%
  • Storage Temperature (°C): -40°~85°C

    Features
  • General: Hot-swappable
  • Management: DDMI (Digital Diagnostics Monitoring Interface)
  • Operating Distance: 500m

    Physical Specifications
  • Dimensions (W x D x H mm): 14 x 57 x 8.5 mm
  • Weight (g): 20g

    Approval and Compliance
  • EMI/EMS:
  • EMC Directive 2014/53/EU
  • IEC 61000-4-3 / IEC 61000-4-2 , MIL-STD-883 Method 3015
  • Safety:
  • EMI compatible with FCC Part 15 Class B EN55022 Class B (CISPR 22B) VCCI Class B.
  • Class 1 Laser Eye Safety compatible with FDA 21CFR 1040.10 and 1040.11 EN60950, EN (IEC)60825-1,2


  • Environmental Test: RoHS Directive 2011/65/EU

    Others:
  • SFP Multi-Sourcing Agreement(MSA)
  • SFP MSA SFF-8074i Compliant


• Item Includes:

  • x1 SFP-3001


• GTIN:

  0878742008604
