LevelOne GVT-2000 RJ45 to SFP Gigabit Media Converter
  • LevelOne GVT-2000 RJ45 to SFP Gigabit Media Converter
  • LevelOne GVT-2000 RJ45 to SFP Gigabit Media Converter
  • LevelOne GVT-2000 RJ45 to SFP Gigabit Media Converter

Questions? Ask a Markertek Expert:
800-522-2025 Email

LevelOne GVT-2000 RJ45 to SFP Gigabit Media Converter

Manufacturer: LevelOne

Item #: LVL1-GVT-2000   •   MFG #: GVT-2000




Our Price:$71.05

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

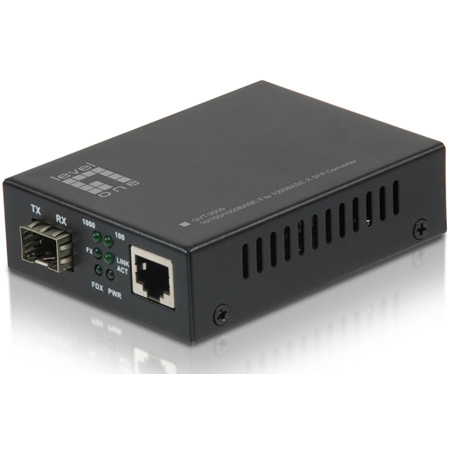

    The LevelOne GVT-2000 media converter is able to convert network signals between copper and fiber-optic based networks. The converter provides a SFP slot for 1000Base-X Gigabit optic module and a 10/100/1000Base-T RJ-45 port, supports full duplex and half duplex switch connectivity and 10Base-T, 100Base-TX and 1000Base-T auto-sensing.

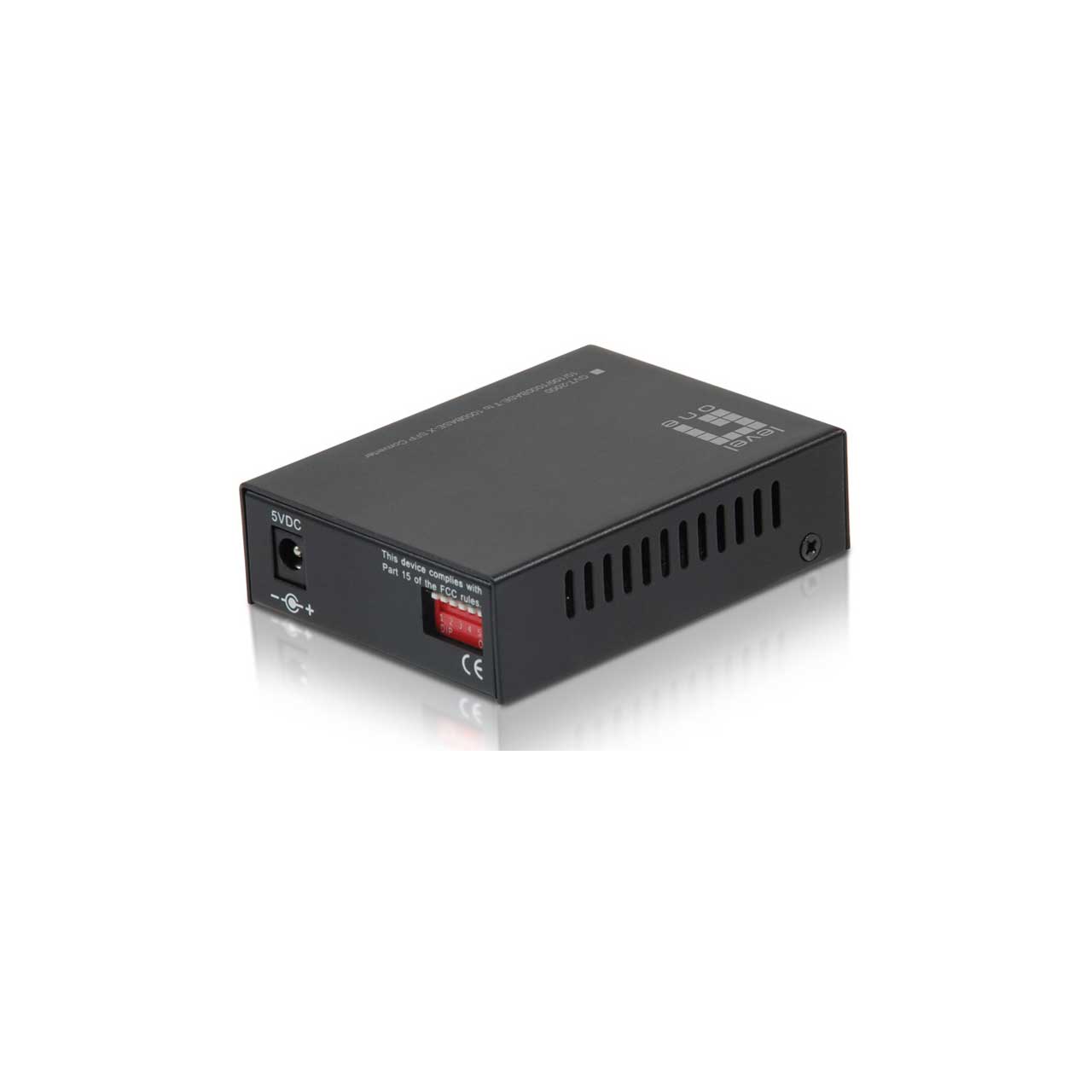

    The device features built-in Dip switches for easy converter configuration, which function on the Smart LFP (Link Fault Pass-through), allowing the converter to monitor both the fiber and copper ports for signal loss, as well as cut through and smart pass through mode.

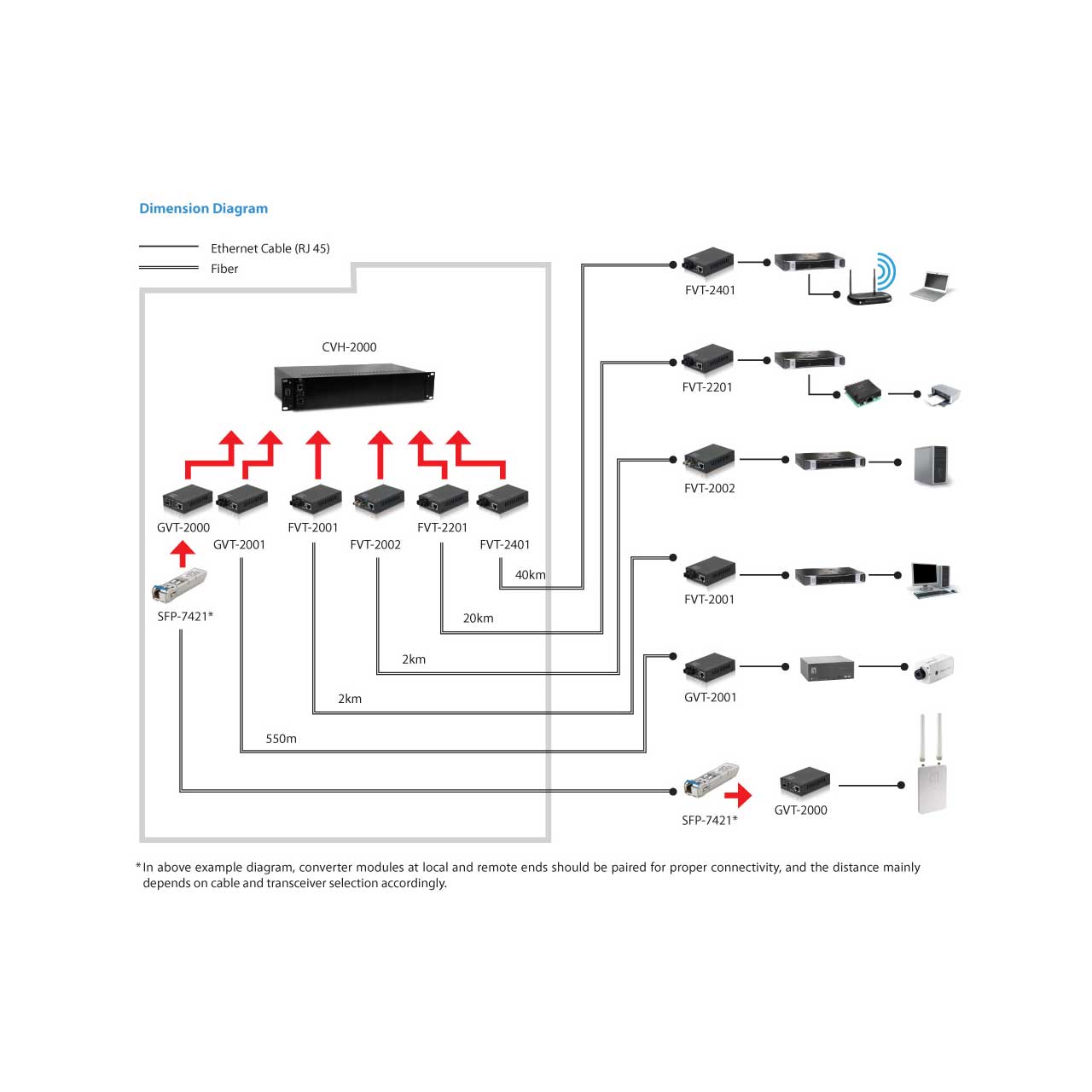

    The GVT-2000 is able to operate in temperatures from -10° up to 55° Celsius. The converter can be used as a standalone unit or as a slide-in module to the CHV-2000 19” converter rack, which can accommodate up to 14 units for use in a central wiring closet.


    • Features

      • Transfers data from 10/100/1000Base-T copper to fiber interfaces
      • SFP slot supports pluggable Gigabit optic modules that enabling you to choose from a variety of transceiver
      • 9K jumbo frames to increase data transfer rates
      • Built-in LFP (Link Fault Pass-through) (LLCF/LLR) Technology
      • IEEE 802.3x Flow Control protects against lost packets for reliable data transmission
      • Dip switches for customized configuration
      • Supports low-time lag transmission
      • Supports the transmission of extra-long packets up to 1.6KB
      • -10°C to 55°C operating temperature range

    • Specifications

      • Standards & Protocols:
        IEEE 802.3 10-BASE-T, Ethernet
        IEEE 802.3u 100-BASE-TX, Fast Ethernet
        IEEE 802.3ab 1000BASE-T, Gigabit Ethernet
        IEEE 802.3x Flow Control (full-duplex flow control)
        IEEE802.3z 1000Base-SX/LX,
      • Port: Fiber SFP slot; RJ-45 Port CAT-5/5e Twisted Pair cable Auto MDI/MDI-X (Max to 100m) and Auto-Negotiation
      • Indicator: PWR,TX (FDX, 100, 1000, Link/Act), FX Link/Act
      • Wavelength (nm): depend on SFP module
      • Transmission Method: Store and forward (Default)
      • Power Input: DC 5V/2A
      • Power Consumption: 1.2W
      • Storage Temp: -40° to 167°F (-40° to 75 °C)
      • Operating Temp: 14° to 131°F (-10° to 55 °C)
      • Humidity: 5 to 90% (non-condensing)
      • Mount: Desk, chassis mounted
      • DIP Switch 1: LFP function
      • DIP Switch: 2 and 3 performance 4 types work mode, 2 and 3 is OFF = Store and forward, 2 is OFF, 3 is ON = Cut through mode, 2 is ON, 3 is OFF = Smart pass through, 2 and 3 is ON = Pass through mode
      • Operating Distance: Depend on SFP Module
      • Dimensions (WxDxH): 2.79 x 3.70 x 1.02" (71 x 94 x 26mm)
      • Weight: 0.92Lbs (420g)
      • MTBF: 50000hrs
      • Approval and Compliance: EMI/EMS: CE, RoHS, FCC

    • Item Includes

      • x1 GVT-2000
      • x1 Power Adapter
      • x1 Quick Installation Guide

    • GTIN:

      0846359031292
