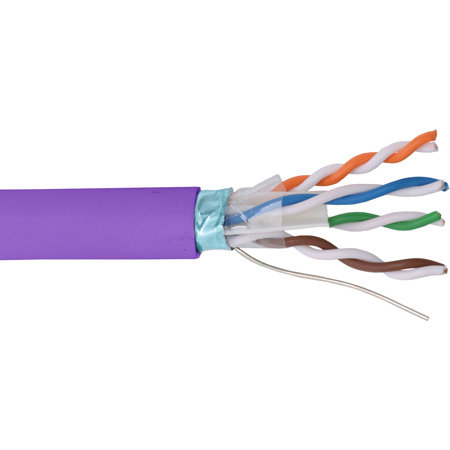

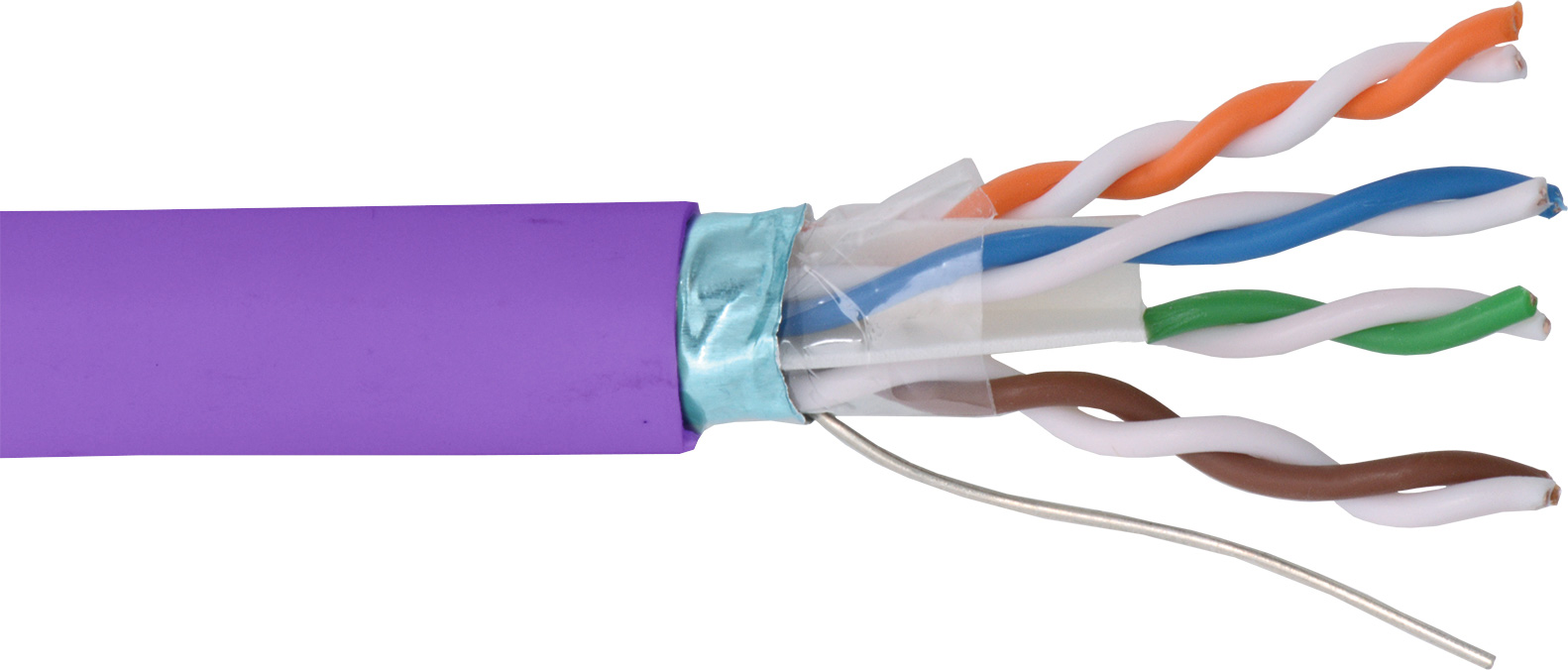

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the LWC-24-4P-P-L6AS

24-4P-P-L6ASH-VIO 1000FT - Overview

4 pair 23 AWG solid, twisted, and shielded cable
NEC type CMP and CEC type CMP FT6. Third party verified to ANSI/TIA-568C Category 6A performance. Product
manufactured compliant to the requirements of UL444 for installations and applications in accordance with NEC
articles 725 and 800.

  • Specifications:

    • Conductor
    • 22 AWG
    • Solid annealed bare copper conductors
    • Diameter: 0.0226" | 0.574mm

      Electrical
    • DC resistance: < 28.6 Ω / 1000' | 93.8 Ω/KM
    • DCR Unbalance: < 3.0%
    • Capacitance: 17.0 pF/FT | 56.0 pF/M
    • Impedance: 100 +/- 15 Ω
    • Propagation Delay (Skew): 35ns/100m MAX
    • Velocity of Propagation: 78%
    • Voltage rating: 300V
    • Pair to ground capacitance Unbalance: = 330 pF/100M
    • Maximum current: 1.4A@25°C

      Insulation
    • Fluorinated ethylene propylene
    • Wall thickness: 0.012" | 0.29mm
    • Diameter: 0.045" | 1.14mm

      Regulatory
    • ANSI/TIA-568-C Category 6A
    • NEC: CMP 75°C
    • CEC: CMP FT6 60°C
    • EU RoHS 2002/95/EC Compliant

      Color Code
    • Pair 1: Orange, White/Orange
    • Pair 2: Blue, White/Blue
    • Pair 3: Green, White/Green
    • Pair 3: Green, White/Green
    • Note: Striping will be light due to FEP compound
