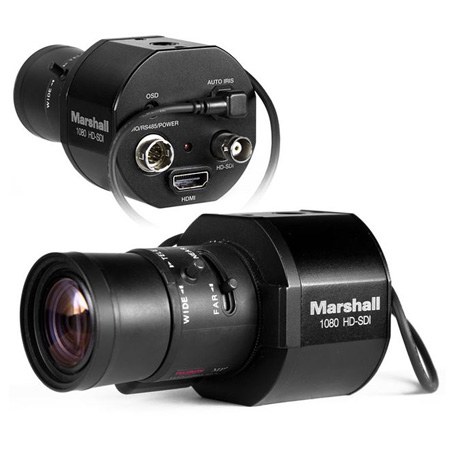

Marshall CV345-CSB Full-HD (3G/HD-SDI) 2.5MP Compact Broadcast Camera with Audio and HDMI (CS/C Mount) Body Only

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Marshall CV345-CSB Full-HD (3G/HD-SDI) 2.5MP Compact Broadcast Camera with Audio and HDMI (CS/C Mount) Body Only

    Manufacturer: Marshall Electronics

    Item #: MAR-CV345-CSB   •   MFG #: CV345-CSB



    List Price:$699.00
    Our Price:$599.00

    free ship


    Availability: In Stock
    i
    Item is Available for immediate shipping from our warehouse.




      Share!





      Marshall Electronics next generation Miniature CV505 and Compact CV345 HD Pro-Series Cameras add the convenience of a 3.5mm TRS Stereo input (audio embedding) with 2.5V power to microphone and broadcast convenient HD-SDI/3G-SDI (BNC) & HDMI (v1.3) simultaneous outputs. Built around next generation chip sets and a state-of-the-art 1/3" megapixel sensor improves every aspect of previous models. Capturing broadcast quality HD video from 2,476,296 pixels (2.5MP) of clear, crisp video at full-HD resolutions of 1920x1080i, 1920x1080p, 1280x720p & frame-rates of 60/59.94/50/30/29.97/25fps.

      New proprietary pixel technology offers the lowest noise ratio on the market today capturing sharp, vivid color images in very low light conditions. Industry leading low power consumption draws very low power in full-HD resolutions. CV505-MB/M Pro-Series POV Cameras continue to offer Field-of-View flexibility with interchangeable lenses. Expanded RS-485 protocols offer remote camera control (RCP) communication via VISCA and PELCO where commands can be sent without OSD Menu. Marshall Pro-Series Cameras continue to establish a broadcast standard for POV cameras with ease of use and broadcast centric feature sets.

      Please Note! Body only, lens sold separately.
      *VPS12V20AU power supply included


      • Features

        • 2.5 Megapixel 1/3-inch CMOS sensor
        • CS/C Mount with DC-Auto Iris (lens sold separately)
        • CV345-CSB: 1920x1080p59.94/29.97, 1920x1080i59.94, 1280x720p59.94/29.97fps
        • Lemo-style (I/O) connector contains: RS-485(+/-), 12V power connector & TRS microphone input with 2.5V power supplied
        • 3G/HD-SDI (BNC) & HDMI (full size-v1.3) built into rear panel
        • Captures sharp & vivid color images at 0.2 lux (low light sensitive)
        • New WDR function supports high speed & high sensitivity to various light sources
        • Audio Mic 3.5mm TRS Stereo input embedding w/ 2.5V power supplied (embeds 3G/HD-SDI & HDMI)
        • OSD Menu Joystick, RS-485 (Pelco/Visca), Free Downloadable Software Control
        • Stepped (Red/Blue) Gain Control, Gamma, and Shutter adjust
        • 12V Power (Marshall PN: V-PS12V-2.5A-U included)

      • Specifications

        • Sensor
        • Image Sensor: 1/3" Progressive CMOS (Approx. 2.1 mega)
        • Scanning System: 16:9 Progressive
        • Sync. System: Internal
        • Effective Pixel: 1920(H) x 1080(V)
        • Min. Illumination: 0.2 Lux (Color), 0.1 Lux (Black/White), 0.005 Lux(DSS on)
        • Horizontal Resolution: 1000TVL

          Optics
        • Lens: CV345 variable lens options (CS/C mount w/ DC-Auto Iris)

          Functions
        • Back Light Compensation: WDR (Wide Dynamic Range)/BLC (Back Light Compensation), HLC (High Light Compensation)
        • Exposure: Auto / Manual
        • White Balance: Auto (3,000°K~8,000°K) / ATW (1,900°K~11,000°K) / Manual
        • Day & Night System: AGC (Automatic Gain Control) / TDN (ICR)
        • Electronic Shutter: NTSC: 1/30~1/30000, PAL: 1/25~1/30000, DSS( ~X64)
        • Functions: Privacy Mask, Image Mirror, 3DNR, Flicker-less, Sharpness, Defog, DIS (Digital Image stabilizer), NegArt, Freeze, B&W

          Video Outputs
        • 3G-SDI (+optional Audio) HD-SDI (+optional Audio): SSMPTE 424M(2.97Gbps):
        • 1920x1080p @ 59.94fps (-MB/-CSB) or
        • 1920x1080p @ 50/60fps (-M/-CS)
        • SMPTE 292M(1.485Gbps):
        • 1920x1080p @ 29.97 (-MB/-CSB) or 25/30 (-M/-CS)
        • 1920x1080i @ 59.94 (-MB/-CSB) or 50/60fps (-M/-CS)
        • 1280x720p @ 59.94/29.97fps (-MB/CSB) or 50/60 (-M/-CS)
        • 800mVp-p, 75O unbalanced generator (single-ended)
        • HDMI(+Audio) Output (HDMI type A female): HDMI 1.3 compliant1920x1080p @ 59.94fps (-MB/-CSB) or 50/60 (-M/-CS) >1920x1080p @ 29.97 (-MB/-CSB) or 25/30 (-M/-CS) >1920x1080i @ 59.94 (-MB/-CSB) or 50/60fps (-M/-CS) >1280x720p @ 59.94/29.97 (-MB/CSB) or 50/60 (-M/-CS)

          Audio Intput
        • MIC: Mic Level (1Vrms). 2.5V Mic bias 16, 20, 24, 32 bits audio format. 48KHz sample rates Gain: -12dB ~ 59.5dB

          Control Interface
        • RS-485: PELCO-P/D, SONY-VISCA protocol; 8 bits data, 1 stop bit, no parity, 2400-115220bps

          General
        • Operation Temperature -10°C ~ 50°C
        • Power Input 12VDC (7V to 15VDC)
        • Power consumption Max 6W
        • Dimensions CV345: 60(W) x 57(H) X 45(D) mm
        • Weight (Net) CV345: Approx. 160g

      • Item Includes

        • Power Supply VPS12V20AU

      • CV345-CSB Applications

        • Broadcast Television
        • Professional Sports
        • College Sports
        • OB Vans/Trucks
        • Concert & Studio Music Video
        • Reality TV
        • Performing Arts
        • Culinary Shows
        • Car TV Shows
        • Hidden Camera Shows
        • International Racing Circuits
        • Off-road Racing
        • Horse Racing
        • House of Worship
        • POV Video Shots
