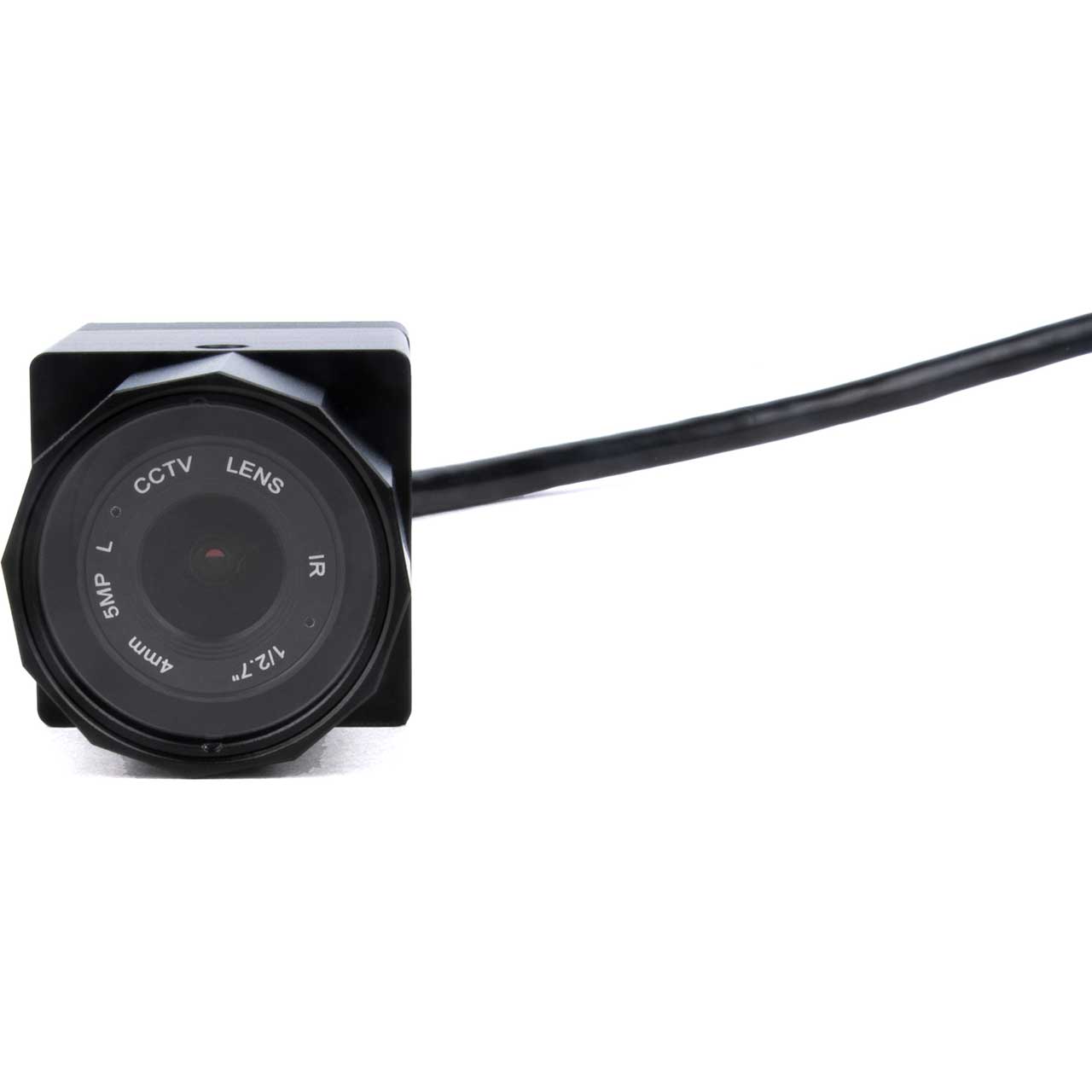

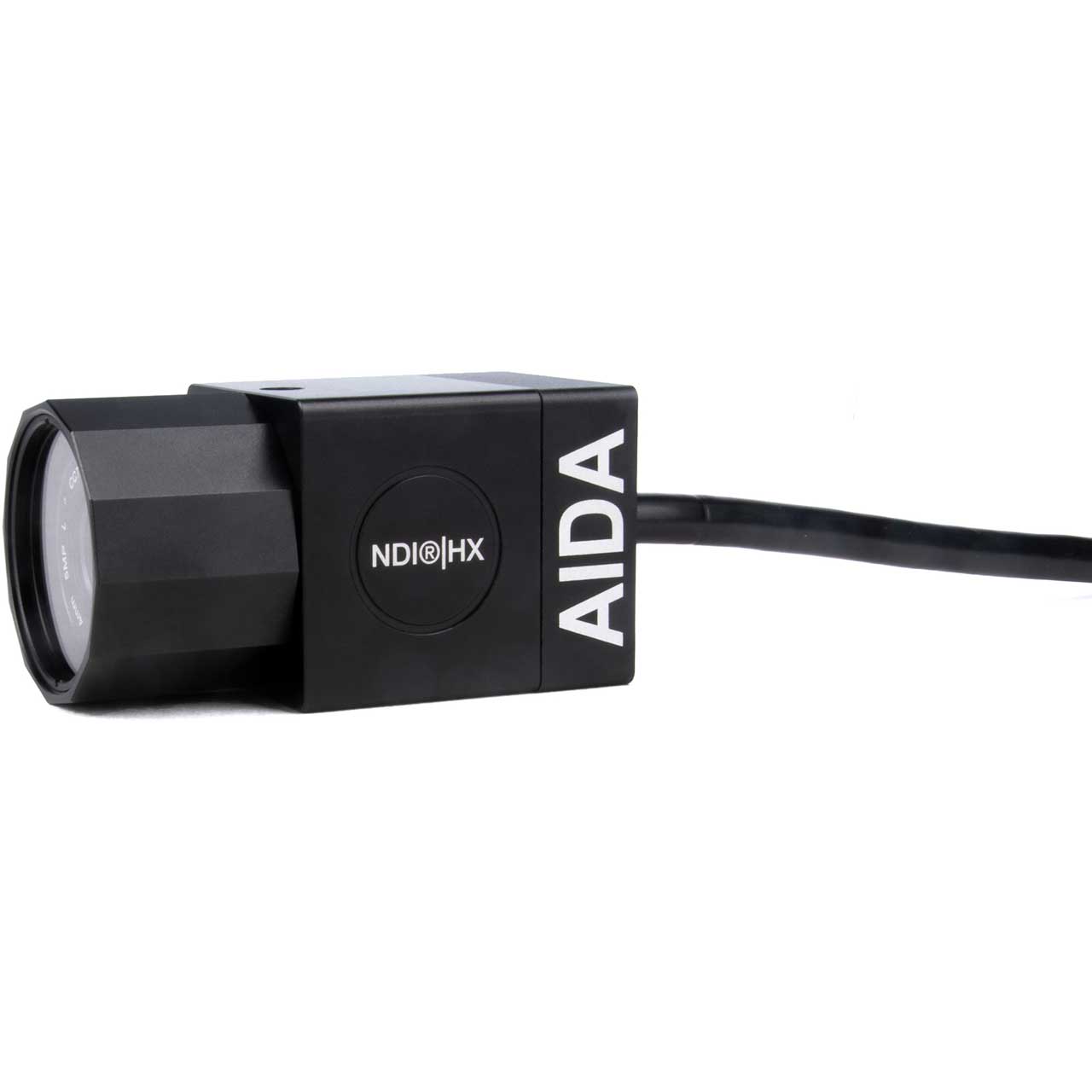

AIDA Imaging AIDA-HD-NDI-IP67 FullHD NDI|HX / IP Weatherproof POV Camera with 1/3in Progressive Scan CMOS Sensor

ITEM #: AIDA-HD-NDI-IP67 MFG #: AIDA-HD-NDI-IP67

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

Our Price:

$395.00

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    AIDA-HD-NDI-IP67 - Overview

    Making NDI|HX just as adventurous
    Streaming shouldn't have to be confined indoors when there's a whole world out there to enjoy! Introducing the HD-NDI-IP67, being the first of its kind for POV NDI|HX streaming cameras. The Camera features a progressive CMOS sensor, capturing unwavering 1080 60p video over NDI|HX, SRT, or IP protocols. The IP67 rating keeps the camera internals safe, as well as a 10ft braided weatherproof breakout cable to keep the more sensitive cables out of harms way. That means peace of mind when handling the cameras outdoors!

    No-Hassle Integration
    As always, the HD-NDI-IP67 comes pre-loaded with its NDI|HX license key. It just makes sense that way.

    IP67 rated for any adventure!
    The camera's rated IP67, which allows it to be free from dust and moisture. You can even submerge the camera up to 1M for up to 30 minutes.

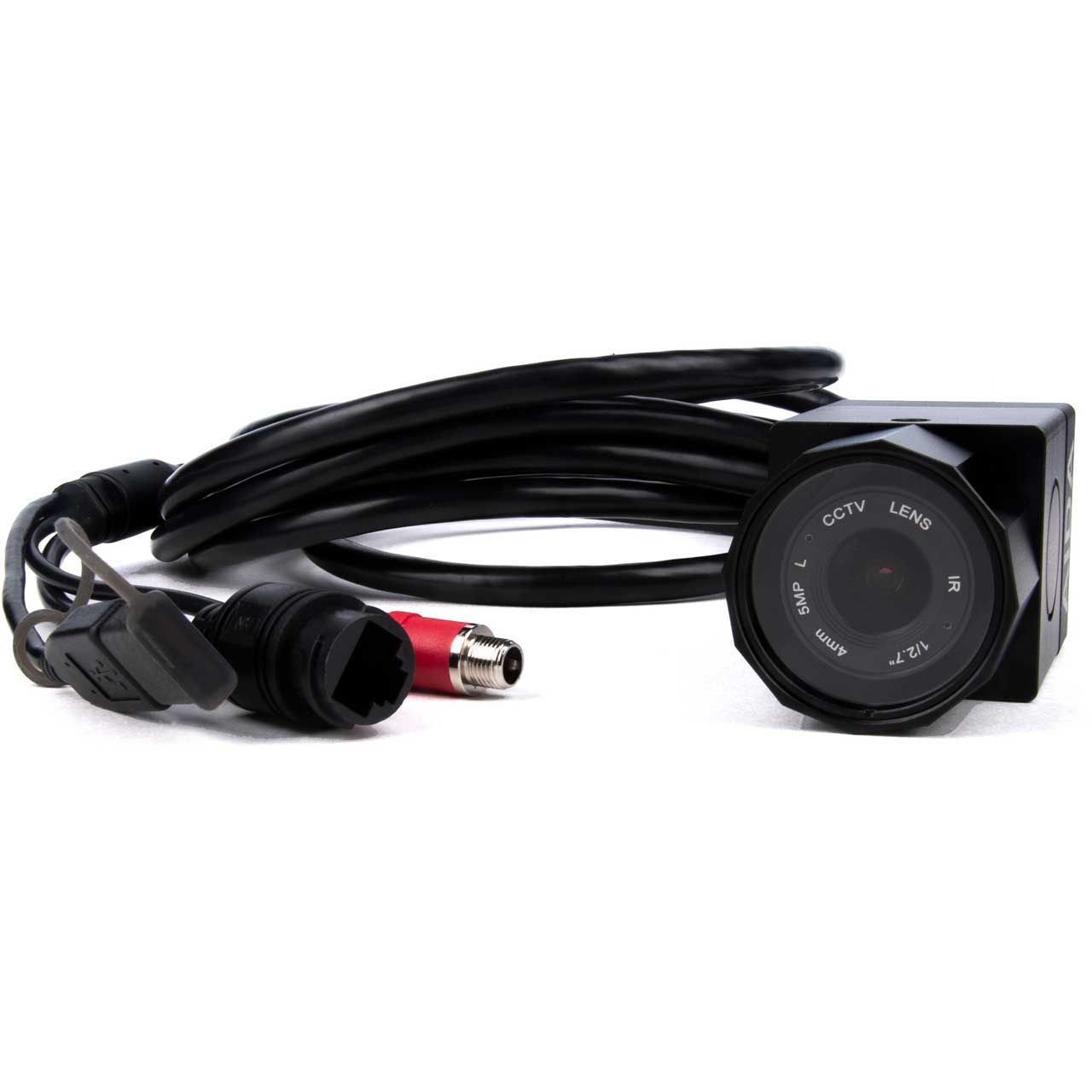

    10ft Weatherpoof I/O cable
    The breakout cable attached to the HD-NDI-IP67 is weatherproof. This cable protects the communication from the camera to its RJ45 and 12VDC connections.

    Simultaneous IP Streaming
    The camera is capable of simultaneously streaming NDIr|HX, SRT, RTSP and RTMP. We like to think of it as the Swiss-Army knife in the outdoor streaming world.

    CS Mount Accessibility
    The front WP cap is capable of being removed, allowing for versatile lens options to enhance the stream.*

    * Operable lenses are dependent on size and focal length. Not all lenses will work.

    Full Control over IP
    Stay dry by fully controlling all camera functions via the cameras web UI, or VISCA over IP.

    Compact, Rugged, and Tough
    This camera is no different to our other cameras, coming in a hardened aluminum shell built to extra protect the internals, and cabling of the HD-NDI-IP67

    PoE+ Adaptable
    Each purchase of the HD-NDI-IP67 comes with a PoE+ adapter, allowing you to run 1 cable for video, power and control!

    • Features:

      • Full-HD 1/3" Progressive Scan CMOS sensor capable of 1080 60p NDI®|HX Video.
      • Accessible Web UI to stream directly to social media platforms and control image parameters over IP.
      • Versatile design with top and bottom tripod mounts for uniques shot creation.
      • CS mount lens allows for extra clarity over other types of lenses
      • Weatherproof rating allows for extra protection against enviromental elements
      • Small form-factor and rugged designed makes all video streaming applications possible
      • Perfectly suited for outdoor shots any new or existing NDI®|HX setup.

    • Specifications:

      • Video
      • Image Sensor: 1/3" Progressive CMOS
      • Sensor Size: 5.346mm x 3.003mm (16.9)
      • Effective Pixels Horizontal: 1920, Vertical: 1080
      • Pixel Size: 2.75 æm (H) x 2.75 æm (V)
      • Resolution: 1080p, 1080i, 720p
      • Resolution Rate: 1080 60p/59.94/50p/30p/29.97p/25p, 24p, 1080 60i/59.94i/50i, 720 60p/59.94p/50p
      • Output: IP (NDI|HX/SRT/RTMP/RTSP)
      • Color Space: 4:2:2 (YCbCr) 10bit
      • Min Illumination: 0.2Lux (day), 0.1Lux (Night)
      • White Balance: Auto & Manual (9000 - 11,000 K)

        Lens
      • Lens: C/CS Mount (Default 4mm HD Lens with CAP)

        Standard
      • IP Protocol: UDP|IP, RTSP|RTMP, SRT, NDI|HX

        Physical
      • Camera Control Protocol: VISCA Over IP
      • Operation Temp: 32°F - 104°F
      • Dimension: 78mm x 41mm x 41mm, 3.07" x 1.61" x 1.61" (with default WP cap)
      • Weight: 454g / 1 lb (with default WP cap)
      • Power: 12VDC (+9 - +15VDC) (PoE Adapter Included)

    • Item Includes:

      • 1x PoE Dongle Adapter
      • 1x DC 12v Power Supply & Sockets Adapter
      • 1x 4mm 5MP Lens (Pre-Installed)

    • GTIN:

      0686091739816
