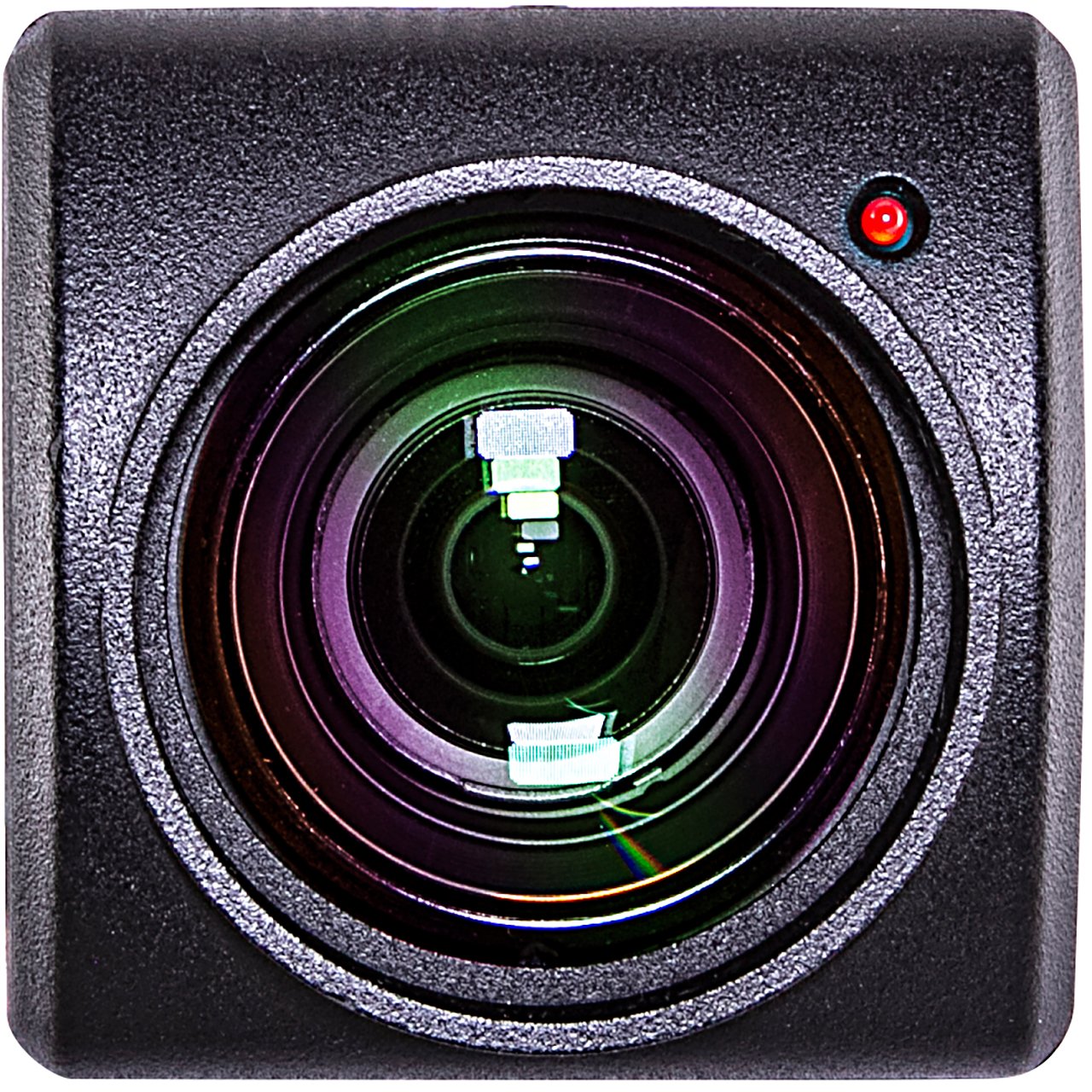

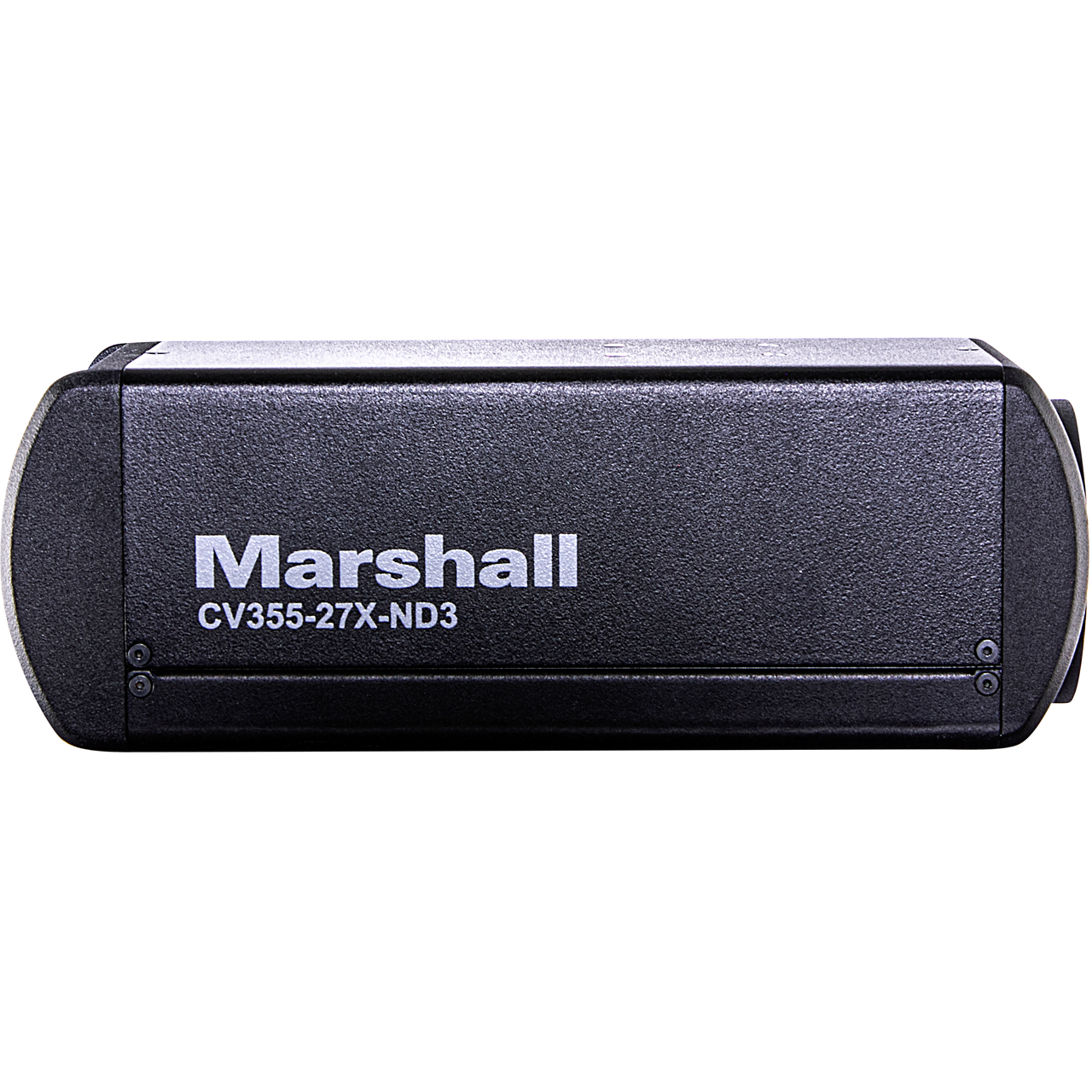

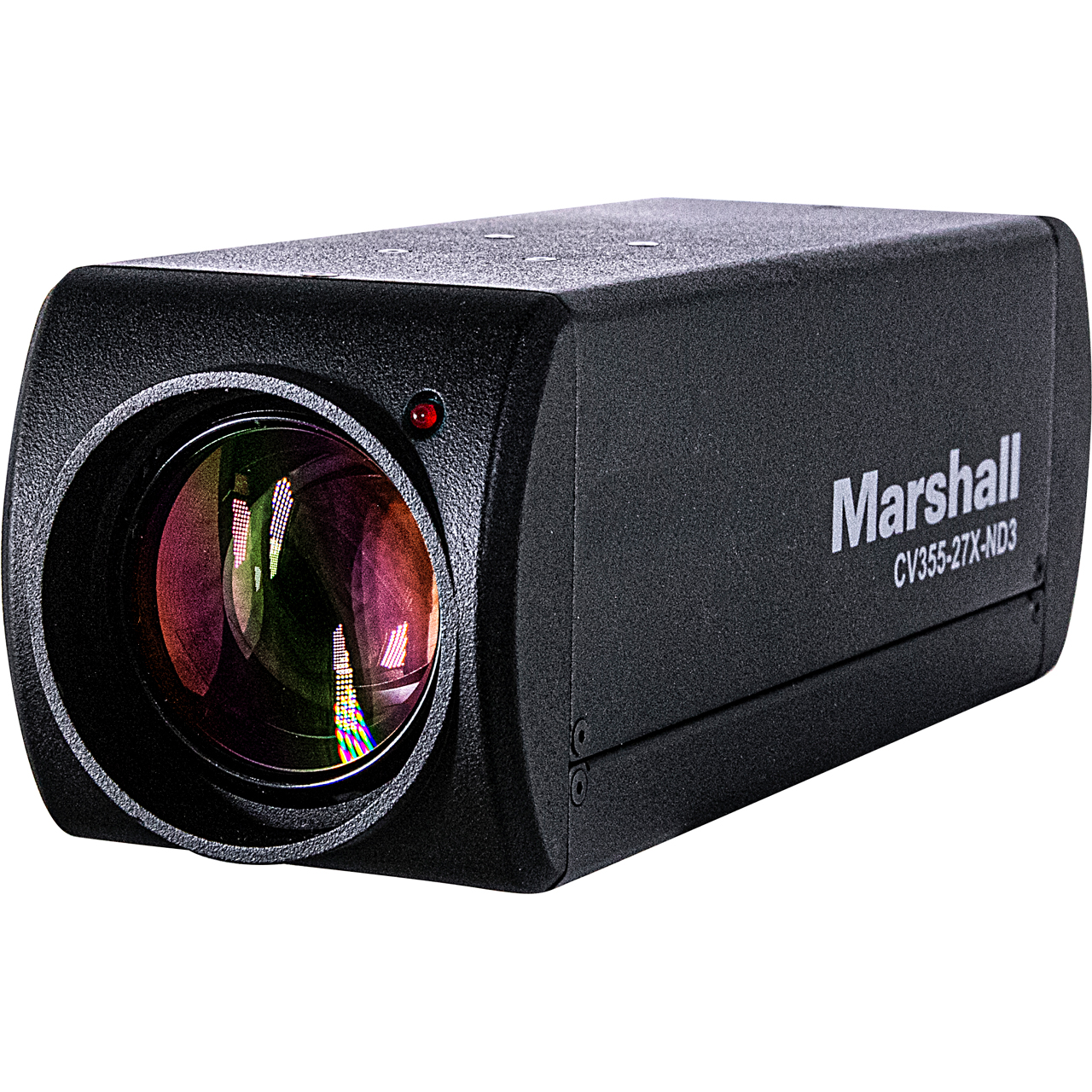

Marshall CV355-27X-ND3 Full HD60 27x Optical Zoom POV Camera with NDI HX2/NDI HX3 and 3G-SDI

ITEM #: MAR-CV35527XND3 MFG #: CV355-27X-ND3

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$2,158.95

Our Price:

$1,799.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CV355-27X-ND3 - Overview

8.5 Megapixel (1/2.5") HD sensor!

The Marshall CV355-27X-ND3 27x optical zoom NDI (NDI HX2, NDI HX3) camera utilizes a professional grade 8.5-megapixel sensor to capture crisp FHD video up to 1920x1080 at 60fps with support for all FHD formats. Marshall's straight forward design and ease of use make this camera a valuable tool in a wide variety of broadcast and professional A/V applications.

27x Optical Zoom
The 27x optical zoom block offers an extensive zoom range from 5.56mm to 150mm starting at 60° all the way out to 3.2° horizontal angle-of-view for maintaining image crispness from ultra-wide to long telephoto shots.

NDI (NDI HX2, NDI HX3) Workflow
keep your productions looking great NDI preserves visual quality, frame accuracy, and source synchronization. NDI also opens up a wide range of NDI Tools available to make your new camera easily discoverable, controllable, adjustable, and consumable into NDI workflows.

Low-Light Sensitivity
The CV355-27X-ND3 operates with exceptional low-light sensitivity, ensuring a clear picture in variable and challenging lighting conditions, including live events, houses of worship, indoor or outdoor sporting events, and other dynamic lighting environments.

NDI Network
Ideal for use in NDI networked and A/V installations, the CV355-27X-NDI offers the convenience of NDI HX2|HX3, 3G/HDSDI and HDMI simultaneous outputs with stereo audio embedding.

  • Features:

    • 8.5 Megapixel (1/2.5") FHD sensor
    • 27x Optical Zoom (5.56~150.29mm) & 12X digital zoom
    • HOV Wide/Tele: 68°/3.2°
    • Supports NDI HX2 and HX3
    • NDI/IP, 3G/HD-SDI, and HDMI simultaneous outputs
    • Switchable NDI and IP output
    • Ethernet I/O supports video, control, and PoE over a single cable
    • RS232 and 3.5mm audio input with passthrough

  • Specifications:

    • Sensor: IMX317
    • Optical Zoom: 27x
    • Digital Zoom: 12x
    • Angle of View(H): 60°
    • Vertical Viewing Angle: 35°
    • Diagonal Viewing Angle: 68°
    • Aperture: F1.66 - F4.98
    • Focal Length: f=5.56mm - 150.29mm
    • Focus Distance:
      - Wide: 1m ~ ∞
      - Tele:1.5m ~ ∞
    • MTF:
      - Wide: Center 1100/Corner 900
      - Tele: Center 1100/Corner 800
    • Field of View:
      - Wide Horizontal viewing angle = 60° (±5%)
      - Tele Horizontal viewing angle = 3.2° (±5%)
    • Minimum Environmental Illumination: 10 lux
    • Stream: Dual Stream (Main/Sub)/Webpage
    • Streaming Protocol: RTSP/RTMP/RTMPS/SRT/NDI(HX2/HX3)
    • Video Compression: HEVC (H.265)/AVC (H.264)/MJPEG
    • Audio Compression: G.711/AAC
    • Preset: 256
    • Preset Speed: NA
    • Focus System: Auto/One-Push AF/Manual
    • Electronic Shutter: 1/1 to 1/10000 sec
    • Exposure Control: Auto/Shutter Pri/Iris Pri/Manual
    • Gain Control: Auto, Manual
    • Brightness Control: Yes
    • 3D NR: Yes
    • WDR: Yes
    • Backlight Compensation: Yes
    • White Balance: Auto, Manual R/B Gain
    • Flip/Mirror: Yes
    • Firmware Update: Operation on Webpage
    • HDMI:
      - 1080p: 60/59.94/50/30/29.97/25 fps
      - 1080i: 60/59.94/50 fps
      - 720p: 60/59.94/50/30/29.97/25 fps
    • 3G-SDI:
      - 1080p: 60/59.94/50/30/29.97/25 fps
      - 1080i : 60/59.94/50 fps
      - 720p : 60/59.94/50/30/29.97/25 fps

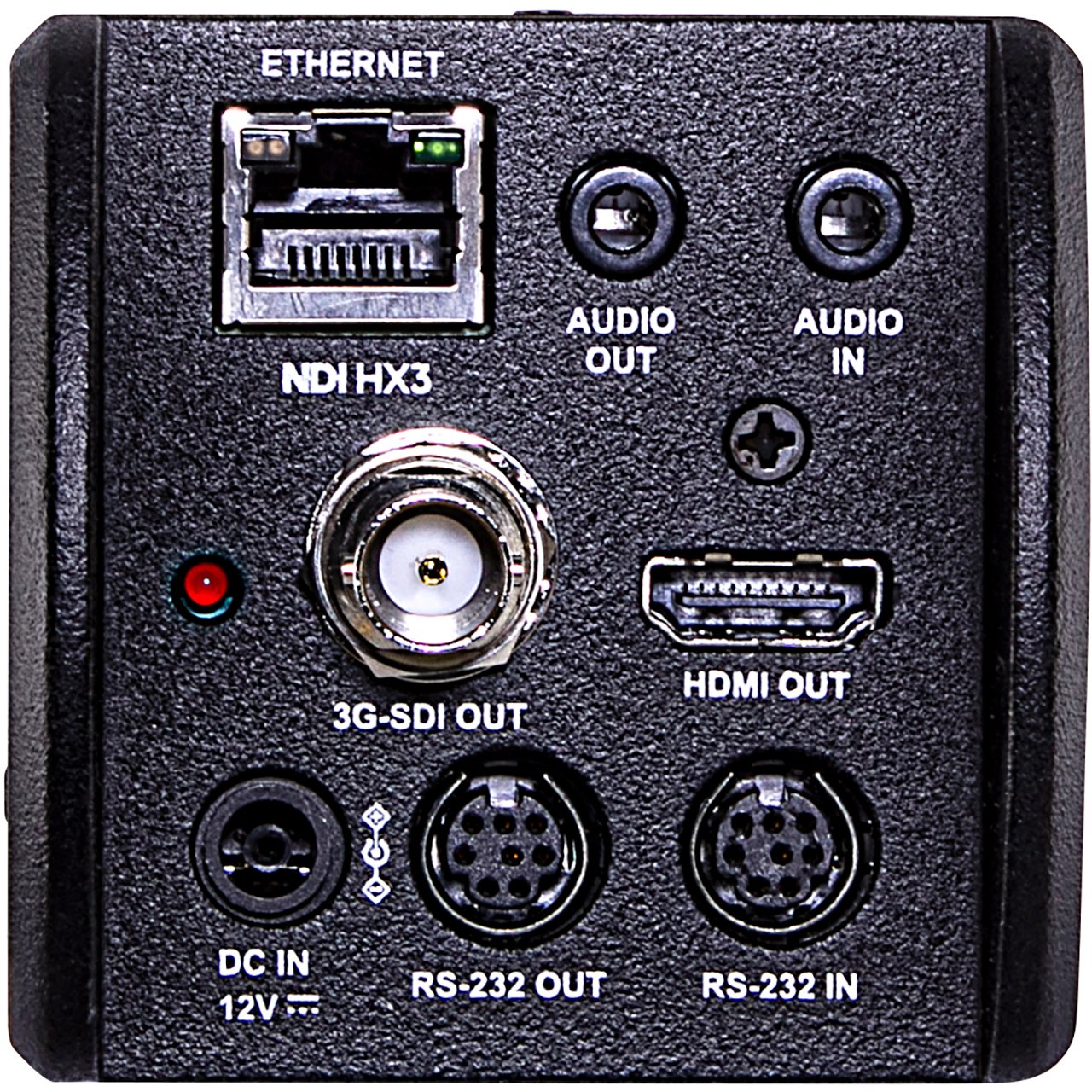

    • Line In: 1x 3.5mm phone jack
    • Line Out: 1x 3.5mm phone jack
    • Audio Output: HDMI/3G-SDI/RTSP/RTMP/SRT
    • Audio Type: Stereo, Unbalanced
    • Audio Compression Format: AAC
    • HDMI: 1x
    • Audio Output: Yes
    • HDMI Color Format: RGB/YUV422
    • 3G-SDI: 1x
    • Audio Output: Yes
    • Serial: RS232
    • RS232 In: RS232 In ; Mini-Din 1x
    • RS232 Out: RS232 Out ; Mini-Din 1x
    • Ethernet RJ45 Port: 1x ; 1Gbps
    • Number of Clients(Connection): RTSP 1080P60 *5
    • Network Protocol: DHCP, DNS, HTTP, HTTPS, IPv4, NTP, RTSP, RTCP, RTP, TCP, UDP
    • Network Security: No Critical Issues
    • Serial Control:
      - 1x RS-232 In
      - 1x RS-232 Out
    • Protocol: VISCA
    • Baud Rate: 9600/38400
    • Network:
      - Webpage
      - HTTP CGI
      - HTTP API
      - Onvif Profile S
      - VISCA over IP
    • Tally Light: Yes; Red
    • Service Button: NA
    • Power Supply:
      - POE ; IEEE 802.3af
      - DC 12V/3A ; EIAJ Type 4
    • Weight: 4.05lbs (1.8kg)
    • Dimensions: 11" x 8" x 4" (279.4mm x 203.2mm x 101.6mm)

  • Item Includes:

    • 1x CV355-27X-ND3 Full HD60 27x Optical Zoom Camera

  • Warranty:

    • 1 Year Limited Warranty
