Marshall CV420-30X-IP Compact 30x UHD60 Zoom Block 8.5MP Camera 2160p (IP- HDMI 2.0)
  • Marshall CV420-30X-IP Compact 30x UHD60 Zoom Block 8.5MP Camera 2160p (IP- HDMI 2.0)
  • Marshall CV420-30X-IP Compact 30x UHD60 Zoom Block 8.5MP Camera 2160p (IP- HDMI 2.0)
  • Marshall CV420-30X-IP Compact 30x UHD60 Zoom Block 8.5MP Camera 2160p (IP- HDMI 2.0)

Questions? Ask a Markertek Expert:
800-522-2025 Email

Marshall CV420-30X-IP Compact 30x UHD60 Zoom Block 8.5MP Camera 2160p (IP- HDMI 2.0)

Manufacturer: Marshall Electronics

Item #: MAR-CV420-30X-IP   •   MFG #: CV420-30X-IP



List Price:$1,799.00
Our Price:$1,699.00

free ship


Availability: Preorder
i
Item is not yet shipping from the manufacturer. We enjoy great relationships with our suppliers/manufacturers and take pride in our quick turnaround. Place your order today to ensure you will be one of the first to receive this item once it begins shipping from the manufacturer.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

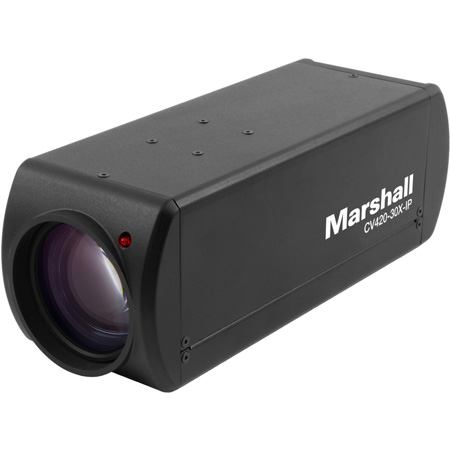

    The Marshall CV420-30X-IP ZoomBlock Camera offers stunning UHD 3840x2160p networked video output paired with a 30X optical zoom block for enhanced versatility and performance.

    Brilliant UHD Video with Enhanced Versatility
    The CV420-30X-IP utilizes an 8MP sensor to capture up to UHD 3840x2160p at 60fps, and support for all HD formats. The 30X optical zoom block offers offers a flexible focal length range (4.6~135mm) for mainting image crispness in both wide and tight shots, and exceptional low-light sensitivity ensures the CV420-30X-IP will maintain a clear picture in variable lighting situations for live events, houses of worship, and eSports stadiums.

    Flexible Output and Control Options
    Simultaneous HDMI 2.0 and streaming IP video outputs with support for RS-232, IP, and USB control offers convenient user control and system integration options.

    Applications:
    Broadcast Sports
    Broadcast Television
    Courtrooms
    eSports Broadcast
    Lecture Capture
    House of Worship
    Government Assembly
    Live Music and Events
    Studio Production
    Remote Learning
    Cinematic Productions


    • Features

      • 8.5 Megapixel (1/2.5") UHD sensor
      • 30X Optical Zoom (4.6~135mm) - 68§ AOV
      • Up to 3840x2160, 1920x1080, and 1280x720p
      • Frame-rates: 60/59.94/50/30/29.97/25fps
      • IP (H.265/264/MJPEG) & HDMI 2.0 simultaneous outputs
      • Supports H.265/264 encoding (video and audio), PoE, and control over ethernet
      • RS-232 Triple-stream IP structure
      • 3.5mm audio input with pass-through
      • Onvif compliant

    • Specifications

      • Sensor: 1/2.5" 8MP CMOS
      • Video Format: Resolution: 3840x2160p (UHD), 1920x1080p (HD), 1280x720p Frame-rate : 59.94/50/29.97/25 fps
      • Optical Zoom: 30x
      • Focal Length: 4.6mm ~ 135mm
      • Angle-of-View (Horizontal): 68° ~ 3.5°
      • Aperture: F1.5 - F3.4
      • Shutter Speed: 1/1 - 1/10,000 sec
      • Minimum Object Distance: 1.5m (Wide/Tele)
      • Video S/N Ratio: >50dB
      • Color Color: 0.1 Lux, F1.6, 50 IRE, AGC on
      • Night: BW: 0.02 Lux, F1.6, 50 IRE, AGC on
      • Day and Night: Mechanical IR Cut Filter
      • Day and Night Control: Modes: Auto, Color, Black/White
      • Preset Points: 128
      • Patrol Group: 4
      • Iris Control: Auto or Manual (remote control)
      • Lens Control:
        Autofocus: Auto, One-Push fast AF, Interval
        AF, Zoom Trigger AF, Zoom Tracking, ICR
        Compensation AF
      • Exposure Control:
        Auto mode: True WDR Manual mode: shutter speed 1/1~1/10000
        Shutter-Priority mode: shutter speed 1/1~1/10000
        Flickerness mode: shutter speed, NTSC=1/60, PAL=1/50
      • Gain Control: AGC Manual gain
      • White Balance: Auto (2500K~7500K) ATW (2000K~10000K) Manual WB (R/B gain, One-push WB) Indoor (3200K) Outdoor (5800K)
      • Backlight Compensation: On/Off
      • Defog: Yes
      • EV Compensation: Auto/Flickerless/Shutter-Priority Mode: -7~+7
      • Gamma Correction: Yes
      • Sharpness: Configurable
      • Noise Reduction: 2D/3D NR
      • Dynamic Range: Ture WDR, 120dB
      • Privacy Mask: Spherical Privacy Zone Mask
      • Video Orientation: OFF, Flip, Mirror, Both
      • EIS: Yes
      • Video Profile: Multiple video profiles
      • Video Standard: H.265, H.264, MJPEG, Haivision SRT
      • Multiple Video Stream: Triple streaming structure H.265 8M 60fps + H.264 2M 60fps + H.264 D1 30fps + HDMI
      • Audio Compression Format: G.711
      • Data Rate: CBR (64~20000, default 8000) CVBR (64~20000, default max 8000) VBR (1~10) MJPEG (high, mid, low)
      • System Compatibility: ONVIF profile S
      • Protocols: ARP, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4/6, NTP, RTSP/RTCP/RTP, QoS, SMTP, SNMP, TCP, TLS/TTLS, UDP, UPnP, 802.1X, SRT, MPEG-TS
      • Internet Security: IEEE 802.1X HTTPS

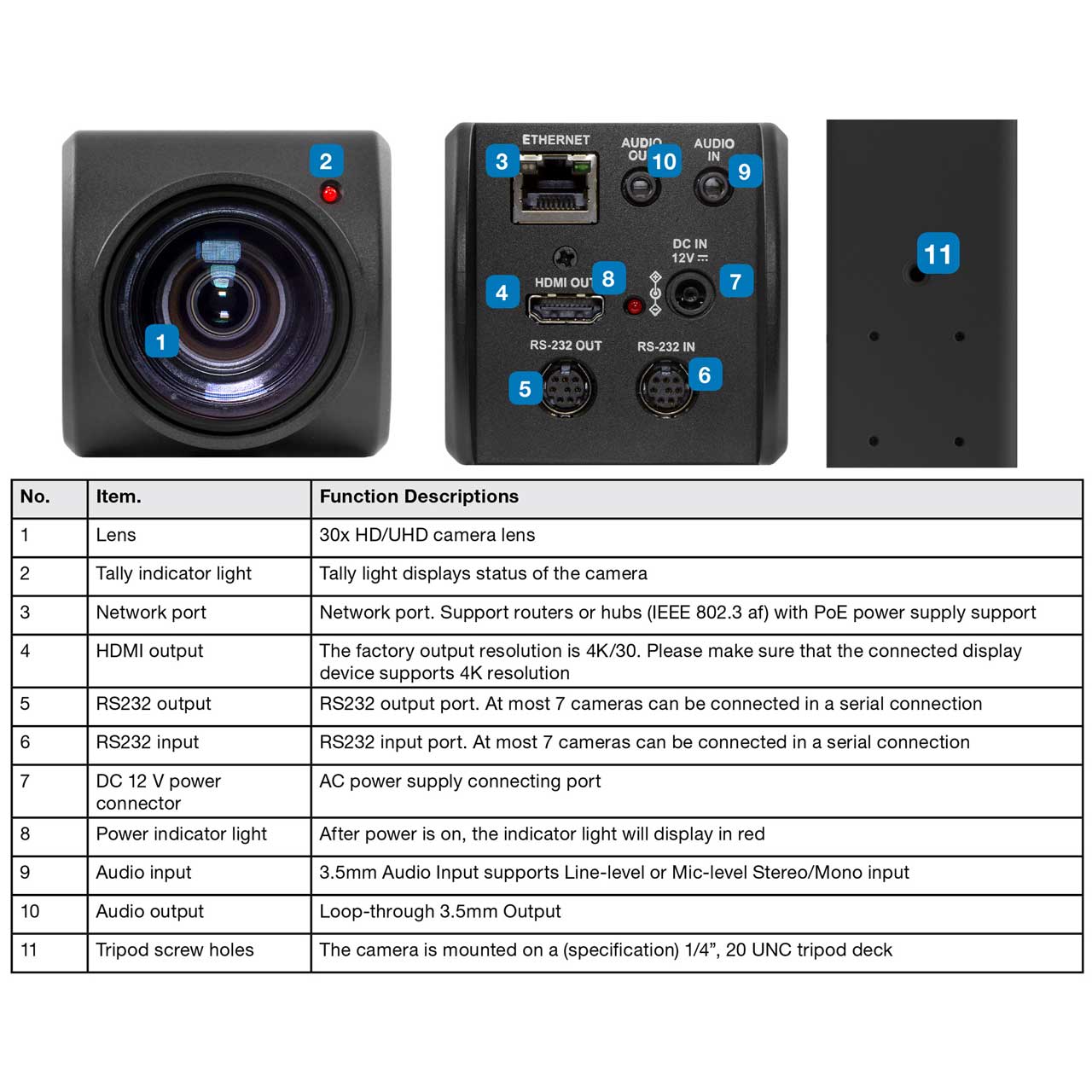

      • Control Interface: RS-232 and IP
      • HDMI Output: HDMI 2.0
      • Audio Out: Line Out, 3.5mm (Stereo/Mono)
      • Audio In: Line In, 3.5mm (Stereo/Mono)
      • RS-232 In: 8 Pin Mini-Din
      • RS-232 Out: 8 Pin Mini-Din
      • DC In: 12V ±20%
      • PoE: 802.3 af
      • Power Consumption: < 12W
      • Storage Temp: -4° to 140°F (-20° to 60°C)
      • Operating Temp: 32° to 104°F (0° to 40°C)
      • Weight: 2.20Lbs (1kg)

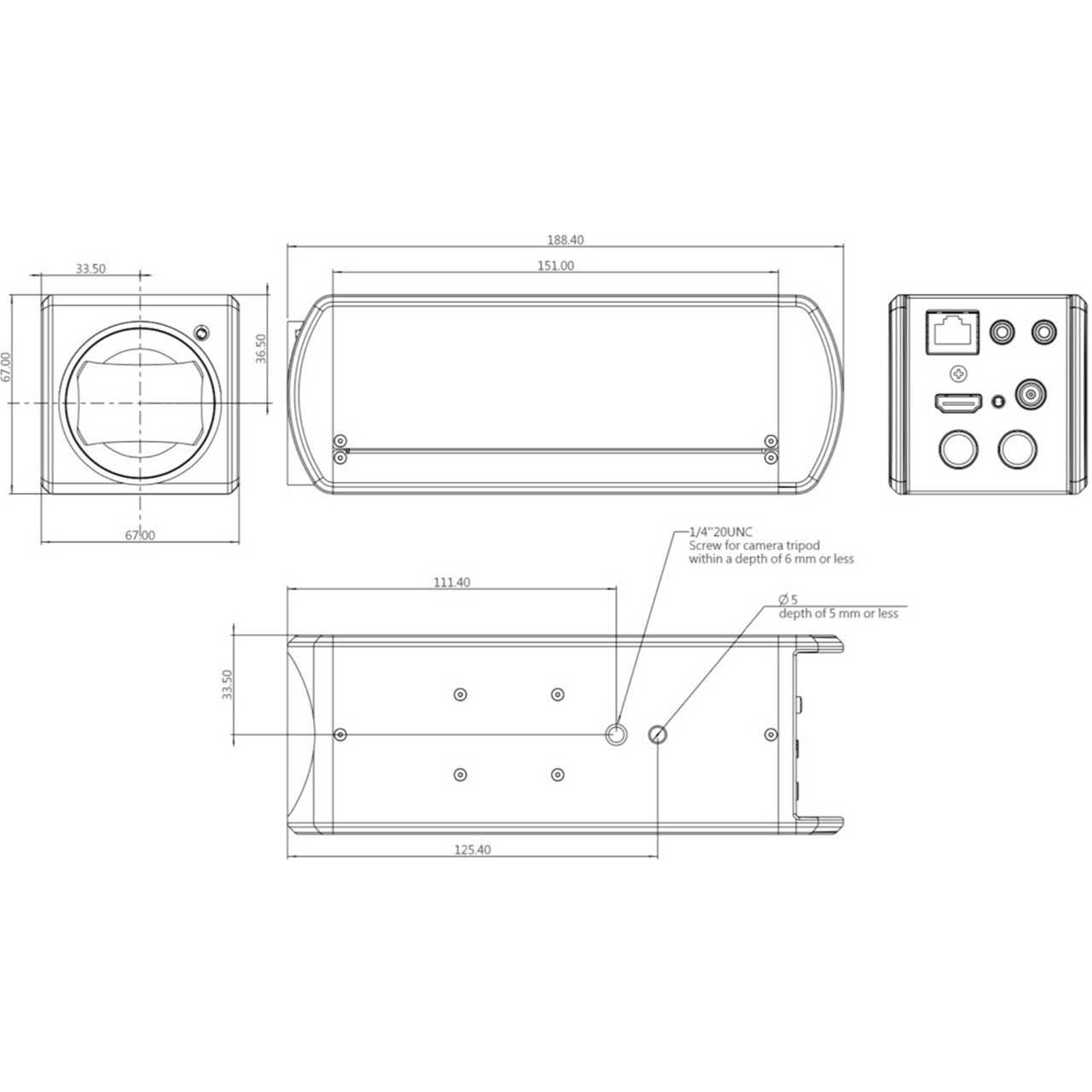

      • Dimension(LxHxW): 7.42 x 2.64 x 2.64" (188.4 x 67 x 67mm)

    • Item Includes

      • 1x CV420-30X-IP
      • 1x Power Cord
      • 1x Power Adapter

    • GTIN:

      0801813192438
