Marshall CV625-TWN 4K60 25x Optical Zoom AI Tracking and Following Dual Camera PTZ - White

ITEM #: MAR-CV625-TWN MFG #: CV625-TWN

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$3,999.95

Our Price:

$3,339.95

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


CV625-TWN - Overview

4K UHD AI PTZ with 8-Megapixel 1/1.8 inch Sony sensor!

The Marshall CV625-TWN PTZ camera features AI tracking, following, and framing to deliver a more accurate, smoother, self-adjusting presentation. The 4K UHD CV625 cameras feature a high-performance 8-Megapixel 1/1.8" sensor to capture crisp, high-quality UHD video. The camera delivers up to 3840x2160 resolution at 60 frames per second (fps) with an 60° horizontal angle of view. The second static camera is a wide-angle view camera made for that panoramic angle of view. Streamline your workflow with Marshall's AI Auto-Tracking PTZ cameras and NDI HX2/NDI HX3 network solution. The CV625 offers versatility for various applications with its range of outputs, including 4K HDMI/RTSP/NDI streaming, Full HD 3G-SDI, Ethernet, and USB 3.0. Combining a 2-camera featured set for both remote and live installations, where the versatility of having a panoramic view of the area and a focused view of the subject or content is vital.

AI Auto Track, Follow and Frame
Take the reins of your production with our AI auto-tracking system, designed to be proactive and predictive. This cutting-edge technology allows you to follow and frame presenters with natural and smooth maneuvers. Use the auto-tracking feature along with the panoramic camera to capture the perfect presentation. With the ability to pan, tilt, and zoom, the system uses AI to recognize faces and learn the movement dynamics of the subject, thereby anticipating motion and ensuring accurate following and framing with smooth transitions.

Two Camera Production
This 4K UHD camera is equipped with a two-camera set featuring a perfect combination for both your remote and live presentations. With an optical 25x zoom lens, ideal for capturing the presenter or a focused presentation in 4K while having a fixed panoramic wide view of the audience, and the capability to display a head count.

Crisp Full-HD Video Output
This camera is built around a professional-grade 8-Megapixel 1/1.8" Sony sensor with smooth 25x Optical Zoom (7.1mm - 171.95mm) producing clear UHD video up to 3840x2160p60 with NDI HX2/NDI HX3, SRT, and IP. Smart AI auto-focus identifies faces and maintains accurate and sharp focus of subjects.

  • Features:

    • Accurate auto-track, follow and frame
    • 8 Megapixel FHD Sensor (1/1.8") - 2160p, 1080p, & 720p (progressive), and 1080i (interlaced HDMI Output only)
    • 3G-SDI, HDMI, Ethernet and USB outputs
    • 25x optical zoom (7.1mm - 171.95mm) starting at 60° H.AOV, and fixed base M12 lens camera at 83° H.AOV
    • 340° pan and 120° tilt range with selectable PTZ maneuver speeds
    • IP Formats: VISCA/VISC over IP/ONVIF/NDI
    • Stream Protocols: RTSP/RTMP/RTMPS/SRT/NDI HX2/NDI HX3
    • 3.5mm TRS Stereo Audio Input (Line In) embedding on all available outputs
    • PoE+ (IEEE802.3at), DC: 23.5W (max), PoE: 24.5W (max)

  • Specifications:

    • Sensor 1: 1/1.8" 8MP (IMX678)
    • Video Format:
      - 2160p: 59.94/50/29.97/25
      - 1080p: 59.94/50/29.97/25
      - 720p : 59.94/50/29.97/25
      - 1080i: 59.94/50 (HDMI Only)
    • Video Output (HD) Interface: HDMI/3G-SDI/Ethernet/USB 3.0
    • Optical Zoom: 25x
    • Horizontal Viewing Angle: 60° (±5%)
    • Focal Length: 7.1mm - 171.95mm ±5%
    • Minimum Object Distance:
      - Tele: 1.5m
      - Wide: 1.5m
    • Minimum Illumination: 0.1 lux (F1.6, 50IRE, 30fps)
    • Sensor 2: 1/2.8" 8M (IMX415)
    • Video Format: 2160p: 60fps
    • Horizontal Viewing Angle: 83.1°
    • People Counting: Yes
    • Tracking Distance: 2m - 18m
    • Panning Angle: +170° - 170°
    • Panning Speed: 0.1° - 100°/sec
    • Tilting Angle: +90° - -30°
    • Tilting Speed: 0.1° - 60°/sec
    • Tally Light: Yes
    • Preset Positions: 256
    • Focus System: Auto/Manual
    • Gain Control: Auto/Manual
    • White Balance: Auto/Manual
    • Exposure Control: Auto/Manual
    • WDR: Yes
    • 3D NR: Yes
    • Image Flip: Yes
    • Auto Tracking: Yes
    • Auto Framing: Yes
    • SNR: ≥ 50dB
    • Minimum Illumination: 10 Lux
    • Power Supply: DC, 12V@3A
    • Power Consumption: DC Input ≤ 23.5W PoE(802.3at) ≤ 24.5W
    • HDMI Video Output:
      - 2160p: 59.94/50/29.97/25
      - 1080p: 59.94/50/29.97/25
      - 720p: 59.94/50/29.97/25
      - 1080i: 59.94/50
    • 3G-SDI Video Output:
      - 1080p: 59.94/50/29.97/25
      - 720p: 59.94/50/29.97/25
      - 1080i: 59.94/50
    • Stream Protocol: RTSP/RTMP/RTMPS/SRT/NDI HX2/NDI HX3
    • IP Stream PTZ Camera Video Output:
      - Stream 1: H.264/HEVC 2160p 60fps
      - Stream 2: H.264/1080p 30fps
    • IP Stream Panoramic Camera Video Output: H.264 2160p 60fps
    • IP Compression: H.264, HEVC
    • USB Format:
      - H.264: 2160p 30fps
      - MJPEG: 1080p 60fps
      - YUV2: 480p 60fps
      - HEVC: 1080p 60fps
      - NV12: 480p 60fps
    • UVC Video Compression: H.264/MJPEG/YUV2/NV12/HEVC
    • Video Latency:
      - HDMI/SDI: ≤ 67ms
      - Stream: ≤ 150ms
      - UVC 4K@30: ≤ 160ms
      - UVC 1080p@60: ≤ 160ms

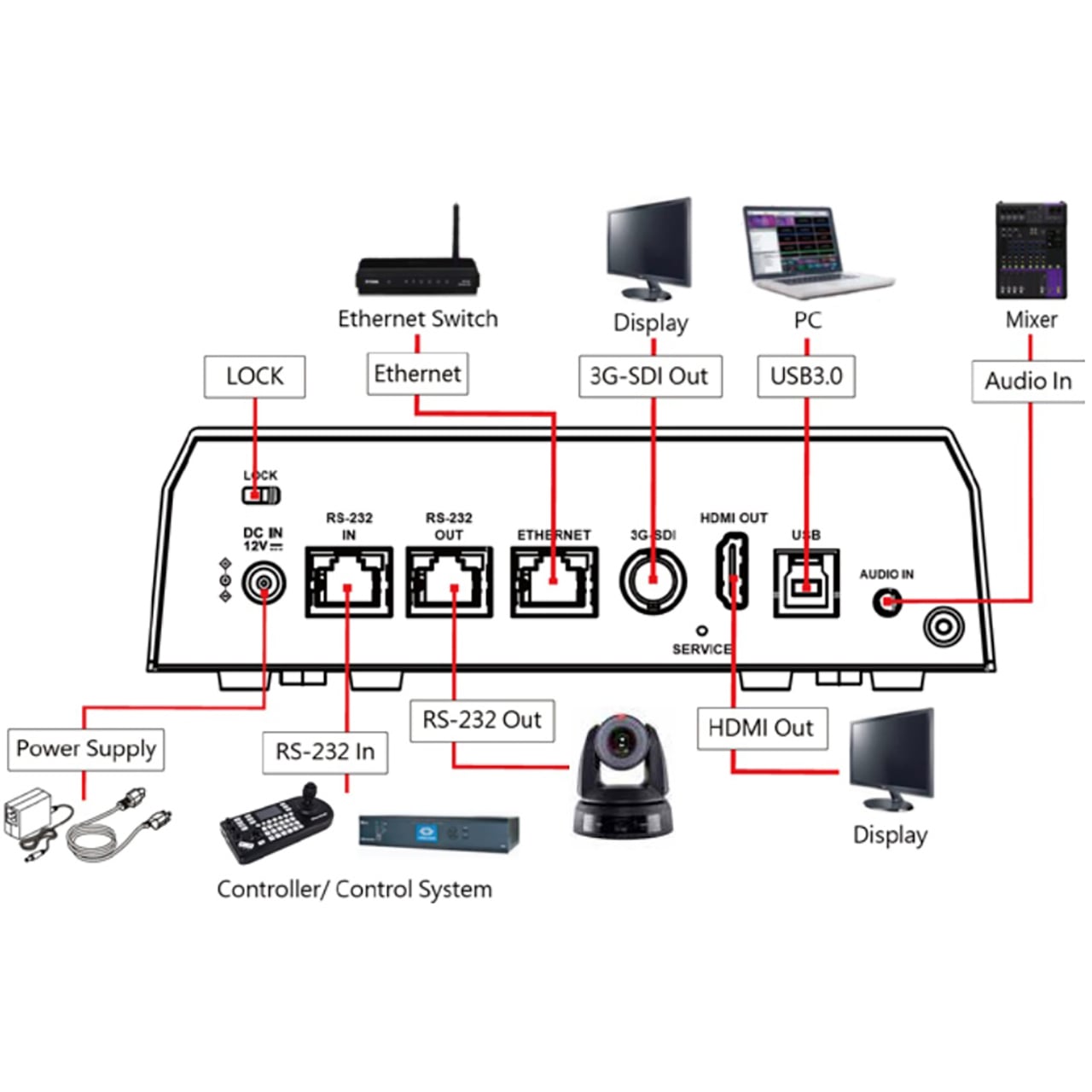

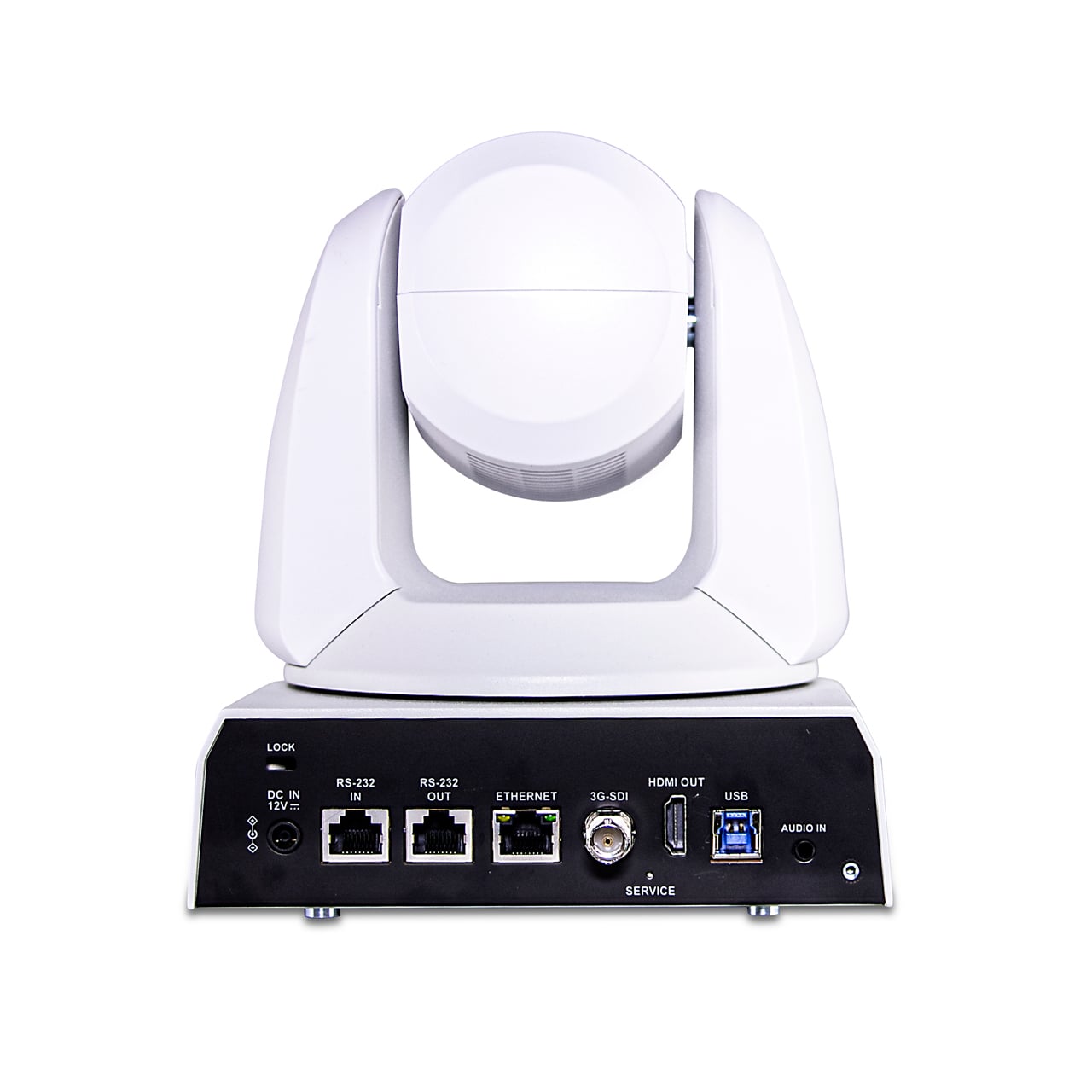

    • Input: 1x 3.5mm Line In
    • Output: HDMI/3G-SDI/USB/Ethernet
    • Compression Format: AAC
    • USB Port: 1x USB 3.0 Type-B
    • HDMI Out: 1x HDMI
    • SDI Out: 1x 3G-SDI
    • Network: 1x RJ45 10m/100m/1G
    • Interface: RS-232/Ethernet/Remote/USB
    • Protocol: VISCA/VISC over IP/ONVIF/NDI
    • Communication Baud Rate: 9600 (Default) & 38400
    • HTTP API Command: Yes
    • Remote Controller:
      - Infrared Remote Control
      - Infrared Remote Control Distance: 15m
      - Remote Control Angle: ±15°
    • Remote Control: Yes, 40KHz
    • OSD Menu: English
    • Webpage: English

  • Item Includes:

    • 1x Camera
    • 1x Power Adpater
    • 1x Power Cord
    • 1x USB 3.0 Cable - 6.6 Foot
    • 1x Remote Control
    • 1x Metal Plate A
    • 1x Metal Plate B
    • 10x Screws

  • Warranty:

    • 1 Year Limited Warranty
