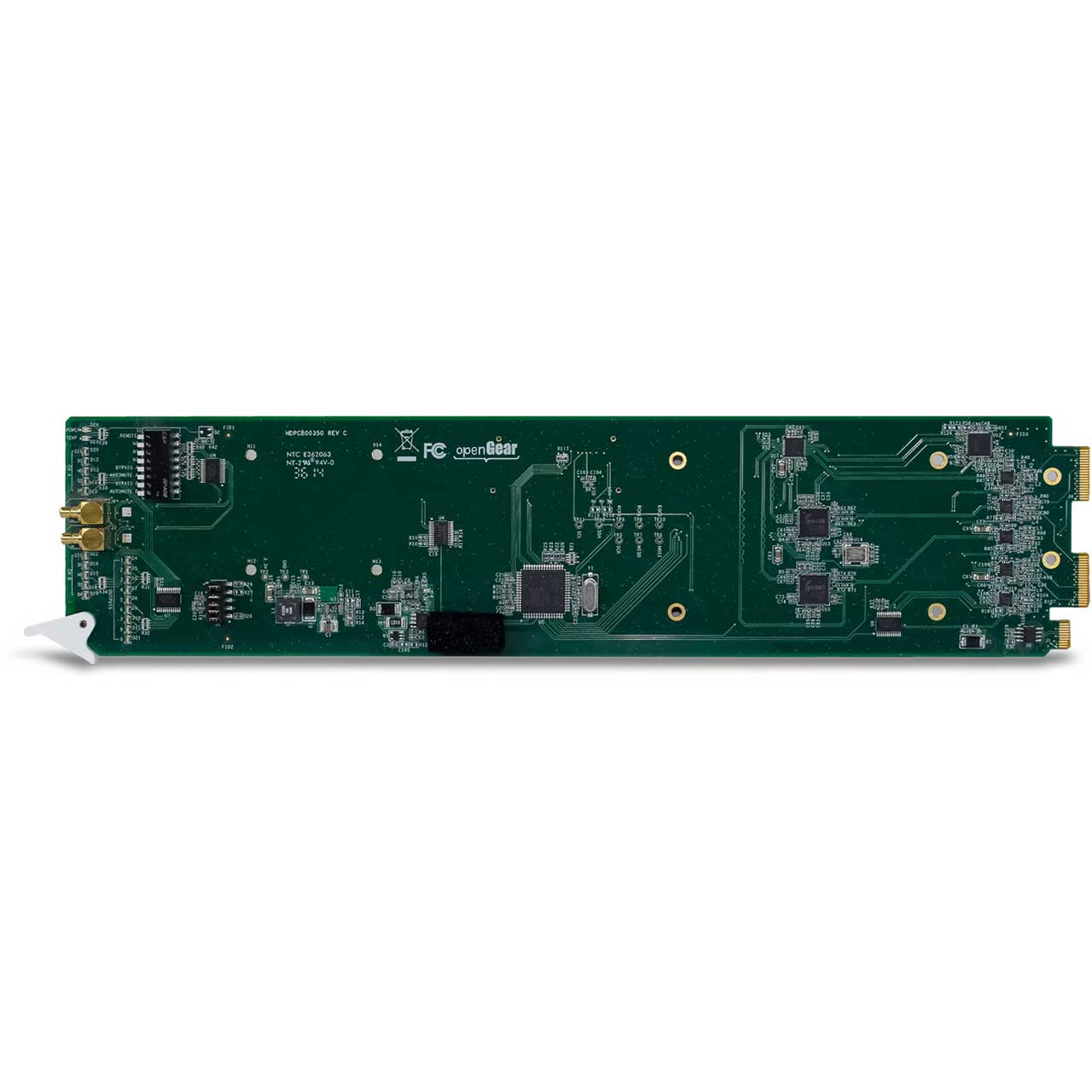

Multidyne VDA-2419 3G/HD/SD Distribution Amplifier Card for openGear Frames

ITEM #: MD-VDA-2419 MFG #: VDA-2419

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    VDA-2419 - Overview

    Multidyne VDA-2419 is a multi-rate SDI digital video distribution system for distributing up to nine signals from a common input or two groups of four signals from two inputs. It also can handle other data rates within the range and specifications of SDI signals. This is pre-sented in a single slot openGear card.

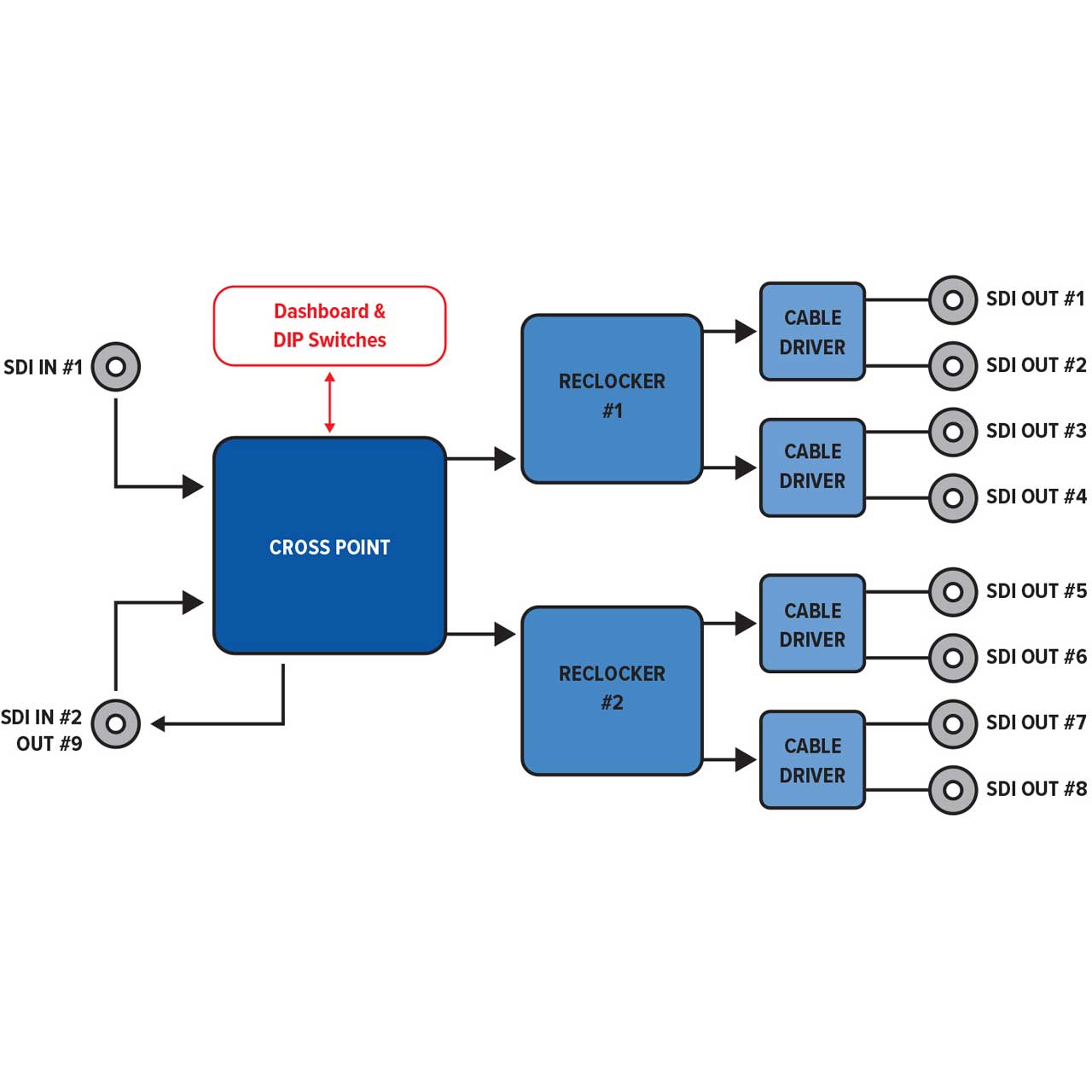

    The VDA-2419 incorporates an integrated cross-point matrix that allows not only the ability to assign a given input signal to one or more outputs but also to enable and disable outputs should the need arise. The VDA-2419 has an automatic fail-over mode that, when selected will switch to the second input should the signal in the first input somehow fail or become corrupted. All outputs are non-inverting and ASI capable. An auto-mute feature will silence any input whose signals are under 20Mbps.

    All of this is easily controlled either via dip switches on the front card edge or via the openGear Dashboard Management Software (DBM). There is also a lock-out on the card that prevents the card parameters from being changed remotely via DBM.

    Inter-facility Signal Distribution
    QC Monitoring
    Split Feeds
    OB Inter-connects Transmission

    • Features:

      • Automatic Rate Detection/Display For All Popular Data Rates
      • ASI Distribution On All Outputs
      • Equalizes Up to 120m of Belden 1694A Cable at 3Gbit
      • Equalizes Up To 150m Of Belden 1694A Cable At 1.485 Gbit
      • Remote Monitoring Via DashBoardr Software
      • Configure Locally or Remotely Via DBM
      • Integrated Cross-Point
      • Selectable Auto-Mute & Reclocking
      • Auto Fail-over Mode
      • Enable/Disable Individual Outputs
      • Hot Swappable
      • Designed & Manufactured in New York
    • Specifications:

      • 3G/HD/SD-SDI Input
      • Bit Rates: 5Mbps to 3Gbps
      • # of Inputs: 1 or 2 BNC
      • Impedance: 75 Ohms
      • Standard: SMPTE 425M, 297M, 292M, 259M-C & DVB-ASI
      • Return Loss: >15 dB at 5 MHz - 1.485 GHz, >10 dB at 1.5 GHz to 3 GHz

        3G/HD/SD-SDI Output
      • # of Outputs: 4 or 9 (ASI Compatible)
      • Impedance: 75 Ohm
      • Signal Level: 800 mV nominal pp
      • Return Loss: >15 dB at 5 MHz - 1.485 GHz, > 10 dB at 1.5 GHz to 3 GHz
      • Jitter (Wideband) HD: < 0.3 UI

        Cable Length Equalized (w/Belden 1694A)
      • 3 Gbps >120m
      • 1.485 Gbps >150m
      • 143-360 Mbps >350m

        Mechanical, Environmental
      • Power: <5 watts
      • Temperature: 0 to +70C
    • Item Includes:

      • 1x Multidyne VDA-2419 3G/HD/SD Distribution Amplifier Card for openGear Frames
    • Warranty:

      • 3 Year Warranty
