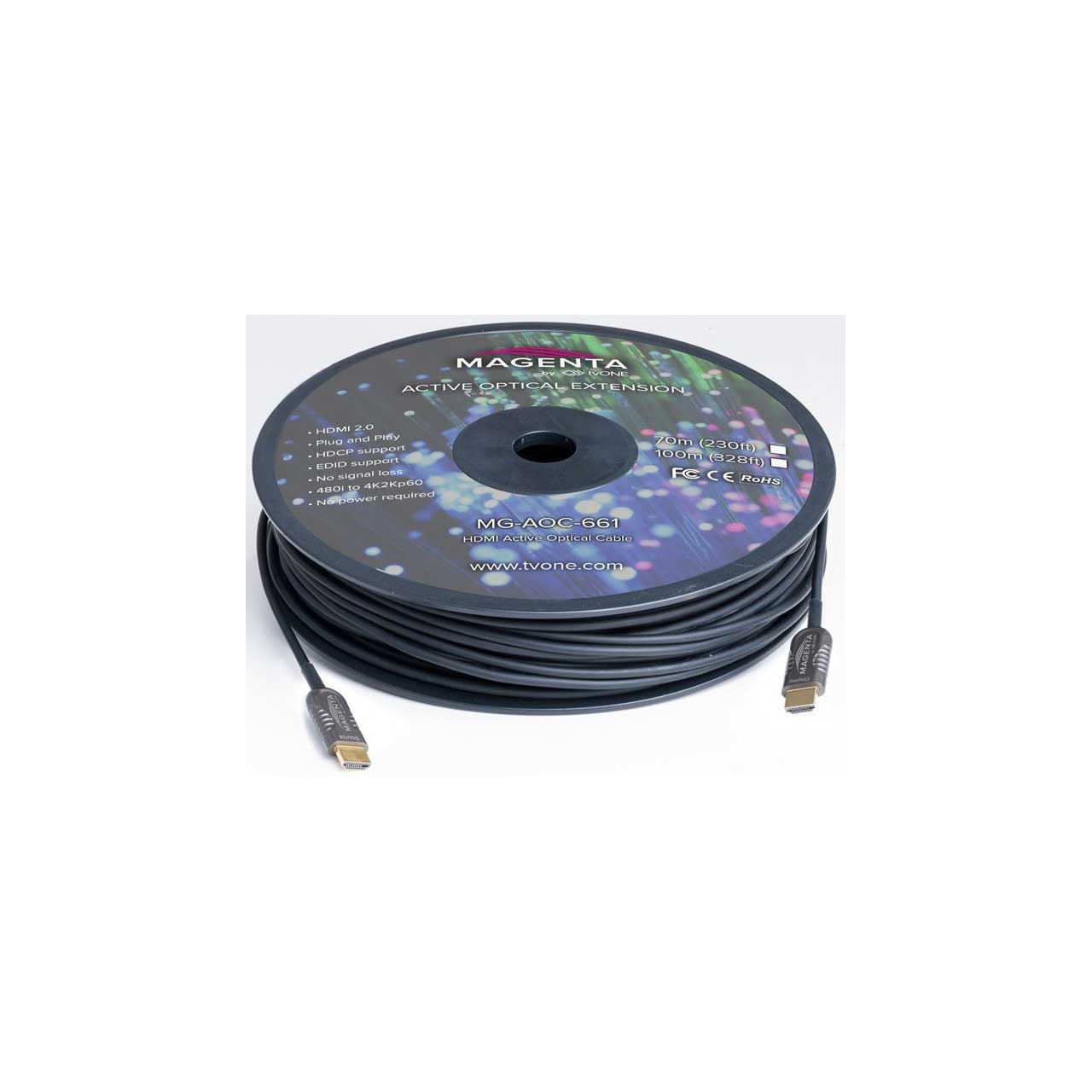

Magenta Research MG-AOC-661-10 HDMI 2.0 Active Optical Cable - 32 Foot (10 Meter)

ITEM #: MGE-MG-AOC661-10 MFG #: MG-AOC661-10

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    MG-AOC661-10 - Overview

    The Magenta MG-AOC-661 Active Optical Cable provides a simple yet powerful solution for extending high resolution over long distances. This plug and play HDMI 2.0 cable supports up to 4K60 4:4:4 with no compression or latency up to 328ft (100m) and without the need for external power and is available in UL rated Plenum (CMP), providing the ultimate flexibility.

    • Features:

      • Up to 328ft (100m)
      • No external power required
      • Plug and Play
      • HDMI 2.0
      • HDCP support
      • EDID support
      • No signal loss
      • 4K2Kp60 down to 480i supported
      • UL rated Plenum (CMP) option available
    • Specifications:

      • Connector Type: HDMI 2.0 type A
      • Cable Type: Hybrid type with OM3 fiber and copper wire
      • Cable Length: 10m, 15m, 20m, 25m, 30m, 40m, 50m, 60m, 70m, 100m (with +/-30cm tolerance)
      • Cable Outer Diameter: 4.5mm
      • Jacket Outer Material: PVC
      • Cable Color: Black
      • Maximum Tensile Load: 15kg
      • Minimum Bend Radius: 20mm
      • Differential Input: 100Ω (typical)
      • Power Consumption: 250mW (max)
      • Power Supply: No external power required
