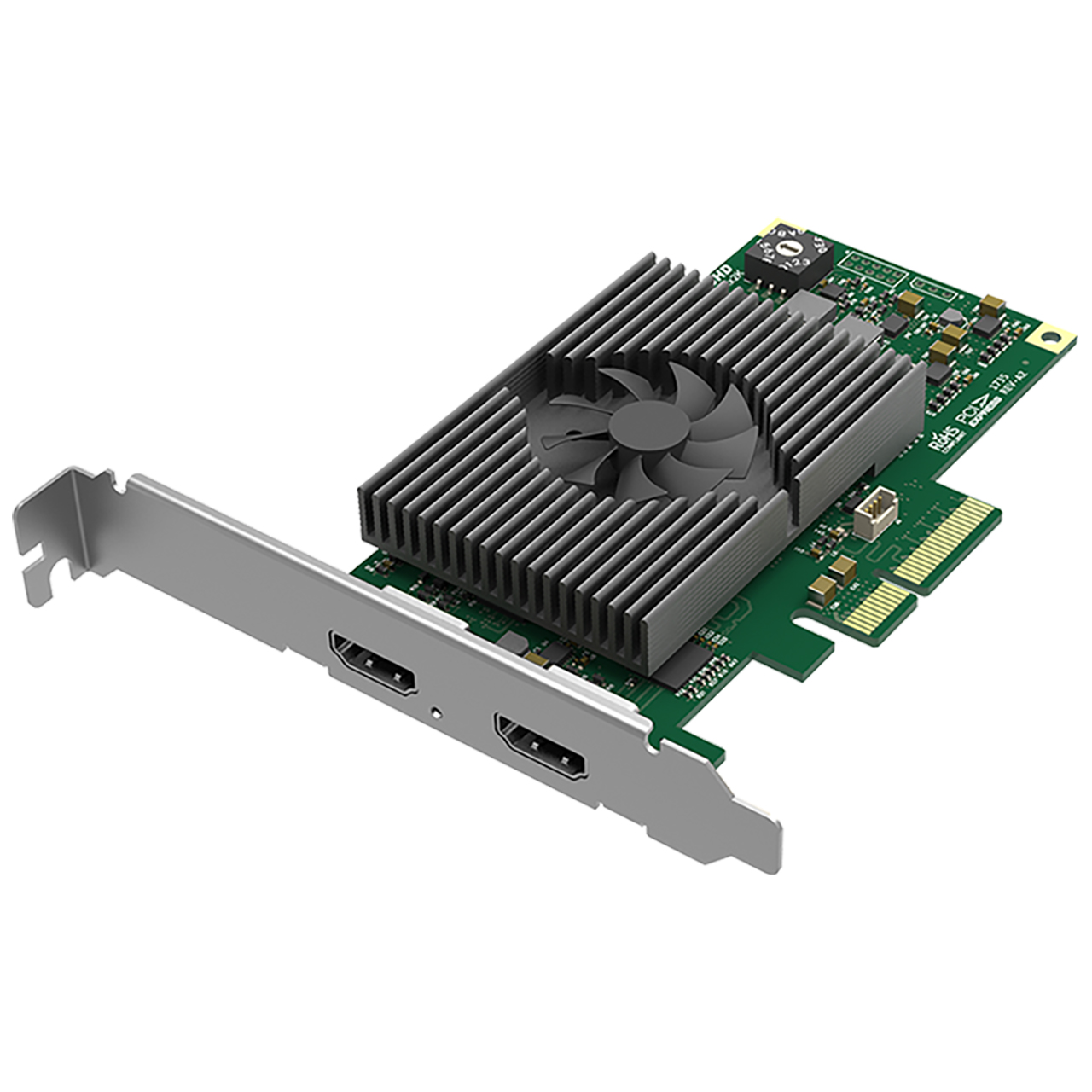

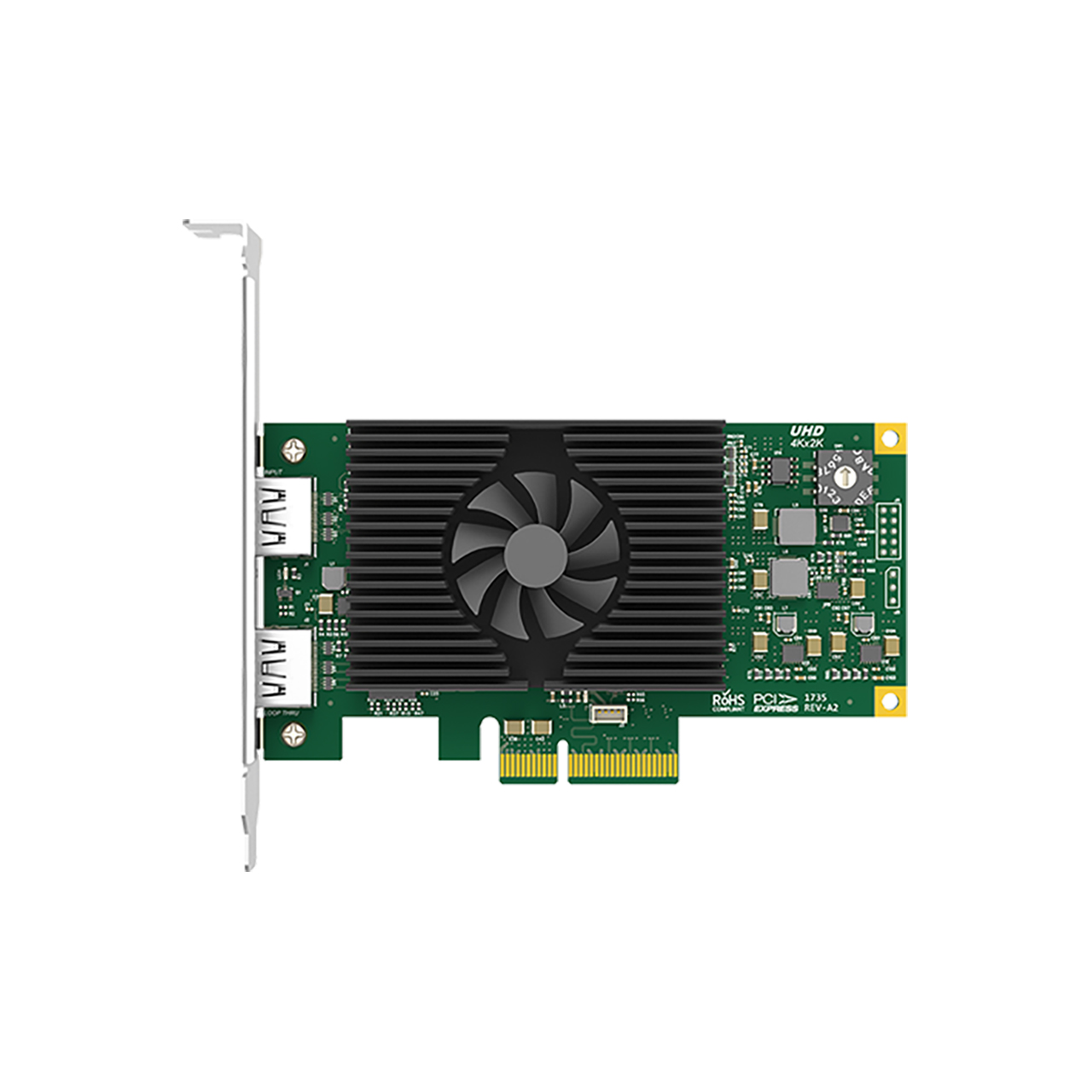

Magewell 11152 Pro Capture HDMI 4K Plus LT Capture Card with HDMI/Embedded Audio - Loop Through HDMI/Embedded Audio

11152 - Overview

Supports Input Resolution up to 4096x2160 Pixels

• Features:

  • Capture HDMI + embedded audio
  • Loop-through HDMI + embedded audio
  • Multiple Capture Streams
  • Low Latency Mode
  • Multiple Devices on One Host
  • Mounting Hole
  • Continuously Work for 24hx7
  • High-speed Memory
  • LED Status Indicator
  • Rotary Switch
  • Windows, Linux and Mac SDK


• Specifications:

  Supported OS
  • Windows:
    - Windows 7/8/8.1/10/11/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64) and above
  • Linux (support x86, x64 & ARM architecture):
    - Ubuntu 12.04/14.04/16.04/17.04/17.10/18.04 (x86 & x64) and above
    - CentOS 6.5/7 (x86 & x64) and above
    - Fedora 25/26/27 (x86 & x64) and above
    - Red hat 6.5 (x86 & x64) and above
    - Other Linux OS with kernel version 2.6.35 and above
  • Mac:
    - OS X 10.9/10.10/10.11 and above
    - macOS* 10.12/10.13/10.14/10.15/11/12/13 (It does not support macOS 14 yet.)
    * More on the way with the upcoming support for macOS 14.x.

    Recommended OS (tested)
  • Windows:
    - Windows 7 Ultimate/8.1 Enterprise/10 Enterprise/Server 2008 R2 DataCenter/Server 2012 R2 DataCenter/Server 2016 R2 DataCenter (x86 & x64)
  • Linux:
    - Ubuntu 12.04/14.04/16.04 (x86 & x64)
    - Ubuntu 17.04/17.10/18.04 (x64)
    - CentOS 6.5/7.2 (x86 & x64)
    - Fedora 25/26 (x64)
    - Red hat 6.5 (x86 & x64)
  • Mac:
    - OS X 10.9.5/10.10/10.11.2/10.11.3/10.11.4
    - macOS 10.12/10.13.2/10.13.3/10.14.3/10.15/11/12/13

    Supported APIs
  • Windows:
    - DirectShow
    - DirectKS
    - Wave API/DirectSound/WASAPI
  • Linux:
    - V4L2
    - ALSA
  • macOS:
    - AVCaptureSession
    - AudioUnit

    Supported Software
  • VLC
  • VirtualDub
  • OBS
  • XSplit
  • vMix
  • VidBlaster
  • Wirecast
  • Microsoft Media Encoder
  • Adobe Flash Media Encoder
  • Any other DirectShow/V4L2/AVCaptureSession encoding/streaming software

    Input Interfaces
  • HDMI:
    - DVI-D 1.0
    - HDMI 2.0

    Host Interface
  • PCIe Gen2 x4

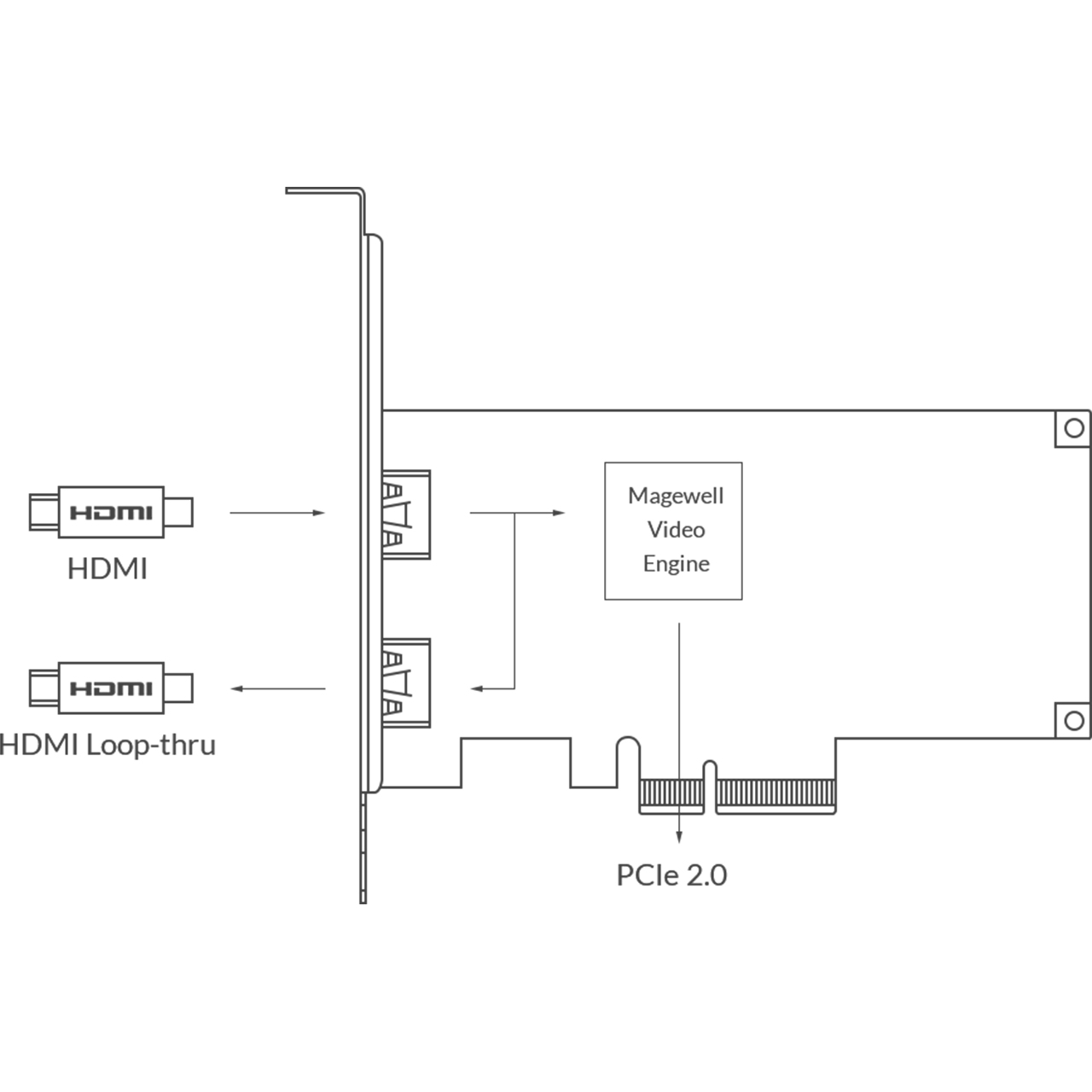

    Loop-through Interface
  • HDMI:
    - DVI-D 1.0
    - HDMI 2.0

    Input Features
  • Support for input video resolutions up to 4096x2160 pixels

    HDMI Specific Features
  • 594MHz HDMI receiver
  • Adaptive HDMI equalizer
  • Support for customized EDID
  • Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut/HDR/VBI InfoFrames
  • Full colorimetry support
  • Support for 8/10/12-bit color depths
  • Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling
  • Support for up to 8-channel IEC60958/IEC61937 audio streams via SDK
  • Support for extraction of audio formation information & channel status data
  • Support for extraction of video timing information
  • Support for extraction of 3D format information
  • Support for extraction of Sony/Canon DSLR time code
  • Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode
  • Support for HDR10

    Video Capture Formats
  • Support for capture image resolutions up to 4096x2160 pixels
  • Support for capture frame rates up to 144fps
  • Support for 4:2:0 8-bit capture formats: NV12, I420, YV12
  • Support for 4:2:2 8-bit capture formats: YUY2, YUYV, UYVY
  • Support for 4:4:4 8-bit capture formats: V308, IYU2, V408, BGR24, BGR32
  • Support for 4:4:4 10-bit capture formats: V410, Y410
  • More capture formats are supported via Magewell Capture SDK

    Video Processing Features
  • Two video processing pipelines with ~720Mpixels/s processing bandwidth for each one
  • Full 10-bit video processing
  • Video cropping
  • Video scaling
  • Video De-Interlacing:
    - Weave
    - Blend top & bottom field
    - Top field only
    - Bottom field only
  • Video Aspect Ratio Conversion:
    - Auto or manual selection of input aspect ratio
    - Auto or manual selection of capture aspect ratio
    - Three aspect ratio conversion modes: Ignore, Cropping or Padding
  • Video Color Format Conversion:
    - Auto or manual selection of input color format & quantization range
    - Auto or manual selection of capture color format, quantization range & saturation range
    - Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats
    - Support for Limited or Full quantization range
    - Support for Limited, Full & 'Extended gamut' saturation range
  • Video OSD Composition:
    - Support for PNG OSD image (up to 4096x2160)
    - Support for dynamic loading of RGBA OSD image via SDK


• Item Includes:

  • 1x Magewell 11152 Pro Capture HDMI 4K Plus LT Capture Card

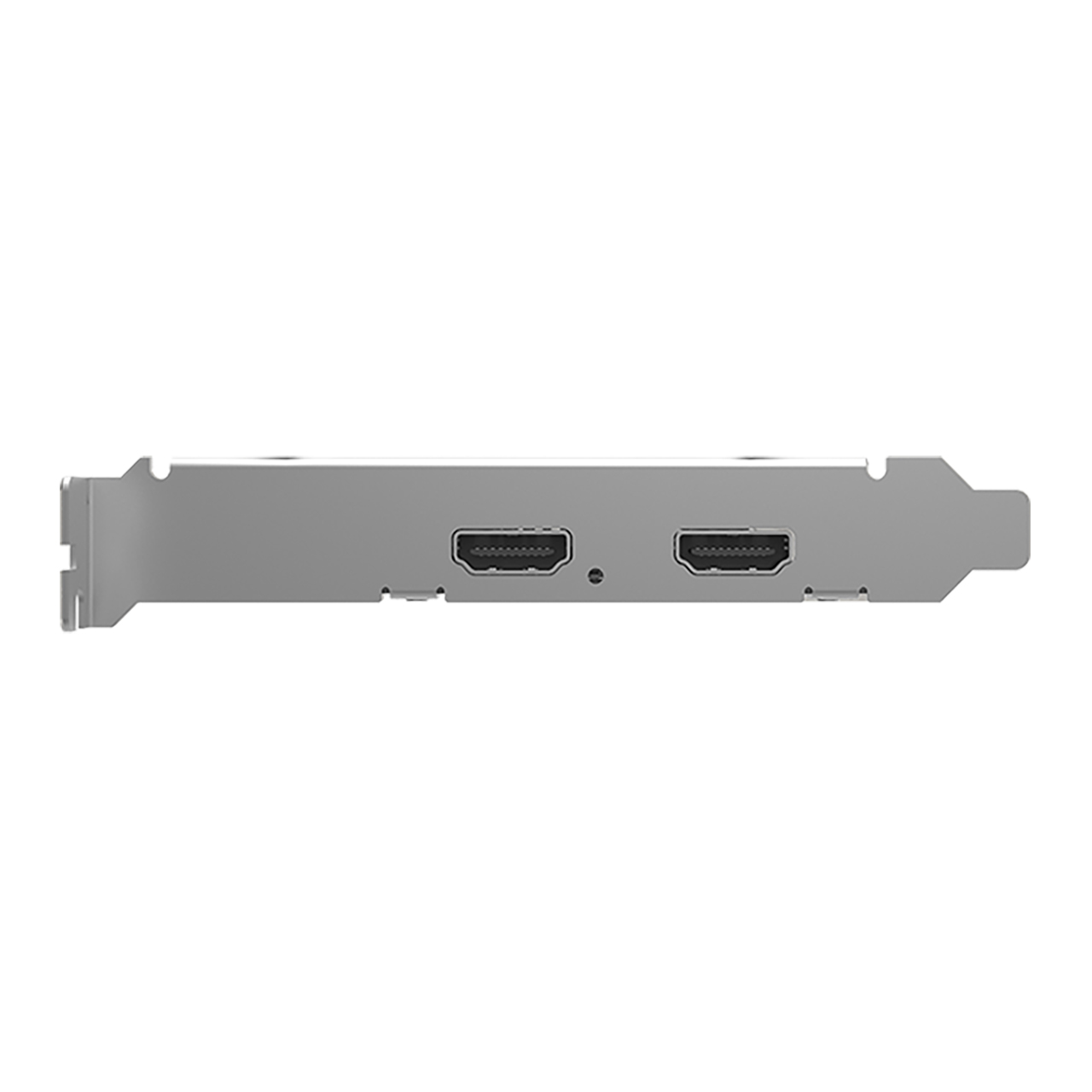

  • 1x Low Profile Bracket


• Warranty:

  • 2 Year Warranty
