    32090 - Overview

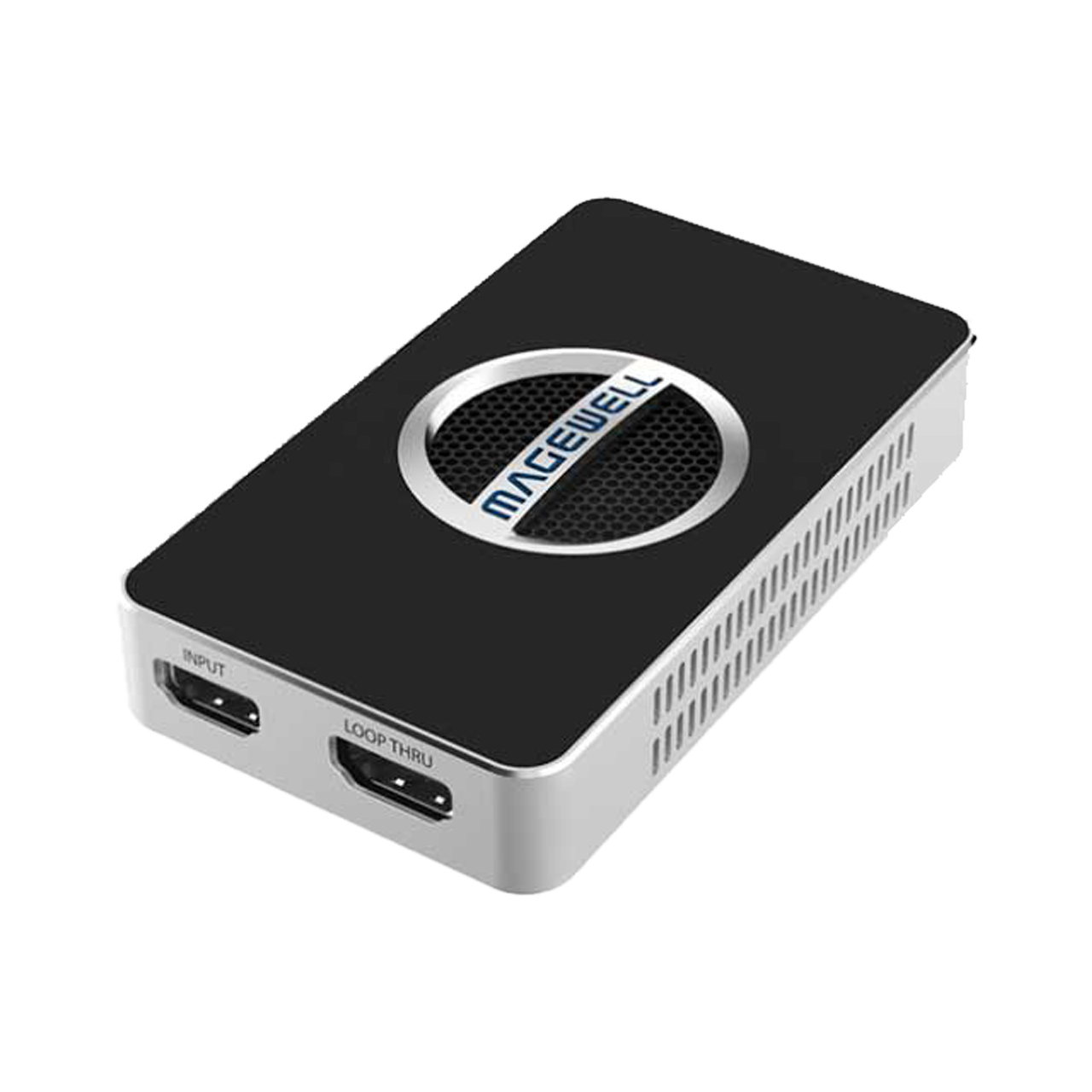

    With a ruggedized metal housing, the Magewell 32090 USB Capture HDMI 4K Plus is a 1-channel 4K capture dongle that has support for HDMI 2.0, 4K 60fps 4:4:4 input signals and can capture HDMI with embedded audio from even the newest game consoles such as PS4 Pro and XBOX One S. It's suitable for all kinds of mobile video capturing settings, even for outdoor use.

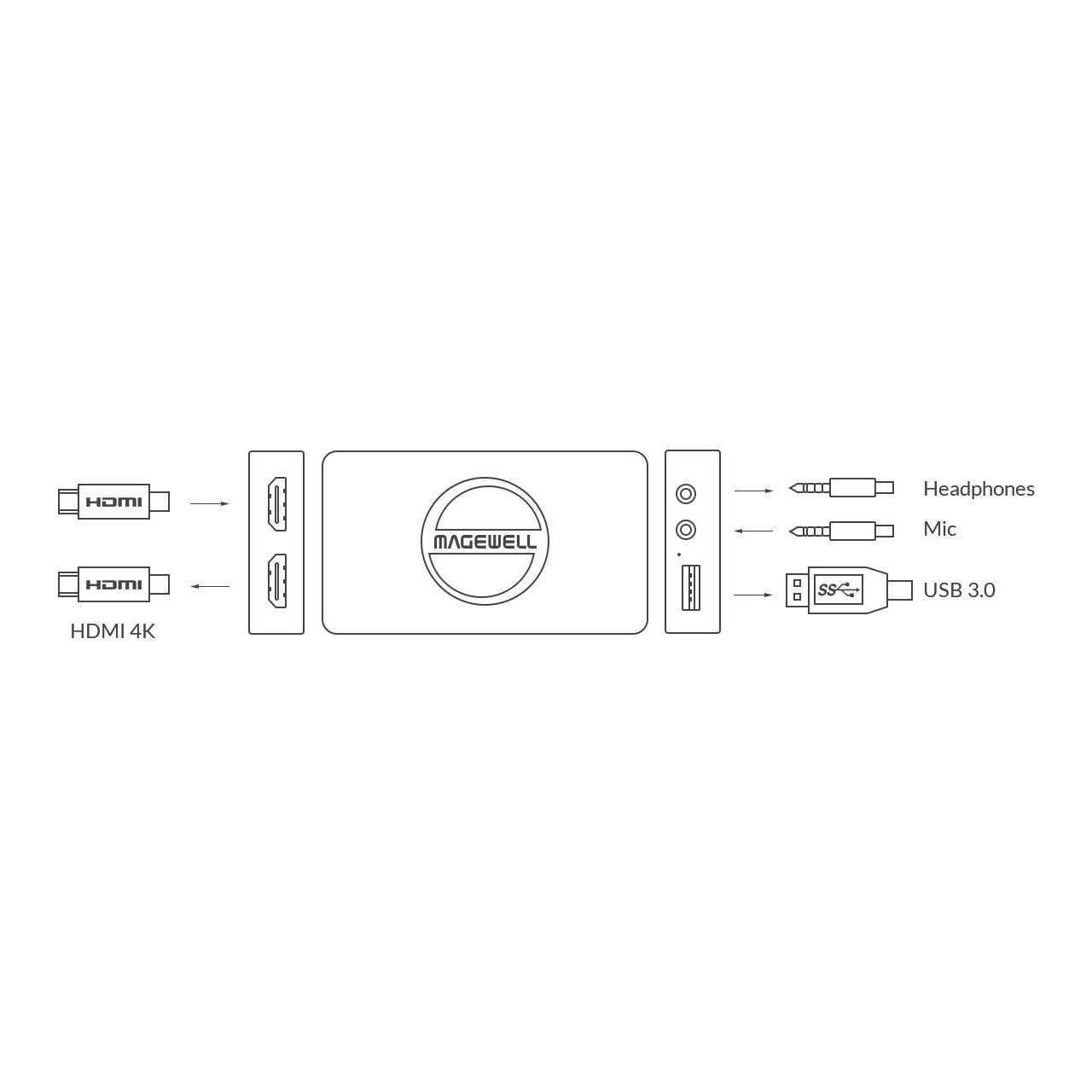

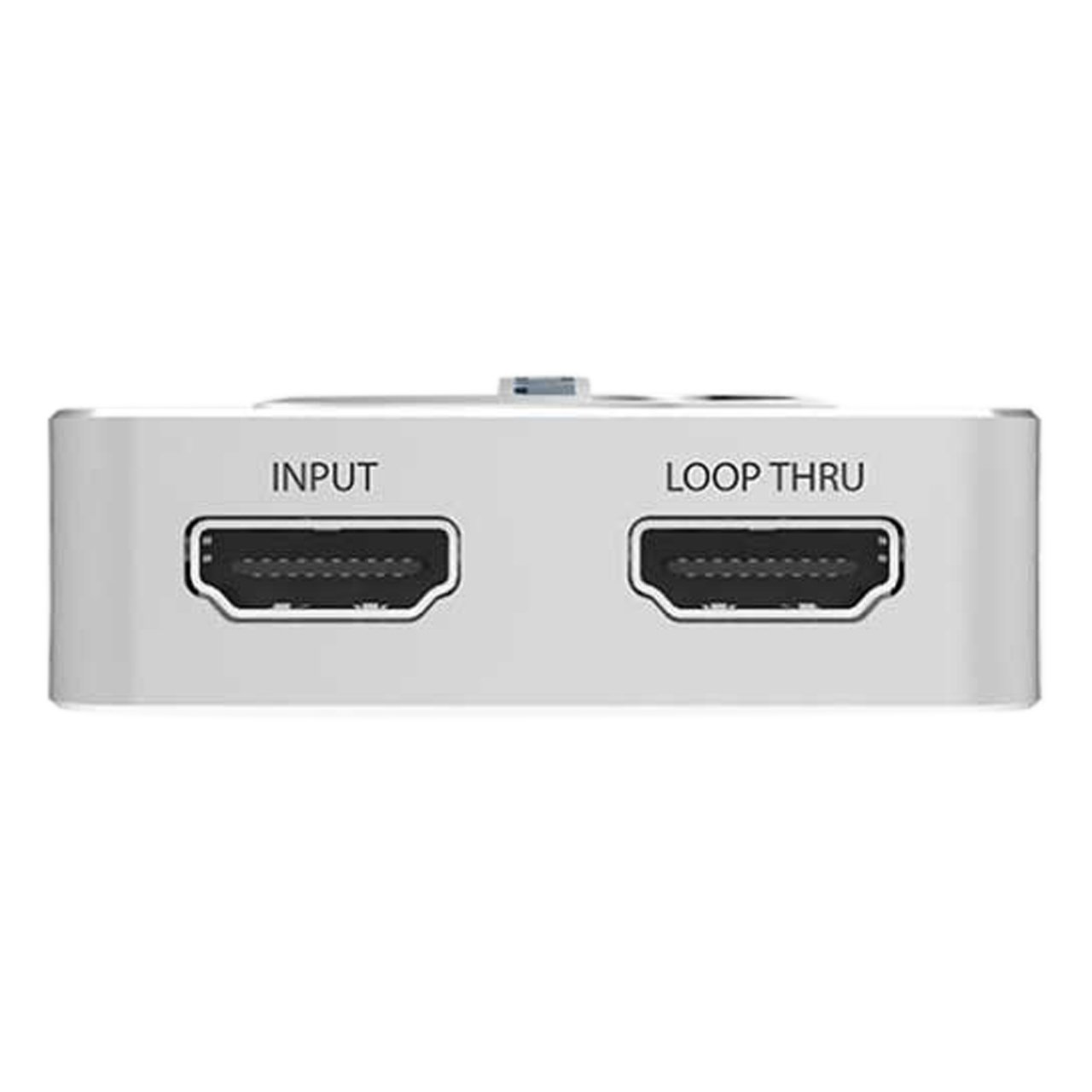

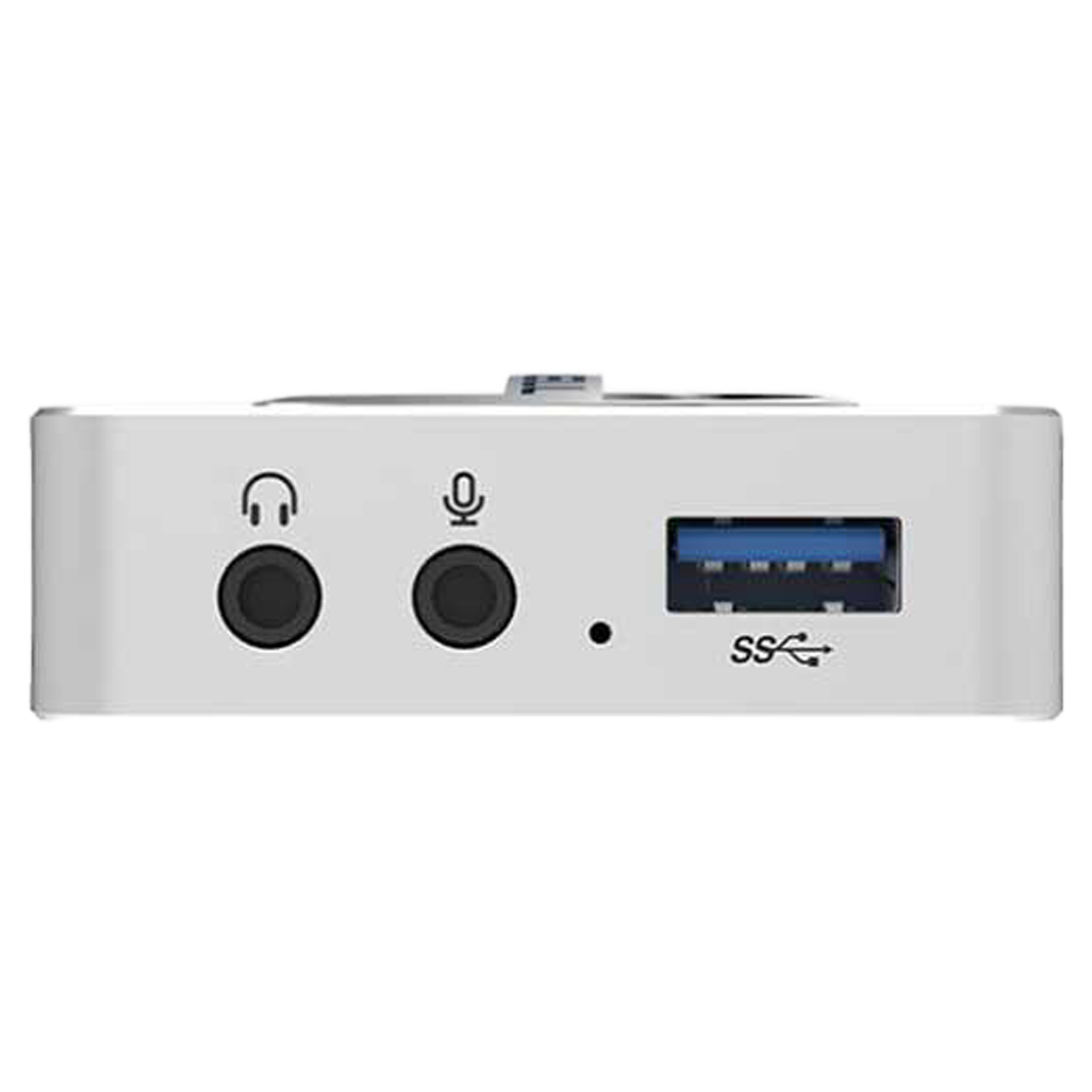

    The dongle has full colorimetry support, captures resolutions of up to 4096 x 2160 and frame rates of up to 120fps. It allows for full 8-bit video processing with features such as cropping, scaling, de-interlacing, aspect ratio, color format and frame rate conversion and vertical flip and mirror.It has an input interface as well as a loop-through one, which enables monitoring the image while streaming/recording. Audio input is available through the Mic 3.5mm jack and audio output via the Headphone 3.5mm jack, which enables you to extract the embedded audio from the HDMI signal or simply for computer playback. You have the ability to connect multiple devices to one system and they all can be upgraded simultaneously. High quality chips and other components are used to ensure accurate video capture.

    The USB Capture Plus Family features a good user experience because it's so easy to use, and many of the functions are automatic. Users don't need to install drivers on Windows, Linux, or Mac OS X (NOTE: The Magewell Plugin for Adobe Premiere® is Windows-only. Mac/Premiere® users will need to source a third-party software). Simply plug it in and the driver will be installed. The dongles are plug-and-play and driverless. These dongles automatically determine the input video format and then automatically converts it to the specified output size and frame rate. It will determine the input audio format and convert it to 48kHz PCM stereo audio. The device is compatible with most popular professional third party software for streaming, recording, video conferencing, video stitching, VJ, etc. It supports multiple Windows, Linux, Mac operating systems as well as Chrome operating system, Windows, Linux and Mac OS APIs and multiple software platforms such as vMix, Wirecast and Adobe Flash Media Encoder.

    USB 3.1/3.0 interface is used and no external power is needed. It also has a USB 2.0 port, but the real-time frame rate and transmission will be reduced through this port due to limited bandwidth. Includes a USB-A to USB-C adapter.

    • Features:

      • HDMI
      • 600MHz HDMI receiver
      • Adaptive HDMI equalizer
      • Support for customized EDID
      • Support for extraction of AVI/Audio/SPD/MS/VS/ACP/ISRC1/ISRC2/Gamut InfoFrames
      • Full colorimetry support
      • Support for up to 4096 x 2160 4:4:4 60fps input signals
      • Support for 2 channel IEC60958 audio streams
      • Support for extraction of audio formation information & channel status data
      • Support for extraction of video timing information
      • Support for extraction of 3D format information
      • Support for Side-by-Side Half, Top-and-Bottom, Frame Packing 3D mode

        Analog Audio
      • Extraction of stereo embedded HDMI audio for recording and output via 3.5mm stereo mini-jack Line Out
      • Capture of analog audio via 3.5mm microphone interface
      • Playback audio via 3.5mm headphones interface
      • Support for recording the playback audio of the computer
      • Multiple Devices on One Host
      • Continuously Work for 24/7
      • High-speed Memory
      • LED Status Indicator
      • Windows & Linux SDK
      • Support for input video resolutions up to 4096 x 2160
      • Video processing pipelines with 640 Mpixels/s processing bandwidth
      • Auto or manual selection of input and output aspect ratio
      • Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)
      • Auto or manual selection of input color format & quantization range
      • Auto or manual selection of output color format, quantization range & saturation range
    • Specifications:

      • Supported OS
      • Windows 7/8/8.1/10/Server 2008/Server 2008 R2/Server 2012/Server 2016 (x86 & x64)
        Linux (support x86, x64 & ARM architecture)
      • Ubuntu 12.04/14.04/16.04/17.04/17.10 (x86 & x64)
      • CentOS 6.5/7 (x86 & x64)
      • Fedora 25/26/27 (x86 & x64)
      • Red hat 6.5 and above (x86 & x64)
      • Other Linux OS with kernel version 2.6.35 and above
      • OS X 10.9/10.10/10.11
      • macOS 10.12/10.13
        Chrome OS

        Supported APIs
      • DirectShow
      • Wave API/DirectSound/WASAPI
      • V4L2
      • ALSA
        OS X/macOS
      • QuickTime
      • AV Foundation

        Supported Software
      • Zoom Certified
      • VLC
      • VirtualDub
      • OBS
      • XSplit
      • vMix
      • VidBlaster
      • Wirecast
      • Microsoft Media Encoder
      • Adobe Flash Media Encoder
      • Any other DirectShow, V4L2, QuickTime, AV Foundation based encoding or streaming software

        Input Interfaces
      • HDMI: DVI-D 1.0, HDMI 1.4, HDMI 2.0
      • 3.5mm Audio Jack: Microphone interface
      • Host Interface: USB 3.0, compatible with USB 2.0 and USB 3.1 Gen 1

        Output Interface
      • 3.5mm Audio Jack: Headphones interface

        Loop-Through Interface
      • HDMI: DVI-D 1.0, HDMI 1.4, HDMI 2.0

        Video Engine
      • 8-bit video processing
      • Deinterlace
      • Cropping
      • Color Adjustment
      • Color Space Conversion
      • Up/down Conversion
      • Aspect Ratio Conversion
      • Mirror and Flip

        Video Capture Format
      • Support for capture resolutions up to 4096 x 2160
      • Support for output frame rates up to 120fps; Actual output frame rate can be limited by the USB bandwidth and internal working frequency. Typical output frame rates on the Intel USB 3.0 controller are as follows: 1920 x 1080 YUY2 (up to 90fps), 3840 x 2160 NV12 (up to 30fps)
      • Support for NV12 & l420 4:2:0 8-bit (up to 4096 x 2160)
      • Support for YUY2 & UYVY 4:2:2 8-bit (up to 4096 x 2160)
      • Support for RGB24 & RGB32 4:4:4 8-bit (up to 2048 x 2160)
      • The default capture formats are YUY2 & NV12 and more capture formats can be set using USB Capture Utility

      • The USB Capture SDK provide functions including signal status extraction, capture configuration, etc.

        Physical & Power
      • Form Factor: 98.1mm (L) x 56.8mm (W) x 17mm (H)
      • 5V Max Current: ~ 1.4A
      • Max Power Consumption: ~ 7W
      • Operating Temperature: 32°F - 104°F
      • Storage Temperature: -4°F - 158°F
      • Relative Humidity: 5% to 90% non-condensing
    • Item Includes:

      • 1x Magewell USB Capture HDMI 4K Plus dongle

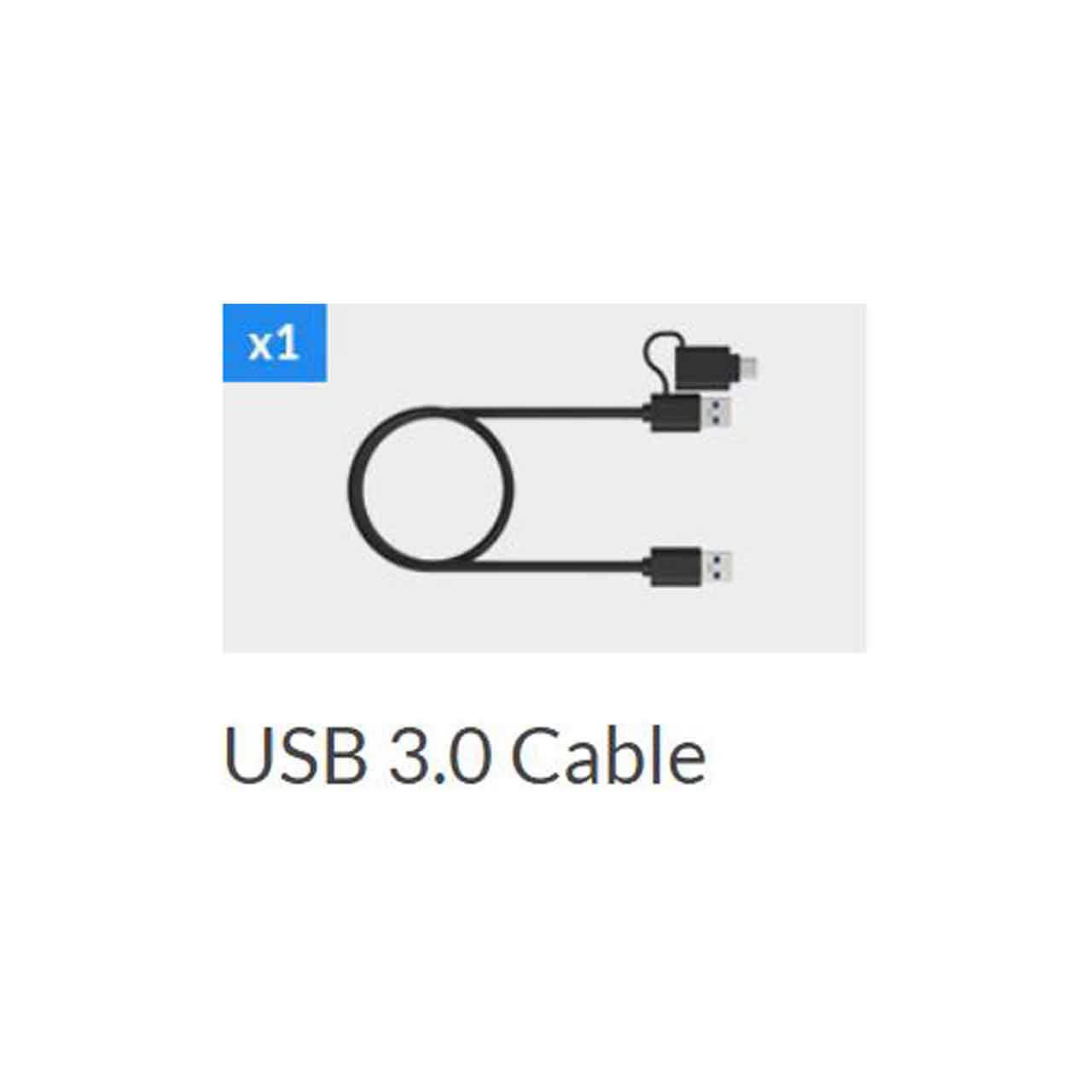

      • 1x USB 3.0 cable
      • 1x USB-A to USB-C Adapter
    • Warranty:

      • 3 year
