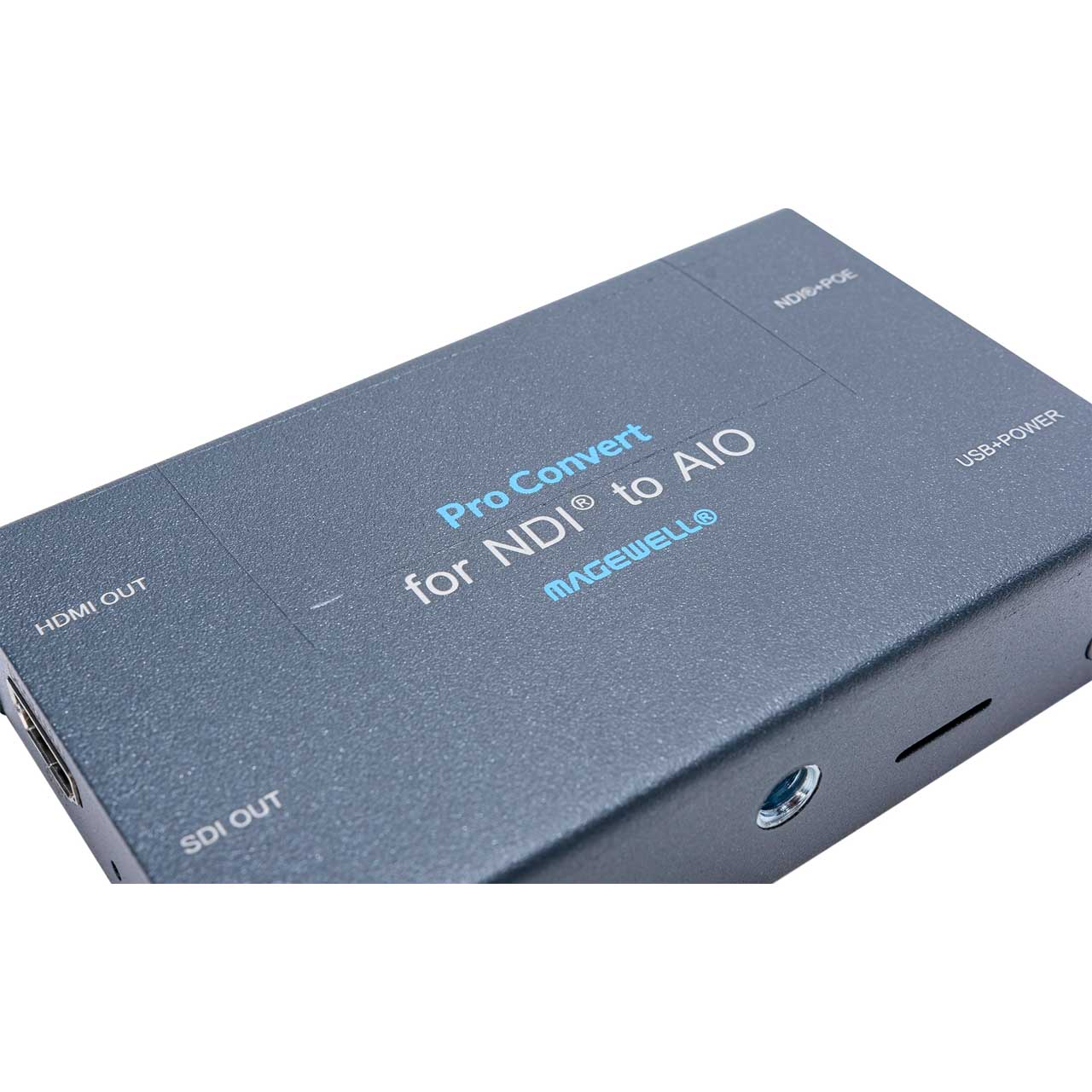

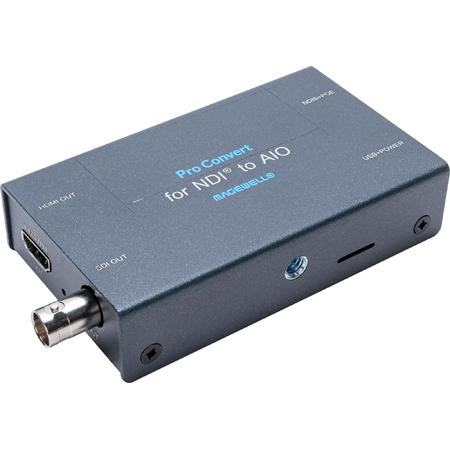

Magewell 64210 Pro Converter for NDI to All in One (AIO) - Converts Live NDI to HDMI or SDI - B-Stock Scratches on Unit

MGW-64210-BSTK - Overview

• Features:

  • Connects baseband presentation or distribution equipment into IP-based media networks
  • Supports NDI technology including Full NDI and NDI|HX mode
  • Supports streaming protocols including SRT, RTSP, RTMP, UDP, RTP, HLS and HTTP

    Please note: The unit has been opened and used, but is in working order. There are some scratches on the top of the unit.


• Specifications:

  • Interface
  • Output interfaces: 3G SDI, HDMI 1.4
  • USB interface: 5V/2.1A power supply, USB RNDIS/ECM
  • Network interface: 10/100/1000 Mbps Ethernet, IEEE 802.3af PoE

    On-board Control Buttons
  • MENU: press to display the menu,or cycle through the options
  • SELECT: press to display the menu,enter current option,or confirm the selection
  • 16 Position Rotary DIP Switch: set board-index from 0 to F

    Decoding Features
  • Support decoding 1080p60 streamings of Full NDI, NDI|HX, NDI|HX2, RTSP, HTTP, HLS, RTMP Pull/Push,and MPEG-TS over UDP/SRT/RTP protocols
  • Simultaneously decode and output HDMI and SDI signals
  • Support for H.264/H.265 video decoders
  • Support for AAC/MP3 audio decoders
  • Firmware
  • Upgradable firmware

    Others
  • LED Indicators
  • 2-year Warranty
  • 1/4-20 Mounting Hole

    HDMI Output
  • HDMI interface: DVI-D 1.0/HDMI 1.4
  • Max output: 1920x1080p60
  • Delivery videos within 2K at the preferred video format according to the EDID of the connected monitor
  • Support YUV BT.601, YUV BT.709 signal
  • Support 48KHz 16bits 8-channel audio output

    SDI Output
  • BNC: SD/HD/3G SDI
  • Max output: 1920x1080p60.
  • Supported output formats are:
  • 1920x1080p60/59.94/50/30/29.97/25/24/23.98
  • 1920x1080i60/59.94/50
  • 720p60/59.94/50/30/29.97/25/24/23.98
  • 720x576i50
  • 720x480i59.94
  • Support YUV BT.601, YUV BT.709 signal
  • Support 48KHz 16bits 8-channel audio output

    Supported Web Browsers
  • Microsoft Internet Explorer 11
  • Microsoft Edge
  • Mozilla Firefox version 61 and above
  • Google Chrome version 49 and above
  • Apple Safari 11.1 and above
  • Opera 55.0.2994.44 and above

    Network Interfaces
  • 10/100/1000Mbps Ethernet
  • IEEE 802.3af PoE

    USB Interface
  • USB2.0 Type B
  • 5V/2.1A power supply
  • USB RNDIS/ECM

    Power Consumption
  • 5V max current: ~1.05A
  • Max power consumption: ~5.5W

    Working Environment
  • Operating temperature: 32 to 104°F
  • Storage temperature: -4 to 158°F
  • Relative Humidity: 5% to 90% non-condensing


• Item Includes:

  • 1x Magewell 64210 Pro Converter
  • 1x Power Adapter (US/EU/UK/AU/JP)
  • 1x USB Type A to Type B Cable
  • 1x L Bracket
