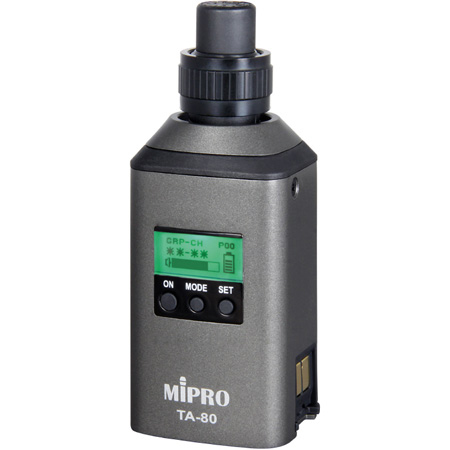

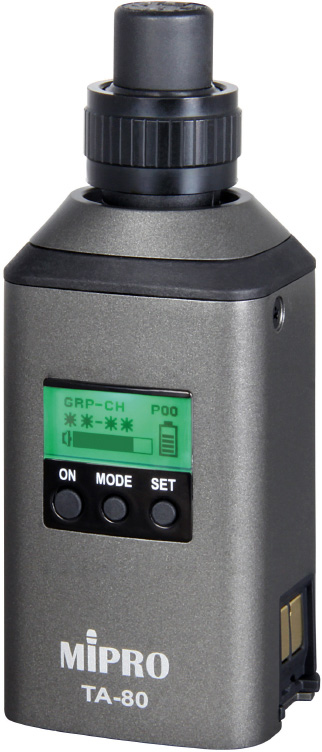

MIPRO TA-80-5F MiPro TA-80 Digital Wireless Plug-on Transmitter 540-604 MHz - Li-Ion

Manufacturer: Mipro Electronics

Item #: MIP-TA-80-5F   •   MFG #: TA-80-5F



List Price:$695.00
Our Price:$496.49

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.


  • Item restricted to the Contiguous United States ground shipment only.


Share!

California Residents:
8pt-triangleWARNING:
Cancer and Reproductive Harm - www.P65Warnings.ca.gov





The MIPRO TA-80 is a digital miniature wireless plug-on transmitter with balanced XLR mic input jack, designed for the measurement microphones, condenser / dynamic wired microphones, recording microphones and musical instrument microphones to become wireless and is compatible with ACT-8 Series receivers for premium sound quality. The TA-80 has a flat and wide frequency response, ultra-low T.H.D. and noise floor, fast transient response, strong anti-interference and high S/N ratio characteristics. These superior characteristics resolve the problems of tangling microphone cables and the deterioration of analog transmission characteristics, making the TA-80 the best system to reproduce the natural sound of any premium wired microphone.

With the balanced XLR mic input jack for installing on any condenser microphone, the TA-80 also provides 8 gain levels and a built-in switchable 12 / 48V, up to 10 mA current load phantom power for condenser microphones. The phantom power can be switched off for use with dynamic microphones. A built-in high-capacity lithium battery enables a continuous 5 to 8 hours of use per charge. The TA-80 can be recharged by dropping it into an intelligent MP-80 charger or by removing the single battery cell from the TA-80 and placing it into the charger. The TA-80 has reverse polarity protection and battery replacement is fast and easy. The TA-80 is compact, lightweight and ruggedly built. The streamlined aluminum housing is splash-proof with strict isolation of spurious and external noise interference. It has a built-in high efficiency transmitting antenna and a green backlit LCD clearly displays operation parameters. The TA-80 is compatible with MIPRO's ACT-80/80R miniature digital receivers for a variety of professional audio applications.

Please note: This product contains Lithium Ion Batteries. Due to FAA regulation this item is restricted to ground transportation in the lower 48 contiguous states and cannot ship to Alaska, Hawaii or Puerto Rico.


  • Features

    • Turns Microphone into Wireless
    • Compatible with Condenser Microphones
    • Compatible with ACT-8 Series Receivers
    • Balanced XLR Microphone Input Jack
    • Li-Ion Battery
    • 5-8 Hours of Use per Charge
    • Compact and Lightweight
    • 8 Gain Levels
    • Up to 10mA Phantom Power
    • Backlit LCD

  • Specifications

    • Housing: Aluminum alloy
    • Frequency Range UHF 480 - 960 MHz
    • Switching Bandwidth 64 MHz
    • RF Output Power: 10 mW / 50 mW switchable (country dependent)
    • Spurious Emissions: -60 dBc
    • Antenna: Internal
    • Modulation Type: Digital modulation fixed envelope
    • AF Input Level: 2 V max. at AF gain = 0 dB 7 V max. at AF gain = -12 dB 20 V P-P by protective circuit
    • LCD Display: Group, Channel, Frequency, AF gain, Low-cut, Limiter, Encryption status, RF power, Phase, Lock status, Mute mode, Battery status & Error codes
    • Gain Setting: +30 dB, +24 dB, +18 dB, +12 dB, +6 dB, 0 dB, -6 dB, -12 dB , -18 dB (9 settings). 0 dB = microphone sensitivity
    • Phantom Power: Selectable 12 V and 48 V at 10 mA max.
    • AF Frequency Response: 20 Hz ~ 20 kHz, selectable 100 Hz low cut filter
    • Mic Input: Balanced XLR
    • Battery Type: ICR 18500 lithium battery
    • Battery Life: > 8-hour for RF power at 10 mW and phantom power off.
    • > 4.5-hour for RF power at 50 mW and 48 V at 2 mA phantom power on.
    • Current Consumption: Approx. 140 mA (Low power, phantom power off)
    • Dimensions (W x H x D): 44 x 114 x 37 mm | 1.7 x 4.5 x 1.5 "
    • Net Weight: Approx. 165 g | 5.8 oz
