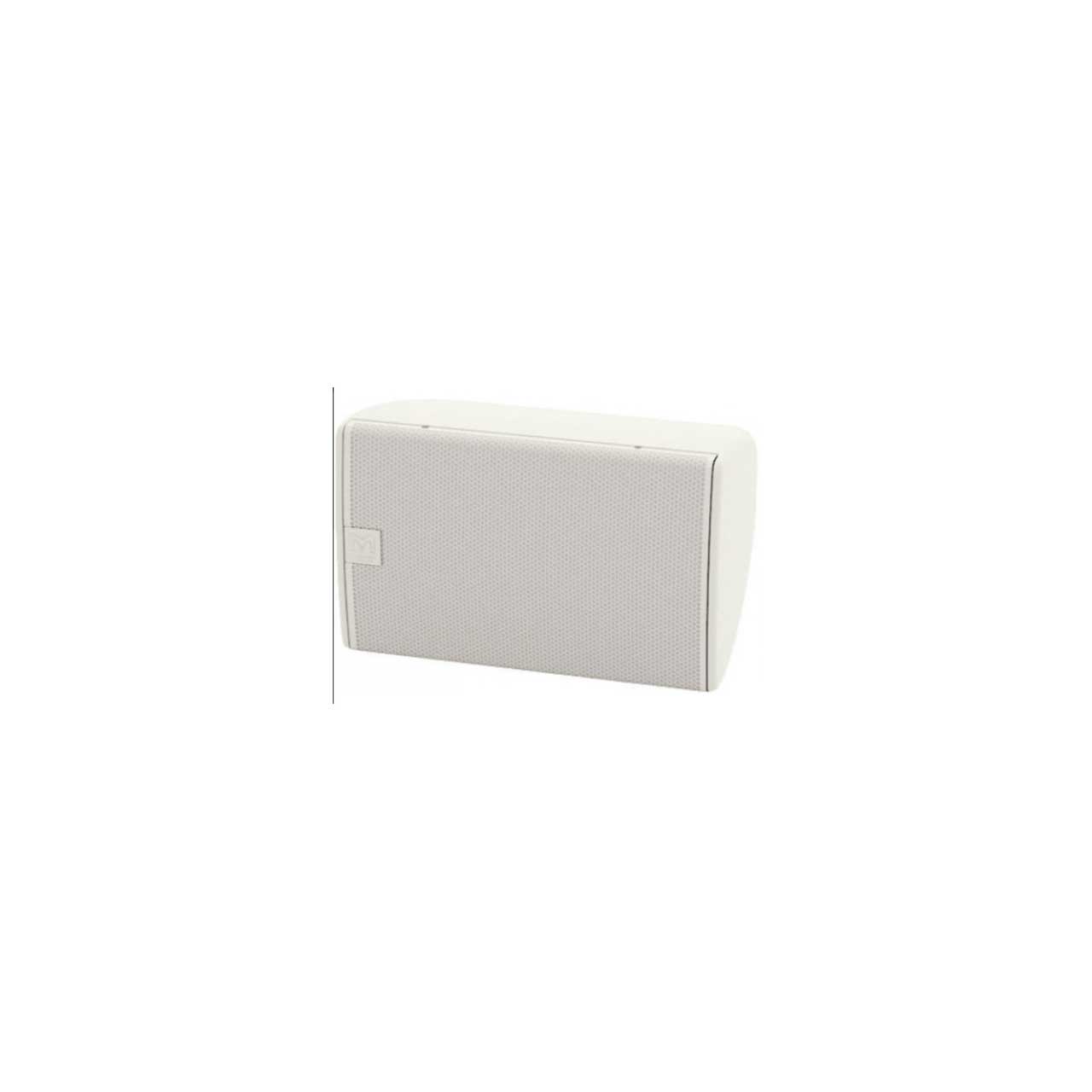

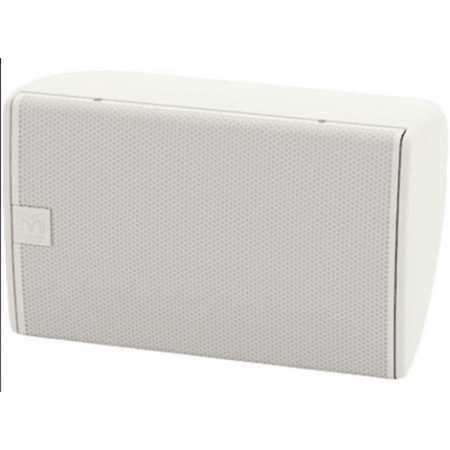

Martin Audio CDD8W Eatherized Ultra-Compact CDD Loudspeaker - White -8-Inch

ITEM #: MRTN-CDD8W MFG #: 189599

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with Minimum Order Banner

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    189599 - Overview

    The CDD8 is an ultra-compact two-way passive loudspeaker system with an integrated 8" (200mm) LF/1" (25mm) exit HF Coaxial Differential Dispersion driver which can be easily rotated for horizontal or vertical orientation depending on venue design requirements. Its small size gives no indication of its high output capability. As a stand-alone loudspeaker, it has a multitude of applications and can also be incorporated as an infill loudspeaker in distributed systems using larger CDD models, such as the CDD12 and CDD15.

    The Coaxial Differential Dispersion technology employed in the CDD8 delivers more consistent audience coverage than systems
    with fixed X° x Y° coverage patterns - projecting relatively more output to the rear of the audience, while having wide horizontal coverage close-up. Its innovative CDD driver achieves `point source' summation of the LF and HF sections - eliminating off-axis variations in frequency response associated with noncoaxial designs. Improving on conventional coaxial designs, which can suffer from high-frequency beaming, the driver features a static waveguide that merges seamlessly with the unique cone shape - maintaining the dispersion pattern out to very high frequencies.

    The visually-distinctive enclosure can be used in either horizontal (landscape) or vertical (portrait) orientation, with rotation of the driver easily accomplished by removing the screw-free, protective grille. The curved shape of the enclosure allows it to be surface-mounted close to a wall or ceiling by means of optional wall and ceiling brackets.
    Finished in black (RAL9005) or white (RAL9016) as standard, the CDD8 can be supplied in any RAL colour to order.

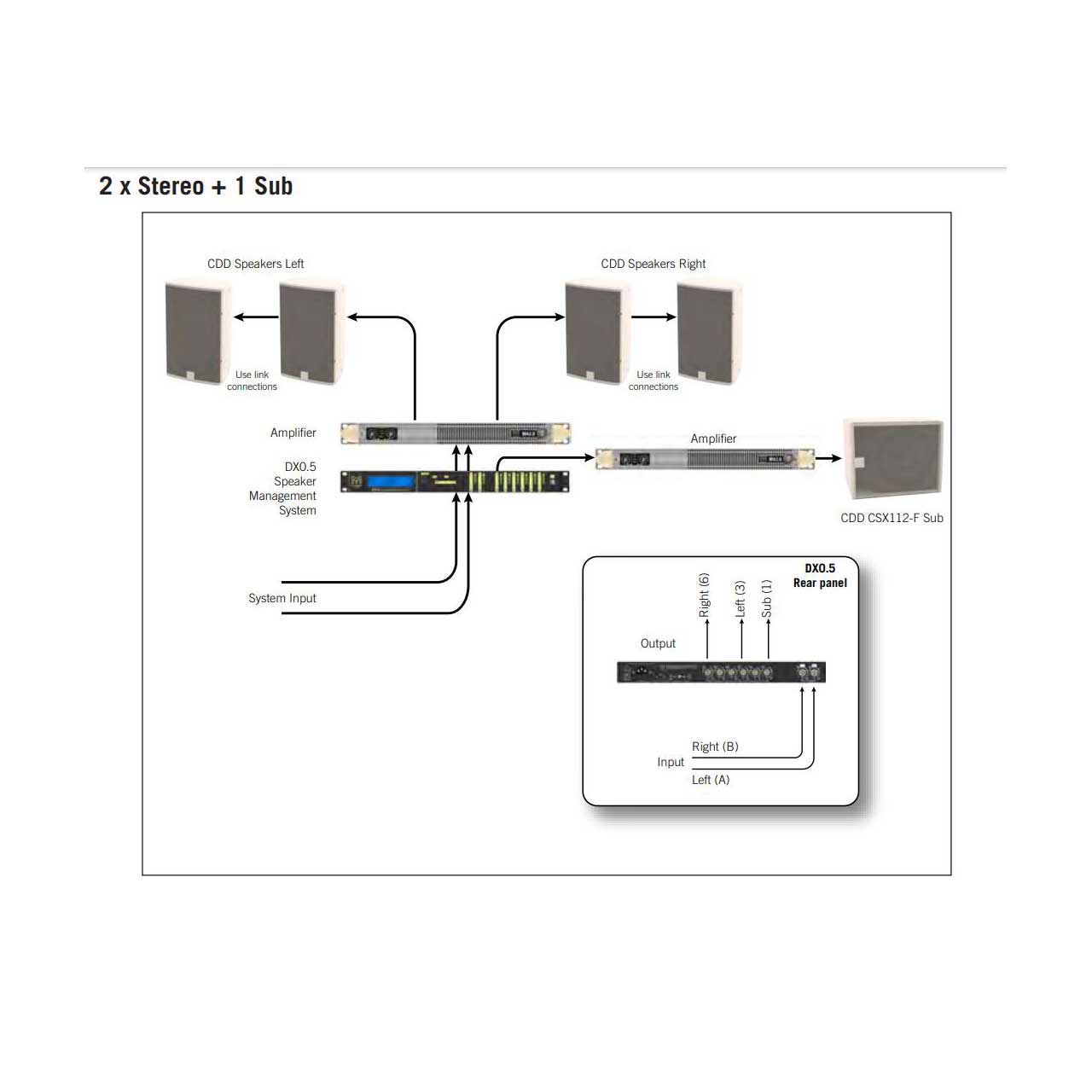

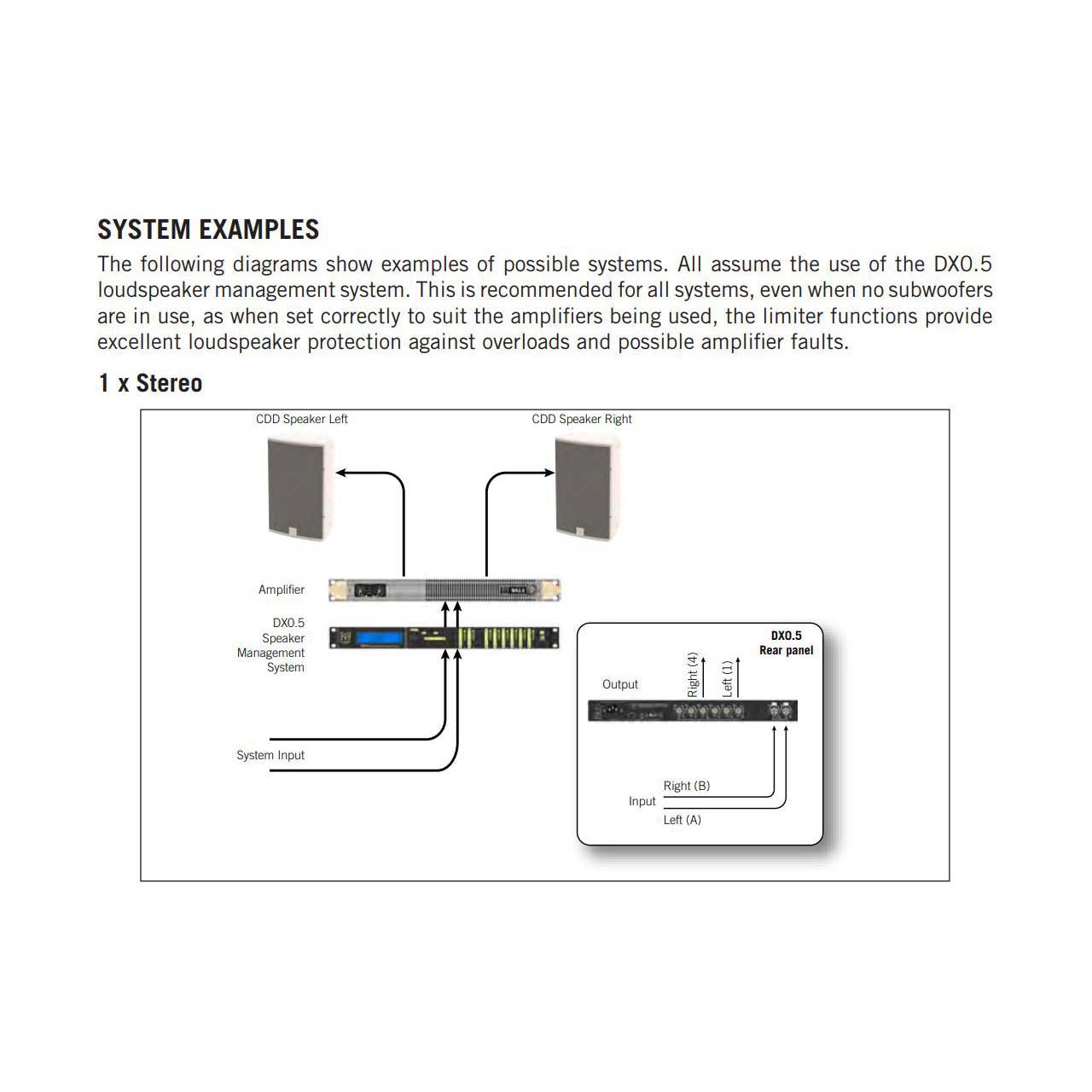

    A full-range, passive two-way system, the CDD8 may be used without a controller. However, the EQ and limiter functions of a controller such as the Martin Audio DX0.5, DX1.5 or DX2, or an MA Series amplifier with onboard DSP will maximise its capabilities. When used with a CSX subwoofer, crossover and EQ functions can either be performed by the DX0.5, DX1.5 and DX2 system controllers, or by an MA Series amplifier with onboard DSP option.

    Live music clubs and bars
    Bars and restaurants
    Museums and AV spaces
    Convention centres
    Retail outlets
    Leisure centres
    Houses of Worship

    • Features:

      • Ultra-compact, CDD passive two-way system
      • Coaxial Differential Dispersion technology
      • Elegant UPM Formi composite enclosure
      • User-rotatable coaxial drive unit
      • Vertical and horizontal mounting options
      • Screw-free perforated steel grille
      • 8Ω nominal impedance
      • Discreet mounting accessories
      • Black or white standard colour options
    • Specifications:

      • Type: Ultra-compact, Coaxial Differential Dispersion passive two-way system
      • Frequency Response (5): 70Hz-20kHz ± 3dB, -10dB @ 55Hz
      • LF: 8" (200mm)/2" (50mm) voice coil, long excursion, shared ferrite motor system with HF
      • HF: 1" (25mm) exit/1.4" (38mm) voice coil, polyimide dome compression driver
      • Rated Power (2): 200W AES, 800W peak
      • Recommended Amplifier: MA2.8Q, MA2.0
      • Sensitivity (8): 94dB
      • Maximum SPL (9): 117dB continuous, 123dB peak
      • Nominal Impedance: 8 ohms
      • Dispersion (-6dB): 110°-80° horizontal, 60° vertical (user-rotatable)
      • Crossover: 2.3kHz passive
      • Enclosure: 14 litre, composite material
      • Finish: Black or white textured paint
      • Protective Grille: Black or white perforated steel with scrim cloth backing

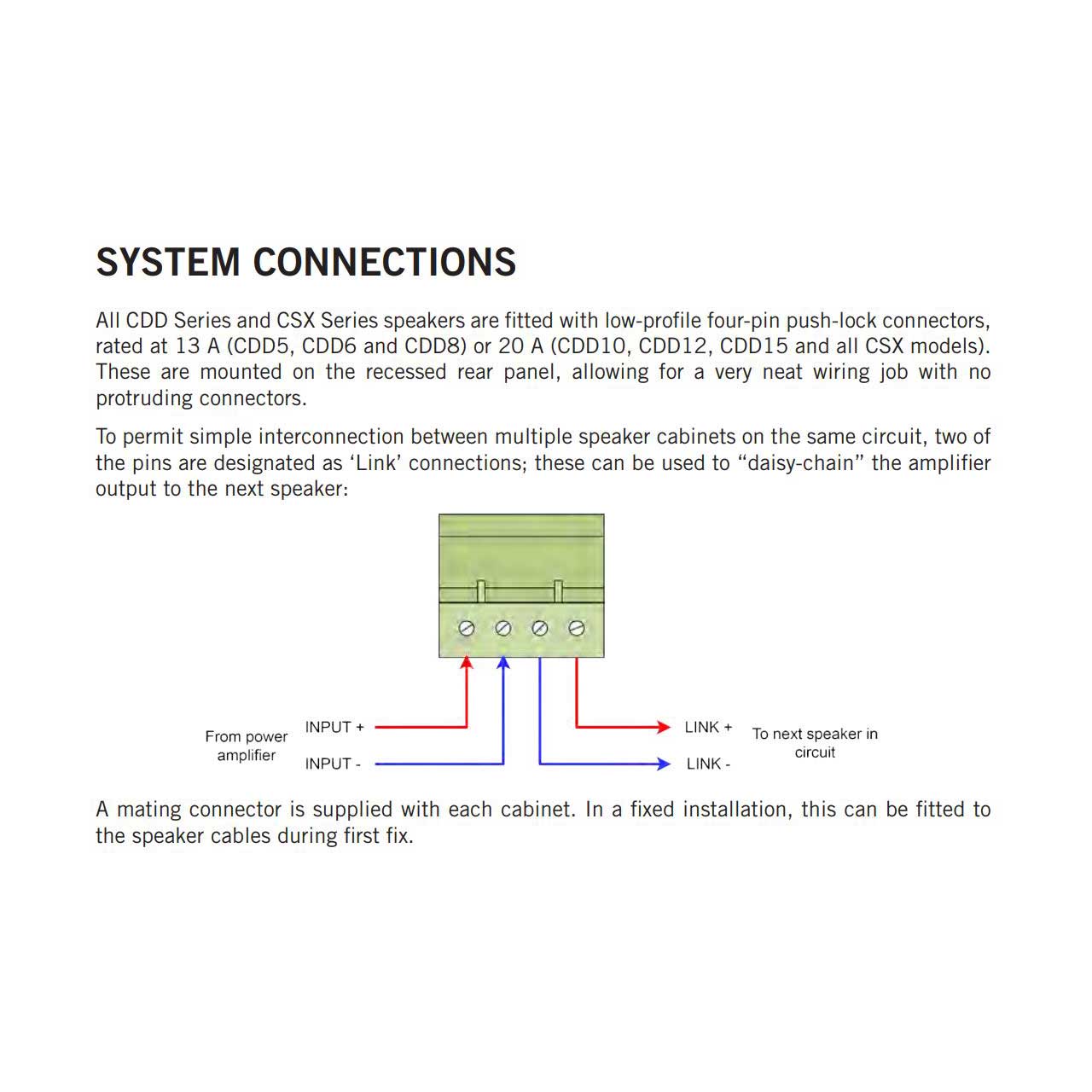

      • Connectors: Low profile 13A push-lock
      • Pin Connections: Left to right: Input+, Input -, Link -, Link +
      • Fittings: 6 x M6 inserts for wall/ceiling brackets
      • Dimensions: (W) 256mm x (H) 410mm x (D) 252mm (W) 10.1ins x (H) 16.1ins x (D) 9.9ins
      • Weight: 9.5kg (21lbs)
