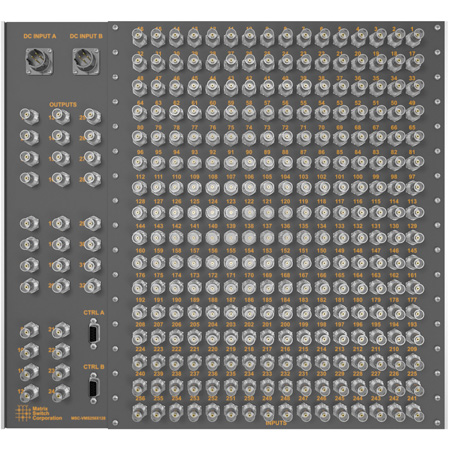

Matrix Switch MSC-VMS512X256 512 Input 256 Output Multistage Composite Analog Video Router

MSC-VMS512X256 - Overview

• Features:

  • Inputs can be switched to multiple outputs without restriction
  • Vertical interval switching using vertical sync input (Tri-level sync or NTSC/PAL black burst)
  • Store and recall up to 10 preset salvos
  • Supports Matrix Switch Corporation Remote Panels
  • Ethernet port for control via built in web page interface or TCP/IP ports
  • Interactive web page interface
  • Serial control via RS-232 port
  • RS-485 port for an additional high speed long distance capable control interface
  • Support for some common 3rd party protocols for added integration flexibility
  • Real Time Operating System (RTOS) with 32 bit ARM processor
  • System software updates from webpage interface
  • Redundant power supply included
  • Complies with all relevant FCC, U/L, CE, and RoHS requirements
  • Backed by a full 2 year manufacturer parts and labor warranty


• Specifications:

  • General
  • Inputs: 512
  • Outputs: 256
  • Enclosure Type: 20RU
  • Power: AC
  • Power Connector: IEC 320 C14
  • Ethernet: 10/100 Base-T Auto MDIX
  • Made in: USA
  • Operating Temp.: 0 - 70C
  • Storage Temp.: -10 - 90C
  • MTBF: 50,000+ Hours
  • MTTR: < 48 Hours

    Composite Video
  • Connector Type: BNC
  • Input/Output Impedance: 75 Ohms
  • Nominal Input/Output Level: 1V P-P
  • Maximum Input/Output Level: +/- 2V P-P
  • Input Return Loss: < 40dB at 5MHz typical
  • Output Return Loss: < 35dB at 5MHz typical
  • Overall Gain Unity: +/-1% into a 75 ohm termination
  • Frequency Response: +/- 0.1dB to 5MHz +0 -3dB to 60MHz
  • Crosstalk: > 60dB at 5MHz all hostile
  • Differential Phase: < 0.2 degrees at 3.58MHz @ 4.43MHz
  • Differential Gain: < 0.2% at 3.58MHz @ 4.43MHz
  • S/N Ratio: > 75dB 0 to 10MHz

    Reference Sync
  • Connector Type: Analog BNC with pass-through
  • Format: Tri-Level Sync and NTSC/PAL Black Burst


• Item Includes:

  • 1x Matrix Switch MSC-VMS512X256 512 Input 256 Output Multistage Composite Analog Video Router
  • 1x Redundant power supply


• Warranty:

  • 2 year manufacturer parts and labor
