MSC-XMF256X4 - Overview

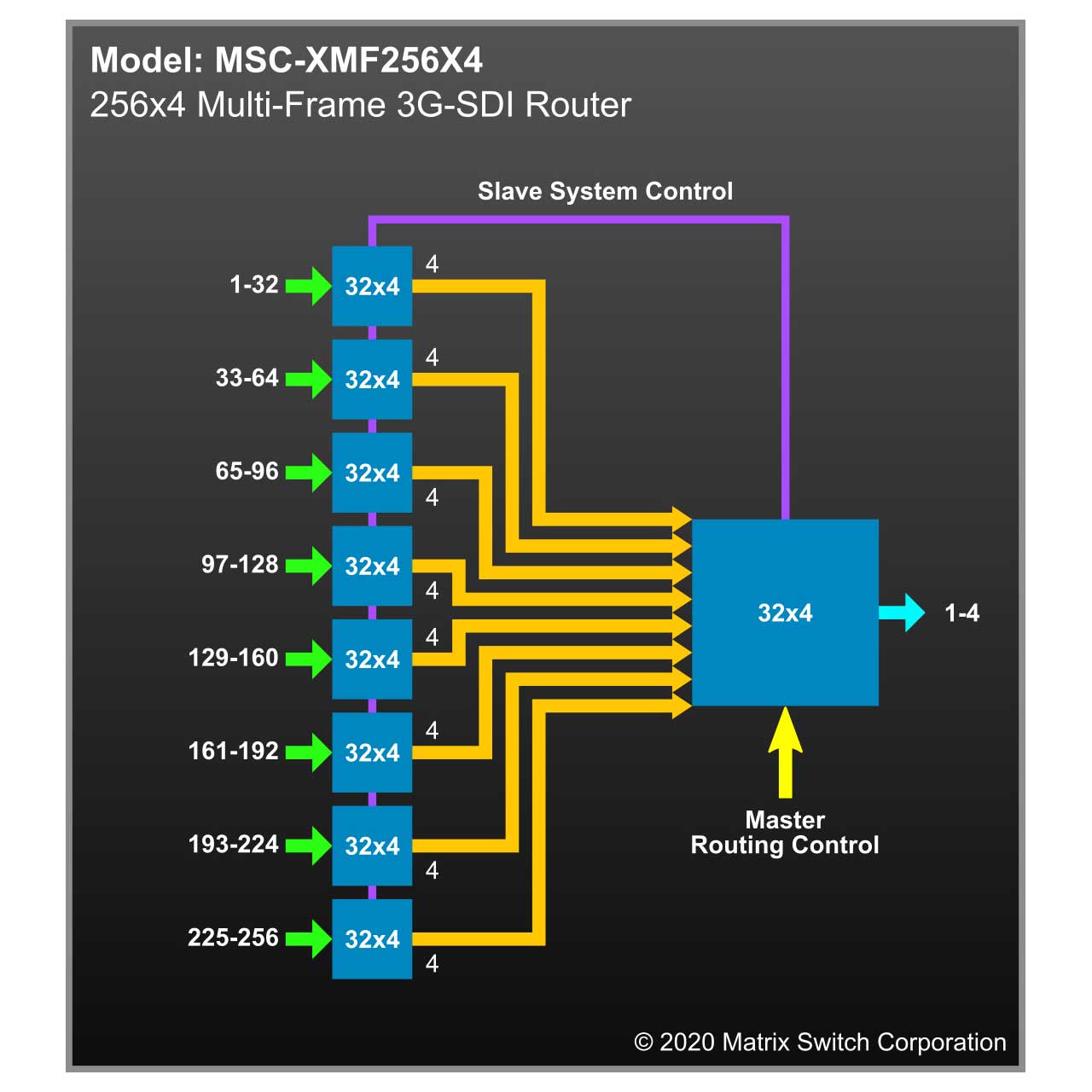

Matrix Switch's MSC-XMF256X4 multi-frame 3G-SDI router solutions combine multiple individual SDI routers to create a single larger routing system with increased input capability. These solutions include SDI coax interconnect cables at no additional cost. The routing is controlled through a single master router, which coordinates control of the other routers over a shared Ethernet network. The master controller comes with an LCD interface by default and the other routers have status only panels. As with our other routers, routing control can also utilize one of the many other available control interfaces, including: built in web page interface, separate remote LCD control panels, and our easy to use Mascot protocol or some 3rd party protocols over TCP/IP, RS-232, or RS-485.

The MSC-XMF256X4 3G-SDI router solution offers 256 inputs and 4 outputs.

Made in USA.

  • Features:

    • Re-clocks standard SDI rates 3G (2.97 Gbit/s), HD (1.485 Gbit/s), and SD (270 Mbit/s)
    • Auto bypass of non-standard SDI rates from 20 Mbit/s to 3 Gbit/s
    • Passes SDI embedded audio and ancillary data
    • Different SDI rates can be used on different inputs interchangeably and without restriction
    • Inputs can be switched to multiple outputs without restriction
    • Outputs can be individually muted
    • Vertical interval switching using vertical sync input (Tri-level sync or NTSC/PAL black burst)
    • Store and recall up to 10 preset salvos
    • Supports Matrix Switch Corporation Remote Panels
    • Ethernet port for control via built in web page interface or TCP/IP ports
    • Interactive web page interface
    • Serial control via RS-232 port
    • RS-485 port for an additional high speed long distance capable control interface
    • Support for some common 3rd party protocols for added integration flexibility
    • Real Time Operating System (RTOS) with 32 bit ARM processor
    • System software updates from webpage interface
    • External DC power supply
    • Redundant power supply included
    • Complies with all relevant FCC, U/L, CE, and RoHS requirements


  • Specifications:

    • General
    • Inputs: 256
    • Outputs: 4
    • Enclosure Type: 9RU
    • Size: 19" x 1.75" x 3"
    • Weight: 36.0 lbs
    • Power: 7.5 VDC 2A Adapters (6-18 VDC)
    • Power Connector: 5.5mm OD 2.1mm ID twist locking coaxial
    • Ethernet: 10/100 Base-T Auto MDIX
    • Made in: USA
    • Operating Temp.: 0 - 70C
    • Storage Temp.: -10 - 90C
    • MTBF: 50,000+ Hours
    • MTTR: < 48 Hours

      SDI Inputs
    • Connector Type: BNC
    • Data Rates: 19 Mbit/s through 3.0 Gbit/s
    • Input Return Loss: > 15dB @ HD, > 12dB @ 3G
    • Input Impedance: 75 Ohms +/- 1%
    • Input Level: 800 mV P-P +/- 20%
    • Cable Equalization: 400m @ SD, 140m @ HD, 120m @ 3G (1694A coax)

      SDI Outputs
    • Connector Type: BNC
    • Data Rates: 19 Mbit/s through 3.0 Gbit/s
    • Re-clocking Data Rates: 2.97 Gbit/s, 1.485 Gbit/s, 270 Mbit/s
    • Output Return Loss: > 15dB @ HD, > 12dB @ 3G
    • Output Impedance: 75 Ohms +/- 1%
    • Output Level: 800 mV P-P +/- 5%
    • Output Jitter: < 0.2 UI

      SDI Standards
    • SD Formats: 625i25 PAL and 525i29.97 NTSC
    • HD Formats: 720p23.98, 720p24, 720p25, 720p29.97, 720p30, 720p50, 720p59.94, 720p60, 1080p23.98, 1080PsF23.98, 1080p24, 1080PsF24, 1080p25, 1080PsF25, 1080p29.97, 1080PsF29.97, 1080p30, 1080PsF30, 1080i50, 1080i59.94, 1080i60
    • 3G Formats: 1080p50, 1080p59.94, 1080p60
    • 2K Formats: 2048 x 1556p23.98/24/25
    • Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 310M, SMPTE 425M-A, SMPTE 425M-B, ITU-R BT.656 and ITU-R BT.601
    • Video Sampling: 4:2:2 and 4:4:4
    • Audio Sampling: 24 bit @ 48 KHz
    • Color Precision: 4:2:2 and 4:4:4 10 bit
    • Color Space: YUV or RGB
    • Metadata Support: Ancillary data as defined by SMPTE 352M

      Reference Sync
    • Connector Type: Analog BNC with pass-through
    • Format: Tri-Level Sync and NTSC/PAL Black Burst


  • Item Includes:

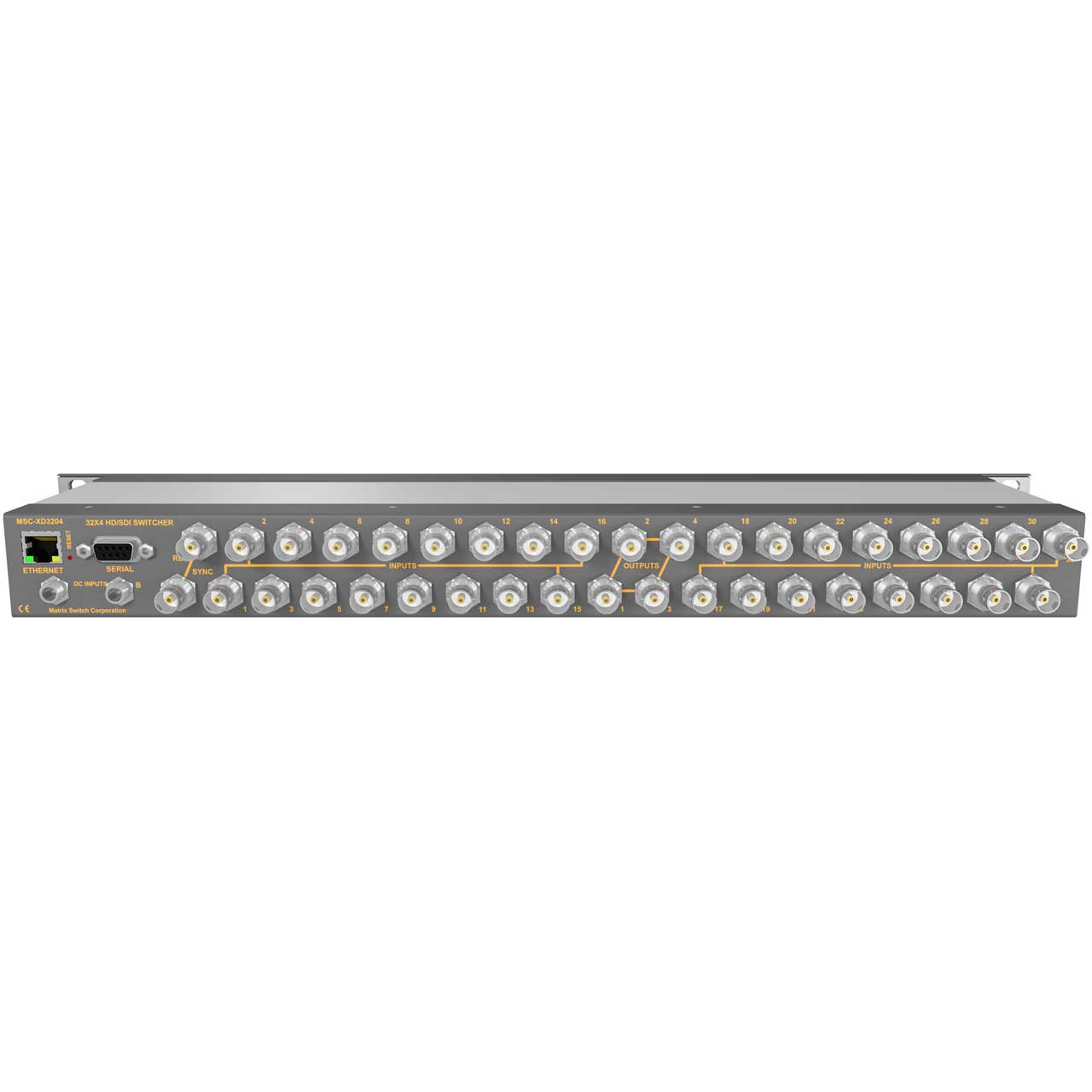

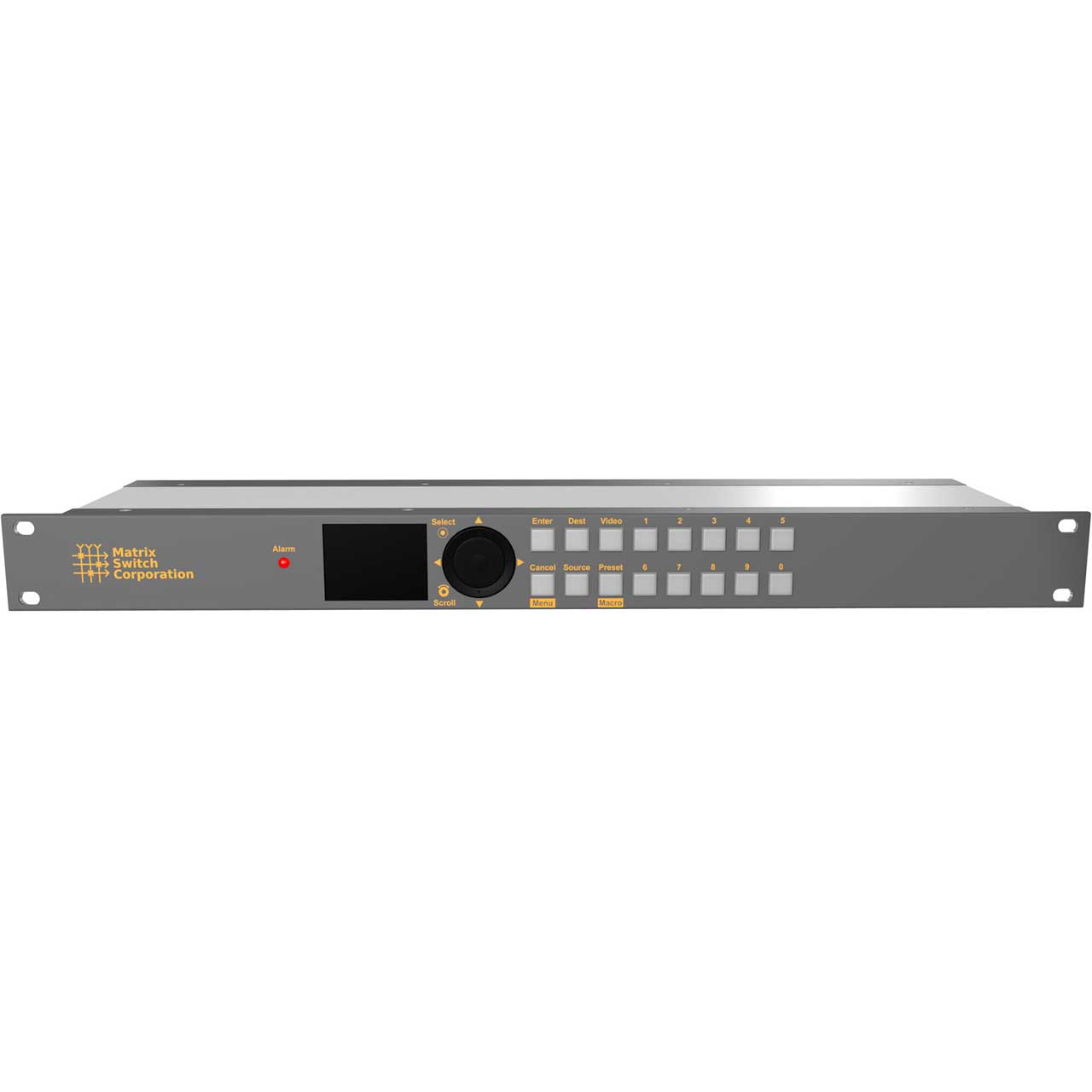

    • 1x 32 Input 4 Output 3G-SDI Video Router with LCD Button Panel

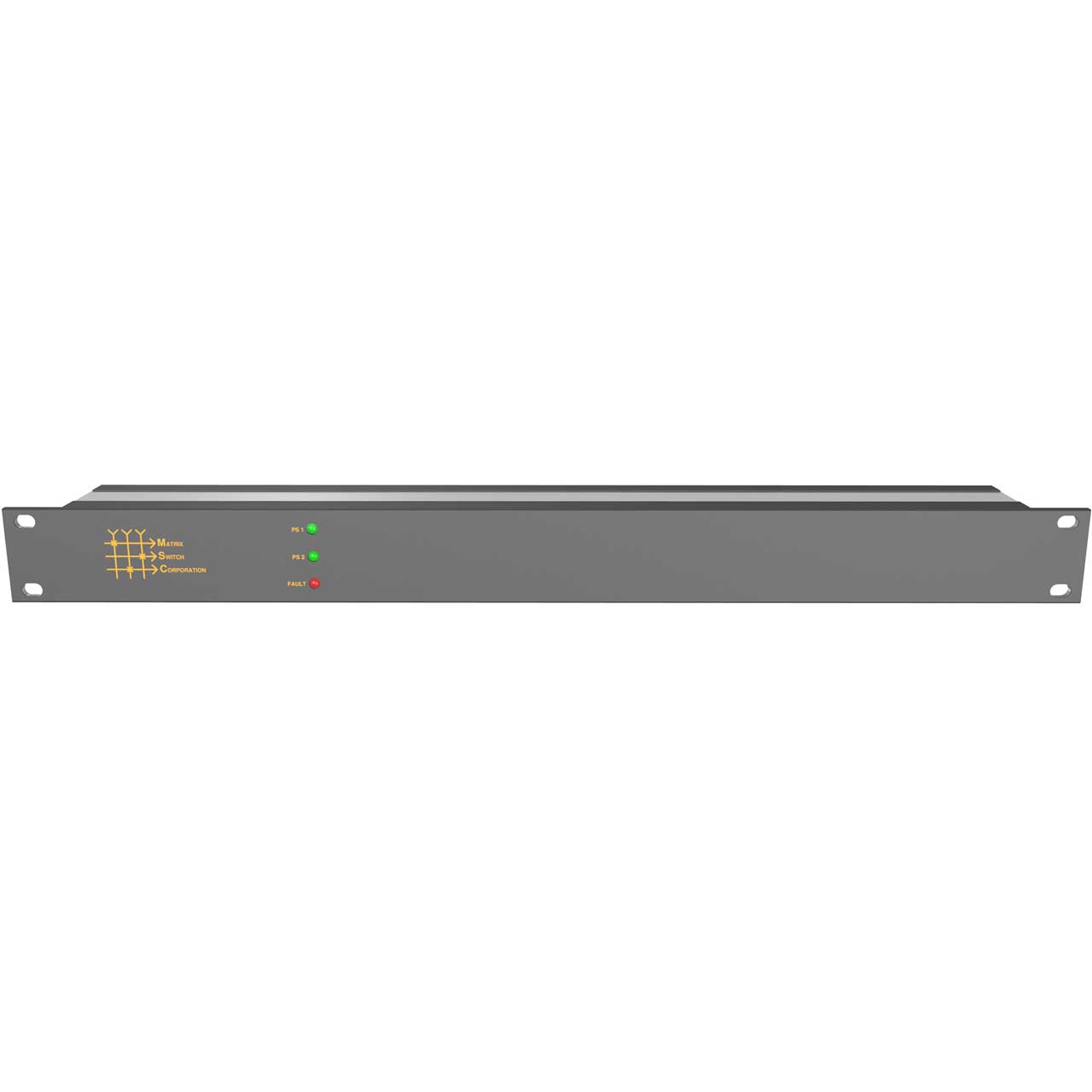

    • 8x 32 Input 4 Output 3G-SDI Video Router with Status Panel


  • Warranty:

    • 2 year manufacturer parts and labor
