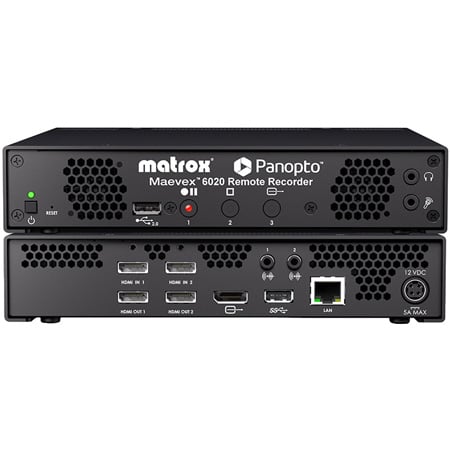

Matrox MVX-RR6020-P Maevex 6020 Panopto-Certified Live Streaming Remote Recorder Appliance

ITEM #: MTX-MVX-RR6020-P MFG #: MVX-RR6020-P

  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
free ship

Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    MVX-RR6020-P - Overview

    The Matrox® Maevex 6020 Remote Recorder (MVX-RR6020-P) appliance is a Panopto™-certified live streaming multi-recorder specifically designed for-and fully integrated with-Panopto's industry-leading video management system (VMS). Everything you love about the Panopto cloud or on-premises management of recording, streaming, scheduling, and everything else is available for the Maevex 6020 on the Panopto VMS platform making it simple and easy for administrator and in-room/class operator alike. Leveraging the award-winning Maevex 6100 Series multi-recording and streaming technology, the Maevex 6020 Remote Recorder enhances the Panopto VMS solution by providing best-of-breed live streaming and recording functionality for businesses and universities.

    Multiple On-Device Recordings, Dual Live Streams, and More
    The Maevex 6020 Remote Recorder provides unique features to the Panopto VMS. Key feature set includes two 1080p inputs with multiple on-device quality recordings per input and two channels of 1080p live streaming while recording. Unique to the Maevex 6020 are the multiple recordings of different qualities recorded simultaneously to the device's solid-state memory and uploading while the session is in progress. These on-device multiple recording qualities can later be used to address the best-possible quality match for any viewing device. The recordings are encoded and ready for use as is without any quality loss or time loss (no transcoding, decoding, or re-encoding required). This workflow enables the video on demand from the event to be made available to viewers much faster, at the best quality possible.

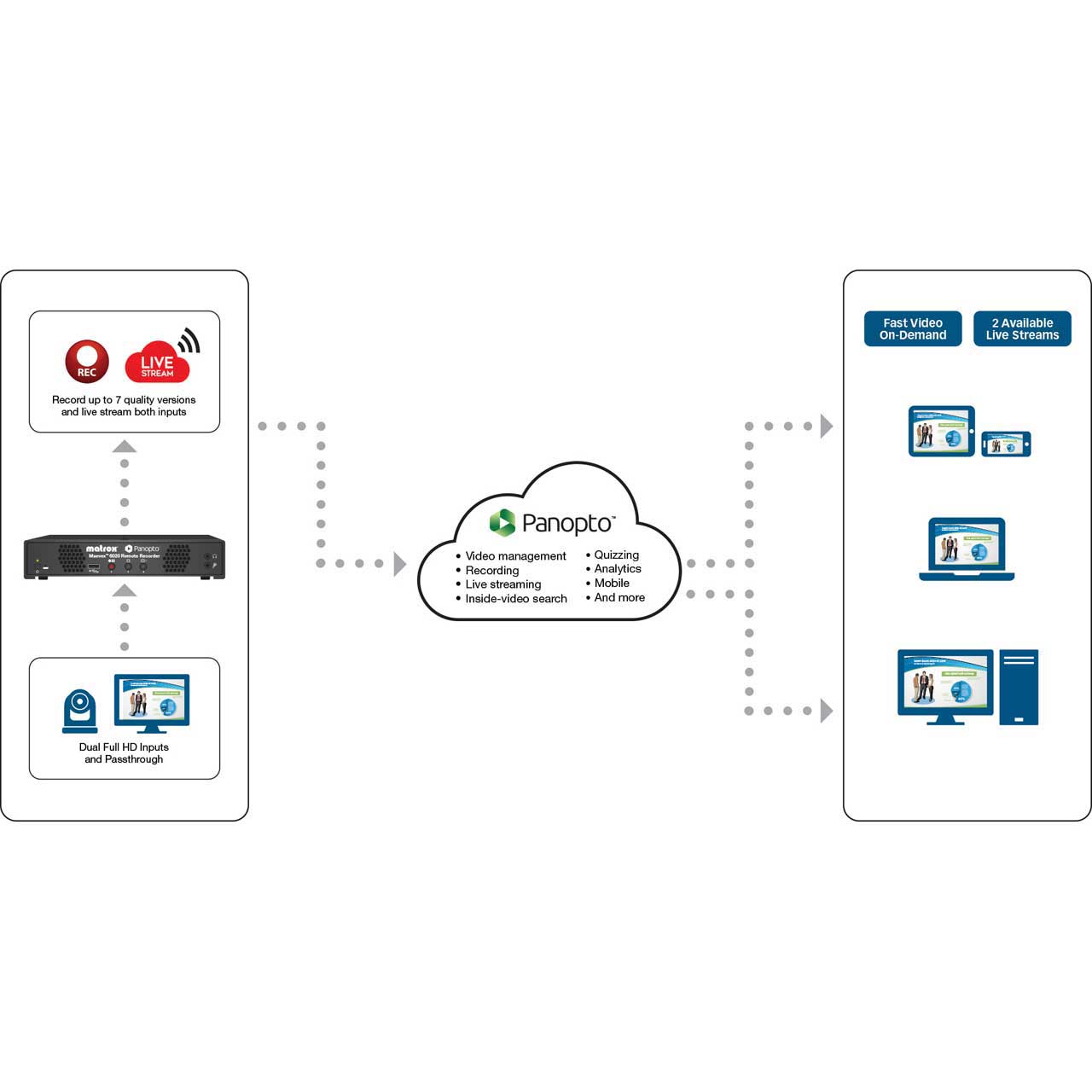

    When there are no active streams being broadcast, the two sets of recorded streams are delivered to the Panopto VMS simultaneously during the live event with only the slightest of lag from the start of the event as cloud transcoding is eliminated. If there are live streams being broadcast, the recorded streams are delivered immediately after the live streaming event ends, again with no cloud transcoding required. Additionally, in a single session, up to four sets of recordings (each set with multiple quality levels) and two Full HD streams can be enabled by combining two Maevex 6020 devices.

    Setup as Easy as 1-2-3

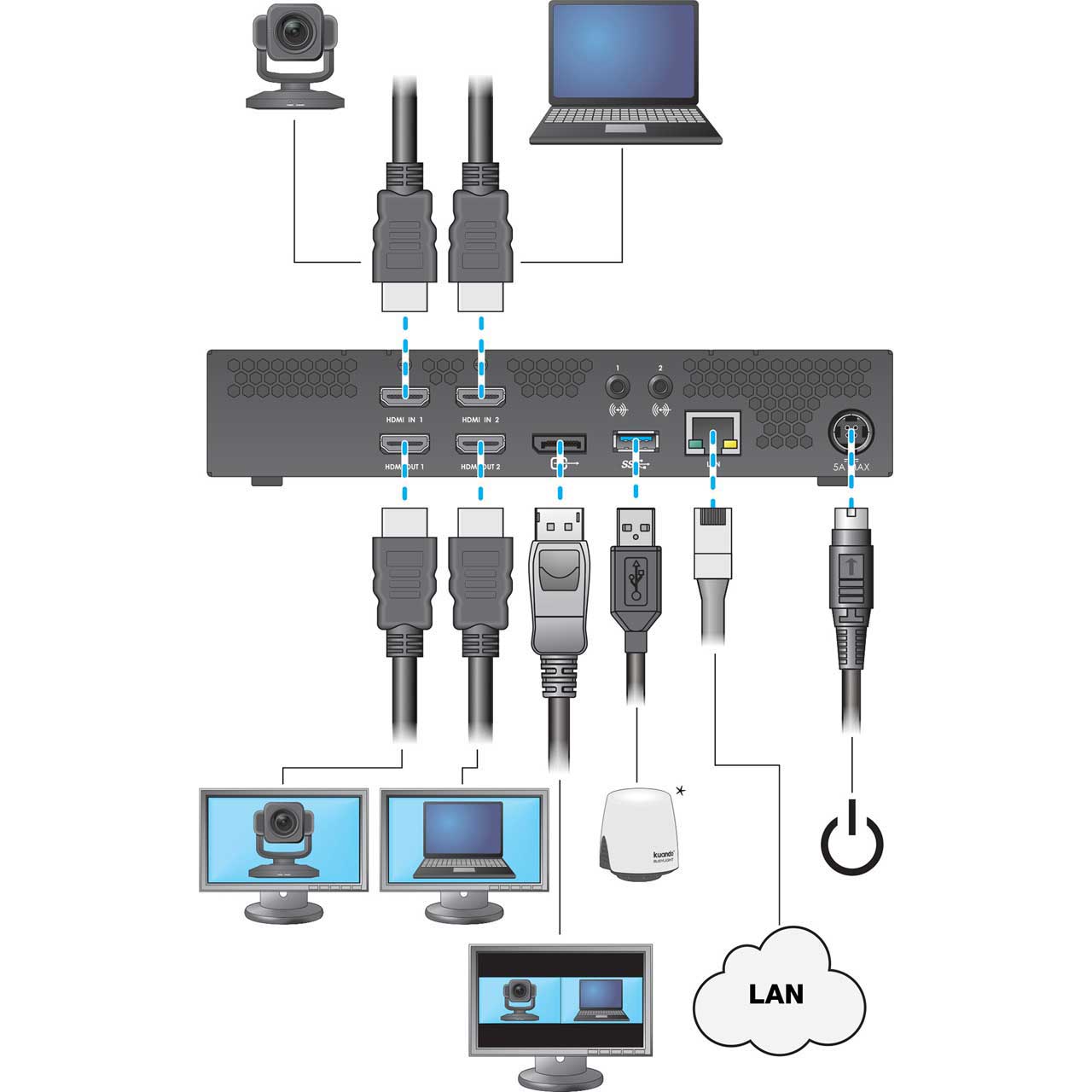

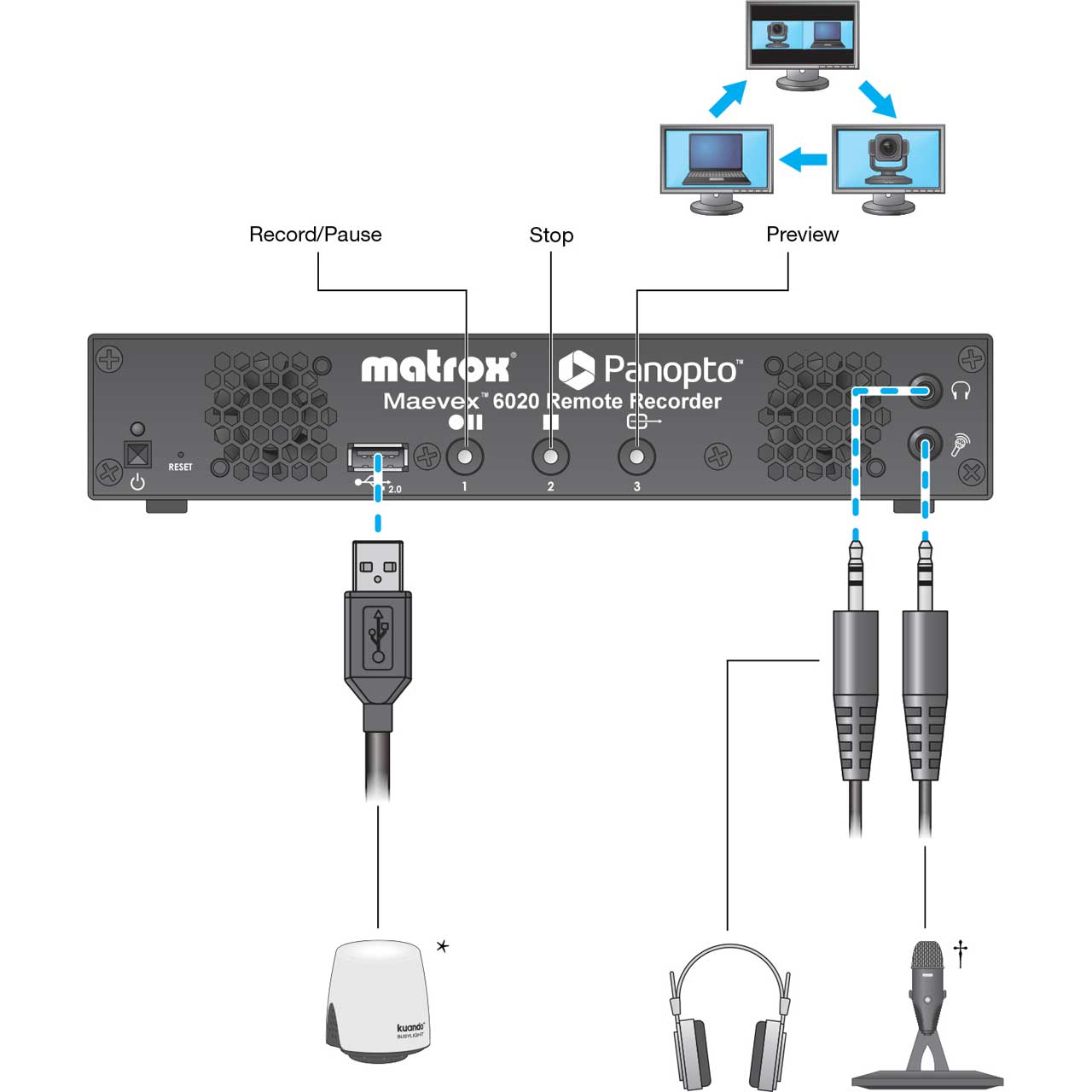

    Implementation and operation of the Maevex 6020 Remote Recorder is simple as 1-2-3. Its superior hardware recording and streaming technology is completely integrated into the Panopto cloud video platform. Simply connect power, network, and video; power up; log in to the Panopto cloud account-and it's done. From there, the all-in-one Panopto VMS platform provides complete control and makes video management, recording, live streaming, inside-video searching, quizzing, analytics, mobile, and other features readily accessible. The front of the appliance also includes one-touch, easy-access button controls to record, pause, resume, and stop. For Panopto first-time users and seasoned professionals alike, the Maevex 6020 Remote Recorder delivers a simple, best-in-class video capture and streaming experience for any academic or enterprise environment.

    Corporate Communications
    Video On Demand

    • Features:

      • Encoding & streaming
      • H.264/MPEG-4 AVC encoding format
      • Dual RTMP live streaming to Panopto
      • Gigabit Ethernet operation
      • Up to dual 1920x1080 live streams
    • Specifications:

      • Connectivity
      • Video Input
        Number of channels: 2
        Formats: HDMI (Type A)
      • Video Output
        Number of channels: 2
        Formats: HDMI (Type A) zero latency pass-through
        Audio Input
        2x analog stereo audio (3.5mm): 1 Vrms (0 dBV); 14.3 kΩ (gain = 0 db)
        1x stereo mic (3.5mm): 2.5 V; 1 Vrms (0 dBV); 15 kΩ (gain = 0 db)
      • Audio Output: 1x headphone (3.5 mm): 1.2 Vrms (1.6 dBV); 32 mW into 32Ω
      • Network Connector: 1x RJ45
      • USB Ports: 1x USB (front), 1x USB (back), with support for: Kuando™ Busylight UC Omega, Last session file transfer, USB to RS232 cable for tabletop touch-screen controllers
      • Confidence Preview: 1x DisplayPort™ monitoring output (1920x1080), with viewing options for input 1, input 2, or inputs 1 and 2 side by side

      • Video Encoding Formats: H.264/MPEG-4 Part 10 (AVC)

      • Encoding Capability: Up to dual 1920x1080

      • Recording Locations: Integrated 128 GB solid-state drive for 18 hours or more of continuous recording at maximum quality levels

        On-Device Transcode
      • Primary Input's Maximum Recording Levels*: 1920x1080, 1280x720, 960x540, 768x432
      • Secondary Input's Maximum Recording Levels*: 1920x1080, 1280x720, 960x540
      • Please Note: *Simultaneous multiple recordings for each input

      • Network Standard: Gigabit Ethernet operation
      • Streaming Protocols: RTMP live streaming to Panopto

      • Dimensions (LxWxH): 8.53 x 7.52 x 1.68" (21.7 x 19.1 x 4.3cm)
      • Power Consumption: 35W
      • EMC/EMI Device Class: Class A
      • EMC/EMI Certifications: ACMA, CE (EU), FCC (US), ICES-3 (Canada), KC (Korea), VCCI (Japan)
      • Environmental Certifications: China RoHS, EU RoHS, REACH, WEEE
    • Warranty:

      • 2-year limited with free online or telephone support
