    MU-SIX-PAIR-8K - Overview

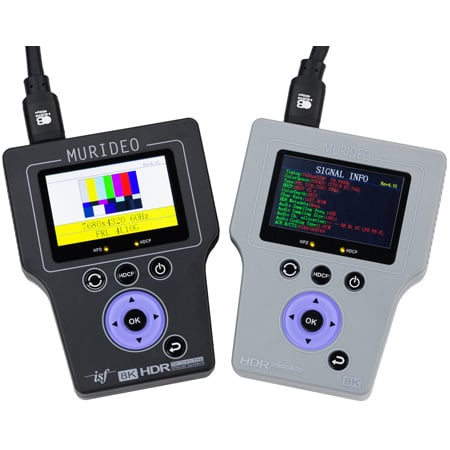

    Murideo MU-SIX-PAIR-8K 40Gbps Generator and Analyzer Testing Kit are the ideal testing units for all custom and commercial integrators. The Murideo Pair comes with a 40Gbps Generator and 40Gbps Analyzer. These tools allow you to confirm correct bandwidth, HDCP, resolution, timing, HDR metadata, and many more options that could cause system hiccups if not treated correctly. You can connect these devices directly to your computer to expanding your testing with free software that comes with your Pair.

    Sure, there are pricey test instruments available with a multitude of features. These devices together account for 99% of the testing those other products can do, and they do it in a point-to-point testing system allowing you to keep the SIX-G Generator in one room. Then, walk around all the displays with the 8K SIX-A Analyzer to find out what your system is doing or not doing.

    The 8K Murideo Pair is a must-have for any HDMI Specialist, Calibrator, AV Product Manufacture, HDMI Cable Manufacturer, Custom/Commercial Integrators, Content Masters, and more.

    • Features:

      • Generator Features
      • HDMI 2.1 Support
      • [email protected] 4:2:0 10-bit Maximum Resolution
      • Fixed Rate Link (FRL)
      • Color Space Selectable
      • Full Range RGB (0-255)
      • SMPTE RGB (16-235)
      • YC444, 422, 420 (16-235)
      • Auto Detect (read EDID - display preferred format)
      • High Bit Depth - 8, 10, 12, and 16 bit per pixel support
      • HDR (High Dynamic Range) Support
      • Multiple HDR Memories

        Analyzer Features
      • Analyze any HDMI/DVI signals up to 40Gbps (7680x4320P60)
      • Test HDMI/DVI Cables up to 40Gbps, full TMDS testing
      • View up to 40Gbps Video Content and Format Info
      • Analyze & Report HDMI Distribution System over Time (minutes, hours, days) down to the Pixel
      • Audio Confidence Tests (2-Channel & Multichannel)
      • Advanced EDID Analysis & Tools
      • Read, Write EDID
      • Analyze HDR Signals & Metadata
      • Report & Analyze InfoFrames
      • HDCP Tester - 2.3, 2.2, 1.4, None

    • Specifications:

      • MU-SIX-G-8K
      • Video
      • HDMI Version: HDMI 2.1 (FRL5 40GBPS)
      • HDCP Version: HDCP 2.3 and 1.4
      • HDCP On/Off: Yes
      • Max Clock Rate: 600 Mcsc (594MHz)
      • Max Throughput Per Channel: 10.0 Gbits/sec (40 GBP/sec total)
      • Resolution Timings: VESA: Video standard with 60, 59.94, 30, 29.97, 24, 23.98. FPS: Video standard with 50, 25 FPS; Auto and 10 user defined
      • Video Encoding: RGB, YCBCR
      • Video Sampling Models: RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 HDMI 2.0
      • Color Bit Depth: 8, 10, 12, 16, and auto EDID read
      • Patterns: Over 80 built-in including ISF geometry, ISF resolution, ISF Pluge, Colors, Focus, Resolution, Bars, Ramps, Multiburst, Black/White and moving bars

        Audio
      • Audio Channels: Up to 8 (7.1)
      • Audio Output: 2 Channel LPCM
      • VU Meter Channels: Up to 8 (7.1)

        Ports
      • HDMI: Type A
      • Audio (L/R Input): 3.5mm stereo (3-conductor)
      • Sync (Sync & Latency Test): 3.5mm stereo (3-conductor)
      • RS232:3.5mm stereo (3-conductor)
      • Firmware/Control: Micro USB

        Environmental
      • Operating Temp: 23 to 125 °F
      • Storage Temp: -4 to 140°f
      • Humidity Range: 5-90%

        Power
      • Power: 7.4V 2600mAh internal battery or wall adapter
      • Power Consumtion (total): 12 Watts max
      • Power Supply: Input - AC 100-240V ~ 50/60HZ, Output - DC 12V 2A

        Dimensions
      • Unit: 1.13 x 4.27 x 5.47 inches
      • Weight: 0.8 lbs

        MU-SIX-A-8K
      • HDMI Version: HDMI 2.1 (FRL5 40GBPS)
      • HDCP Version: HDCP 2.3 and 1.4
      • HDCP On/Off: Yes
      • Max Clock Rate: 600 Mcsc (594MHz)
      • Max Throughput Per Channel: 10.0 Gbits/sec (40 GBP/sec total)
      • Resolution Timings: VESA: Video standard with 60, 59.94, 30, 29.97, 24, 23.98. FPS: Video standard with 50, 25 FPS; SMPTE 4K Timings (4096x2160; UHD 4K timings (3840x2160)
      • Video Sampling Models: RGB 4:4:4, YUV 4:4:4, YUV 4:2:2, YUV 4:2:0 HDMI 2.0
      • Color Bit Depth: 8, 10, 12, 16, and auto EDID read

        Audio
      • Audio Type: LPCM
      • Audio Sampling Rate: 32k, 44.1k, 48k, 88k, 96k, 176k
      • Audio Sampling Bit Size: 16, 20, 24, auto
      • Audio Channels: 2
      • Audio Volume: Yes

        Ports
      • HDMI: Type A
      • Audio (L/R Input): 3.5mm stereo (3-conductor)
      • Sync (Sync & Latency Test): 3.5mm stereo (3-conductor)
      • RS232:3.5mm stereo (3-conductor)
      • Firmware/Control: Micro USB

        Environmental
      • Operating Temp: 23 to 125 °F
      • Storage Temp: -4 to 140°f
      • Humidity Range: 5-90%

        Power
      • Power: 7.4V 2600mAh internal battery or wall adapter
      • Power Consumtion (total): 12 Watts max
      • Power Supply: Input - AC 100-240V ~ 50/60HZ, Output - DC 12V 2A

        Dimensions
      • Unit: 1.13 x 4.27 x 5.47 inches
      • Weight: 0.8 lbs

    • Item Includes:

      • 1x Murideo MU-SIX-PAIR-8K 18Gbps Generator and Analyzer Testing Kit for 8K UHD & HDR
