500216-US - Overview

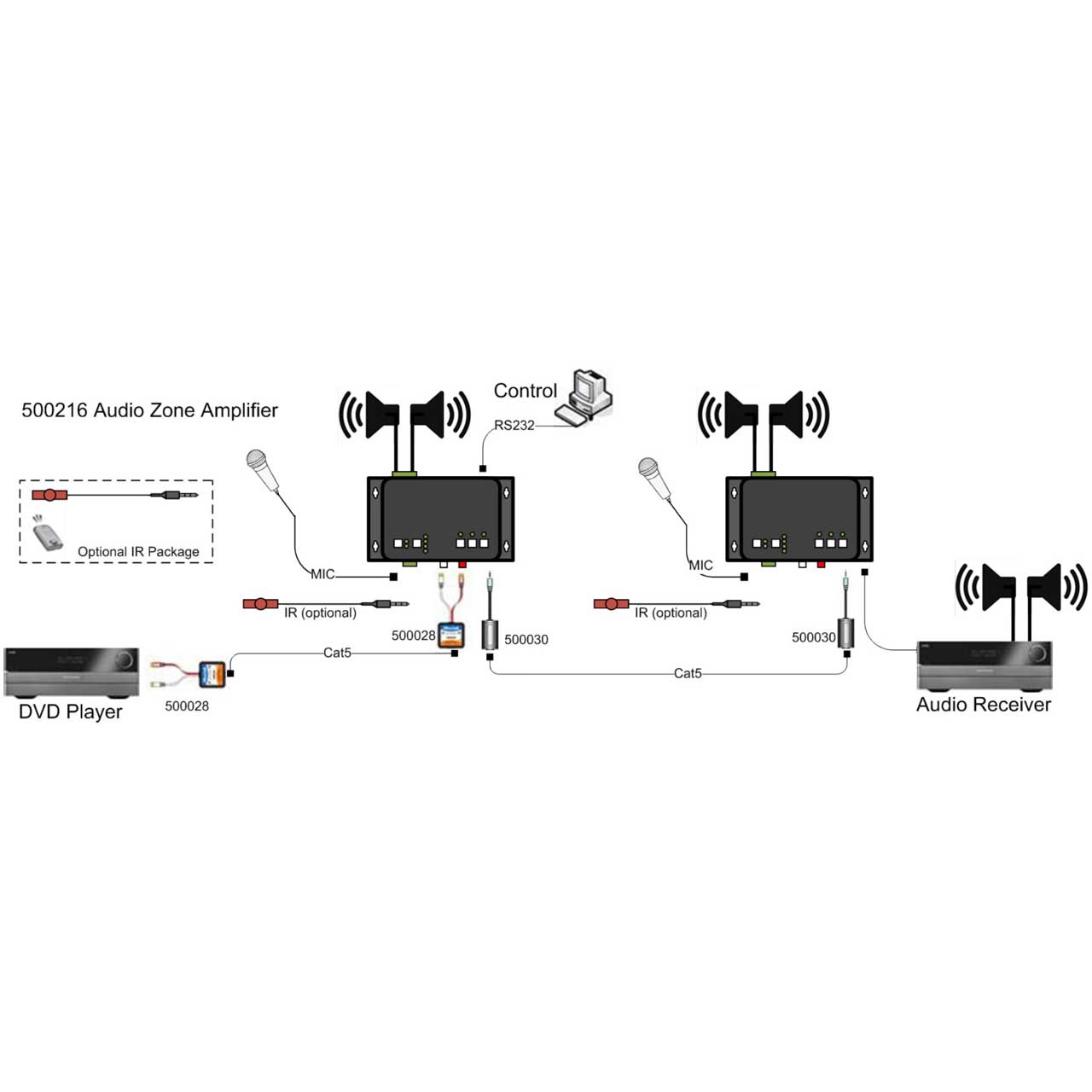

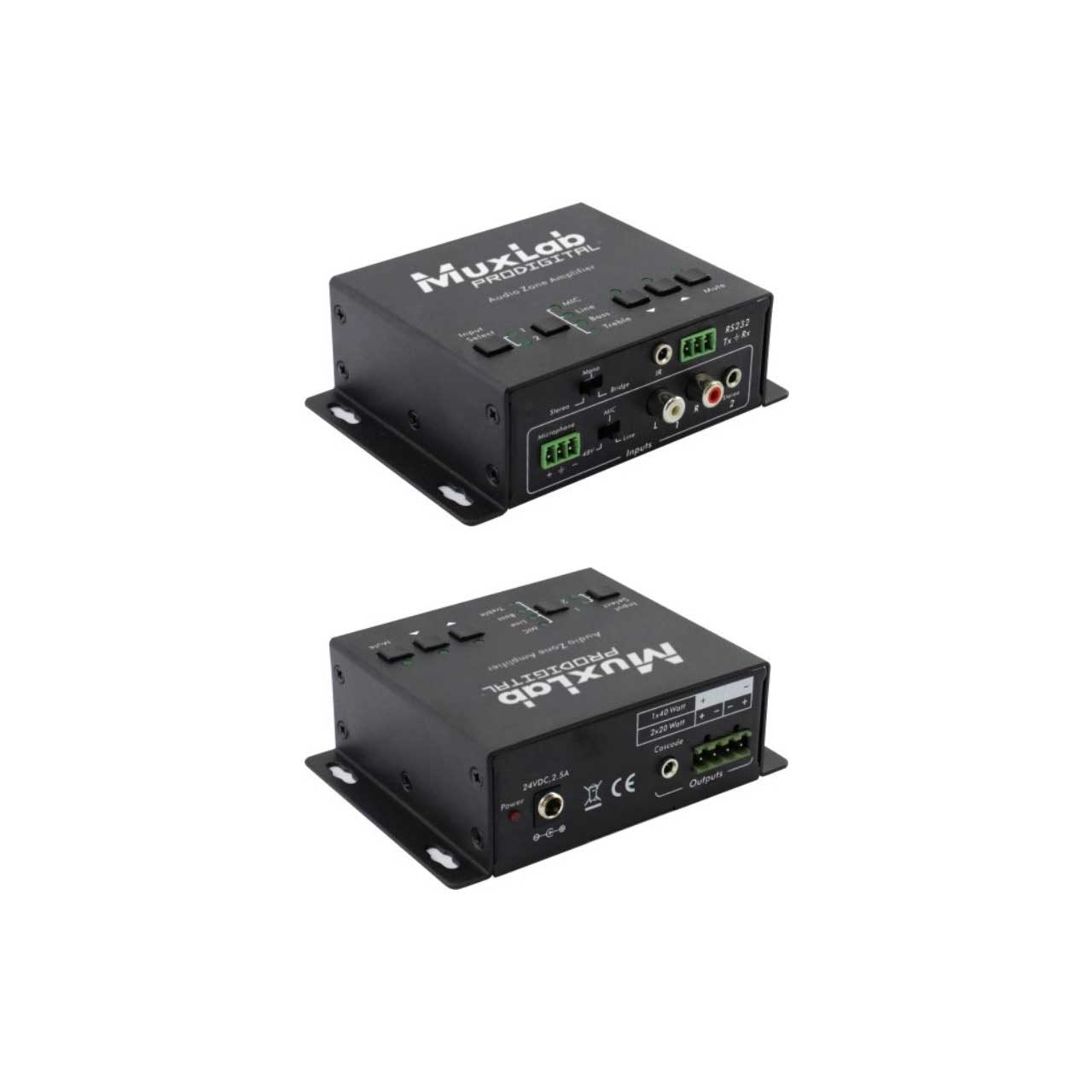

The MuxLab 500216-US Audio Zone Amplifier is a Class D digital amplifier that allows one (1) analog source to be distributed to a pair of 20W per channel stereo speakers within a zone. The Audio Zone Amplifier can be cascaded infinitely across multiple zones to give a multi-room audio solution.

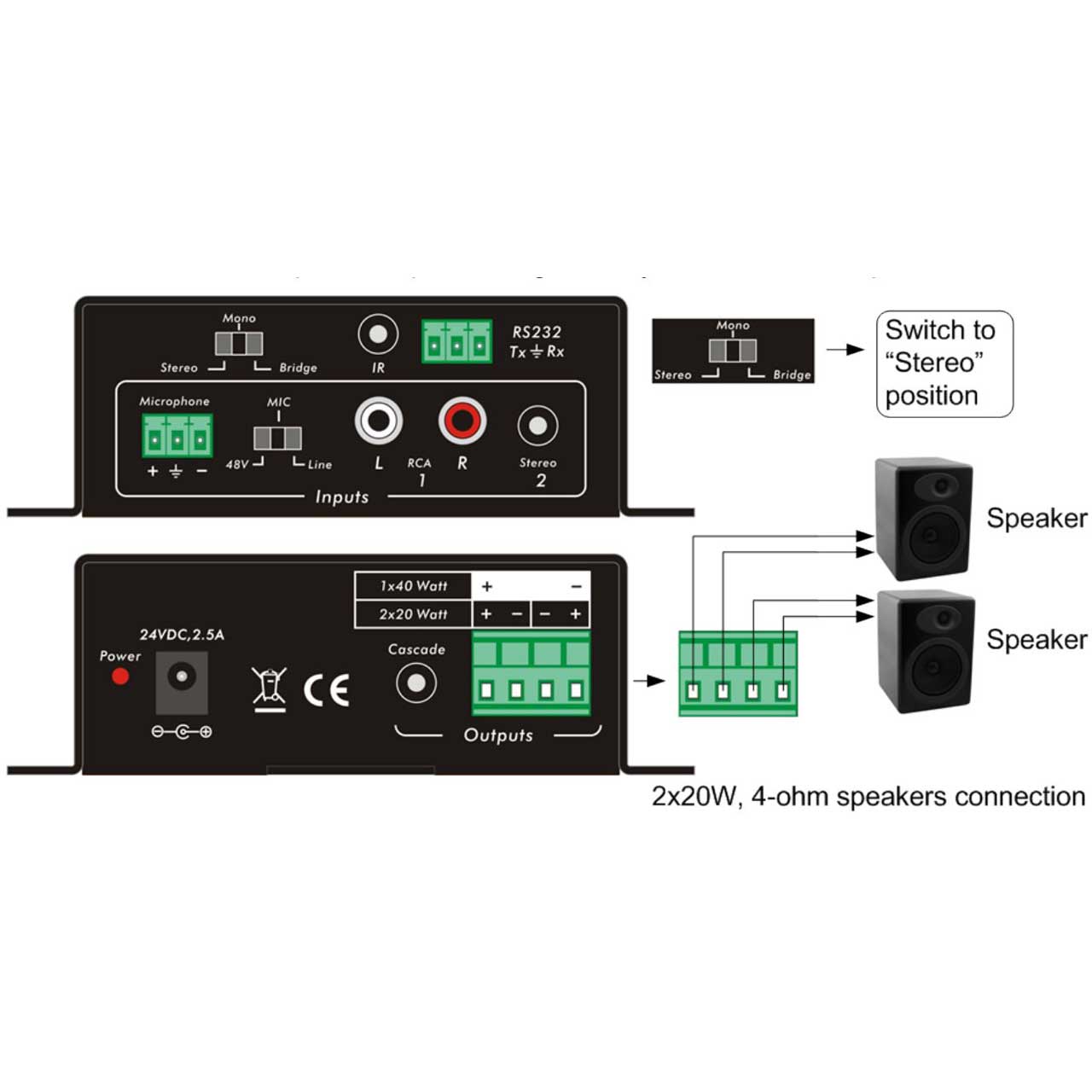

The Audio Zone Amplifier features two (2) stereo analog audio input lines, microphone input with 48V phantom supply, and two (2) 20W, 4-ohm speaker outputs or one (1) 40W, 8-ohm speaker output.

Volume and source control via the front push buttons, or via IR using the optional IR Sensor & Handheld Remote Control Kit (500216-IR).

  • Features:

    • Two Analog Stereo Audio Inputs
    • Microphone input with 48V phantom supply
    • 20W per channel into 4-ohm
    • Cascade-able to further amplifiers
    • Compatible with MuxLab Hi-Fi Audio Baluns and Audio Matrix Switch
    • Volume control
    • Ground loop isolation
    • Controllable via push buttons, RS232 and optional IR


  • Specifications:

    • Environment: Audio Distribution
    • Power Output: 20W RMS maximum per channel into 4 ohm
    • Front Control: Input select, Volume, Bass, Treble, Mute
    • Power Requirement: 60W max, 24VDC 2.5A
    • Compatible Source Unit: Line level Analog Audio
    • Gain: 26dB
    • Frequency: 20Hz to 20KHz
    • Connectors:
      Input:
      Two RCA (L/R) connectors
      One 3.5mm stereo connector
      3-position Screw type connector for microphone
      3-position Screw type connector for RS232
      One 3.5mm IR Sensor connector
      Output:
      4-position Screw type connector for speakers.
      One Loopout 3.5mm stereo connector
      Power input:
      One locking power jack, 2.0mm
    • Control: Push buttons, RS232, and Optional IR
    • Temperature:
      Operating: 32° to 90°F (0° to 40°C)
      Storage: -40° to 185°F (-40° to 85°C)
    • Humidity Maximum: 90% (non-condensing)
    • Enclosure: Metal, black painted
    • Dimensions: 4.9 x 3.5 x 1.5" (12.3 x 8.7 x 3.8cm)
    • Weight: 1LBs (0.45kg)


  • Warranty:

    • 2 Year Warranty
