    500408 - Overview

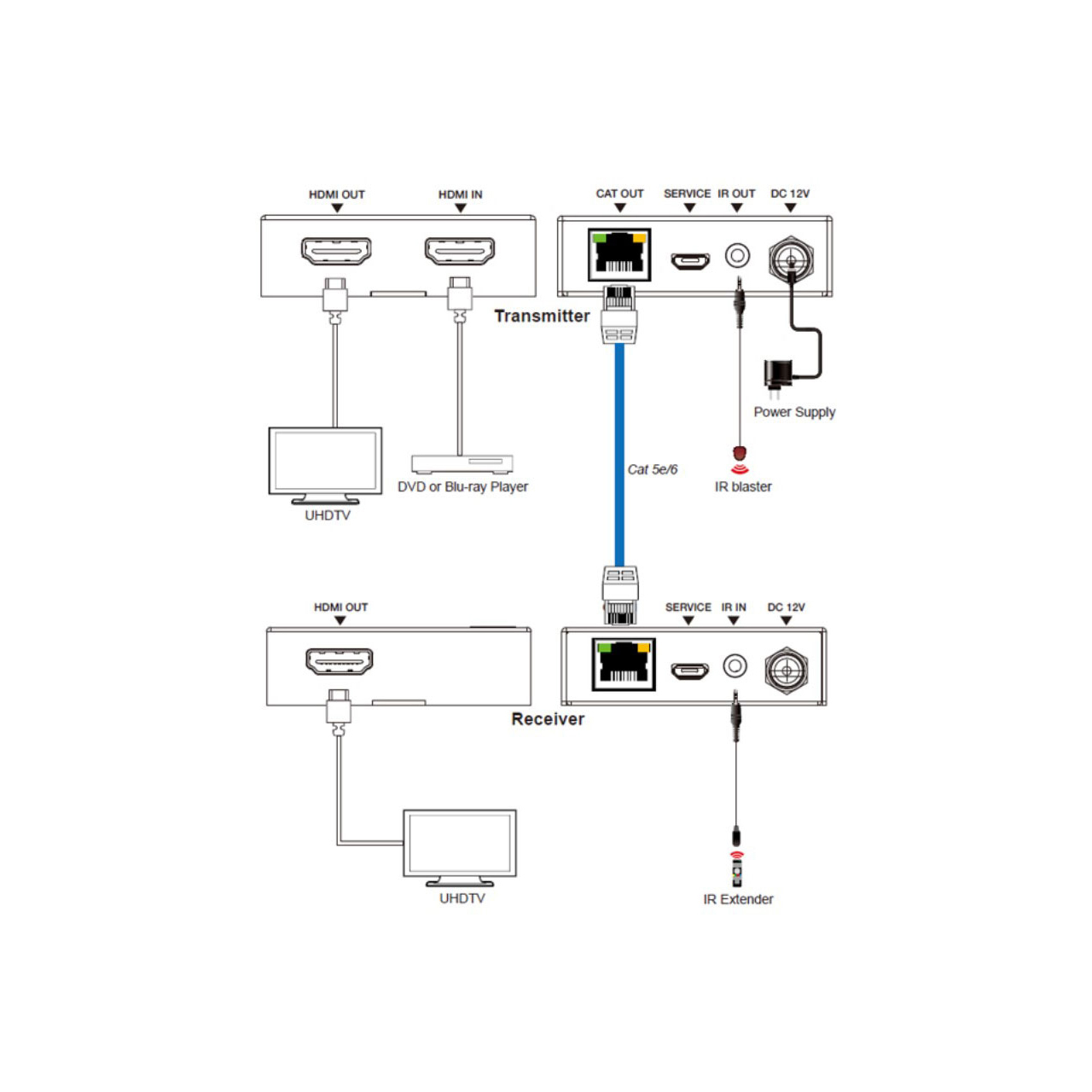

    The MuxLab 500408 HDMI 2.0 Extender Kit, 50m allows you to extend high-definition video/audio signals and one-way IR commands up to 164ft/50m between the transmitter and receiver over a single Cat5e/6 cable. This extender supports up to 4K/60Hz 4:4:4 video resolution, 18Gbps bandwidth, HDCP 2.2., HDMI Loop-out on the Transmitter, and one-way IR pass-through enabling source control.

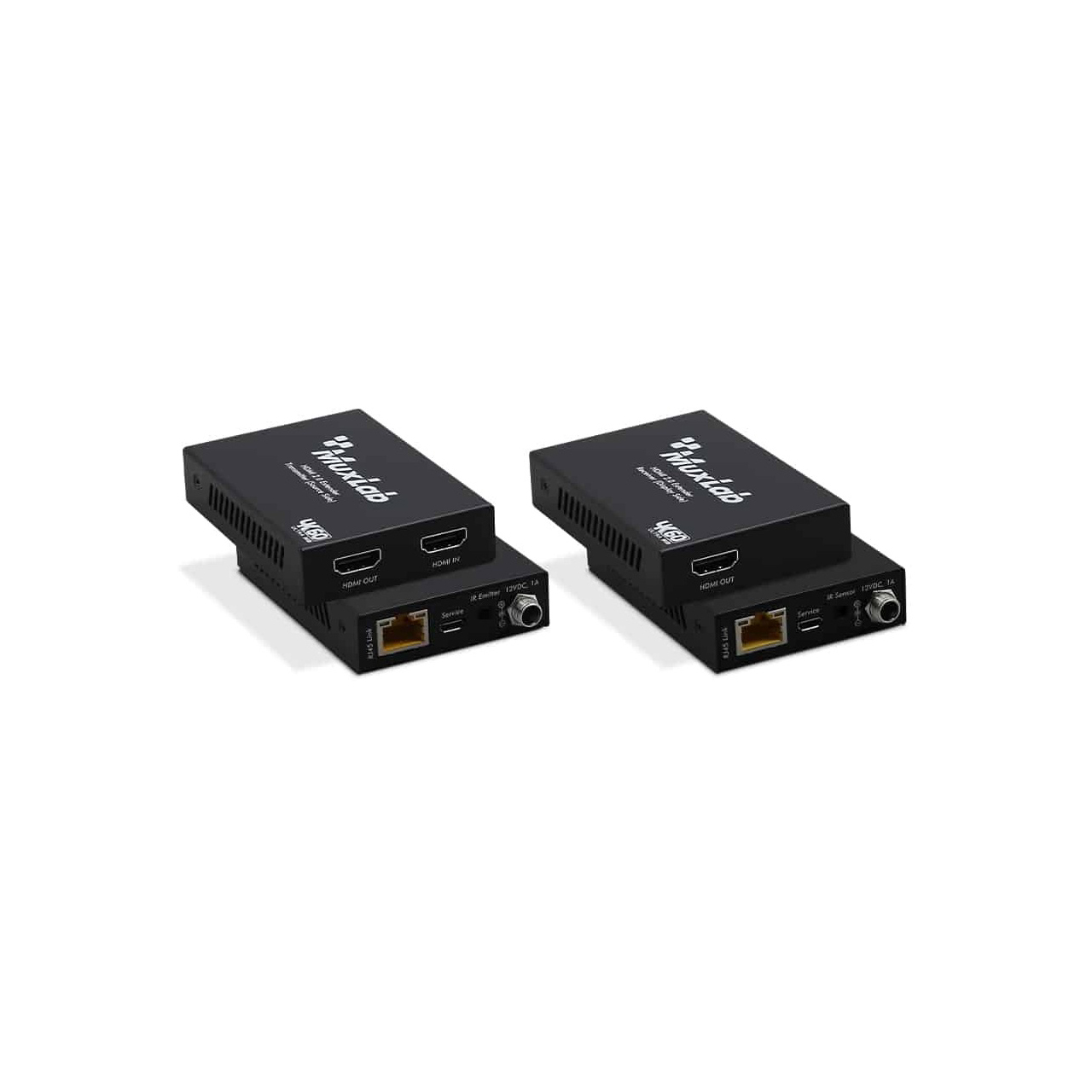

    The extender includes one Transmitter unit and Receiver unit. The Transmitter unit is responsible for capturing the HDMI input signal and carries it over one Cat5e/6 cable while emitting IR control signals. The Receiver unit is responsible for receiving the HDMI signal and capturing the IR control signals.

    Applications:

    • Commercial AV Systems
    • Residential AV Systems
    • Collaborative PC Systems
    • Digital Signage
    • Educational Institutions
    • Boardroom Systems

    • Features:

      • HDMI 2.0, HDCP 2.2/HDCP 1.4 and DVI 1.0 compliant
      • Supports 18Gbps bandwidth
      • Supports input and output video resolution up to 4K/60Hz 4:4:4, extends distance up to 164ft/50m Supports one HDMI loop output
      • Supports one-way IR pass-through
      • Supports HDR function
      • Supports PoC (Power over Cable) function, it means that either transmitter or receiver is powered supply by 12VDC/1A power adapter, the other doesn't need power supply
      • Supports automatic copy EDID function
      • Compact design for easy and flexible installation

    • Specifications:

        Technical
      • HDMI Compliance: HDMI 2.0
      • HDCP Compliance: HDCP 2.2/HDCP 1.4
      • Video Bandwidth: 18Gbps
      • Video Resolution: Up to 4K/60Hz 4:4:4
      • Color Space: RGB/YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4
      • Color Depth: 8/10/12-bit (1080P/60Hz, 4K/30Hz, 4K/60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K/60Hz 4:4:4 )
      • HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
      • ESD Protection: Human body model - ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

        Connection

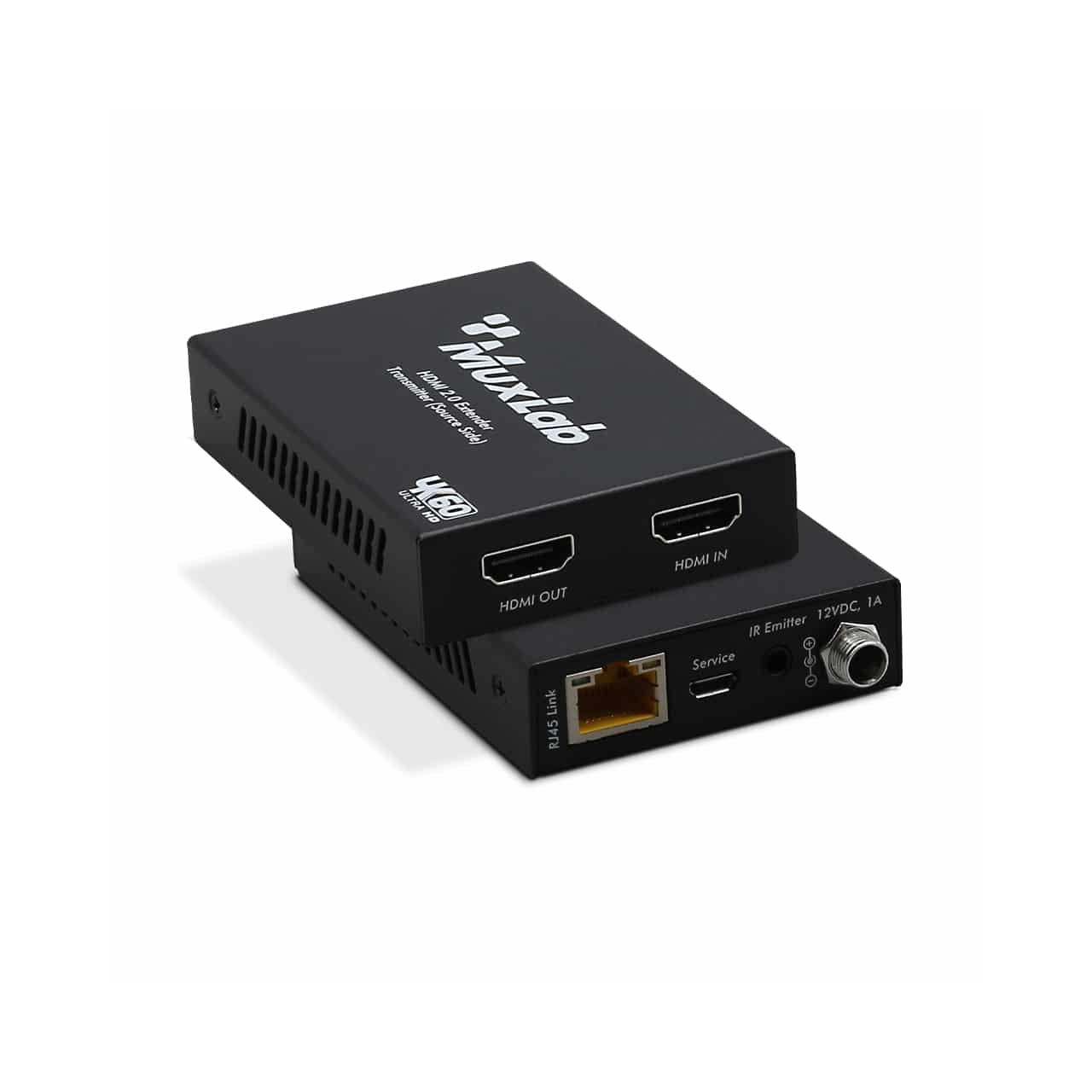

      • Transmitter:
        - Inputs: 1x HDMI Type A [19-pinfe male], 1x SERVICE [Micro USB, Update port]
        - Outputs: 1x HDMI Type A [19-pin female], 1x IR OUT [3.5mm Stereo Mini-jack], 1x CAT OUT [RJ45, 8-pin female]

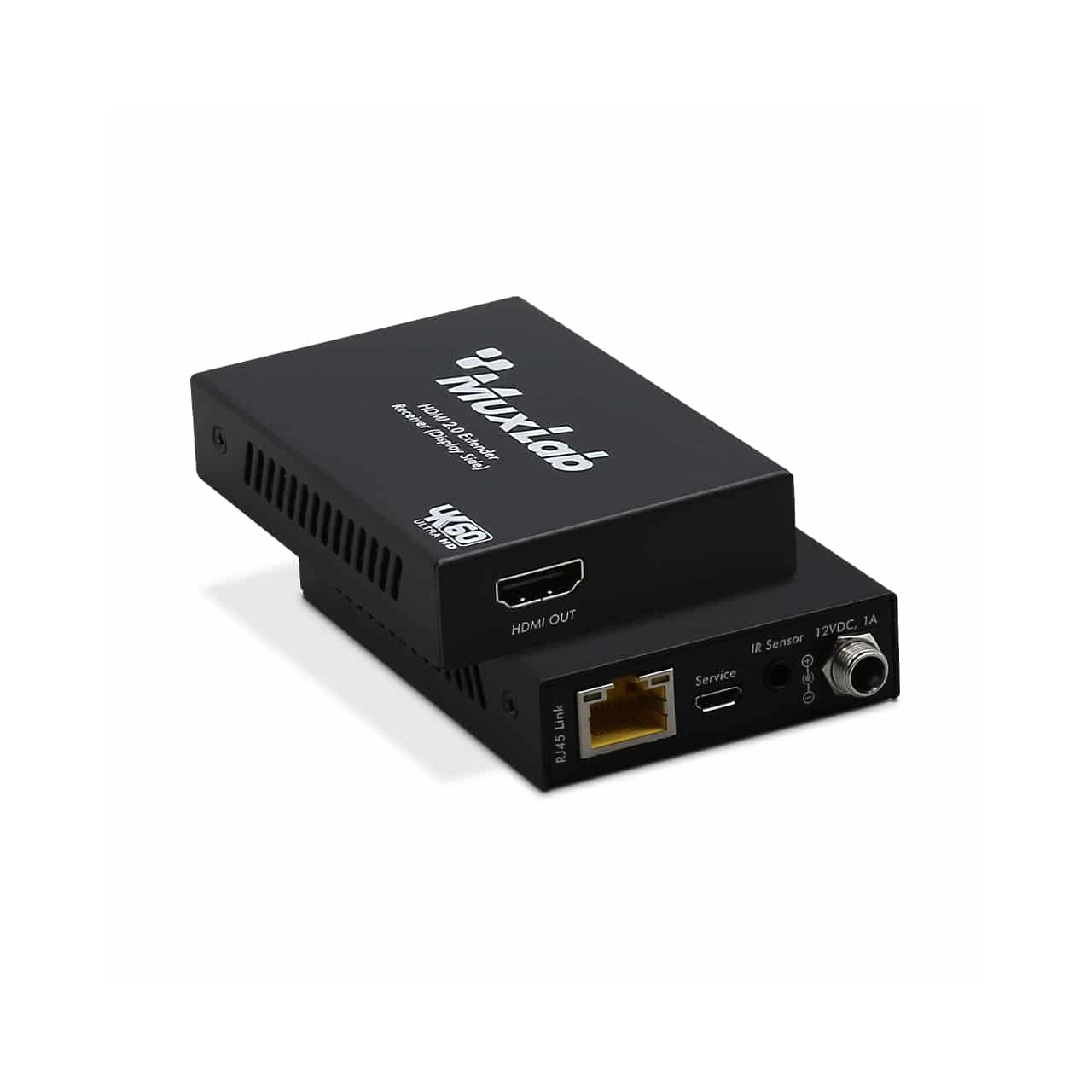

      • Receiver:
        - Inputs: 1x IR IN [3.5mm Stereo Mini-jack], 1x CAT IN [RJ45, 8-pin female], 1x SERVICE [Micro USB, Update port]
        - Outputs: 1x HDMI Type A [19-pin female]

        Mechanical
      • Housing: Metal Enclosure
      • Color: Black
      • Dimensions (Transmitter and Receiver): 2.40" x 3.46" x 0.71" (61mm x 88mm x 18mm)
      • Weight:
        - Transmitter: 5.64oz (160g)
        - Receiver: 5.47oz (155g)
      • Power Supply:
        - Input: 100V - 240V AC 50/60Hz
        - Output: 12V DC/1A
      • Power Consumption: 3.84W
      • Operating Temperature: 32°F - 104°F (0°C - 40°C)
      • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
      • Relative Humidity: 20% - 90% RH (no condensation)

    • Warranty:

      • 2 Year Warranty
