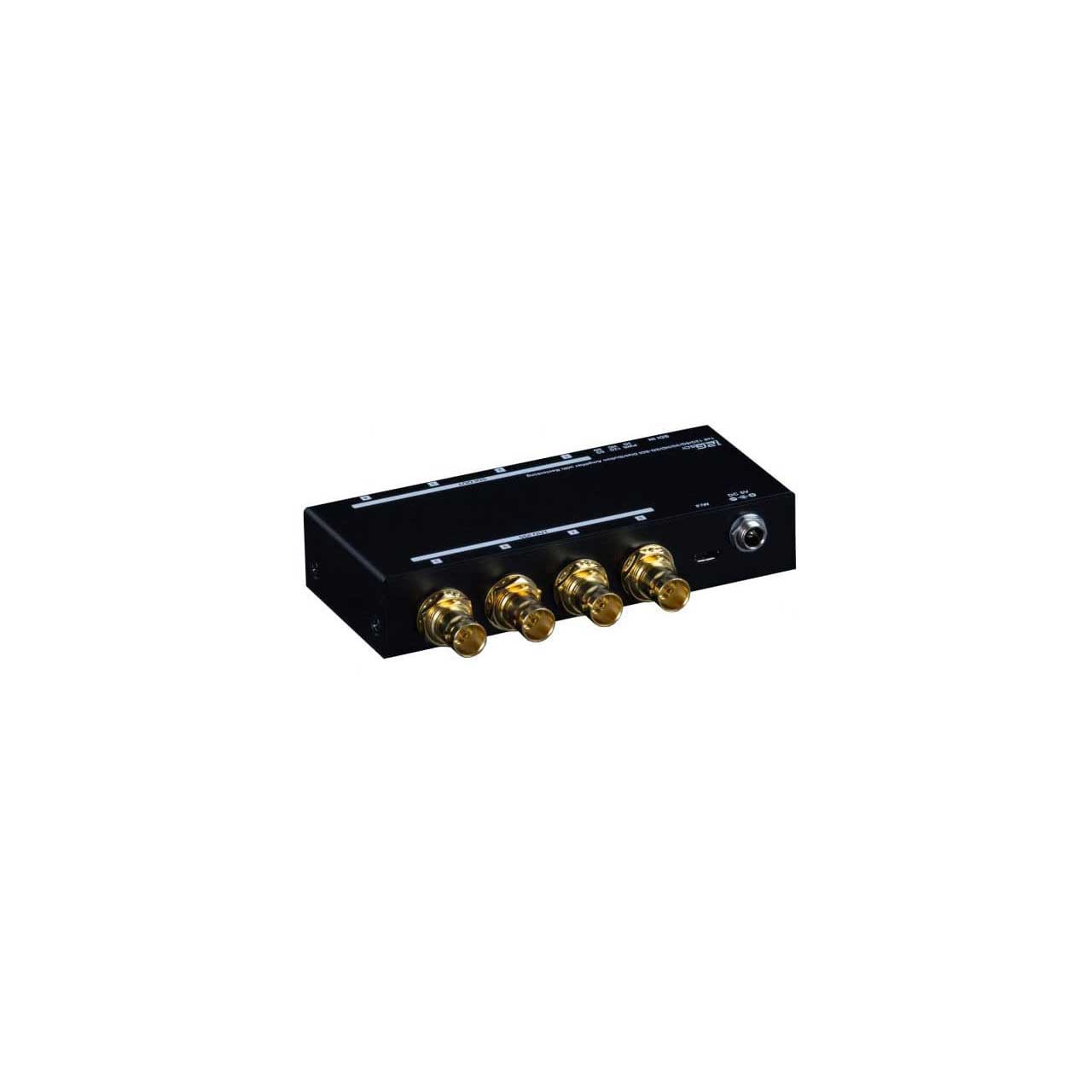

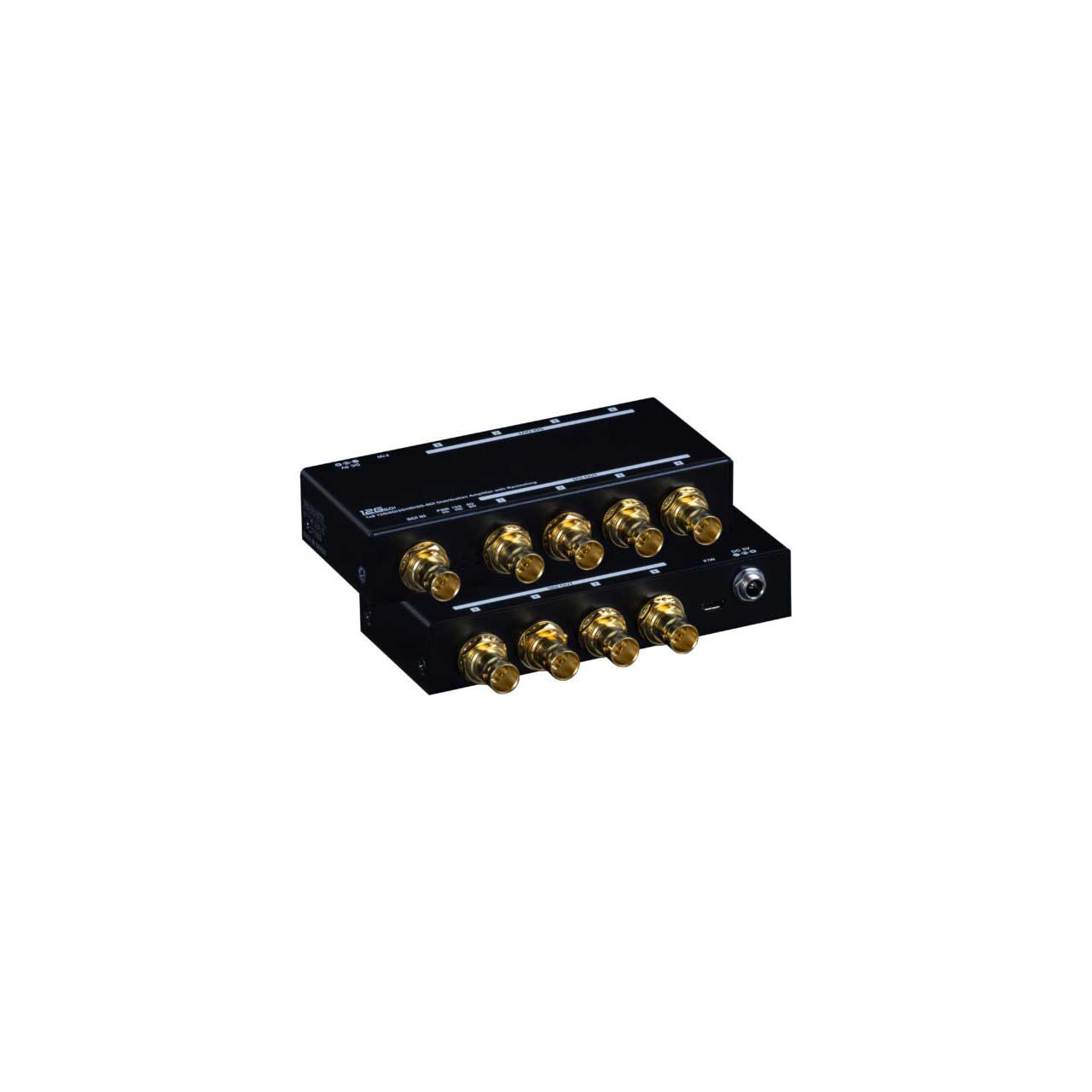

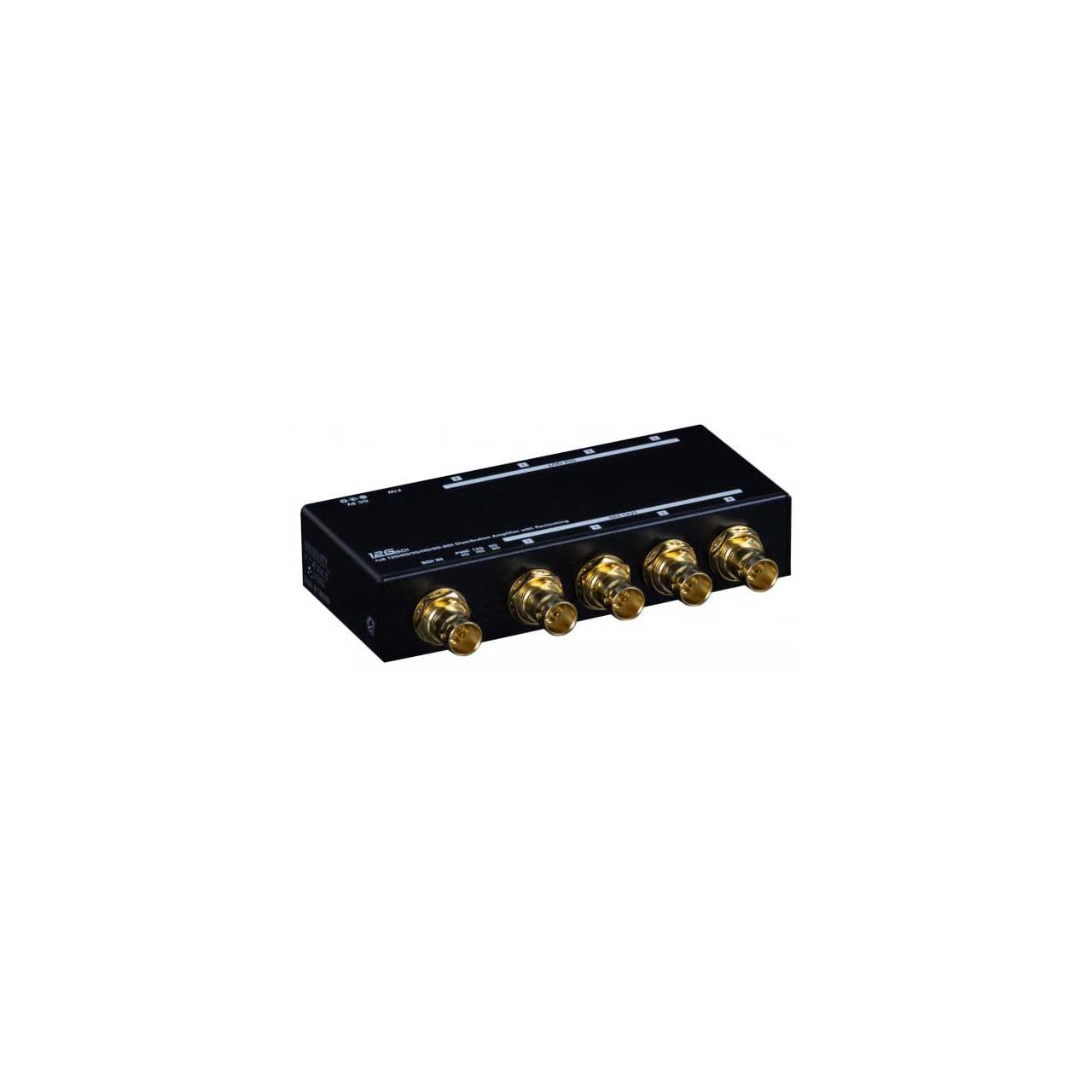

MuxLab 500728 12G-SDI 1x8 Splitter - 4K/60

500728 - Overview

• Features:

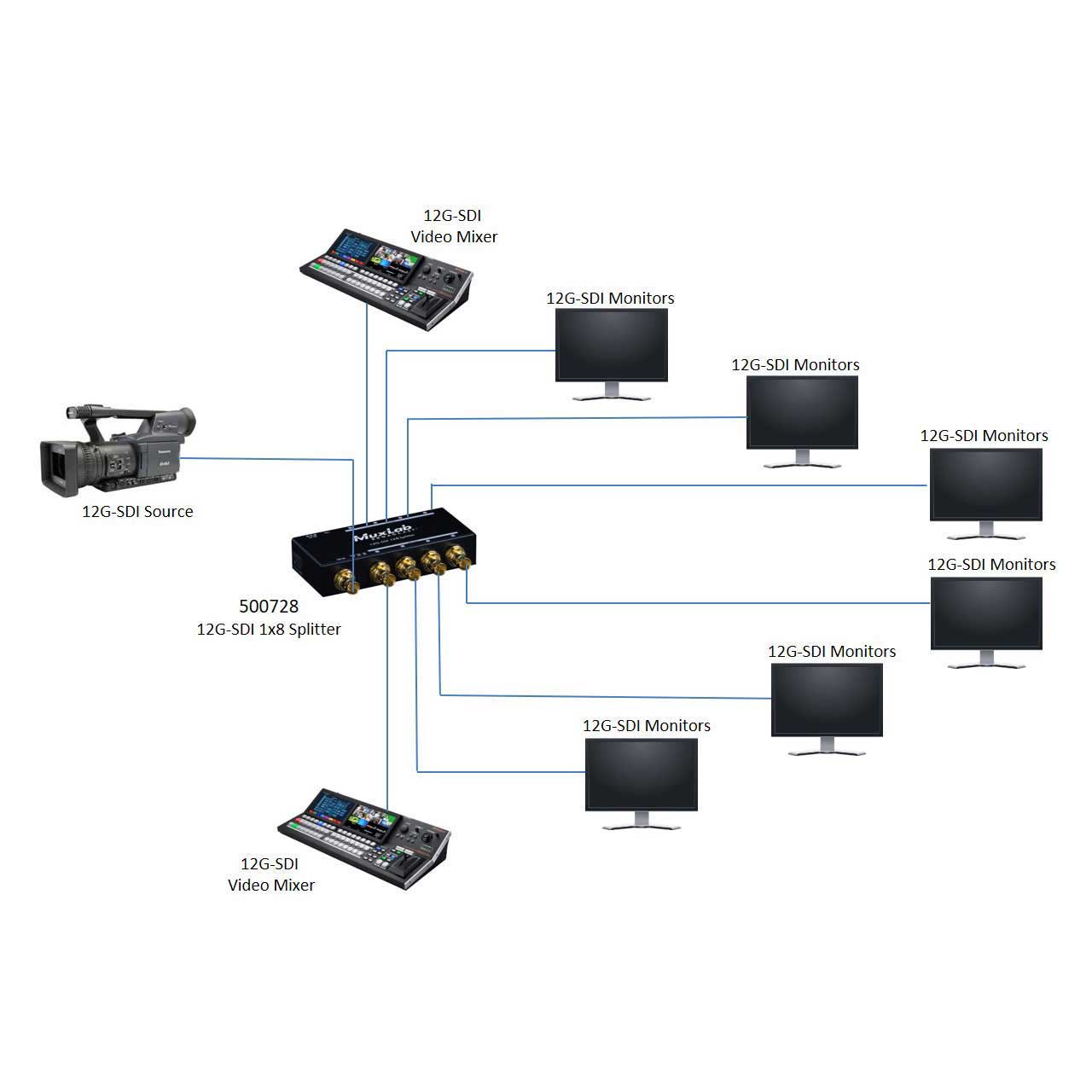

  • Distribute one 12G-SDI source to eight displays
  • Supports up to 4K @ 60Hz, including 12G/6G/3G/HD/SD-SDI
  • Automatically detects re-clocks and regenerates the 12G/6G/3G/HD/SD-SDI signal
  • LED diagnostic


• Specifications:

  • Environment: 12G-SDI, 6G-SDI, 3G-SDI, HD-SDI & SD-SDI.
  • Devices: Camera, projectors, monitors, TV.
  • Transmission: Transparent to the user.
  • Detection: Auto Detection of the 12G/6G/3G/HD/SD-SDI Signal.
  • Bandwidth: 11.88bps & 11.88/1.001Gbps
  • Data Rates: 1.485, 2.97, 5.96 & 11.88 Gbps
  • Output Impedance: 75Ω
  • Signals: SDI protocol

    Supported Resolutions
  • 12G-SDI: 2160p50/59.94/60Hz (4:2:2)
  • 6G-SDI: 2160p23.98/24/25/29.97/30Hz (4:2:2)
  • 3G-SDI: 1080p50/59.94/60Hz (4:2:2)
  • HD-SDI: 1080p/23.98/24/25/29.97/30Hz, 720p/50/59.94/60Hz, 1080i/50/59.94/60Hz
  • SD-SDI: NTSC (59.94Hz), PAL (50Hz)


  • Audio: Up to 8 Audio Channels
  • Ancillary Data: Supported

    Input Signals
  • 12G-SDI: SMPTE ST2082
  • 6G-SDI: SMPTE ST2081
  • 3G-SDI: SMPTE 424M, 425M
  • HD-SDI: SMPTE 292M, 296M
  • SD-SDI: SMPTE 259M, 344M

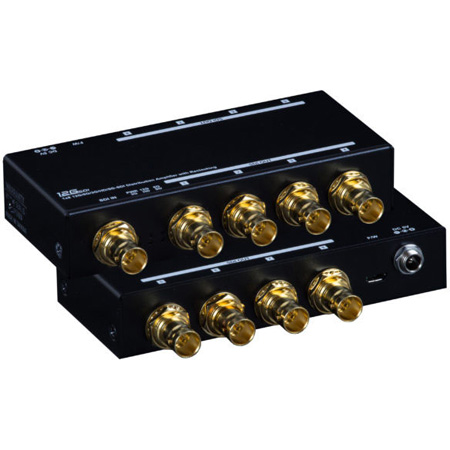

    Connectors
  • One (1) BNC Female 75 Ohms, Gold Plated for input.
  • Eight (8) BNC Female 75 Ohms, Gold Plated for outputs.
  • One (1) Locking Barrel Jack 2.1mm Power Connector.
    Note: RG59 coaxial cables not included

    Cable Equalization
  • 12G-SDI up to 230ft (70m)
  • 6G-SDI up to 330ft (100m)
  • 3G-SDI up to 594ft (180m)


  • Cable: RG-59 or better cable required.
  • Power Supply: One (1) 110-240V/5VDC power supply with interchangeable blades.
  • Power Consumption: 4.5 Watt (Max)
  • Temperature Operating: 0° to 40°C Storage: -20° to 60°C
  • Humidity: Up to 90% non-condensing
  • Enclosure: Metal
  • Dimensions: 4.80" x 2.04" x 0.98" (122mm x 52mm x 25mm)
  • Weight: 1.07lbs (0.49kg)
  • Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0


• Item Includes:

  • 1x MuxLab 500728 12G-SDI 1x8 Splitter - 4K/60


• Warranty:

  • 2 years
