    500762-TX - Overview

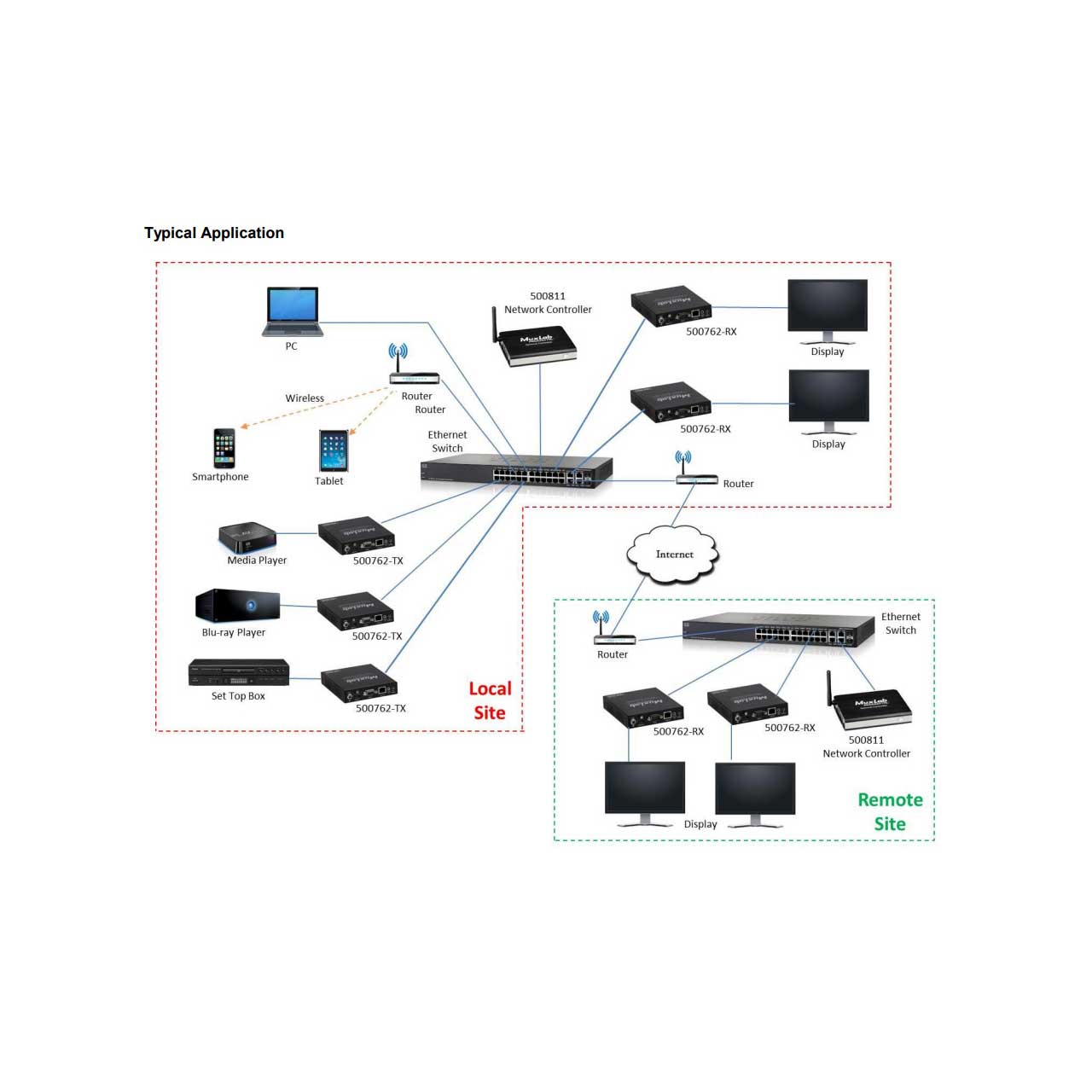

    The Muxlab MUX-500762-TX HDMI over IP H.264/H.265 PoE transmitter, when used in combination with the MUX-500762-RX (receiver, sold separately), allows HDMI source and display equipment to be extended locally up to 330ft (100m) at up to 4K @ 60Hz resolution via Cat5e/6 cable in point-to-point, point-to-multipoint and multipoint-to-multipoint configurations via a local Ethernet network, in a low bandwidth, flexible, expandable and cost effective manner, without the need to install dedicated cabling systems.

    The exceptionally low bandwidth requirements of this device combination allows for streaming audio/video content over a local network, over WiFi, and over the Internet for distributed installations spread-out throughout the globe. The transmitter accepts a 1080p @ 60Hz video and streams the content to the Receiver, where the signal is up-scaled up to 4K @ 60Hz to be displayed on a 4K monitor.

    The Receiver also accepts H.264/H.265 video streams from other transmitting devices of up to 4K @ 60Hz, and supports a USB 3.0 Type A connector for storing and playback of local content from an external USB drive. These devices support PoE (PD) and may be powered by a PoE (PSE) Ethernet Switch.

    Please note! This is the transmitter only! Receiver sold separately.

    • Features:

      • Receiver supports up to 4K @ 60Hz (4:4:4) video streams
      • Receiver up-scales 1080p @ 60Hz video streams from Transmitter and other devices up to 4K @ 60Hz
      • Transmitter supports up to 1080p @ 60Hz video
      • Extends local audio/video transmission up to 330ft (100m) over Cat5e/6
      • H.264/265 video codec, excellent for LAN, WiFi & Internet transmission
      • High image quality and 100ms latency depending on protocol
      • Supports 100's of Transmitters & Receivers depending on network bandwidth
      • Supports Multicast (LAN), and RTSP / RTMP / HLS (LAN & Internet)
      • USB 3.0 port for storing and playback of local content from an external USB drive (RX)
      • Supports SPDIF (TosLink) Audio Out (RX)
      • 2CH audio insert (TX), and 2CH audio extract (RX)
      • RS232 and Directional IR for remote control of end-devices
      • PoE powered, via PoE (PSE) Ethernet Switch
      • Managed remotely via Pro Digital Network Controller (500811)
      • Note: This device supports PoE (PD), and is intended to be powered via a PoE (PSE) Ethernet Switch. If a PoE (PSE) Ethernet Switch is unavailable, then the power supply (MUX-500992) may be purchased separately.

    • Specifications:

      • General
      • Environment: HDMI 1.3a
      • Devices: Blu-Ray, Set Top Boxes, Media Players/Streamers, projectors, monitors, TVs, PCs, supporting HDMI.
      • Signal Protocol/Standard: HDMI 1.3a and HDCP 1.3
      • Video Bandwidth: 225MHz
      • Network Bandwidth 30Mbps (max)
      • Protocols: Supports Multicast, RTSP, RTMP (H.264), HLS, FLV (H.264) & TS
      • Maximum Distance: Cat5e/6: 330ft (100m) from Ethernet Switch. Unlimited over the Internet
      • RJ45 Pin Configuration: RJ45 Link: Pin 1 (R), Pin 2 (T), Pin 3 (R), Pin 6 (T), Pin 4 (R), Pin 5 (T), Pin 7 (R), Pin 8 (T)
      • Power Source: This device supports PoE (PD), an external power supply is not included. It is intended to be powered via a PoE (PSE) Ethernet Switch. If required, an optional power supply (500993) may be purchased separately.
      • PoE: IEEE 802.3af
      • Power Consumption: 4.5W
      • Temperature: Operating: 0° to 40°C Storage: -20° to 85°C
      • Humidity: Up to 95% non-condensing
      • Dimensions 4.4" x 3.6" x 1.0"
      • Weight: 0.9lbs
      • Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0
      • Warranty: 3 years

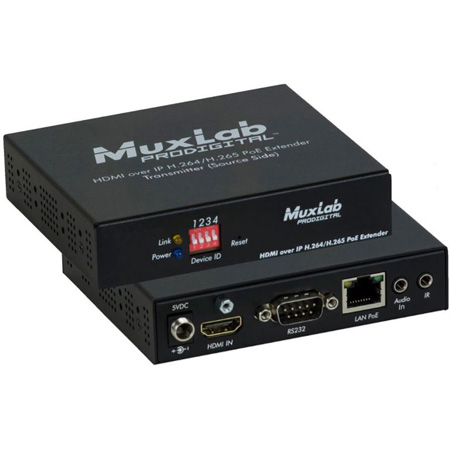

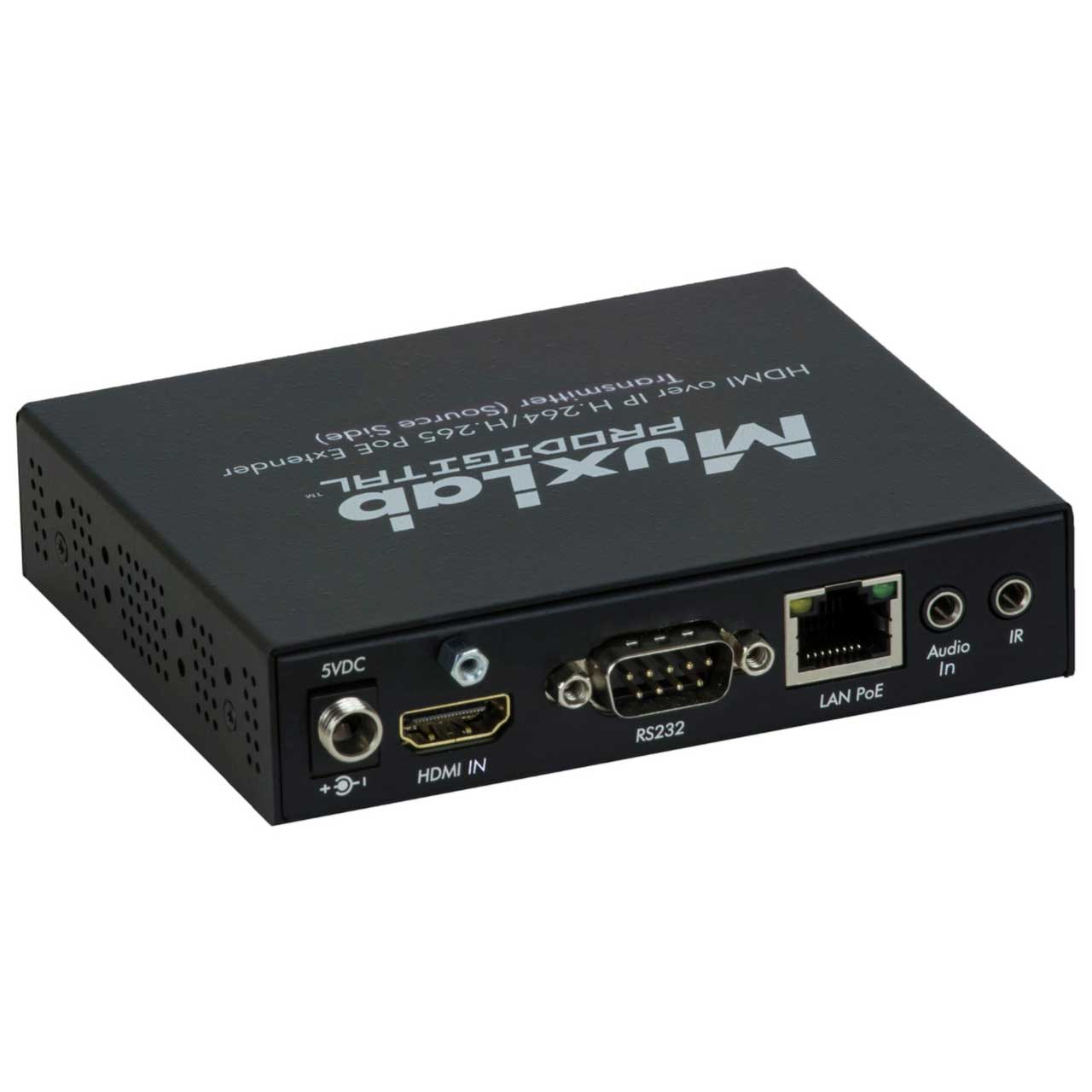

        Connectors
      • One (1) HDMI connector for AV (Input on TX and Output on RX)
      • One (1) RJ45S for Ethernet connection (on TX and RX)
      • One (1) USB connector for local AV content storage via external USB drive (on RX)
      • One (1) TosLink optical connector for digital audio extraction (on RX)
      • One (1) 3.5mm connector for audio imbedding/extraction (input on TX and output on RX)
      • One (1) 3.5mm connector for directional IR (on TX and RX - direction controllable via software)
      • One (1) RS232 DB9 connector for controlling end devices (on TX and RX)
      • One (1) 2.1mm locking power connector (on TX and RX)

    • Warranty:

      • 3 Years

    • GTIN:

      0627699907627
