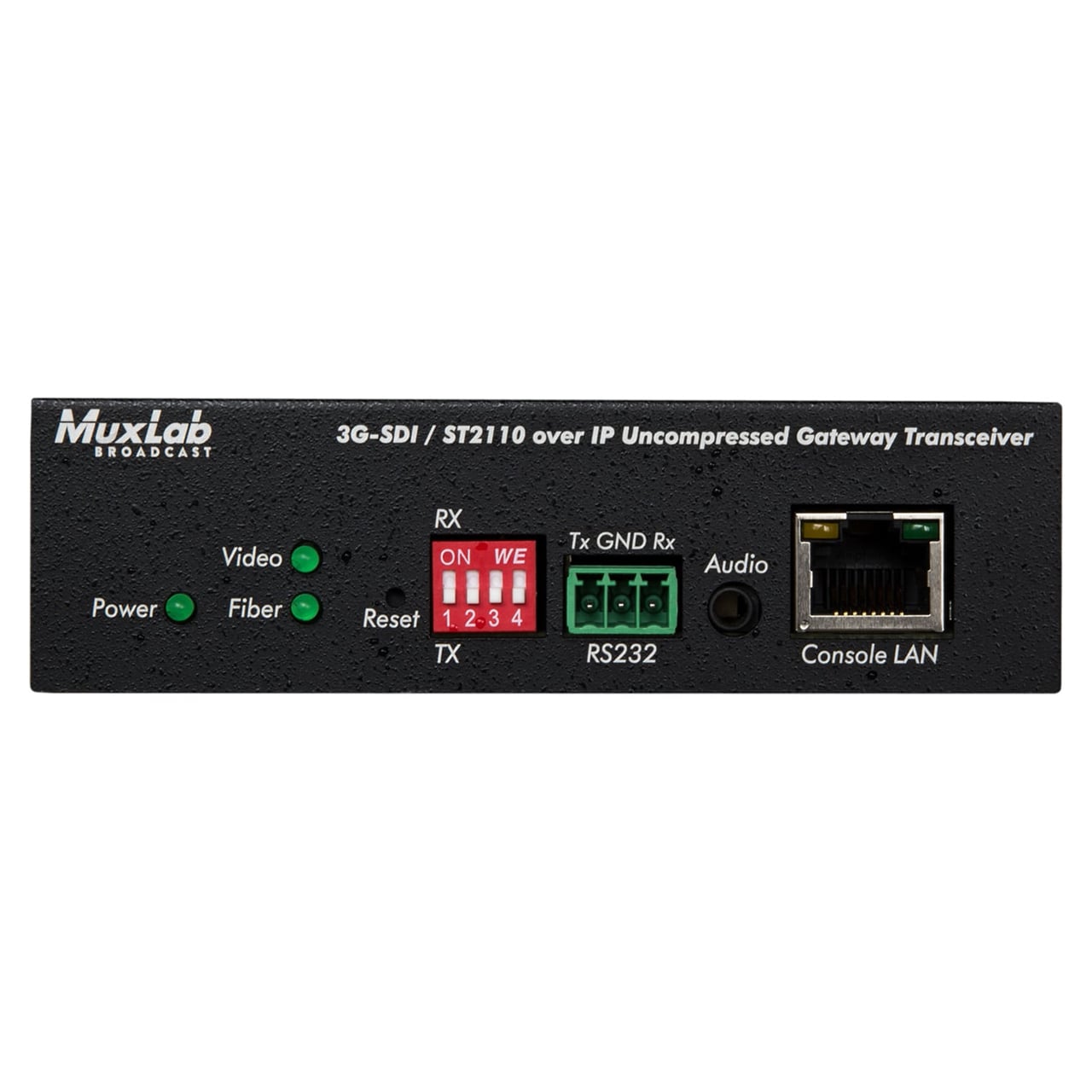

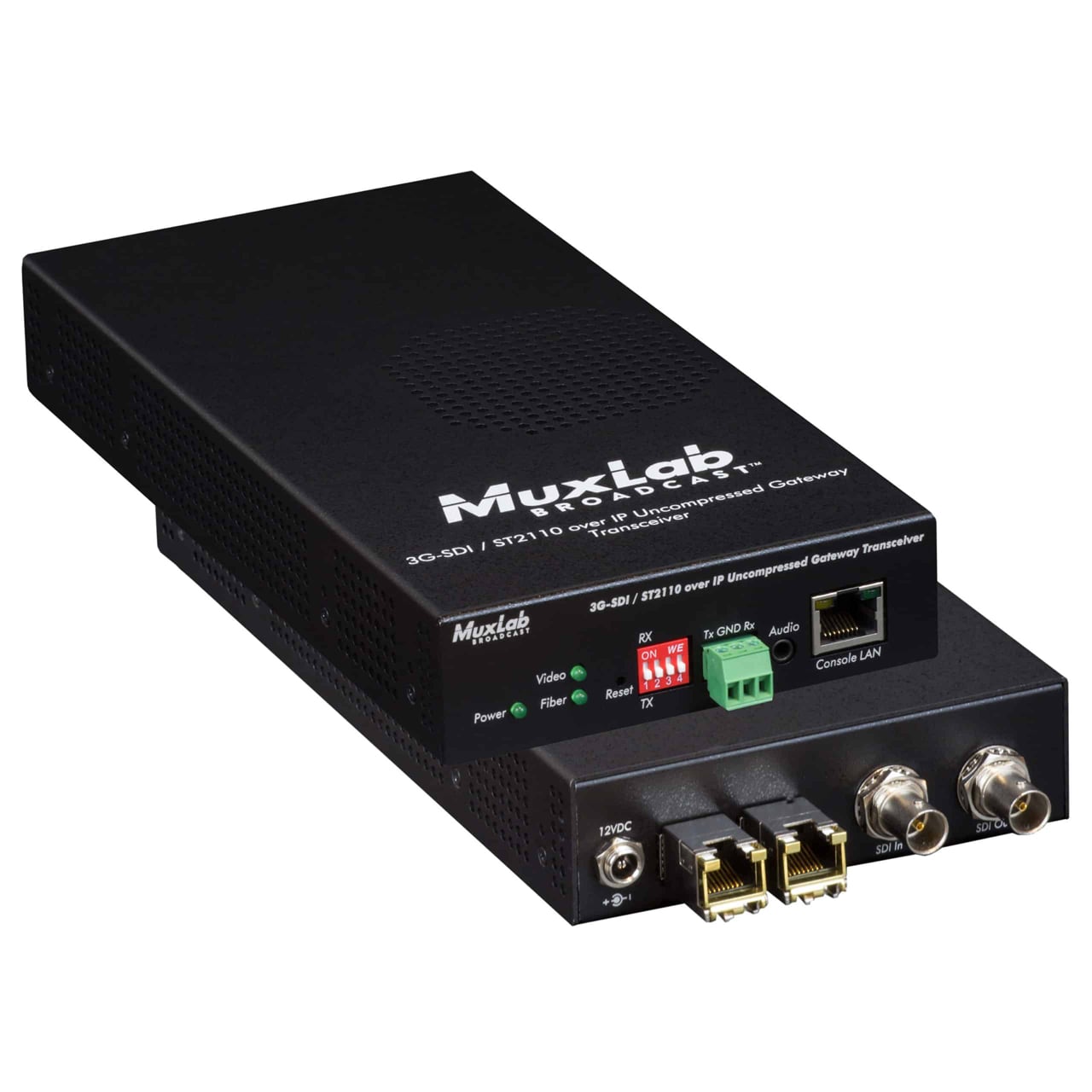

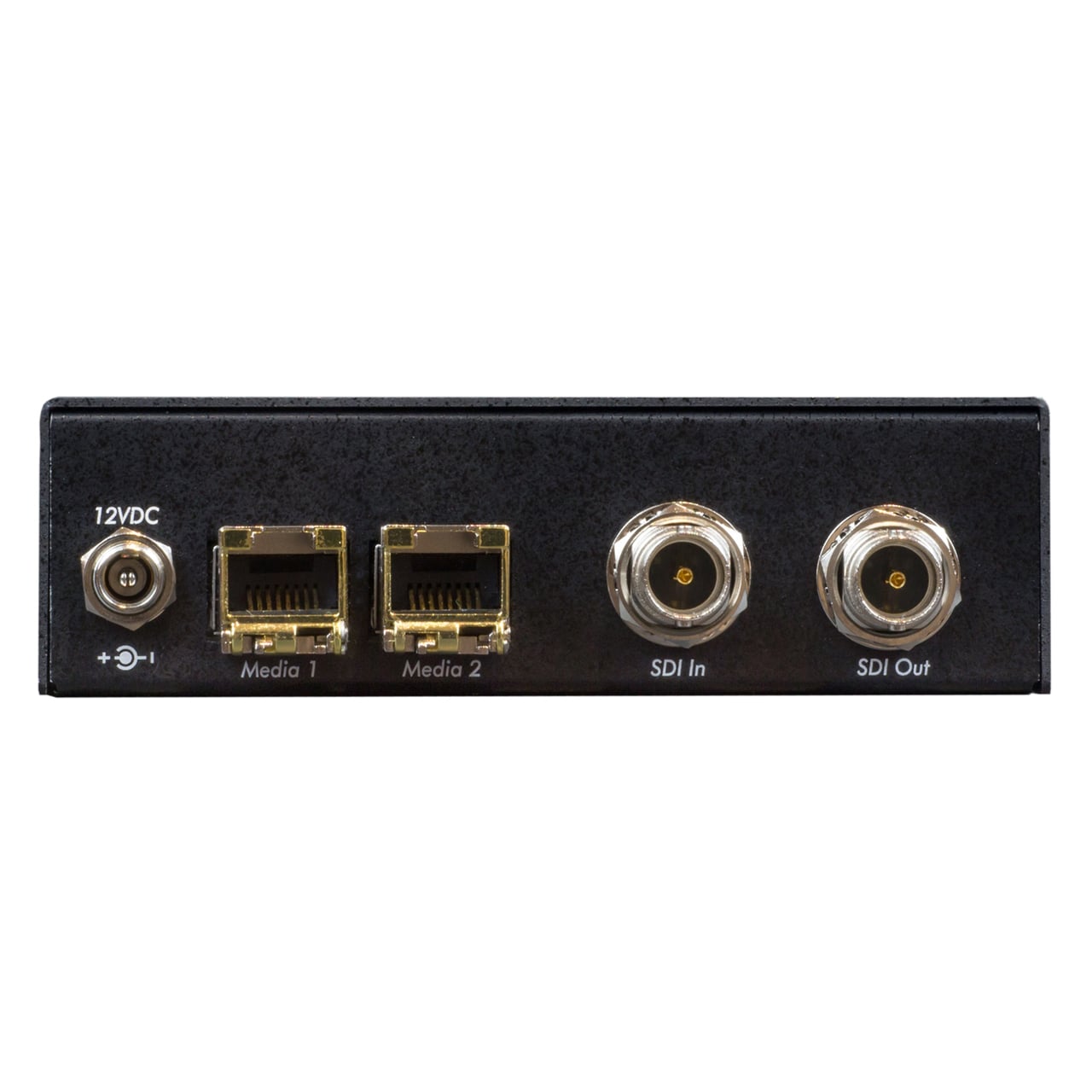

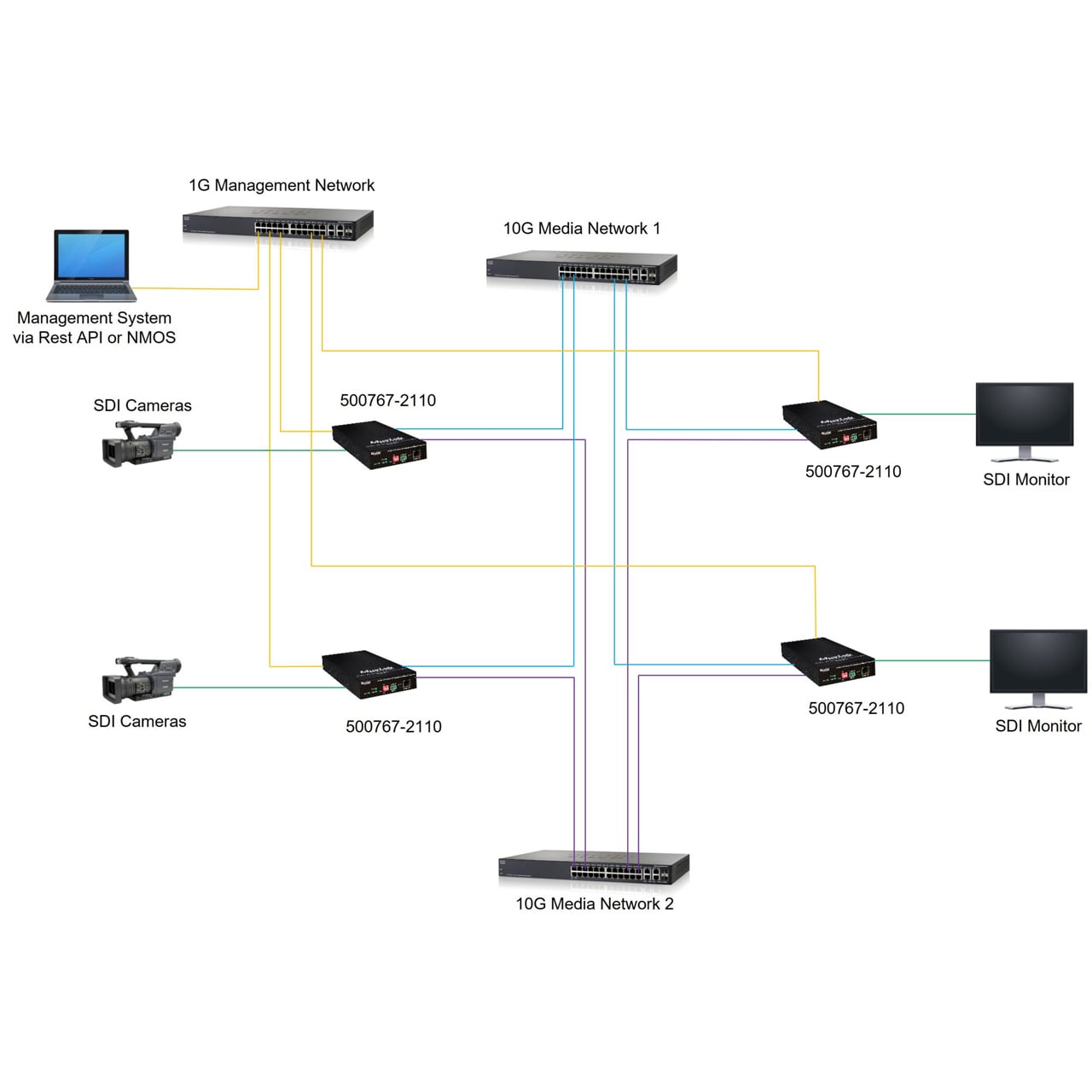

The Muxlab 500767-2110-UTP 3G-SDI/ST2110 over IP Uncompressed Gateway Converter (Transceiver) supports the ST-2110 AV over IP protocol standard for Broadcast applications. This unit is a Transceiver and can be configured as a Transmitter or Receiver for added flexibility and convenience. The unit allows 3G-SDI equipment to be utilized in a broadcast environment over a network, while extending end point source and sink devices at up to 1300ft (400m) via duplex multimode OM4 fiber with LC connectors, and up to 100ft (30m) for the UTP model, at up to 1080p resolution @ 60Hz uncompressed, in a point-to-point configuration. Point-to-multipoint and multipoint-to-multipoint configurations are also supported by connecting several units to a 10G Ethernet network. The device supports ST-2022-7 (Class D) Redundancy for critical fail-safe applications allowing the audio/video signal to run over two independent 10G Ethernet Networks. The unit provides a 1G Ethernet Network port for control via 3rd party management platforms supporting a RestAPI, or NMOS (IS-04 for discovery and IS-05 for connectivity management).
Applications:
• Commercial Broadcast AV Systems
• News/Sports/TV Stations
• Movie Networks
