MuxLab 500785 4K Live Streaming Kit - 500791 Single Camera and 4x1 HDMI Switcher/MuxStream Control App

ITEM #: MUX-500785 MFG #: 500785

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$2,345.00

Our Price:

$1,618.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    500785 - Overview

    The MuxLab 500785 Live Streaming Solution is a live streaming kit that includes the main components needed to broadcast live content around the corner and across the globe. This complete solution allows live presentations to be easily streamed at up to 4K and works perfectly with industry standard broadcast streaming services like YouTube, Facebook, Wowza and more as well as popular Audio/Video content production software tools such as OBS, Wirecast, and others.

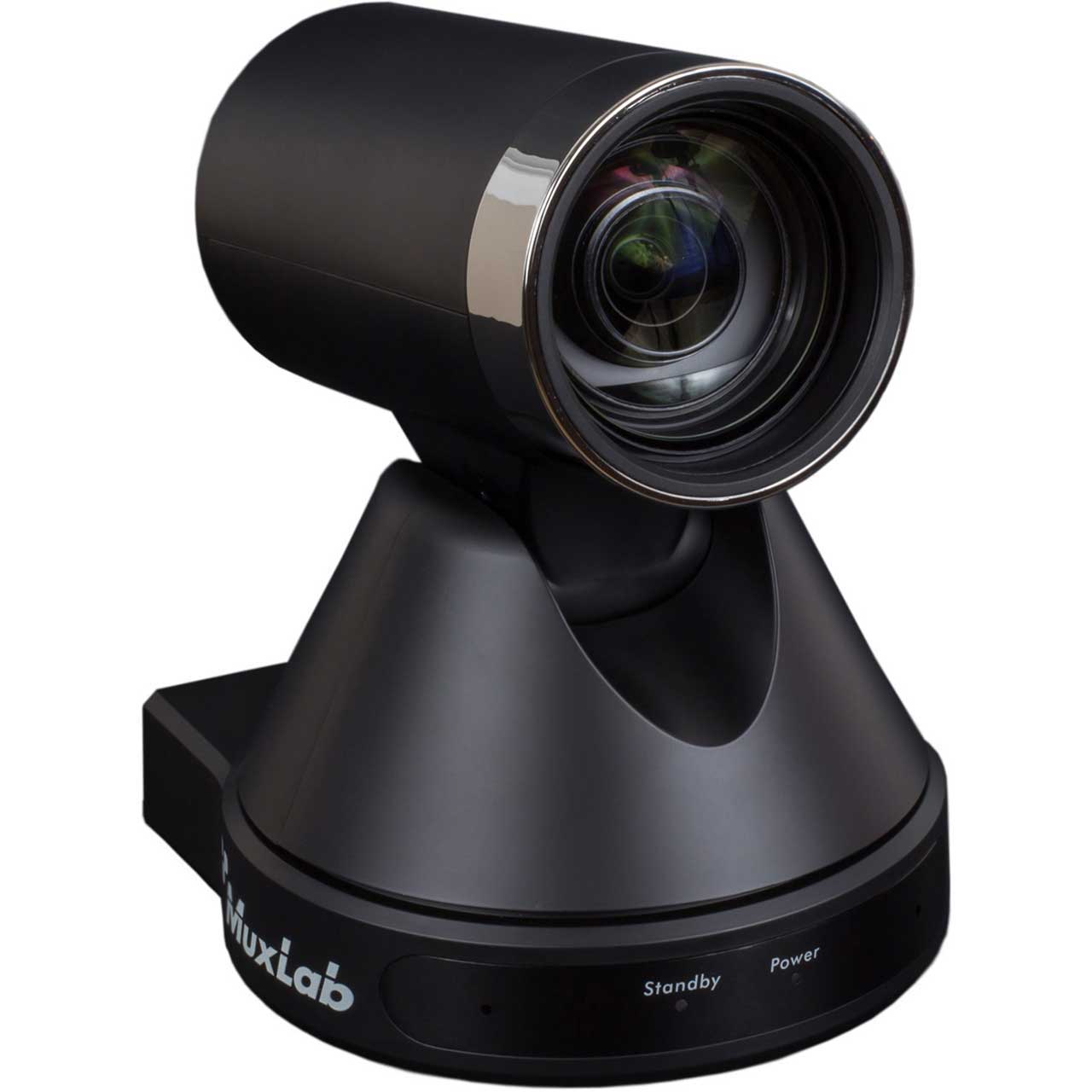

    The 500785 kit comes complete with an AV over IP H.264/H.265 4K Transmitter to stream content to Broadcasting Services, a single MUX-500791 HDMI/IP PTZ camera @ 1080p/60, a 4x1 HDMI 4K Switcher to allow you to add 3 additional cameras (additional cameras sold separately) and select between four different camera angles, a wireless Lav Mic system, an intuitive Control App to manage the system, two (2) 6.6ft (2m) Premium Certified HDMI 2.0 cables, and an IR Emitter (to manage the 4x1 Switcher).

    The MuxLab MuxStream Control App is free to download, available for iOS and Android tablets, and Windows PC. MuxStream manages the system setup, configures the Transmitter to stream to various broadcast services such as YouTube, Facebook and Wowza, manages camera settings (such as PTZ) and offers an intuitive interface to manage the switching between different camera views. The AV over IP H.264/H.265 4K Transmitter supports up to 4K video @ 30Hz and may be located up to 330ft (100m) from an Ethernet network switch and supports PoE (but a PSU is included) and supports low bandwidth for streaming AV content over the Internet.

    Applications:
    Live AV presentation broadcasts over the Internet
    Live AV streaming to YouTube, Facebook and Wowza
    Streaming to OBS and Wirecast AV content production tools
    Ideal for House of Worship, Fitness Training, Cooking Classes, Meetings etc.

    • Features:

      • AV over IP Transmitter supports up to 4K @ 30Hz (4:4:4) video streams
      • Low bandwidth streaming via an H.264/265 video codec, excellent for LAN & Internet transmission
      • High image quality and <200ms latency in low latency mode with H.265
      • Supports Multicast, RTSP, RTMP, HLS, FLV and TS
      • Supports up to four (4) HDMI/IP PTZ Cameras at up to 4K to switch between different camera angles.
      • One (1) HDMI/IP PTZ camera @ 1080p/60 included (additional cameras sold separately)
      • Includes wireless clip-on Lav (Lavalier) Mic with transmitter and receiver
      • AV over IP Transmitter includes PSU, but may be PoE powered
      • Managed via free to download MuxStream Control App, available for iOS and Android tablets, and Windows PC

    • Specifications:

      • Environment: HDMI 1.4
      • Signals: HDMI 1.4 and HDCP 1.4
      • Video Bandwidth: 300MHz
      • Network Bandwidth: Up to 40Mbps (max)
      • Latency: less than 200ms (in low latency mode with H.265)
      • Protocols: Multicast, RTSP, RTMP (H.264), HLS, FLV (H.264) & TS
      • Maximum Distance (Ethernet Signal): Cat5e/6: 330ft (100m) from Ethernet Switch. Unlimited over the Internet
      • Note: When installed in an electrically noisy environment, an STP cable must be used. Also, cross-connection reduces the effective distance depending on the grade of twisted cable used.
      • Ethernet RJ45 Pin Configuration:
      • RJ45 Link
      • Pin 1 (R) Pin 2 (T)
      • Pin 3 (R) Pin 6 (T)
      • Pin 4 (R) Pin 5 (T)
      • Pin 7 (R) Pin 8 (T)
      • Switching Capability: Supports switching of up to 4 cameras (3 sold seperately) with 4x1 HDMI Switcher
      • Power Source: The devices come with a power source, where applicable. The 4K H.264/H.265
      • Transmitter also supports PoE (PD) and may be powered via a PoE (PSE) Ethernet Switch.
      • PoE: IEEE 802.3af
      • Temperature: Operating: 0° to 40°C Storage: -20° to 85°C
      • Humidity: Up to 95% non-condensing
      • Compliance Regulatory: FCC, CE, RoHS Flammability: 94V0
      • Warranty: 2 years

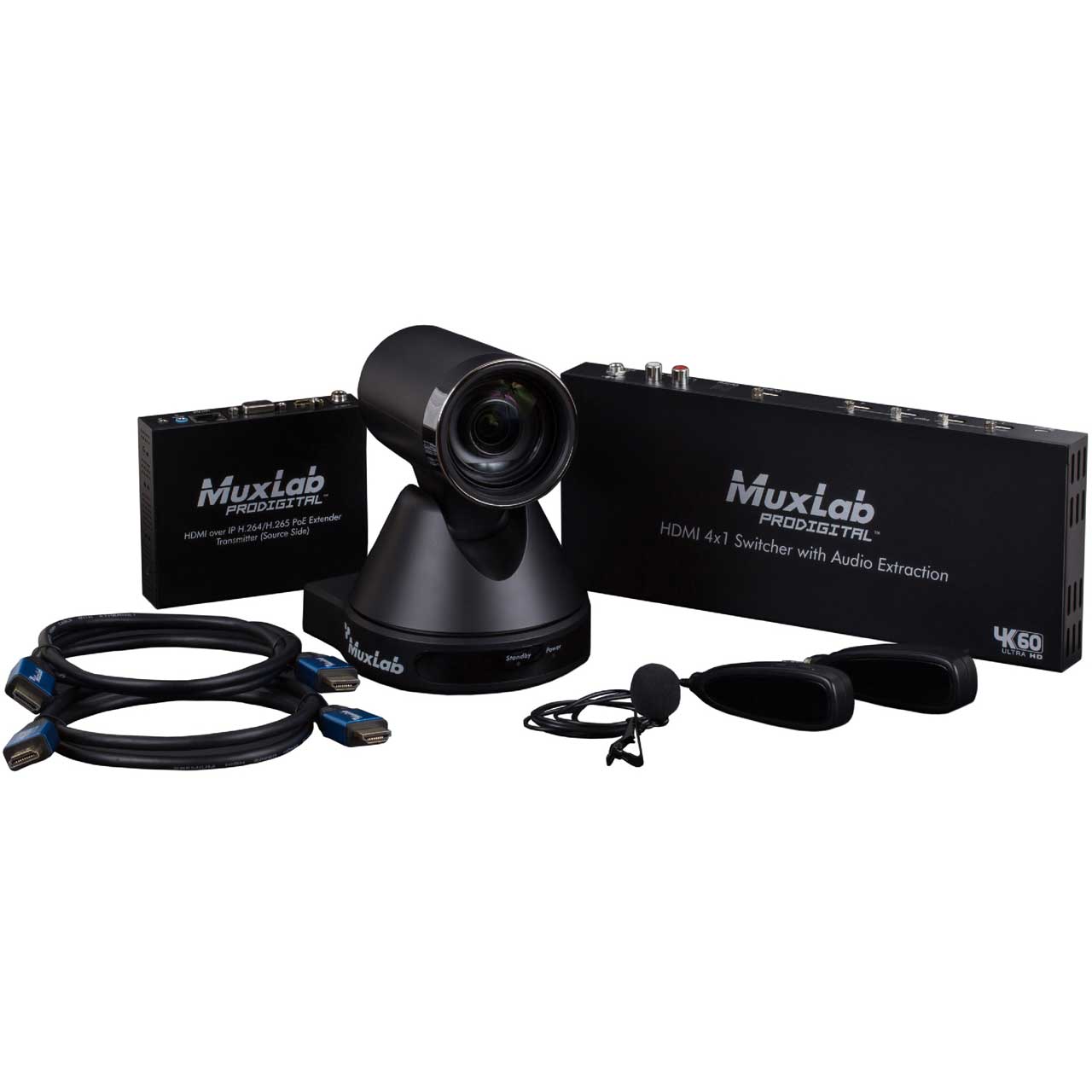

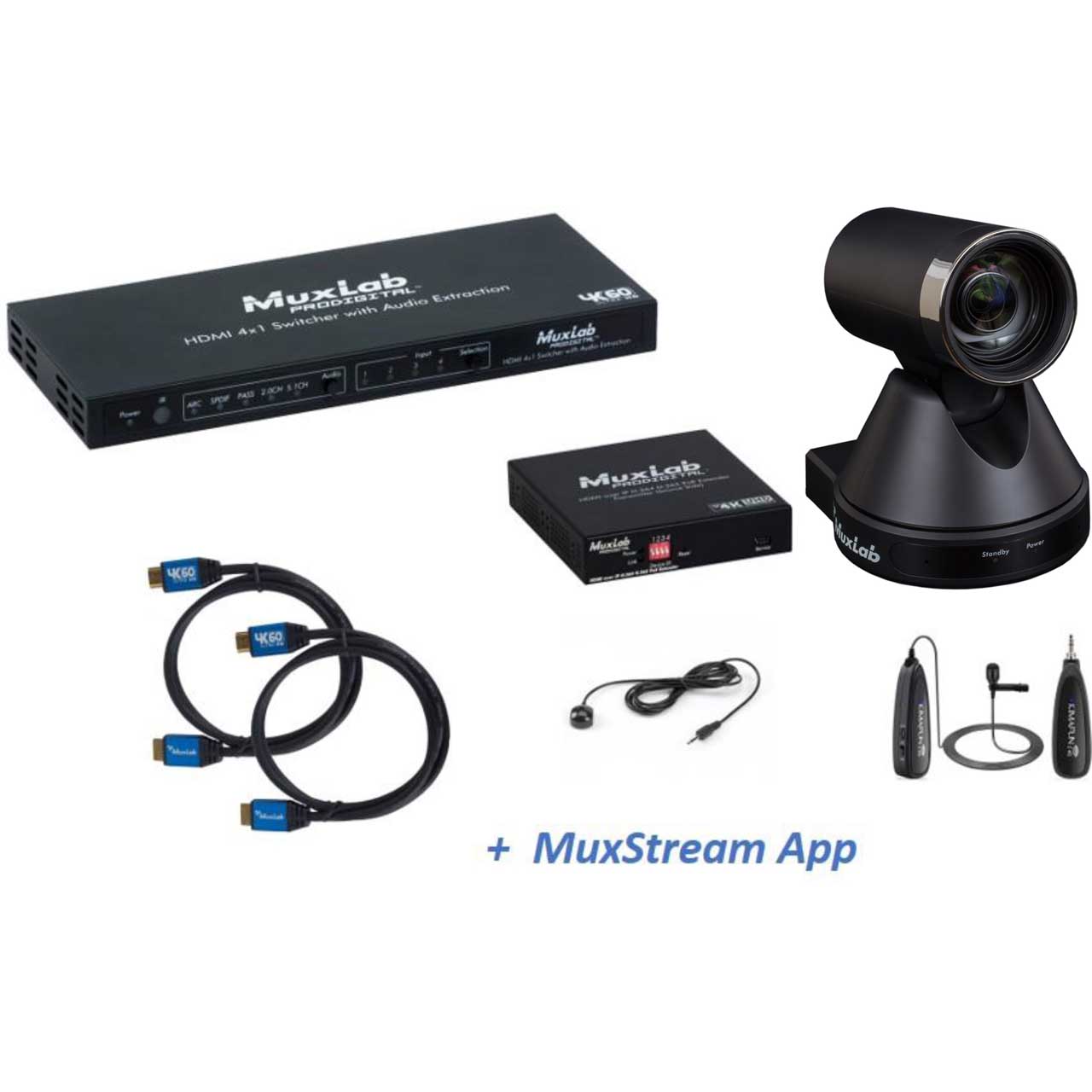

    • Item Includes:

      • AV over IP Streaming Transmitter
      • Single HDMI/IP 1080p/60 PTZ Camera
      • 4x1 HDMI 4K Switcher
      • IR Control for switcher
      • Wireless Lav Microphone System
      • 6.6 foot (2m) HDMI 2.0 cable
      • Managed via free to download MuxLab MuxStream Control App,
      • available for iOS and Android tablets, and Windows PC

    • Warranty:

      • 2 Years

    • GTIN:

      0627699907856
