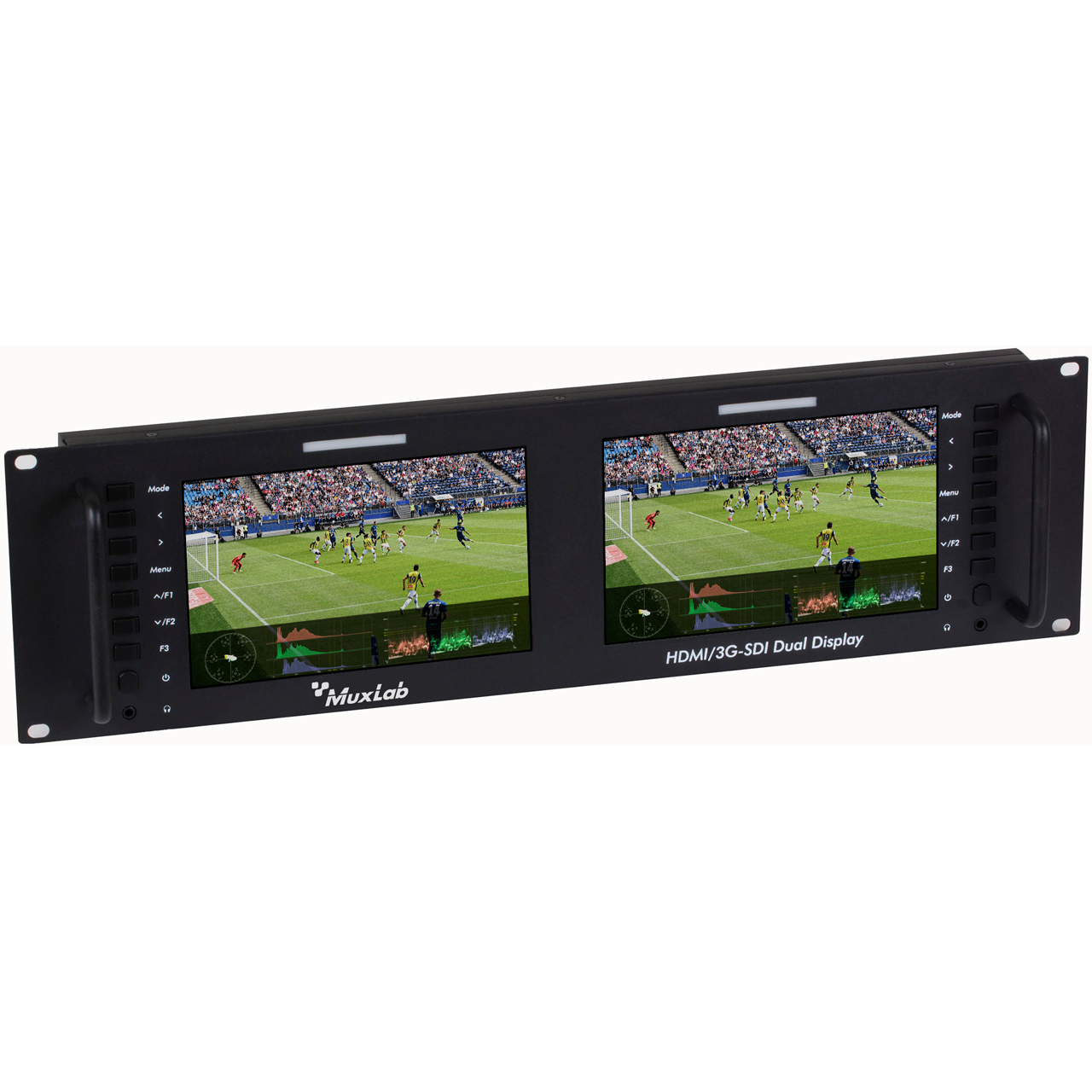

MuxLab 500841-V2 3RU 4K30 HDMI/3G-SDI Rackmount Display with Dual 7-inch IPS LCDs

500841-V2 - Overview

• Features:

  • Dual 7-inch IPS LCD displays
  • Supports HDMI (4K/30), 3G-SDI and CVBS with Audio
  • Fits 19-inch rackmount @ 3 RU
  • Tri-color Tally light indicator per display
  • Waveform: RGB, YUV, Y
  • Histogram, Vectorscope
  • Supports Center Marker, Safe Frames, Check Field, Focus Assist,
  • Aspect Ratio, Image Flip, P2P & ImageFreeze
  • Customizable buttons tailored to customer needs
  • Supports firmware update via mini USB


• Specifications:

  • Screen Size: Two 7" screens
  • Resolution: 1920x1200 pixe
  • Dot Pitch: 0.07875 (W) x 0.07875 (H) mm
  • Aspect Radio: 16:10
  • Brightness: 450cd/m2
  • Contrast: 1100:1
  • Backlight: LED
  • Viewing Angle: 80°/80°(L/R) 80°/80°(U/D)

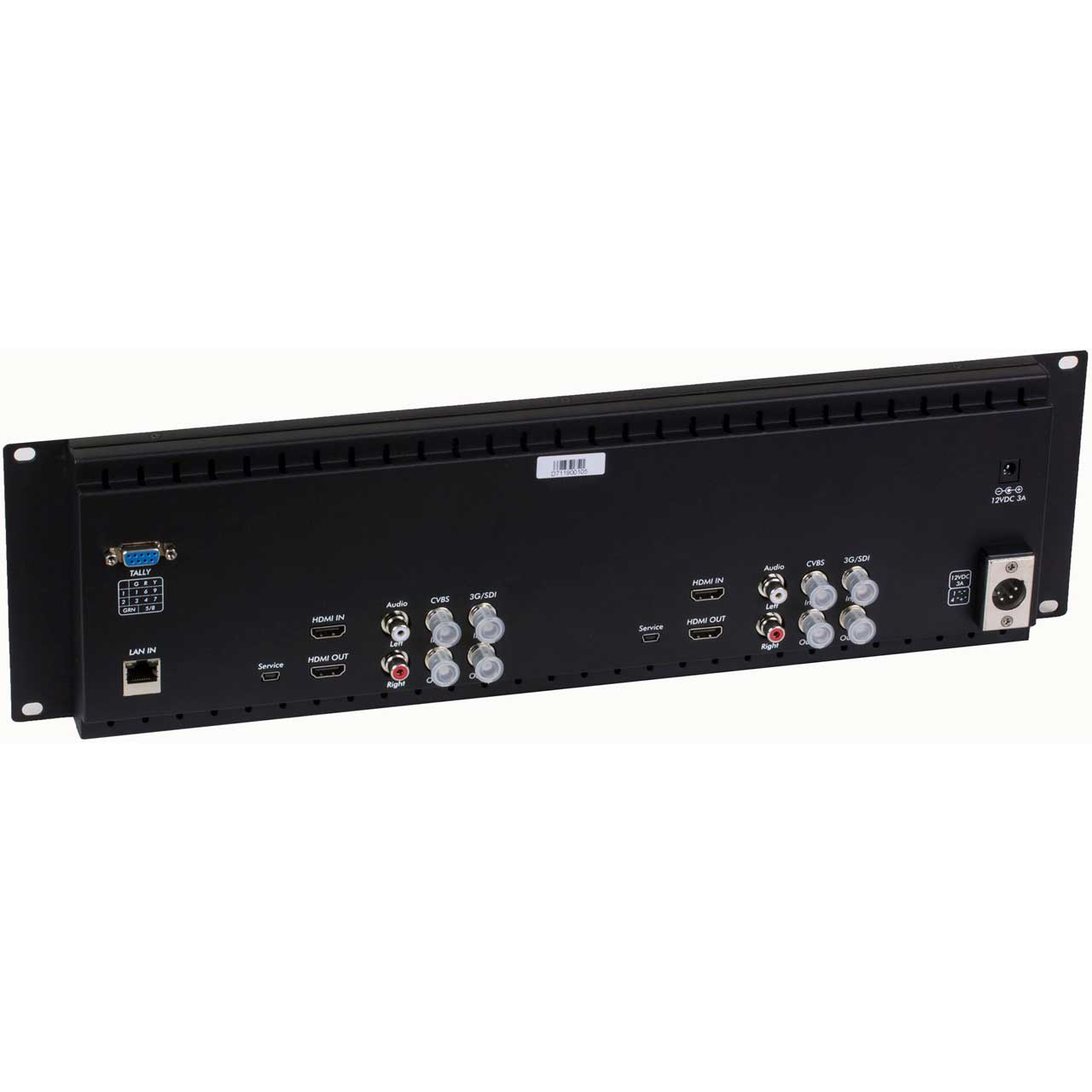

  • Inputs: HDMI, 3G/HD/SD-SDI, HDMI, Audio(L/R), Video
  • Outputs: HDMI, 3G/HD/SD-SDI, Video, 3.5mm Audio Jack
  • Control Inputs: Ethernet
  • SDI Support Formats:
    720p (60/59.94/50/30/29/25/24/23.98)
    1080i (60/59.94/50)
    1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/23.98sF)
  • HDMI Support Formats:
    480i/576i/480p/576p
    720p (60/59.94/50/30/29.97/25/24/23.98)
    1080i (60/59.94/50)
    1080p (60/59.94/50/30/29.97/25/24/23.98
    4K 3840x2160p (30/29.97/25/24/23.98Hz)
    4096x2160p (24Hz)
  • Power Consumption: ≤21W
  • Input Voltage: 9.0 to 24 VDC
  • Power Source: 100/240VAC to 12VDC @ 3A power supply
  • Working Temperature: -10°C to 50°C
  • Storage Temperature: -20°C to 60°C
  • Install Way: 3U Rack Mount
  • Dimensions: 1.7 H x 3.26 W in (8.27 x 4.33 cm)
  • Weight: 5.56 lbs (2.520 kg)


• Item Includes:

  • 1x MuxLab 500841-V2 3RU 4K30 HDMI/3G-SDI Rackmount Display with Dual 7-inch IPS LCDs


• GTIN:

  0627699028414
