Neutrik NAC3PX-TOP Receptacle - powerCON TRUE1 TOP - Duplex Male/Female - Power in/out - 1/4 Inch Flat Tab Terminals

ITEM #: NAC3PX-TOP MFG #: NAC3PX-TOP

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Neutrik Americas
Free Shipping with $49 Minimum Order

List Price:

$13.33

Our Price:

$11.43

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    NAC3PX-TOP - Overview

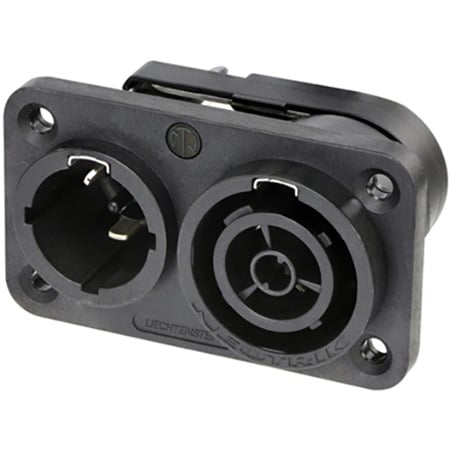

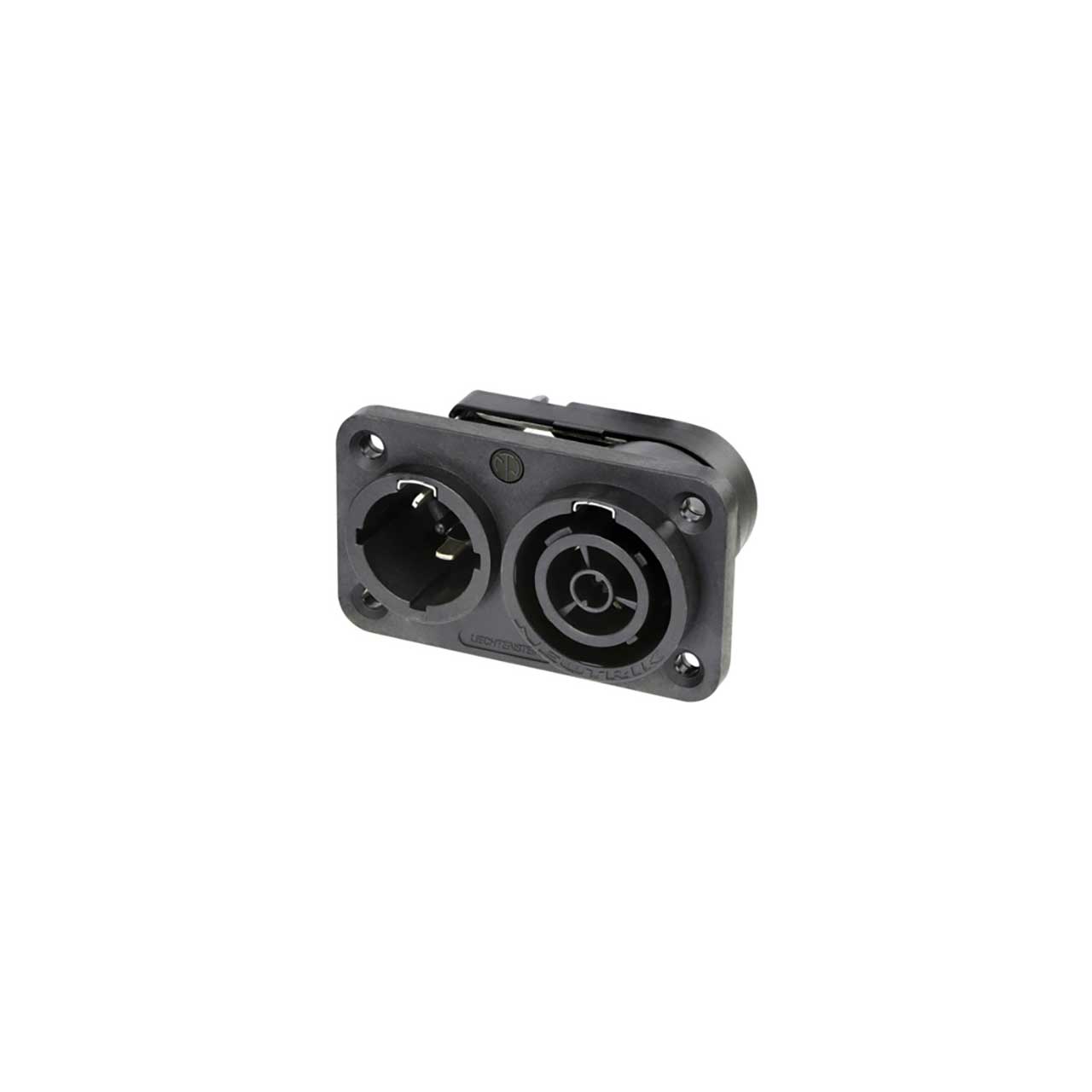

    The NAC3PX-TOP is an appliance Inlet-Outlet Combination with 1/4" flat tab terminals. The powerCON TRUE1 TOP is a locking 16 A true mains connector for outdoor applications. It replaces appliance couplers wherever a very rugged solution in combination with a locking device is needed in order to guarantee a safe power connection. The powerCON TRUE1 TOP is a connector with breaking capacity (CBC), i.e. it can be connected or disconnected under load or live.

    • Features:

      • Heavy duty sealed power connector for harsch and demanding environment
      • Uses high impact UV-resistant materials
      • Lockable 16 A single phase connector (USA: 20 A)
      • Extremely robust and reliable
      • ENEC certified according to IEC 60320

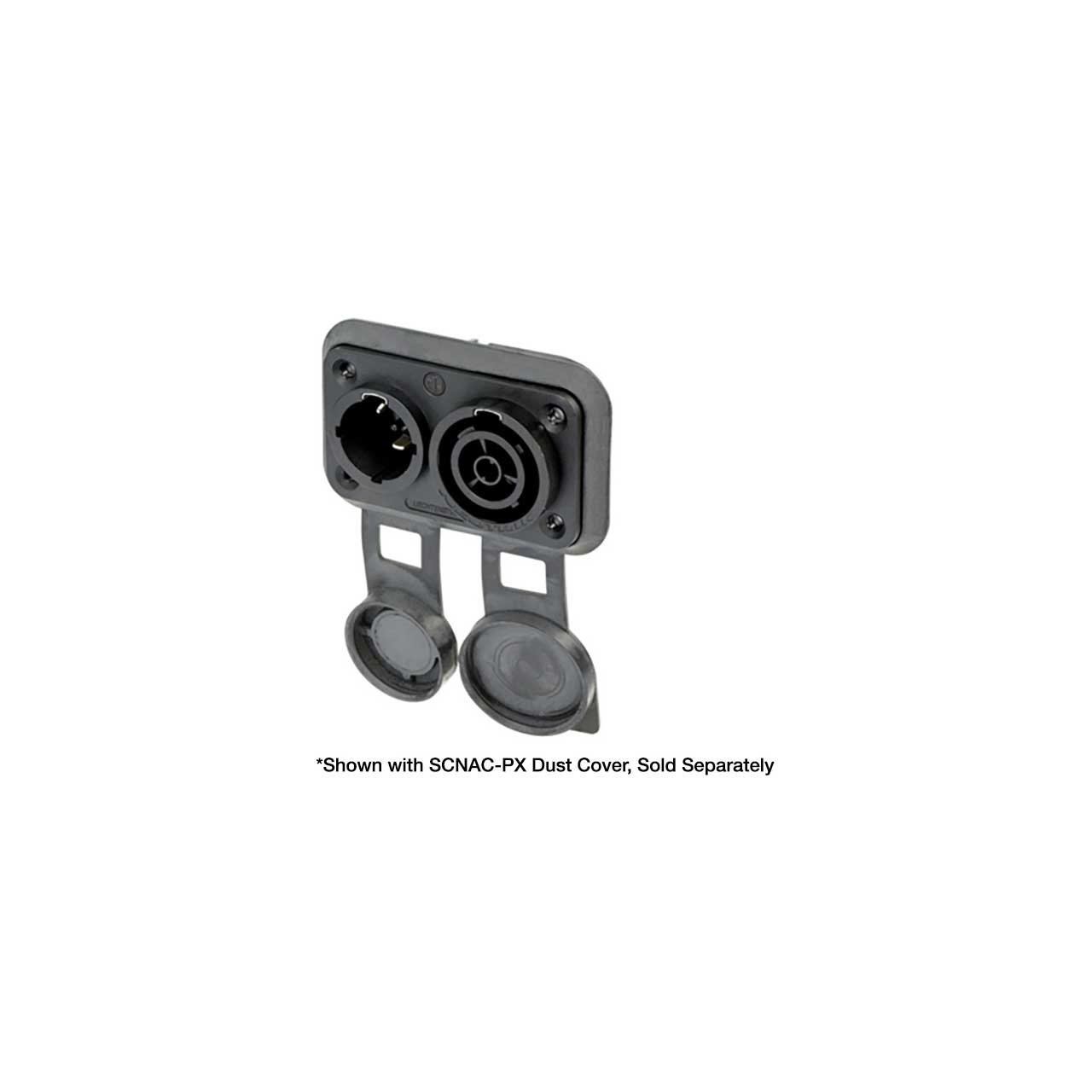

      • Outdoor protection according to IP65 and UL50E enclosure type 4 (in mated condition or in combination with the rubber sealing cover SCNAC-PX, Sold Separately)
      • True mains connector with breaking capacity (CBC)
      • Easy and reliable twist lock system
      • Unique Neutrik cable retention
      • UL498 certified


    • Specifications:

      • Contact resistance: ≥ 3 mΩ
      • Dielectric strength: 4 kVdc / 2.8 kVac
      • Insulation resistance: 0,1 GΩ (after damp heat test IEC 68-2-30)
      • Number of electronical contacts: 2 + PE
      • Rated current per contact: 16 A rms (USA: 20 A)
      • Rated voltage: 250 V ac
      • Lifetime: > 5000 mating cycles
      • Wiresize: 2.5 mm
      • Wiresize: 12 AWG
      • Contact plating: 2 μm Ag
      • Locking element: Stainless steel
      • Shell: Polyamide (PA 6.6)
      • Contacts: Spring Copper (CuSn0.2)
      • Flammability: UL 94 V-0
      • Protection class: UL50E enclosure type 4 (mated or in combination with SCNAC-PX, Sold Separately)
      • Temperature range: -30 °C to +80 °C


    • GTIN:

      7613187011825
