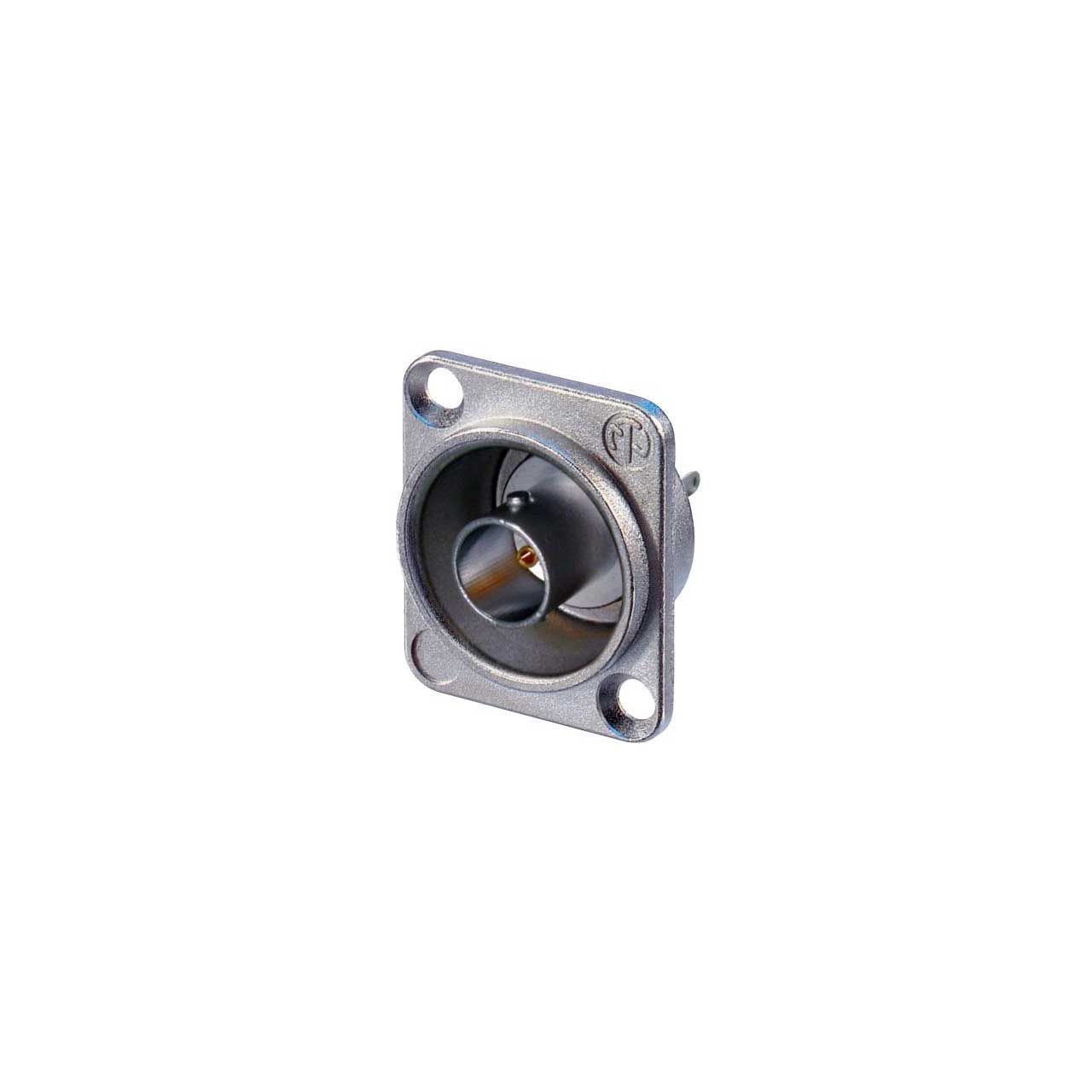

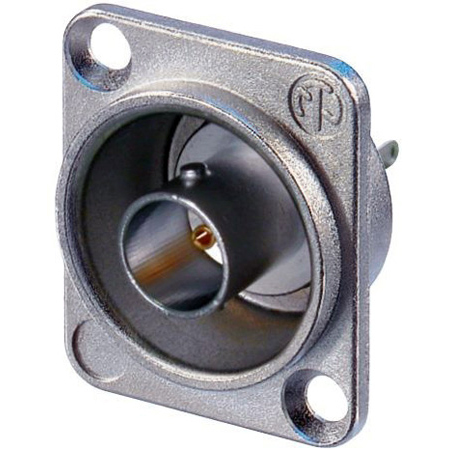

NEUTRIK NBB75DSG Grounded Bulkhead Solder Jack in Nickel D-shape Housing

NBB75DSG - Overview

• Features:

  • Gold plated center contact
  • Grounded panel mount
  • Color coding possible
  • True 75Ω design meets the stringent HD requirements
  • Standard D-shape housing - provides flush mounting and protection from damage


• Specifications:

  • Electrical
  • Signal Type: HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
  • Contact Resistance: ≤3mΩ (inner)
  • Contact Resistance: ≤2mΩ (outer)
  • Dielectric Strength: 1,5 kVdc
  • Impedance: 75Ω
  • Insulation Resistance: >5GΩ
  • Rated Voltage: <50V
  • VSWR:
    - ≤1.03/>37 dB up to 1 GHz
    - ≤1.05/>32 dB up to 2 GHz
    - ≤1.08/>28 dB up to 3 Ghz

    Mechanical
  • Insertion Force: <25 N
  • Lifetime: >1000 mating cycles
  • Locking Device: Bayonett
  • Mounting Direction: Front mounting
  • Chassis Shape: D

    Material
  • Contacts: Brass (CuZn39Pb3), 0.2 æm AuCo (Center contact)
  • Insert: PTFE
  • Shell: Polyacetal (POM) (Insulation Sheell)
  • Shell Plating: Optalloy®
  • D-Shape Housing: Zinc diecast (ZnAl4Cu1) gal black chrome plating

    Environmental
  • Temperature Range: -22°F - 185°F (-30°C - 85°C)
