Multidyne NBX-DE-2AES-4AA 3G/HD/SD-SDI Audio Demultiplexer with 2 AES/EBU & 4 Analog Audio Outputs

ITEM #: NBX-DE-2AES-4AA MFG #: NBX-DE-2AES-4AA

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$764.50

Our Price:

$764.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    NBX-DE-2AES-4AA - Overview

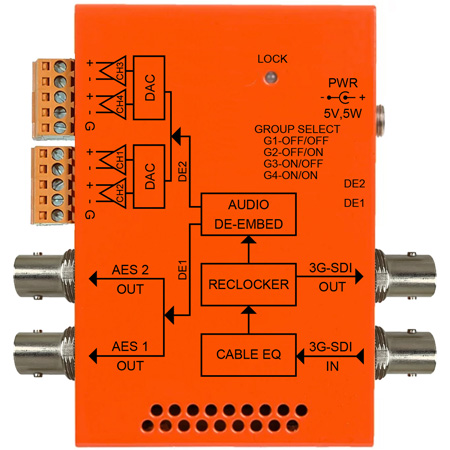

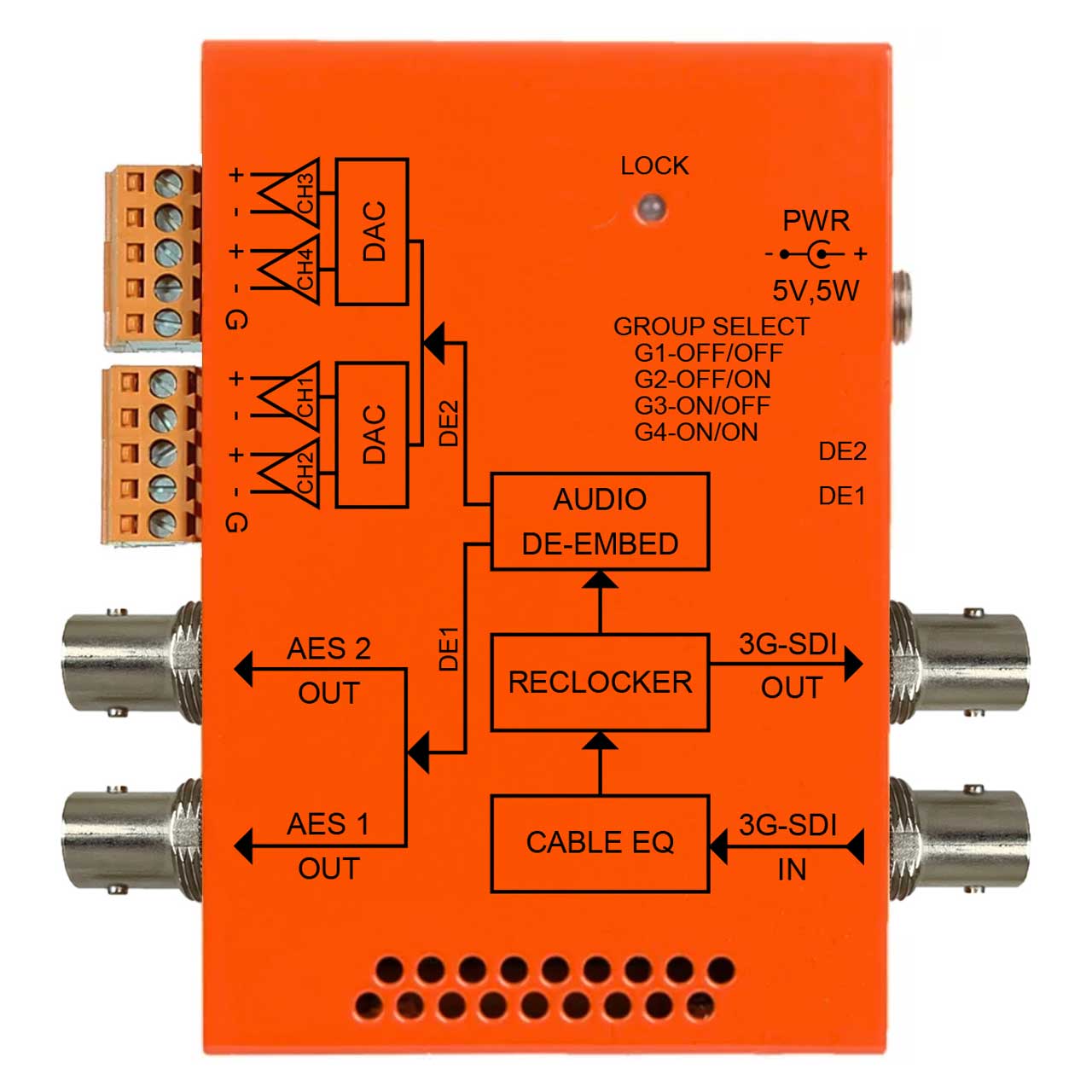

    The MultiDyne® NBX-DE-2AES-4AA is a 3G/HD/SD-SDI audio demultiplexer designed to simultaneously extract 2 AES/EBU signals as well as 2 stereo analog audio signals from an SDI signal with embedded audio.

    The NBX-DE-2AES-4AA accepts a 3G/HD/SD-SDI signal on a BNC connector a reclocked output of that signal is also available on a BNC connector. A recessed DIP switch allows the user to extract and assign any of the 4 groups of audio to both the AES/EBU outputs as well as the analog audio outputs. The 2 unbalanced AES/EBU signals are on 75 Ohm BNC connectors while the balanced stereo analog audio outputs are on 5 pin pluggable terminal block connectors.

    A dual-color LED will illuminate green indicating the NBX-DE-2AES-4AA is locked to a valid SDI input signal or the LED will be illuminated red showing the unit is powered but not locked to a valid input signal.

    The NBX-DE-2AES-4AA has a rugged solid steel powder coated chassis and is powered by an external AC adapter with a locking DC connector supplied with the module.

    Applications:
    Live Broadcast
    Arenas and Stadiums
    Shared Control Rooms
    Campus Facilities

    • Features:

      • Excellent Value
      • Compact Size
      • Rugged Steel Enclosure
      • Highest of Quality Components

    • Specifications:

      • Power:
        5VDC
        5W Adapter
      • Dimensions (LxWxH): 3.938 x 2.625 x 0.813"
      • Weight: 7.8oz
