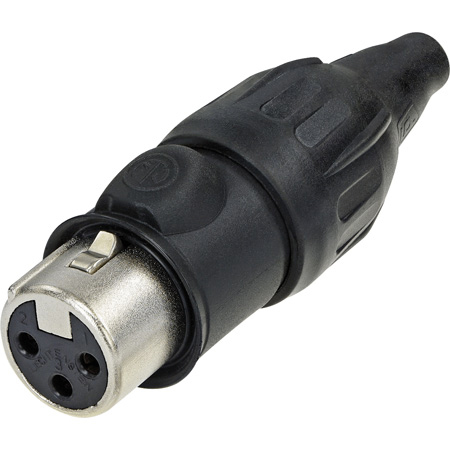

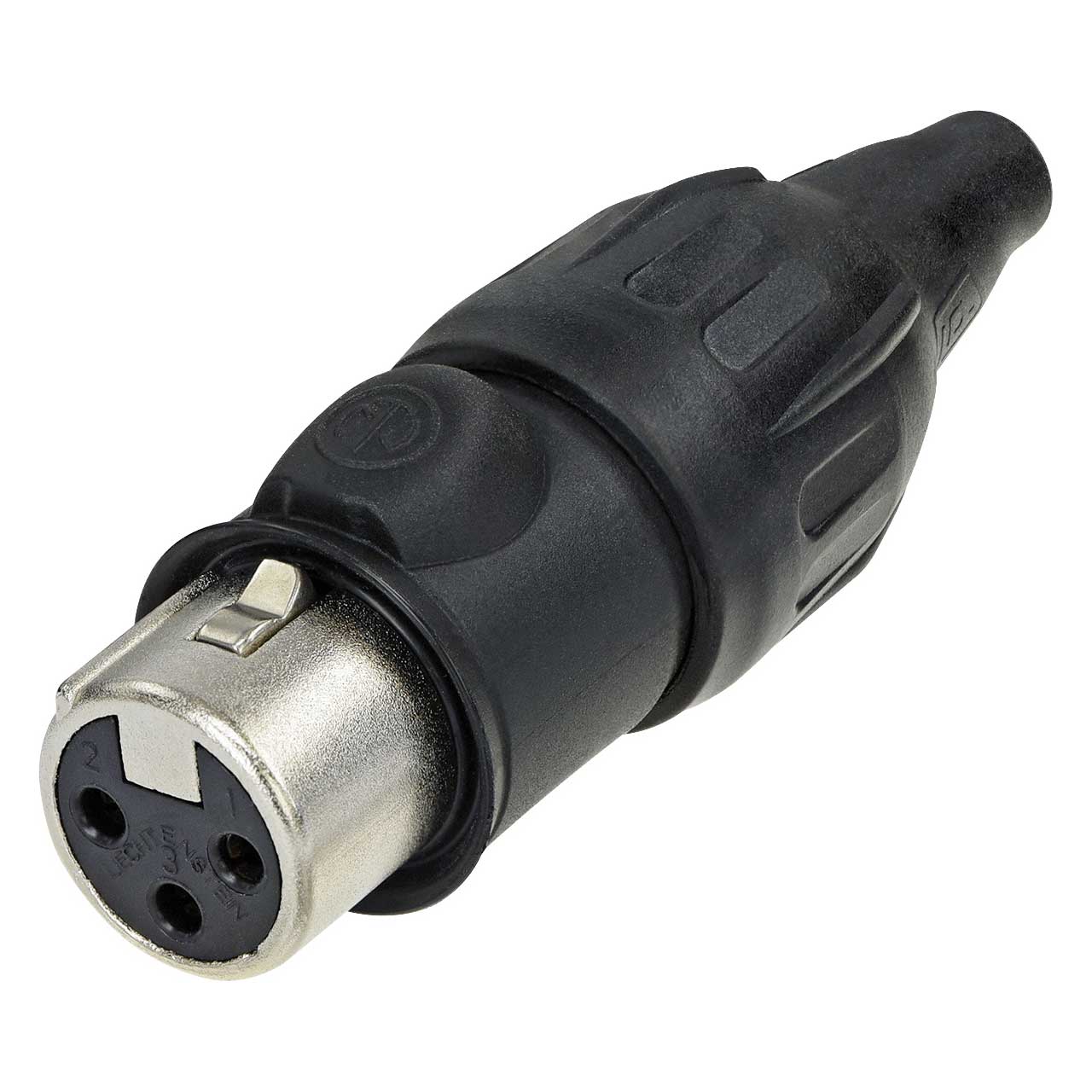

Neutrik NC3FX-TOP Female 3 pin Heavy-duty sealed XLR connector nickel/gold TRUE OUTDOOR PROTECTED (TOP)

ITEM #: NC3FX-TOP MFG #: NC3FX-TOP

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$11.42

Our Price:

$9.79

Availability: In Stock
iAvailability Description Popup


    NC3FX-TOP - Overview

    3 Pole Female Cable Connector, True Outdoor Protection (TOP), Gold Contacts
    Neutrik NC3FX-TOP X-TOP series is a "heavy-duty" XLR cable connector for outdoor use. IP65 rating and certified outdoor protection to UL 50E by mating with related cable or chassis connector of the XLR TOP range.

    • Features:

      • Heavy-duty sealed XLR connector range.
      • Outdoor protection acc. IP65 and UL50E.
      • Maintain sealing when in use and when
      • disconnected.
      • Uses high impact UV resistant materials per UL.
      • Gold plated contacts.
      • Optional dust protection cap.

    • Specifications:

      • Electrical
      • Capacitance Between Contacts: = 4 pF
      • Contact Resistance: = 3 mΩ
      • Dielectric Strength: 1,5 kVdc
      • Insulation Resistance: > 10 GΩ (initial)
      • Rated Current Per Contact: 8.3 A
      • Rated Voltage: < 50 V

        Mechanical
      • Cable O.D.: 5.0 - 8.0 mm
      • Insertion Force: = 20 N
      • Withdrawal Force: = 20 N
      • Lifetime: > 5000 mating cycles
      • Wiresize: max. 1.5 mm²
      • Wiresize: max. 16 AWG
      • Wiring: Solder contacts
      • Locking Device: Latch lock

        Material
      • Bushing: UV-resistant rubber
      • Contact Plating: 0.2 æm Au hard alloy over 2 æm Ni
      • Contacts: Bronze (CuSn8)
      • Insert: Polyamide (PA 6.6 30 % GR)
      • Locking Element: St3K32 (latch) / Ck 67 (spring)
      • Shell: Zinc diecast (ZnAI4Cu1)
      • Shell Plating: Nickel
      • Strain Relief: Polyacetal (POM)
      • Sealing Jacket: UV-resistant rubber

        Environmental
      • Approvals: UL
      • Flammability: UL 94 HB
      • Standard Compliance: IEC 61076-2-103
      • Protection Class: IP65, UL50E enclosure type 4 (mated)
      • Solderability: Complies with IEC 68-2-20
      • Temperature Range: -30 °C to +80 °C

    • GTIN:

      7613187011948
