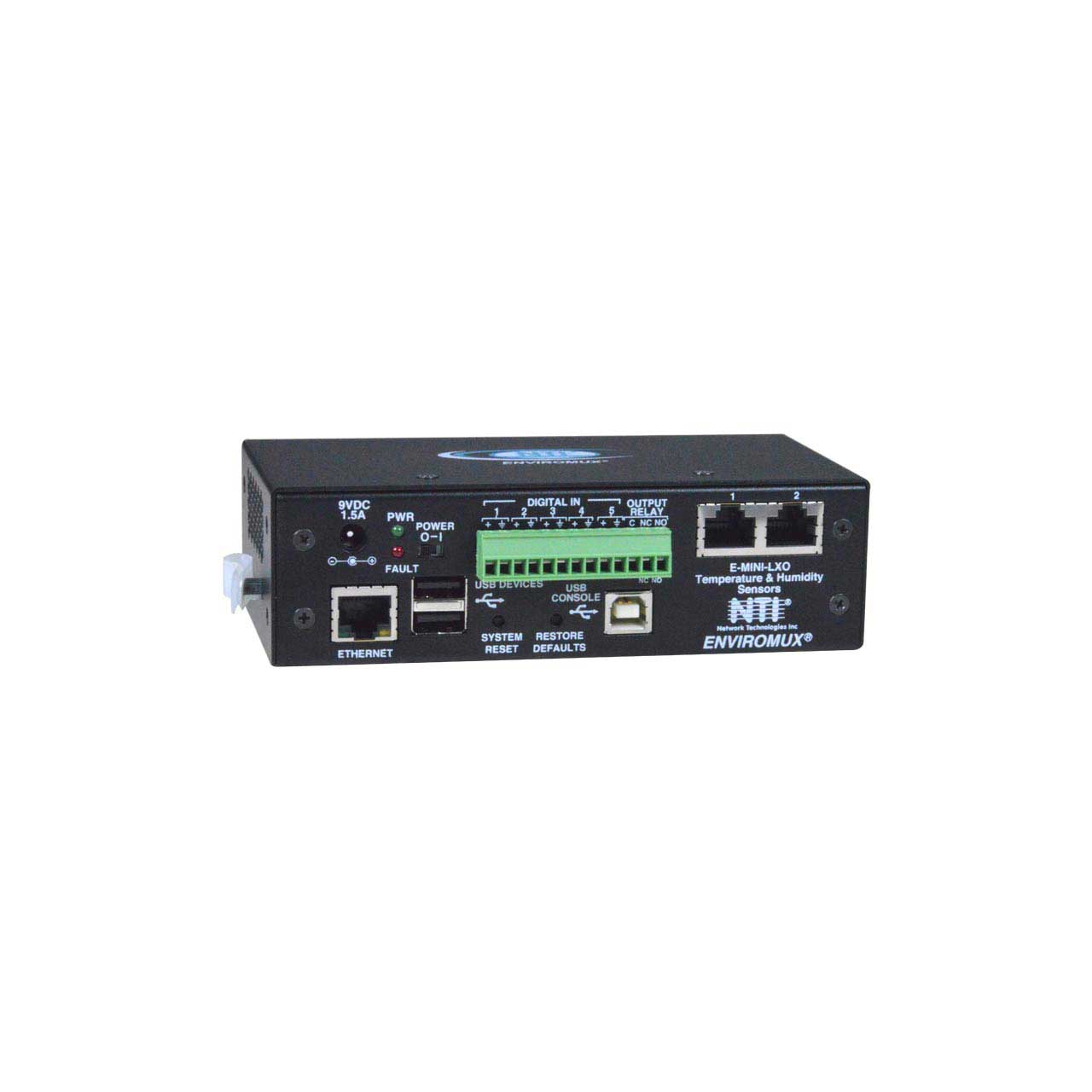

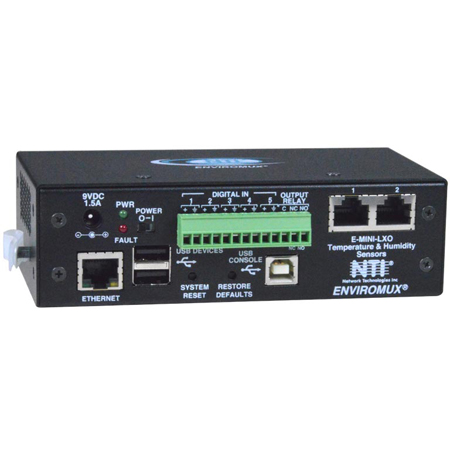

NTI E-MINI-LXOB Mini Environment Monitoring System with Lithium Back-up Battery

E-MINI-LXOB - Overview

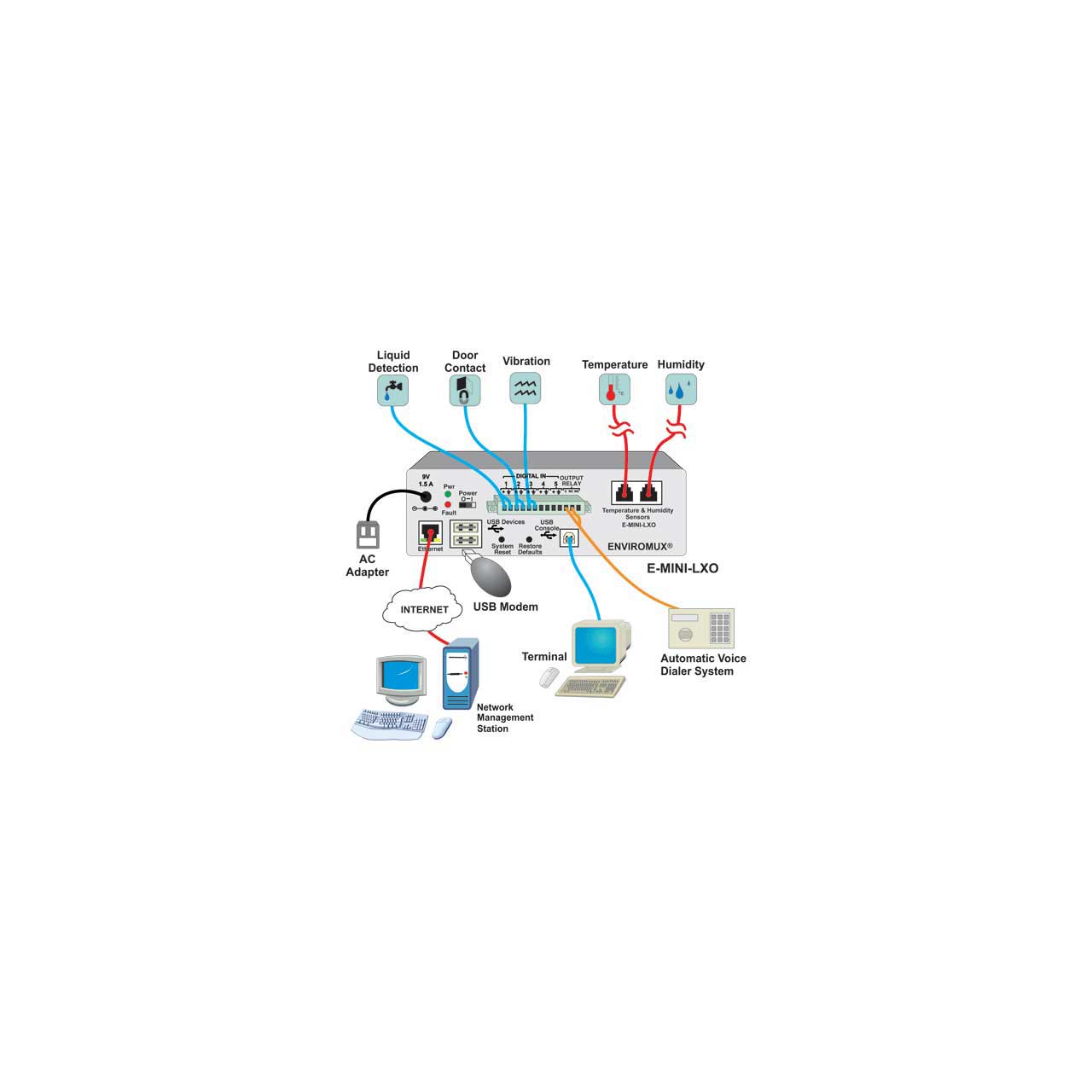

• Features:

  • Alert Notifications: Email, SNMP, Voice Phone Calls, SMS Messages. Front Panel LEDs, Web Page
  • SB ports for flash drive, USB 3G modem & USB serial control
  • 2 temp/humidity ports, 5 digital inputs, 1 output relay
  • Linux inside
  • 2 temperature/humidity sensors
  • 5 digital inputs sensitive to contact closure
  • Sensors are hot plugable
  • One output relay for control of external devices
  • Supports NTI's IP network video cameras for live view of any facility
  • Monitor (ping) up to 16 IP network devices
  • Two USB ports for connecting USB modem or for downloading log data to USB flash drive, and one USB console port for serial terminal interface
  • Available with optional internal battery backup. Alerts are sent when there is a power outage and when power returns.
  • Create multiple alerts for any installed sensor
  • Sensor conditions (events) can be configured to trigger alerts by themselves, and/or be used in combination with other events to trigger Smart Alerts
  • Alerts are posted in message log, which is accessible through Web user interface
  • Automatically configures network settings received from a connected DHCP server
  • Linux inside
  • Supports network security scanners
  • Backup and restore system configurations
  • Flexible Zero-RU mounting


• Specifications:

  • Temperature/Humidity Inputs
  • Two female RJ45 connectors for connecting temperature sensors, humidity sensors and/or combined temperature/humidity sensors
  • Two levels of user-defined alerts - non-critical and critical

    Dry Contact Closures
  • Five screw terminal pairs for connecting dry contact devices and the liquid detection sensor
  • Potential-free.
  • Output voltage: +5 V DC
  • Current limited to 10 mA
  • Maximum resistance to close contact: 300K Ohm

    Output Relay
  • One screw terminal pair
  • Potential-free relay switch contacts
  • Maximum switching load: 1A at 125VAC or 30VDC

    USB Port
  • Two female USB Type A connectors for connecting USB modem or for downloading log data to USB flash drive
  • One female USB Type B connector for connecting a PC for serial terminal access

    Ethernet Port
  • One female RJ45 connecto
  • 10/100 Base-T Ethernet interface
  • Optional Back-Up Battery
  • Rechargeable sealed lithium battery
  • Provides back-up for two hours

    MTBF
  • E-MINI-LXO: 274,783 hours

    Protocols
  • HTTP/HTTPS, SNMP V1/V2c/V3, SMTP, TCP/IP, Syslog, SNTP, DHCP, SSHv2, SSLv3, TLS v1.2, LDAPv3, AES 256-bit, 3DES, Blowfish, RSA, EDH-RSA, Arcfour, IPV6, WAP 2.0
  • Compatible with any SNMP management software
  • The unit can be polled via SNMP
  • Operates and configures via HTTP/HTTPS web page, Telnet, SSH, or USB serial interface
  • Supports Internet Explorer 6.0 and higher, Firefox 1.5 and higher, Netscape 9, Google Chrome, Safari 1.3 and higher for MAC, and Safari 3.0 and higher for PC
  • Multiplatform support: Windows 7/8/10, Windows Server 2008/2012/2016/2019, Solaris, Linux, FreeBSD, and MAC OS 10/11
  • An IP address can be assigned to the E-MINI-LXO automatically by a DHCP server
  • Generates SNMP traps, email alerts, and syslog messages
  • Alerts are posted in event log, which is accessible through Web user interface
  • Email alerts can be sent to 17 addresses

    Dimensions
  • WxDxH: 5.82 x 3 x 1.75 in (148 x 76 x 44 mm)
  • Optional 1RU rackmount kit available (E-RK1-2D)
  • The ENVIROMUX system can be mounted so that the sensor connectors are facing the front or back of the rack

    Power
  • 110 or 220 VAC at 50 or 60 Hz via AC adapter
  • Includes 9V, 1.5A adapter. Will work with a 12V, 2A adapter
  • Overvoltage and overcurrent protection in the unit and power supply
  • Power consumption: 10 W
  • Use the PWR-48V-12V1-6A DC-DC power converter to install the E-MINI-LXO in a 48V or 24V Telecom environment

    Environmental
  • Operating temperature: 32 to 104°F
  • Storage temperature: -20 to 176°F
  • Operating and Storage Relative Humidity: 5 to 90% non-condensing RH

    Regulatory Approvals
  • CE, RoHS
  • EN51055, EN50121-3-2


• Item Includes:

  • 1x NTI E-MINI-LXOB Mini Environment Monitoring System
  • 1x Lithium Back-up Battery
