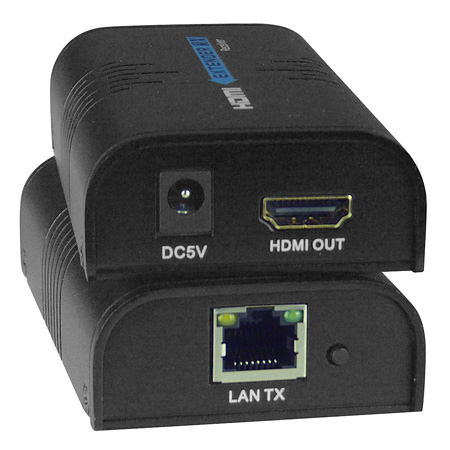

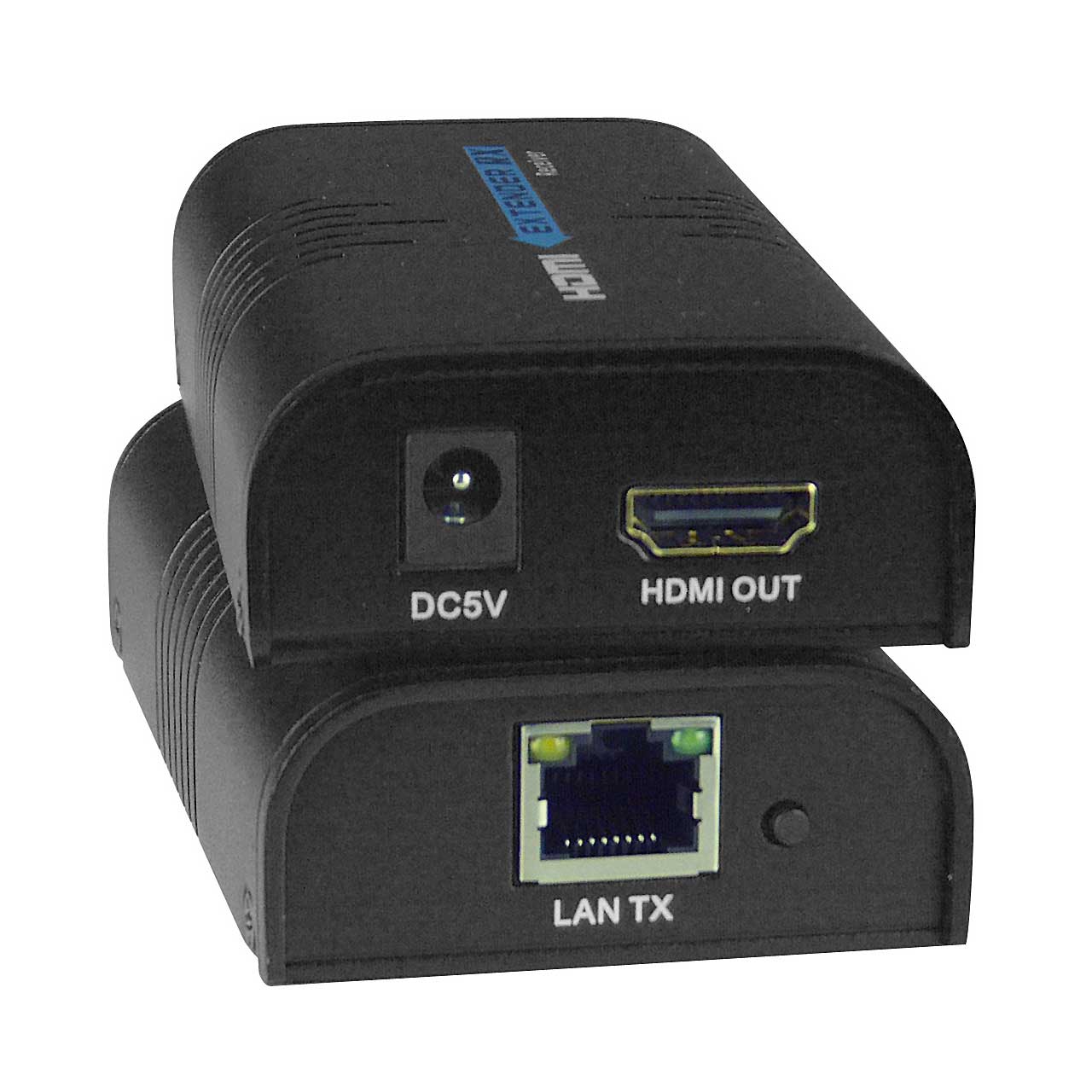

NTI ST-IPHD-LC HDMI Over IP Extender via CATx up to 330 feet

ST-IPHD-LC - Overview

• Features:

  • Supports HDTV resolutions to 1080p.
  • Extend 1080p video up to 330 ft via One CATx Cable
  • Use with cascaded network switches to extend to 1,000 feet

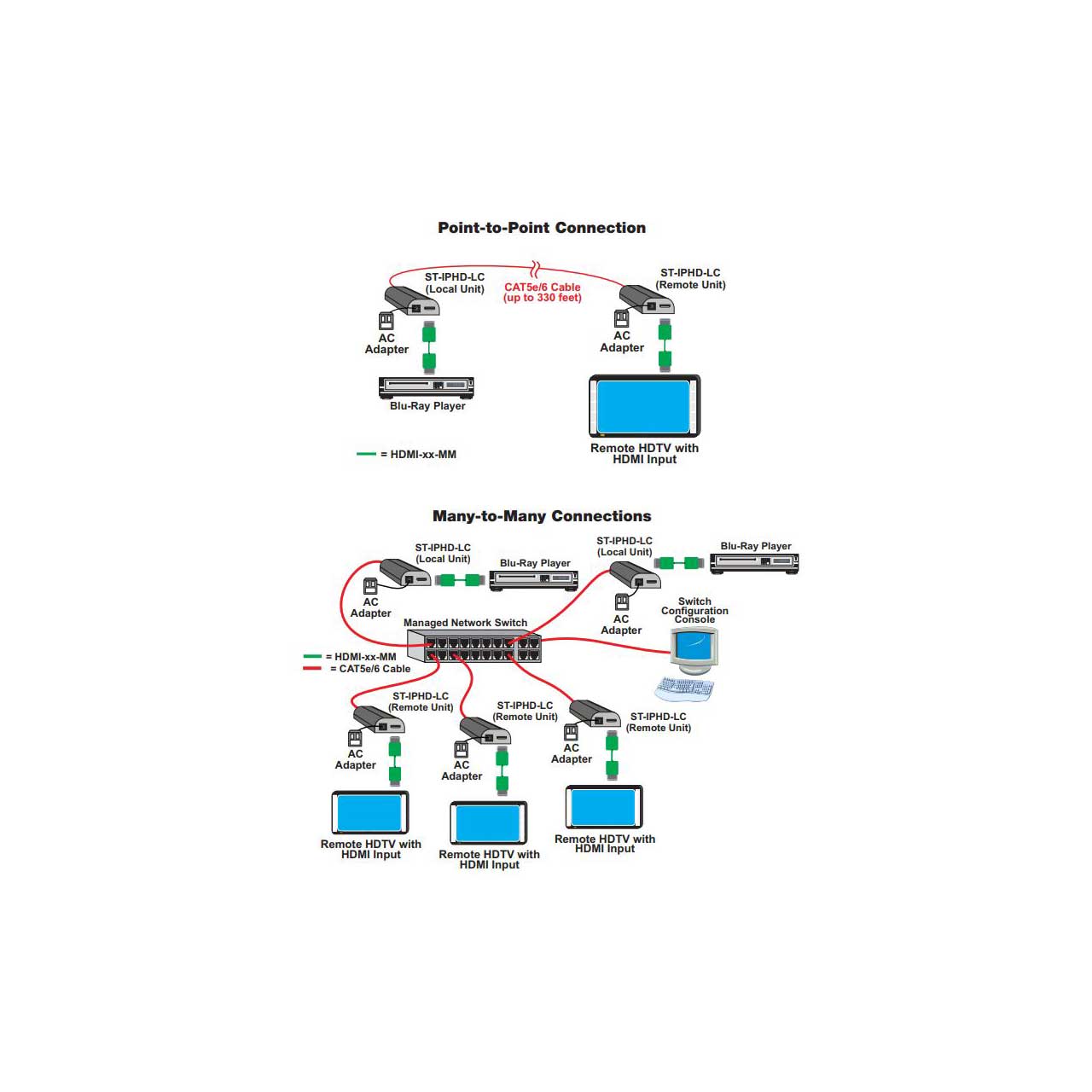

  • Supports Point-to-Point, Point-to-Many, & Many-to-Many connections
  • Ideal solution for digital signage applications.
  • Broadcast real-time HDMI video and audio signals to multiple display locations with a managed or unmanaged (also known as non-managed) network switch.
  • Transmits an HDMI signal over one CAT5e/6 cable.
  • Plug-and-Play installation allows receivers to find the transmitters automatically on the same subnet. (Network configuration may be required for managed network switch.)
  • Web interface for changing IP addresses, firmware updates and resetting units to factory default settings.
  • Easily expandable. Add remote units as you add monitors.
  • Inexpensive CAT5e/6 cable replaces bulky video cables.
  • Supports 10/100/1000 Ethernet connection.
  • Built in default EDID table.
  • HDCP compliant.
  • Support for multiple transmitters requires a managed network switch with VLAN/IGMP support. Standard LAN switches can only support one transmitter.


• Specifications:

  • Local Unit
  • One female HDMI-A port for source connection.
  • One female 1000Mbps RJ45 port for sending high definition video/audio signals.
  • Supported input resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
  • Max. bit rate: 80 Mbps.
  • Codec: MJPEG
  • Encoding delay: 33 mS at 30fps latency

    Remote Unit
  • One female HDMI-A port for HDTV or computer display.
  • One female 1000Mbps RJ45 port for receiving high definition video/audio signals.
  • Supported output resolutions: 480p@60Hz, 576p@50Hz, 720p@50/60Hz, 1080p@50/60Hz
  • Supports embedded digital audio through HDMI compatible TVs or audio receivers.

    Power
  • Local and remote unit: 110 or 240 VAC at 50 or 60 Hz via AC adapter.

    Power Cord Plug
  • ST-IPHD-LC: US NEMA 1-15P
  • Power consumption: 3W each.

    Max Distance
  • 330 feet (100 meters) over CAT5e/6 cable.

    Cables
  • Use HD-xx-MM cable to connect an HDMI source or display (not included).
  • Use DVI-HD-xx-MM cable to connect a DVI source or display (not included).
  • Use CAT5e/6 solid or stranded straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).

    Environmental
  • Operating and storage temperature: 14 to 140°F
  • Operating and storage relative humidity: 20 to 90% non-condensing RH.

    Dimensions
  • WxDxH: 2.28x4.33x1.02 in
  • Regulatory Approvals
  • CE, FCC, RoHS

    Compatible NTI Products
  • Combine NTI's video splitters and extenders for complex applications
  • 4K DVI/HDMI Video Splitter (VOPEX-DVI4K-2)
  • Supports HDTV resolutions to 1080p when used with the extenders.
  • HDMI Quad Screen Splitter/Multiviewer (SPLITMUX-HD-4RT)
  • DVI-D to HDMI Single Link Interface Cable (DVI-HD-xx-MM)
  • HDMI 2.0 EDID Emulator (HD4K-EDID-EMLTR)


• Item Includes:

  • 1x pair of ST-IPHD-LC extender modules (local and remote)
  • 2x US power cords
  • 1x User Manual


• Warranty:

  • 2 years
