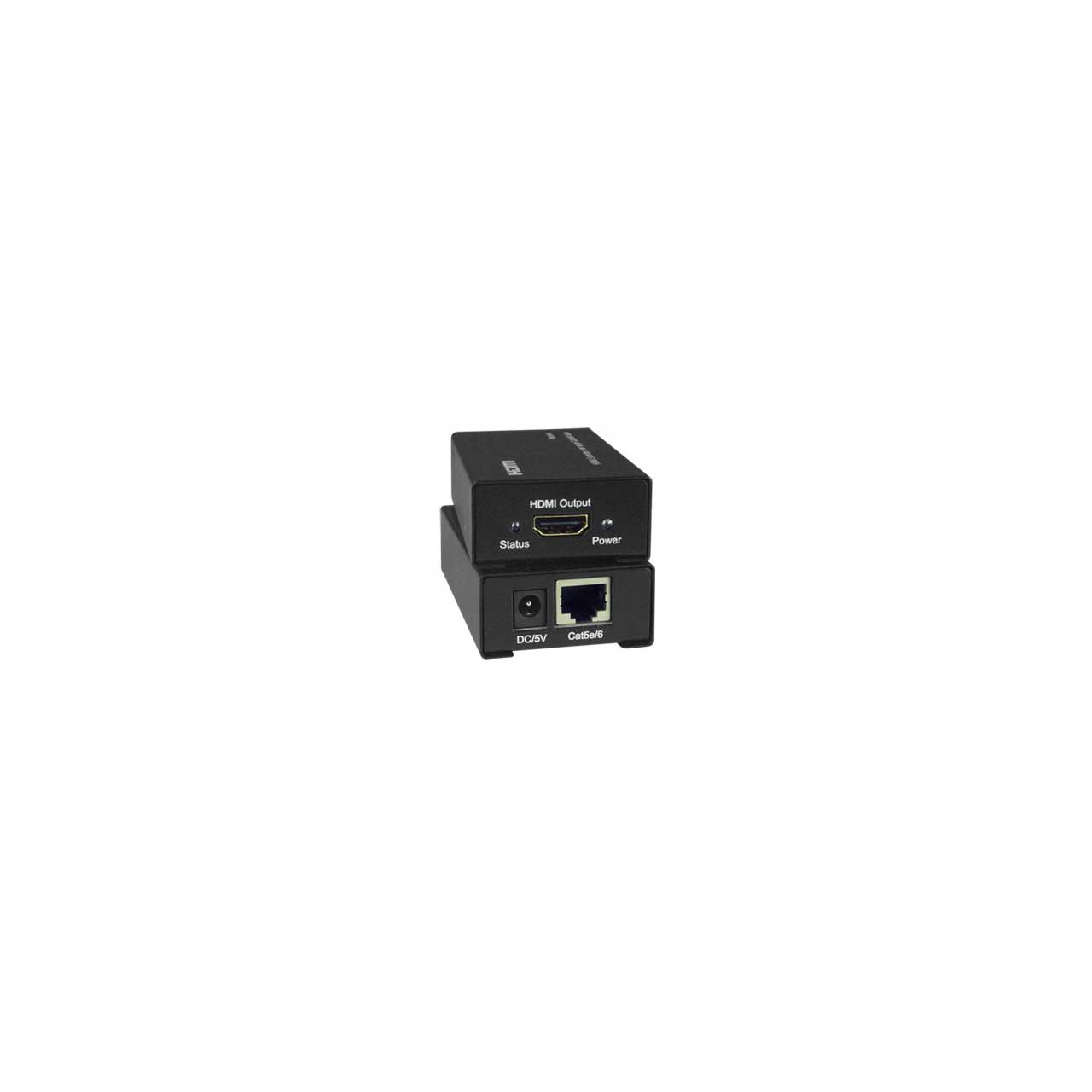

NTI ST-C6HD-150-LC HDMI Extender via one CAT5e/6

ST-C6HD-150-LC - Overview

• Features:

  • Transmits an HDMI signal over a single CAT5e/6 cable.
  • Supports HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
  • HDMI 1.3 and HDCP 1.1 compliant.
  • HDCP compliant.
  • HDMI features supported: Up to 36-bit Deep Color, 3D video, Supports lossless compressed digital audio: Dolby TrueHD and DTS-HD Master Audio, and Bandwidth up to 149 MHz (1.5 Gbps)
  • Built-in default EDID table.


• Specifications:

  • Local Unit
  • Compatible with a computer HDTV video source with HDMI output.
  • One female HDMI connector.
  • One female RJ45 port for sending/receiving high definition video/audio signals.
  • Built-in default EDID table
  • Recommended for use with 1080p HDMI displays.
  • Supports 3D
  • Note: if the input source is 3D the output display must support 3D.

    Remote Unit
  • One female HDMI connector for display.
  • Not recommended for use with DVI monitors.
  • One female RJ45 port for sending/receiving high definition video/audio signals.
  • Supports HDTV resolutions to 1080p, and up to 1920x1200 (WUXGA).
  • Supports embedded digital audio through HDMI compatible TVs or audio receivers.
  • Auto equalization for different lengths of CAT5e/6 cable.

    Power
  • Input (local and remote unit): 100 to 240 VAC at 50 or 60 Hz via AC adapter.
  • Power Cord Plug
  • ST-C6HD-150-LC: US NEMA 1-15P
  • ST-C6HD-150-LCEU: Europlug CEE 7/16
  • ST-C6HD-150-LCUK: UK BS1363
  • ST-C6HD-150-LCAU: AS/NZS 3112
  • ST-C6HD-150-LCUNV: US NEMA 1-15P with country-specific universal power plug adapter
  • Output (local and remote unit): 5VDC, 1A
  • Power consumption (local and remote unit): 5W

    Max Distance
  • 150 feet (46 meters) over CAT5e/6 cable.

    Cables
  • Use High Speed HDMI cables to connect an HDMI source or display.
  • Use CAT5e/6 solid straight through cable for TIA/EIA-568B wiring terminated with standard RJ45 connectors (not included).

    Environmental
  • Operating and storage temperature: 23 to 95°F (-5 to 35°C)
  • Operating and storage relative humidity: 5 to 90% non-condensing RH.
  • Dimensions WxDxH: 1.89x3.27x0.98 in (48x83x25 mm)
  • Regulatory Approvals: CE, RoHS, FCC Part 15 Subpart Class B
  • Warranty: Two years.
