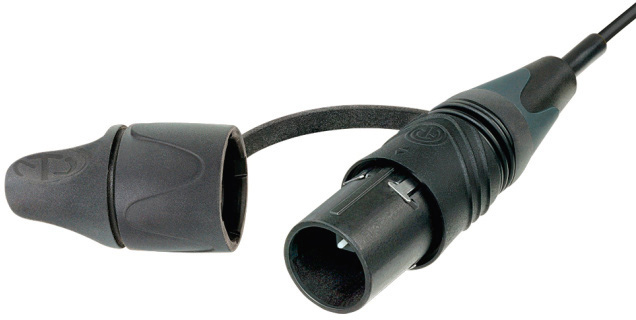

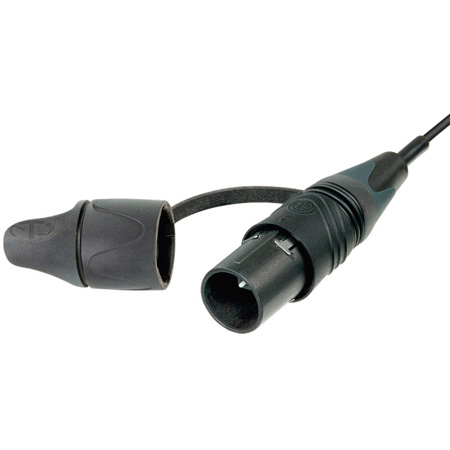

Neutrik NKO2S-L-0-1 opticalCON DUO LITE Single Mode Fiber Optic Cable - 1 Meter

ITEM #: NKO2S-L-0-1 MFG #: NKO2S-L-0-1

free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$287.49

Our Price:

$259.95

Availability: Extended Lead Time. Email, Chat or Call Us for more details.
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.


NKO2S-L-0-1 - Overview

2 channel fiber system, improved bending performance due to new fiber design, black matte outer jacket, available in multi- and single-mode (PC or APC). Designed for temporary and permanent installations. The opticalCON DUO LITE cable connector accommodates a standard optical 1.25mm ferrule in a durable plastic housing. It features a spring loaded push-pull locking mechanism and an excellent cable retention utilizing aramid yarn. The connector comes pre-assembled and is not available as a single component. The cable is available in different lengths. opticalCON LITE is a semi-rugged fiber optic connection for a wide variety of applications: its lightweight, compact design, robust housing, and high mating cycles provide a safe and cost-effective connection. Employing a novel fiber structure, the cable used with opticalCON LITE is designed to meet the extreme conditions of the entertainment industry. The cable offers excellent bending performance, a compact design and extreme flexibility that far exceed the mechanical strength of conventional patch cables. Note: Currently the normal lead time for opticalCON LITE cables is 7-9 weeks. All orders are non-cancelable and non-returnable.

  • Features:

    • Ruggedized 2 channel fiber optic connection system Cost optimized fiber connection for semi and permanent installation Waterproof acc. to IP65 safety standard in mated condition Lightweight plastic housing Reliable Push-Pull locking mechanism Easy to clean, no special tools required Compatible with standard opticalCON DUO chassis NO2-4FDW-A*

  • Specifications:

    • Number of Fibers: 2 Fiber Type: Single-mode Fiber Standard: G.657.A2 Core Diameter: 9 μm Cladding Diameter: 125 μm Primary Coating Diameter: 500 μm Secondary Buffer Diameter: 900 μm Numerical Aperture 0.20 Proof Test Level: 100 kpsi Wavelength: 1310 nm/ 1550 nm Attenuation: 0.35 dB/km (1310 nm) Attenuation: 0.21 dB/km (1550 nm) Nominal Dispersion Slope: - 0.092 ps/(nm²-km) Cable Surface: PVC jacket (black) Cable Weight: 9.98 kg/km Cable Diameter: 3.0 mm ± .20 mm Installation Max. Tensile Load: 1000 N Installation: Min. Bend Radius: >45mm Operation Max. Tensile Load: 500 N Operation Min. Bend Radius: >30mm Impact Resistance: 20 impacts (EIA/TIA-455-25B military req.) Crush Resistance: 644 N/cm (TIA/EIA-455-41A military req.) Operation Temperature: -20°C to +75°C Storage Temperature: -40°C to +85°C Bend optimized: Yes Laser optimized: No
