NTP CARD-SPQ 128 Channel Speaker Processor Card

ITEM #: NTP-CARD-SPQ MFG #: CARD-SPQ

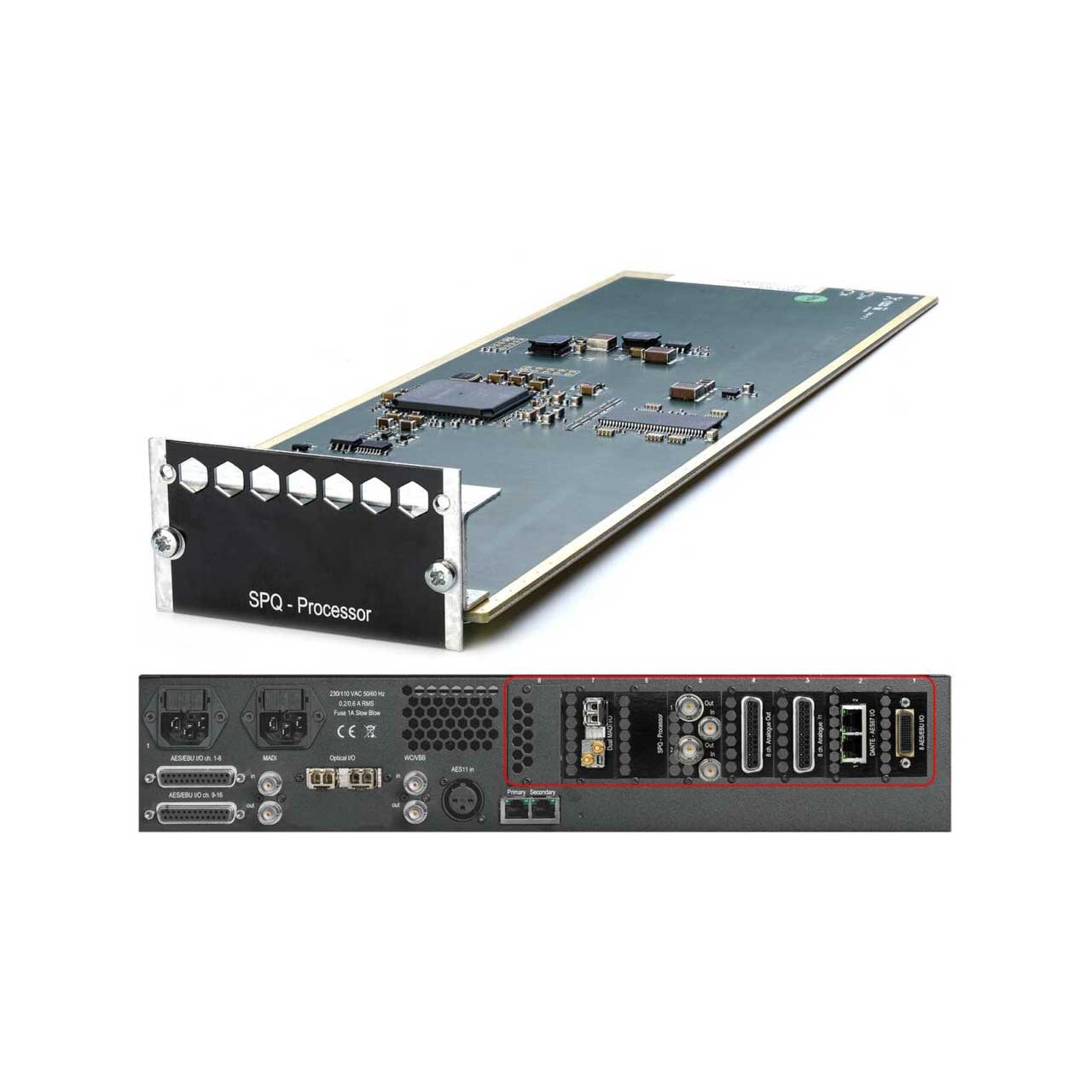

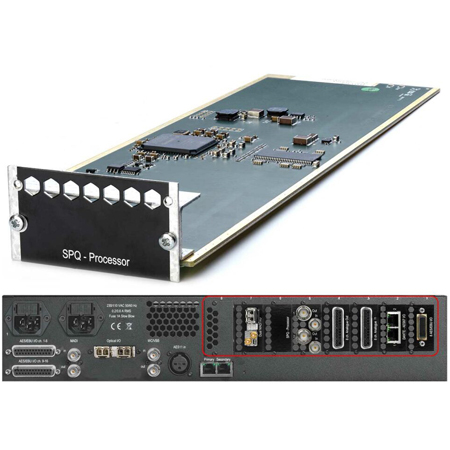

Primary Image

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the NTP-CARD-SPQ

CARD-SPQ - Overview

The NTP CARD-SPQ system consist of a DSP card that you can install in one of the 8 card slots of AX32. The SPQ Speaker Processor System is extremely flexible and you can match it to any speaker configuration, including immersive audio formats such as Dolby Atmos.

Management of the controls is handled via the DADman control software, where you can configure processing for all output channels in the defined monitor profile – also on cue signals. Processing can be applied for room tuning, bass management and equalizing of cue and monitor signals. And you can easily save and recall all configurations in the DADman monitor profile.

  • Features:

    • Room Tuning with up to 16 Filters Per Channel
    • Bass Management with Support for Multiple Subs
    • 1024 IIR Filters
    • 128 channels @ 48 kHz
    • Sample Rates from 44,1 to 384 kHz
    • Adjustable Latency up to 800ms Per Channel
    • Speaker Match Between Various Immersive Audio Formats


  • Specifications:

    • No. of EQ channel: Up-to 128 per card and up-to 16 per speaker channel
    • No. of filters: Up-to 1,024 per SPQ card
    • Channels: 32 seperately managed Subs
    • Delay: General control, and channel control
    • Number of Cards: Up-to 8 can be installed
    • Power Consumption: 3.5W
    • No. of filter channels: 128@48 kHz. Channels scales downwards with sample frequency i.e. 16 channels
      @384 kHz
    • Filter Implementation: 1,024 bi-quad IIR filters
    • Filter Types: Parametric EQ, Butterworth: Low pass, high pass Linkwitz Riley: Low Pass, high pass
      Shelving: low pass, high pass
    • Frequency Range: 20 - 20 kHz
    • Filter Q and Gain: 0.5 to 10, +/- 12dB
    • Filter Slopes: 6 to 24 dB/oct
    • Sample Rates: 44.1, 48, 88,2, 96, 176,4, 192, 352,8 and 384 kHz. (DSD is not supported)
    • Delay Range: 10 micro sec. to 800 ms per channel, rounded to samples
    • Audio Processing Delay: 2 samples on the card, 7 samples total in the unit. All channels are alligned
