OCC CX021HBAB9YP SMPTE 3-IN-1 Stadium Cable-Plenum 11.4mm - 1000 Foot

ITEM #: OCC-CX021HBAB9YP MFG #: CX021HBAB9YP

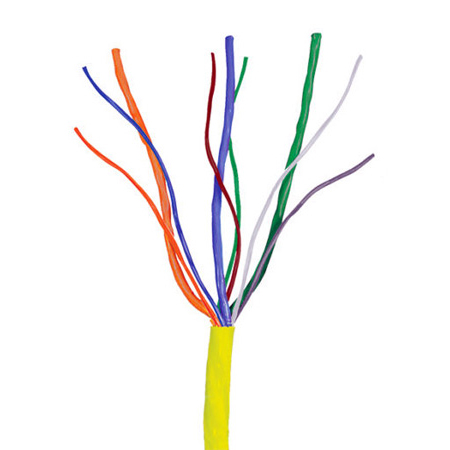

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2

This item is no longer available.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the OCC-CX021HBAB9YP

CX021HBAB9YP - Overview

Providing the durability you expect from OCC, we offer a wide variety of broadcast products including SMPTE cables, enclosures, and assemblies. Our 3-IN-1 Stadium Cable are designed to connect up to three cameras through a single cable.

  • Features:

    • Ideal for permanent installations where UL Plenum Rating is required
    • 3 cameras in one location, only one cable to run
    • Connecting fixed wall box connections to control room patch panels
    • Compatible with SMPTE 311 Standard
    • Fibers and power groups are uniquely identified by TIA color coding standards
    • 245 micron acrylate optical fiber


  • Specifications:

    • 6 Fiber count, color-coded (TIA Standard)
    • 3 subunits, each color-coded subunit consists of: 2 Power Conductors 18 AWG 19 Strand Class C Annealed Tinned Copper FEP Insulated 300V, 2 Control Conductors 24 AWG 7 Strand Class B Annealed Tinned Copper FEP Insulated 300V, 1 Drain Wire 22 AWG
    • Strength member: none
    • PN: CX021HBAB9YP
    • Cable diameter: 11.4 mm (0.45 in)
    • Weight: 200kg/km (134 lbs)
    • Minimum Bend radius: 11.4 cm (4.5 in)
    • Max cable attenuation (dB/km): 0.5/0.5
    • Jacket material: Plenum Rated PVDF
