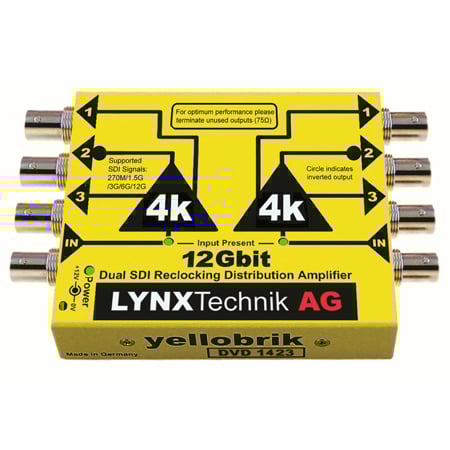

LYNX Technik Yellobrik DVD 1423 Dual 12G SDI 1 In/3 Out Video Distribution Amplifier - Supports Multi SMPTE SDI Signals

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    LYNX Technik Yellobrik DVD 1423 Dual 12G SDI 1 In/3 Out Video Distribution Amplifier - Supports Multi SMPTE SDI Signals

    Manufacturer: LYNX Technik Inc

    Item #: LNX-DVD-1423   •   MFG #: DVD-1423



    List Price:$1,025.00
    Our Price:$973.75

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer. Normal delivery time is 2-7 business days and is subject to manufacturer availability. Need it sooner? Call 800-522-2025, or email Customer Service for expedited delivery options.


    • 2 - 7 Day Normal Delivery Time - Faster Shipping Options at Checkout or Call Us.


    Share!





    The LYNX Technik Yellobrik DVD 1423 is a compact SDI distribution amplifier, which is suitable for all SMPTE standard SDI signals from 270Mbit/s through 4K UHD (12 Gbit/s). The SDI input formats are auto-detected and all outputs are reclocked.

    Each channel is 100% independent and can process different SDI formats if required.

    SMPTE 259M (270Mbit/s), SMPTE 292M (1.5Gbit/s), SMPTE 424M (3Gbit/s), SMPTE 2081 (6GBit/S) and SMPTE 2082 (12GBit/s) standards are supported.


    • Features

      • 2 independent inputs
      • 3 outputs per channel
      • Suitable for SDI video up to 12Gbit/s (4K/UHD)
      • Supports SD SDI, HD SDI, 3G SDI, 6G SDI and 12G SDI
      • Reclocking
      • Auto-detect input format
      • Input present LED indication

    • Specifications

      • Input
      • 2 x SDI; 75Ω BNC connector
      • SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 2081, SMPTE 2082
      • Multi-standard operation from 270Mbit/s to 12Gbit/s; reclocking
      • Input present LED indication
      • Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz,>7dB from 3GHz to 6GHz; >4dB from 6GHz to 12GHz
      • Automatic cable EQ: 400m @ 270Mbit/s, 200m @ 1.5Gbit/s, 150m @ 3Gbit/s; 80m @ 6Gbit/s;80m @ 12Gbit/s

      • Outputs:
      • 3 x multi-rate reclocked SDI outputs per channel ; 75Ω BNC connectors
      • SMPTE 424M, SMPTE 292M, SMPTE 259M, SMPTE 2081, SMPTE 2082
      • Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz, >7dB from 3GHz to 6GHz; >4dB from 6GHz to 12GHz
      • Alignment Jitter < 0.2 UI @ 270Mbit/s, < 0.2 UI @ 1.5Gbit/s, < 0.3 UI @ 3Gbit/s, 6Gbit/s, 12Gbit/s
      • Timing Jitter < 0.2 UI @ 270Mbit/s, < 1.0 UI @ 1.5Gbit/s, < 2.0 UI @ 3Gbit/s, 6Gbit/s, 12Gbit/s

      • Power: +12VDC @ 3.3W nominal - ( supports 7 - 16VDC input range )
      • Physical Size: 5.43" x 3.54" x 0.86", including connectors
      • Weight: 8.46oz NET (module only)
      • Ambient: 41° - 104°F, 90% Humidity (non condensing)

    • Item Includes

      • Module
      • AC power supply

    • Warranty

      • 3 year
