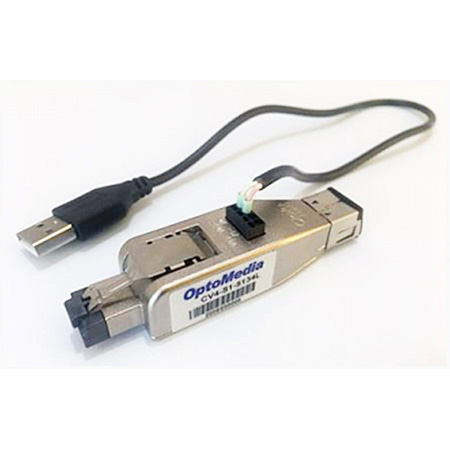

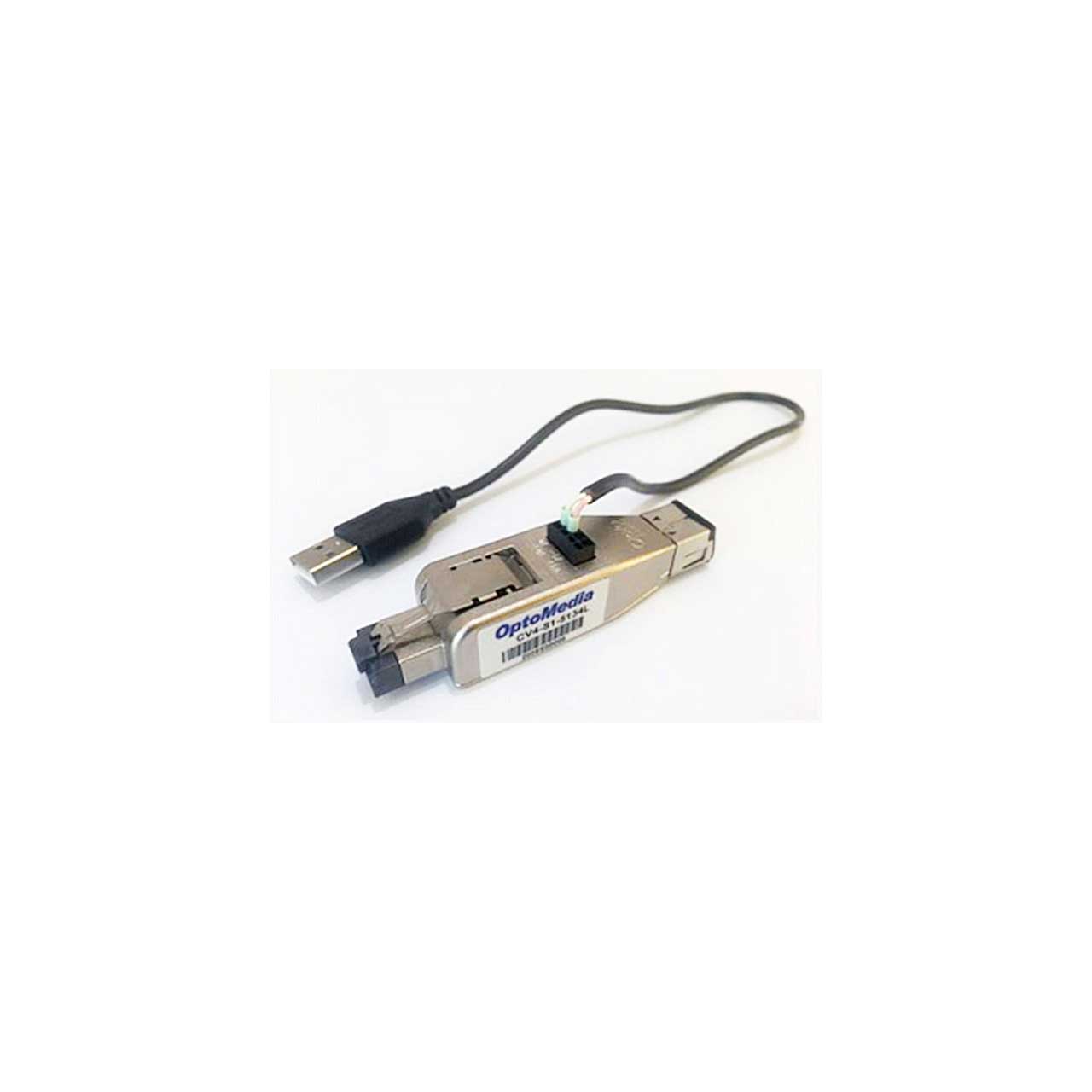

OMC Tech CV4-S1-5134L 1G Fiber Converter Dongle with Power over USB

ITEM #: OMC-CV4-S1-5134L MFG #: CV4-S1-5134L

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$149.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    CV4-S1-5134L - Overview

    The OMC Tech CV4-S1-5134L is specifically designed for electrical power substation (IEC 61000-4-5). It provides a high level of immunity to interference and long transmission range (up to 10km) in industrial applications by converting the 1000Mbps Ethernet interface to fiber optics (1000Mbps according to 1000Base-X standard). The device has also passed DIN EN 61373 (European standard for railway applications).

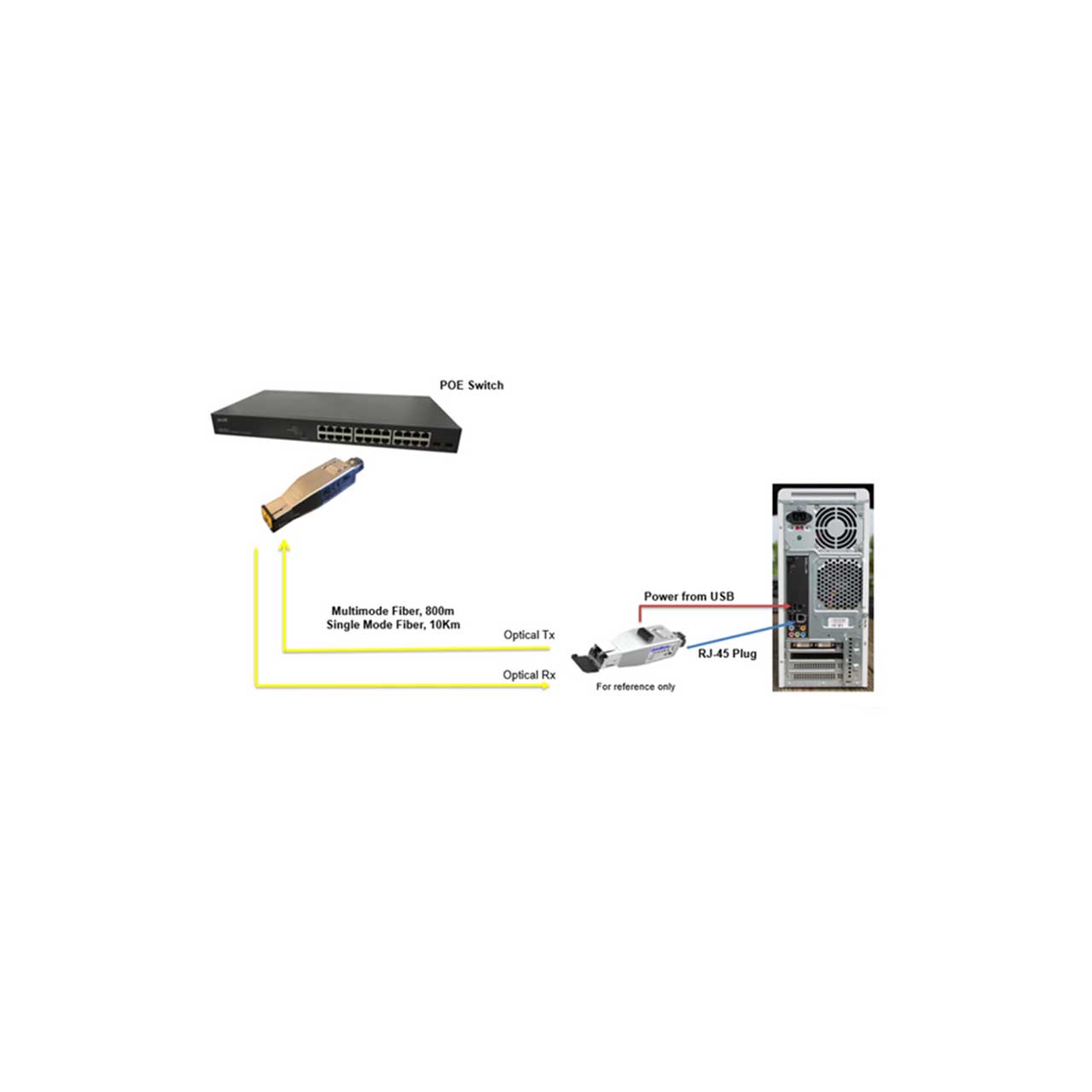

    The small, plug-and-play converter dongle with LC duplex connector driven by USB 3.0/USB 2.0 provides flexibility to upgrade ETHERNET to FIBER OPTICAL in the places where no industrial power supply neither power over ethernet (PoE) are around. Its RJ45 port (male type) offers an auto crossing function, which means it is unnecessary to distinguish between 1:1 and crossover cables.

    • Features:

      • IEEE 802.3 1000Base-T, IEEE 802.3u 1000BASE-X compliant
      • IEC 61000-4-5 (surge immunity) compliant
      • Both Single-mode and Multi-mode fiber supported
      • Long distance: up to 10km for Single-mode fiber and up to 800m for Multi-mode fiber
      • Link Fault Pass-Through (LFP) supported
      • Auto dust cover
      • Auto crossing simplifies cabling (MDI/MDIX) Individual LEDs indicate power and communication status
      • Individual LEDs indicate power and communication status

    • Specifications:

      • General data
      • Function: Fiber Converter dongle
      • RJ45 Port: 1000 Base-Tx Auto negotiation (IEEE 802.3u)
      • Fiber Port: 1000 Base-X Full-duplex (IEEE 802.3u)

        Properties of Optic Port
      • Total Number of FO Ports: 1
      • Connector Type: LC
      • Fiber Mode: Duplex Fiber
      • Link Distance (Max): Up to 10Km for Single-mode fiber
      • Up to 800m for Multi-mode fiber
      • Data Rate: 1.25Gbps
      • Wavelength: 1310nm

        Properties of RJ45 Port
      • Total Number of RJ45 Ethernet Interfaces: 1
      • Connection Type: RJ45 male
      • Data Rate: 1000Mbps
      • MDI/MDIx Switchover: Auto MDI/MDIX

        Environmental
      • Operating Temperature:
        CV4-S1-5134K: 32° to 131°F (0° to 55°C)
        CV4-S1-5134L: -40° to 176°F (-40° to 80°C)
      • Operating Humidity (Max): 5 to 95%
      • Degree of Protection: IP20

        Power Requirements
      • Connector Type: USB 3.0 / USB 2.0 Type A
      • Power Consumption:
        Typical: 2.1 W
        Maximum: 2.5 W

        Physical Characteristics
      • Housing: Metal
      • Dimension (LxWxH): 3.24 x 0.78 x 0.65" (82.33 x 20 x 16.56mm)
      • Weight: .11Lbs (50g)

        Standards and Certifications
      • Shock and Vibration: DIN EN 61373 (European standard for railway applications)
      • Safety: UL
      • EMC: CE and FCC
      • Green product: RoHS and REACH
