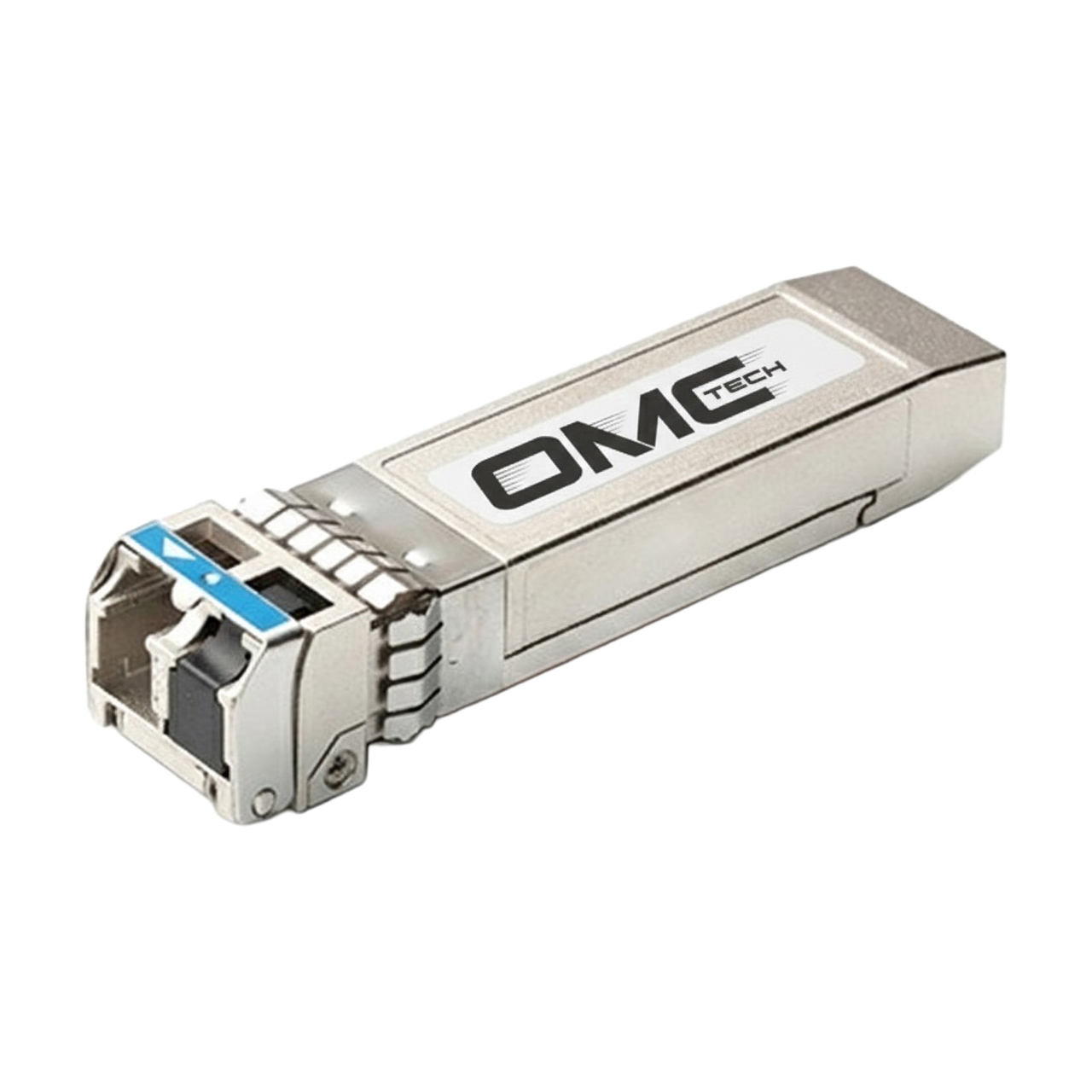

OMC Tech TIM-A1E61-F12 12G SDI LC Single SFP+ Transmitter Module - Up to 12 Gbps - MSA Compliant - Simplex

TIM-A1E61-F12 - Overview

• Features:

  • Compliant with SFP+ MSA
  • Data Rate up to 12Gbps
  • Re-Clock built-in
  • SMPTE ST-2082, ST2081, 424M, 292M, 259M compliant
  • Support video pathological patterns for 12G-SDI, 6G-SDI, 3G-SDI and HD-SDI, SD-SDI
  • LC single receptacle
  • Hot pluggable
  • All-metal housing for superior EMI shielding performance
  • SFF-8472 built-in digital diagnostic Functions


• Specifications:

  • Dimensions: 2" x 0.4" x 0.5" (5.1cm x 1cm x 1.3cm)
  • Weight: 1lb (0.5kg)
  • Power Supply Voltage: 0 - 3.6V
  • Power Supply Current: 600mA
  • Power Supply Consumption: 2W
  • Data Rate: 11.88Gbps
  • Optical Receiver Power (Damage): 1.5dBm
  • Average Launch Power: -5dBm - 1dBm
  • Center Wavelength: 1300nm - 1320nm
  • Spectrum Width: 1nm
  • Side Mode Suppression Ratio: 30dB
  • Extinction Ratio: 3.5dB
  • Relative Intensity Noise: -130
  • Average Launch Power of OFF Transmitted: -30dBm
  • Input Data Rate: 100Ω


• Item Includes:

  • 1x TIM-A1E61-F12 12G SDI LC Single SFP+ Transmitter Module


• Warranty:

  • 1-Year Limited Warranty
