Ocean Matrix OMX-01HMBT0005 HDBaseT 4K HDMI Extender Set with ARC - Two-Way IR - CEC - Two-Way PoH

ITEM #: OMX-01HMBT0005 MFG #: OMX-01HMBT0005

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Ocean Matrix
Free Shipping with $49 Minimum Order

List Price:

$299.95

Our Price:

$279.95

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    OMX-01HMBT0005 - Overview

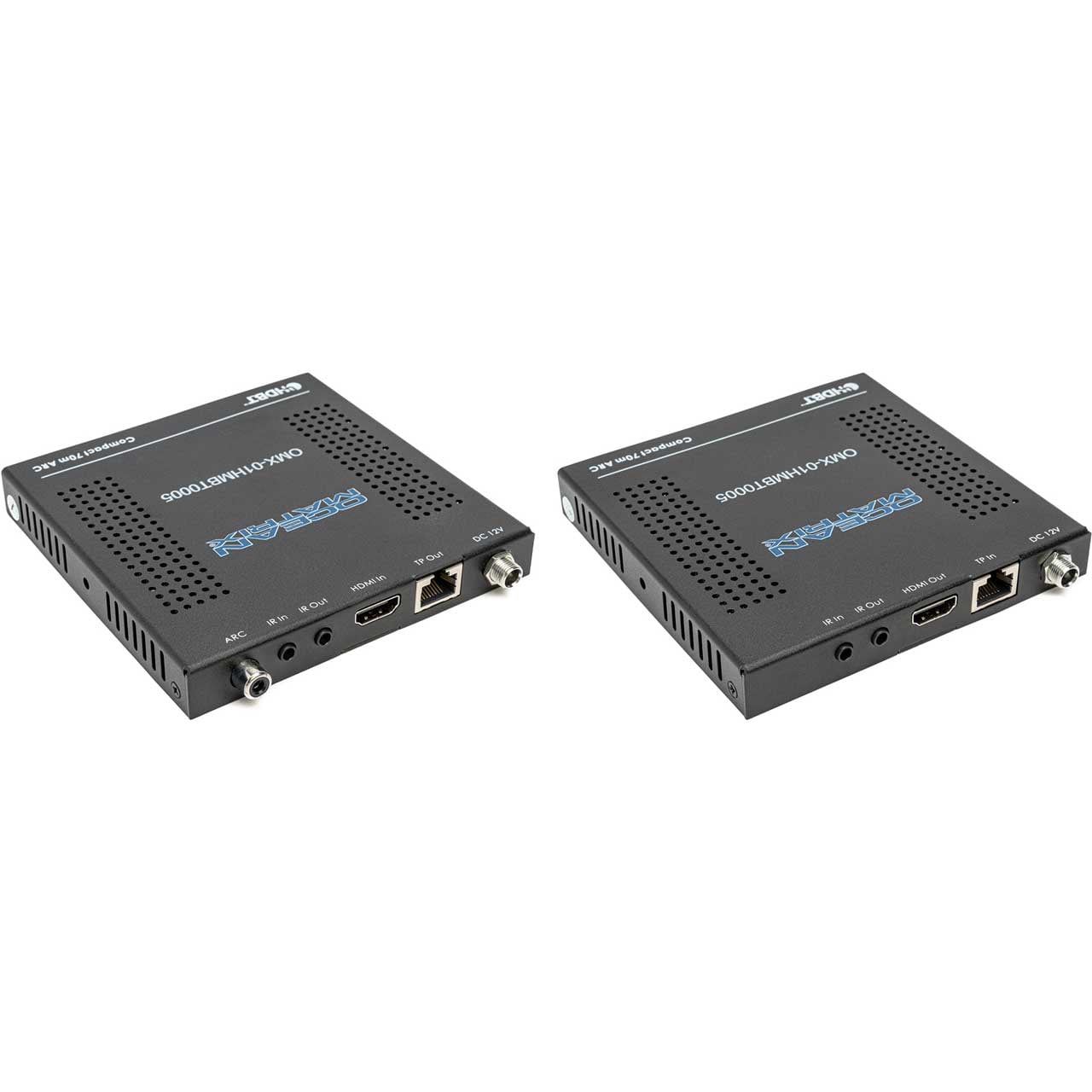

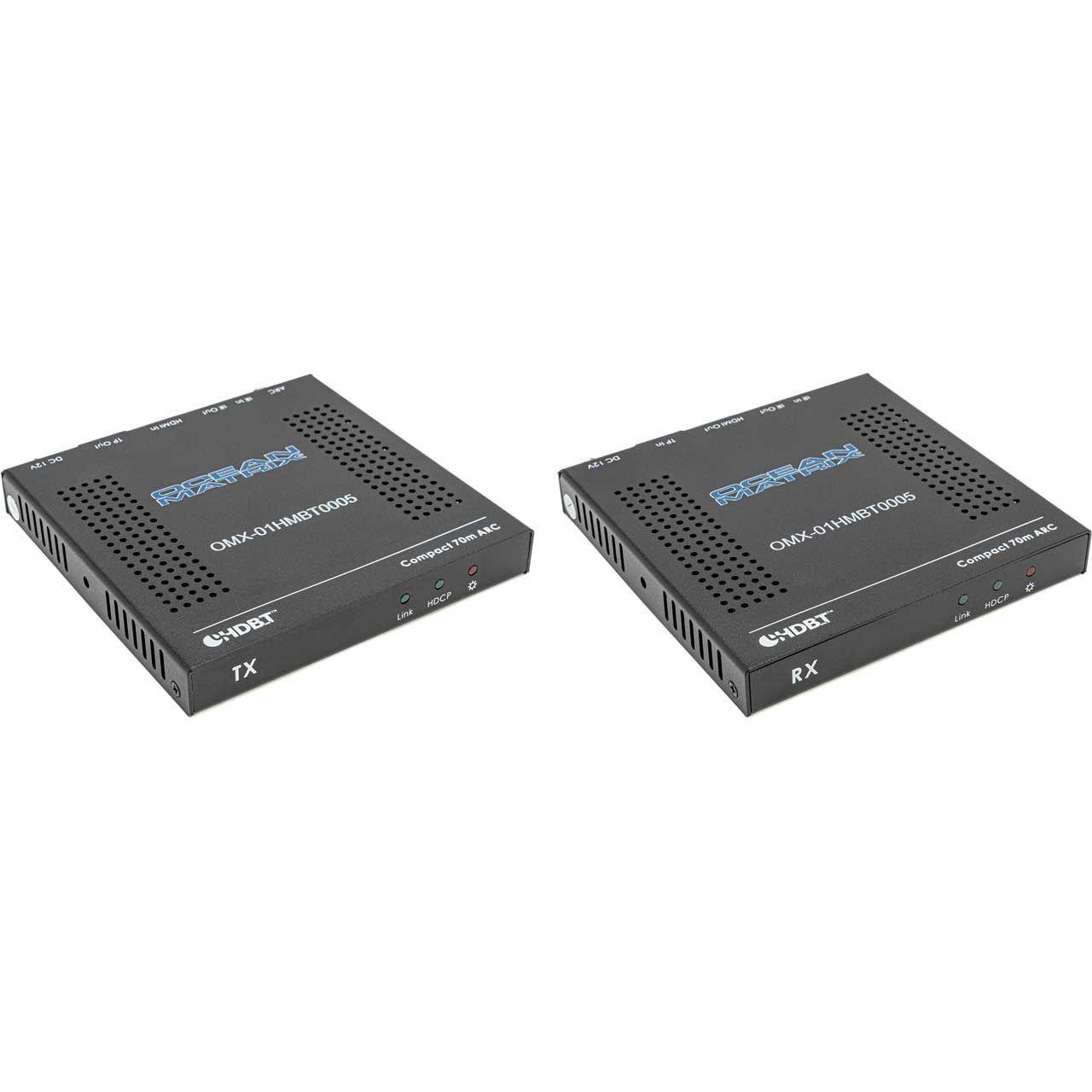

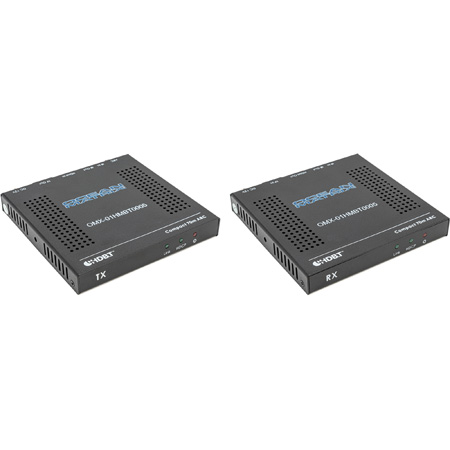

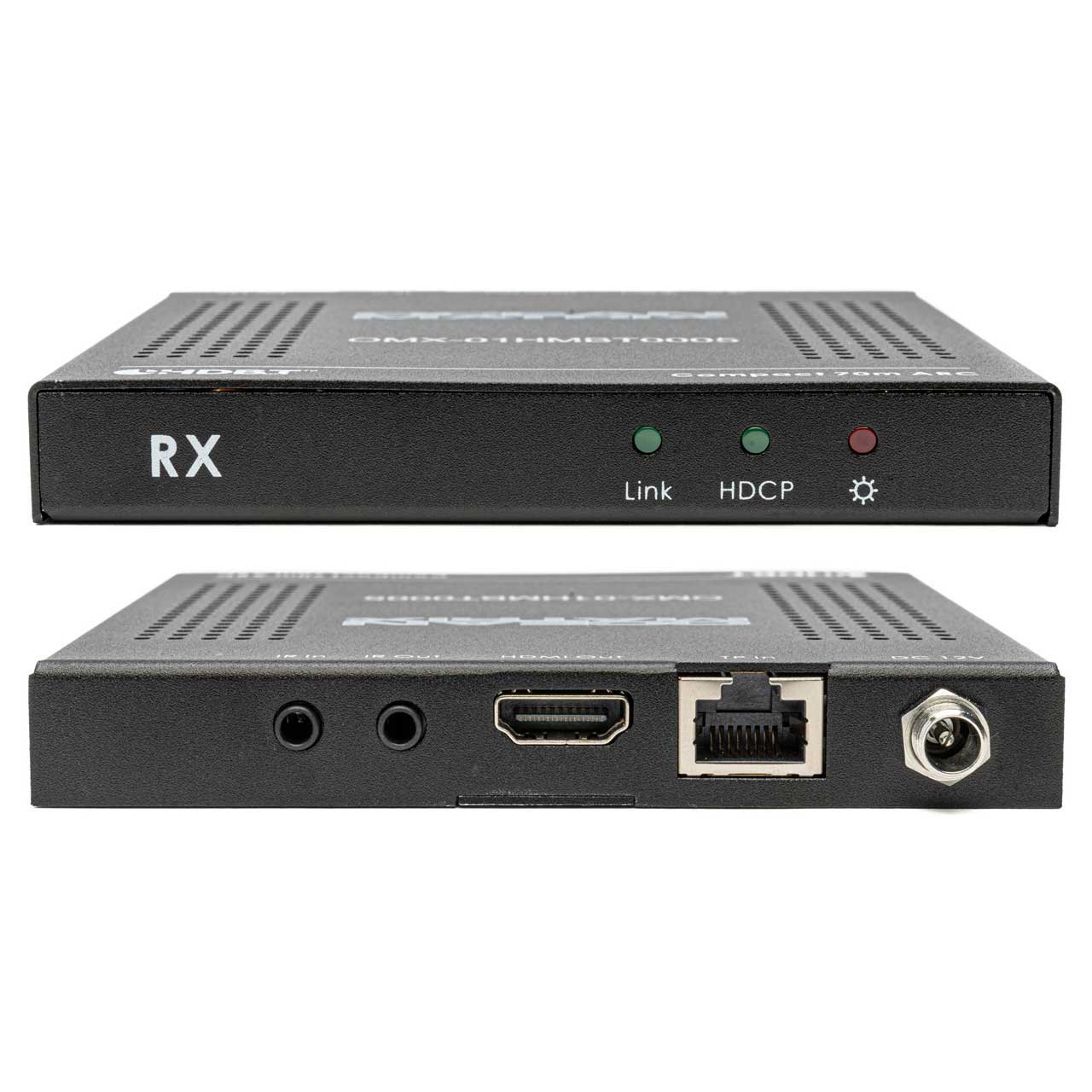

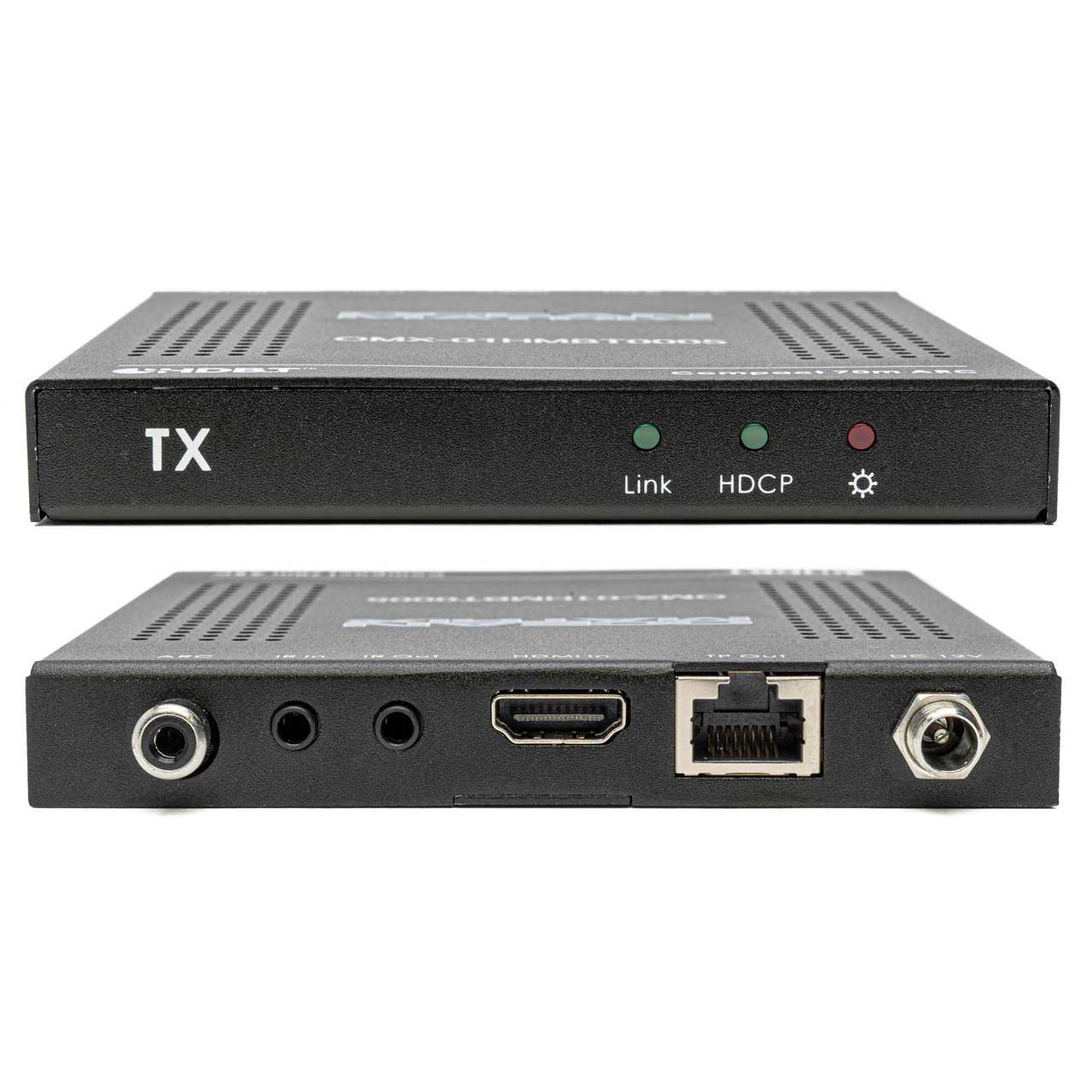

    The Ocean Matrix OMX-01HMBT0005 HDMI extender meets HDBaseT standards for 4K video and HD audio transmission over a single Ethernet CAT5e/CAT6a cable up to 131 feet. This extender supports video resolutions up to 4K2K@30Hz 4:4:4 and features CEC pass through, two-way IR, and two-way 48V 24V PoH (power over HDBaseT). The ARC function enables audio upstreaming from display to speakers and the two-way PoH makes system installation simpler and more streamlined.

    • Features:

      • Supports Two-Way IR Signals
      • CEC & EDID Pass Through
      • ARC Function Enables Audio Upstreaming
      • Transmission Distance: 1080p@60Hz up to 230 Feet, 4K@30Hz up to 131 Feet
      • Two-Way 48V PoH
      • Rugged Black Powder-Coated Metal Enclosure
      • CE, FCC Certified


    • Specifications:

      • Compliance: HDMI 1.4, HDCP 1.4
      • Bandwidth: 10.2Gbs
      • Video Resolution up to 4K2K@30Hz 4:4:4
      • Power Consumption: TX 3.3W, RX 6.4W
      • Dimensions (HxWxD): 0.63 x 4.53 x 3.3 in each unit
      • Weight: 7 oz each unit


    • Item Includes:

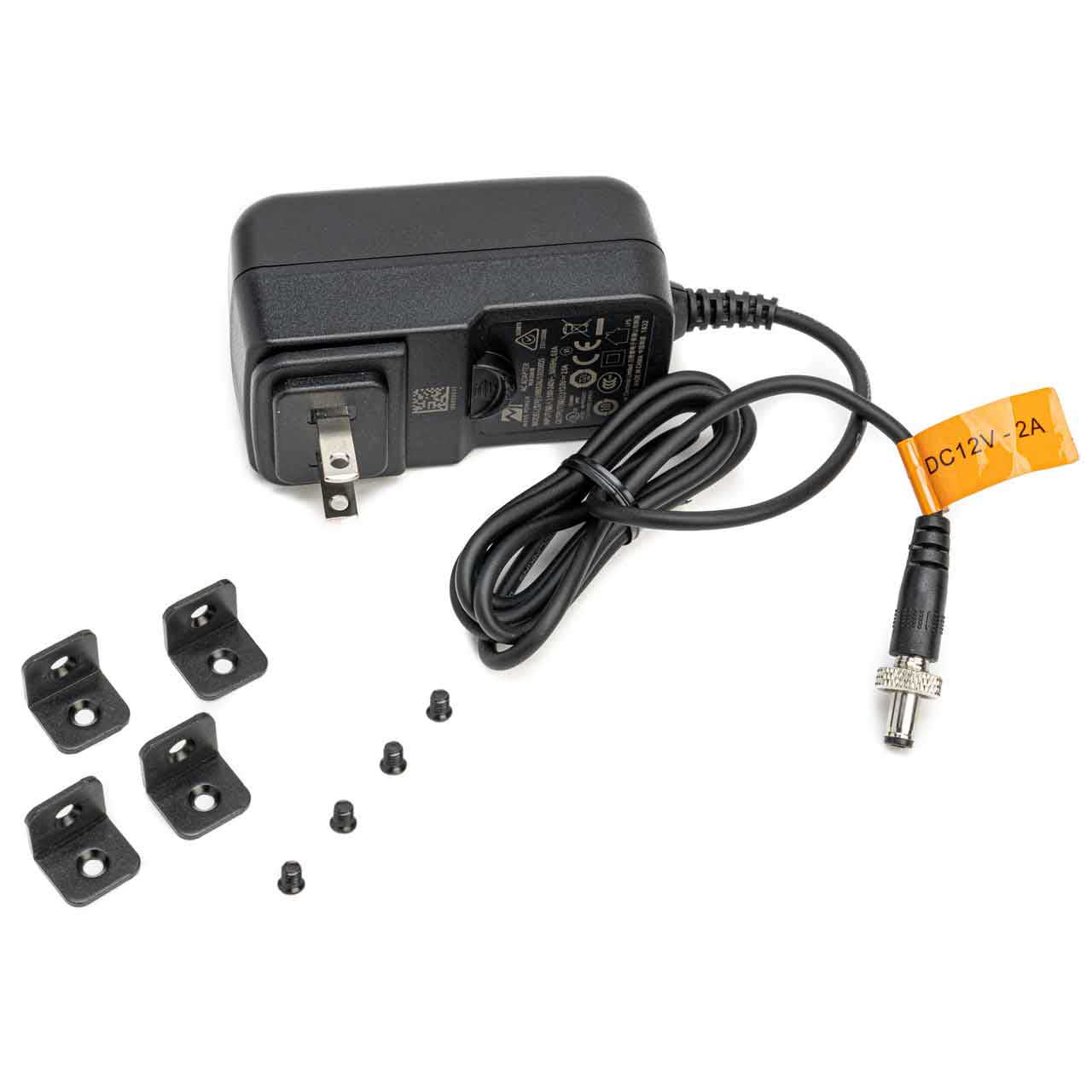

      • 4 Mounting Ears & 4 Screws, 1-12V/2A power supply


    • Warranty:

      • 1 Year
