Ocean Matrix 4K HDR 4x4 HDMI Matrix Switcher with Downscaling - 18Gbps

ITEM #: OMX-07HMHM0001 MFG #: OMX-07HMHM0001

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$527.95

Our Price:

$464.95

Availability: In Stock
iAvailability Description Popup


    OMX-07HMHM0001 - Overview

    Quickly and easily switch HDMI, including switching HDMI 2.0, from up to 4 sources and route them to 4 other destinations with the Ocean Matrix 07HMHM0001 4K HDR HDMI Matrix Switcher. The switcher supports and transmits resolutions up to 4K 60Hz 4:4:4 as well as the latest HDR10 for the very best frame-by-frame color and brightness picture quality.

    The Ocean Matrix 07HMHM0001 4x4 4K HDR HDMI Matrix couples a downscaling engine along with complete EDID management allowing your sources to seamlessly flow between 4K and 1080p displays with no user adjustments necessary. This makes the OMX 07HMHM0001 perfect for digital signage, conference room and education platform installations.

    This matrix switch offers complete control via a Web GUI, TCP/IP and RS232. The unit also supports SPDIF digital audio inputs as well as analog audio outputs.

    • Features:

      • 4 x HDMI 2.0 Inputs
      • 4 x HDMI 2.0/1.4 Outputs
      • 4 x SPDIF Coaxial Audio outputs
      • 4 x Analog Audio outputs
      • Supports 4K@60Hz YUV 4:4:4
      • Audio Sampling Rates up to 192kHz
      • Supports HDR10, HLG, and Dolby Vision
      • Supports IR, RS232 control, TCP/IP control, web GUI control, or Push Button control
      • PCM2.0, Dolby True HD, DTS-HD Master Audio, and LPCM 7.1 Supported
      • Supports Analog and SPDIF Audio Extraction
      • 18Gbps Bandwidth
      • HDCP 1.4 and 2.2 Compliant
      • Built-in EDID Management and Learning

    • Specifications:

      • Operating Temperature: 32°F to 104°F
      • Max Resolution: 4K@60hz YUV 4:4:4
      • Ethernet Port (IP Control): RJ45 Female
      • IR Ext Port: 1 x 3.5mm Stereo Jack
      • Bandwidth: 18 Gbps
      • Dimensions (LxWxH): 8.5 x 5.1 x 1.3in
      • Weight: 1.03lbs
      • Power Consumption: 14W (Max)

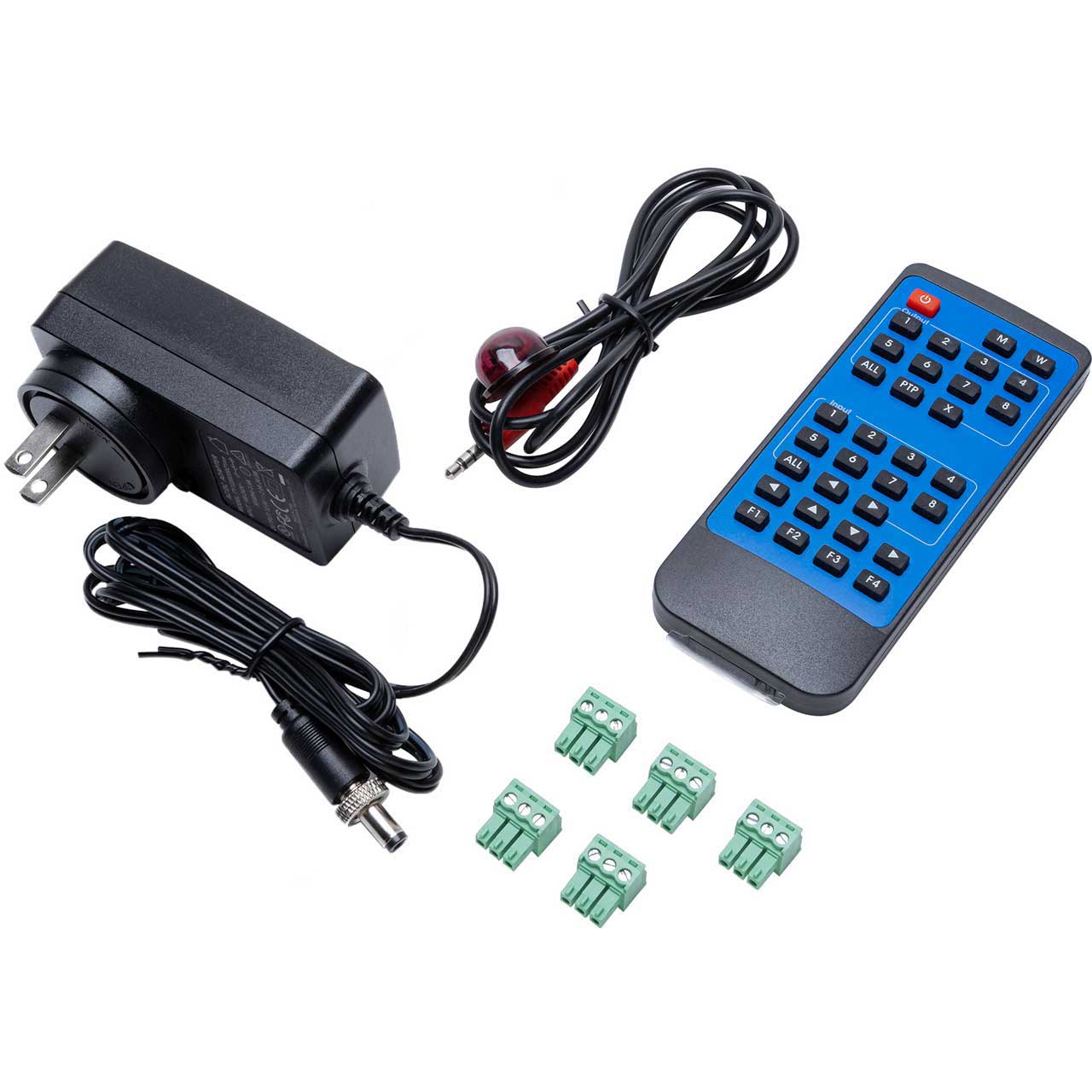

    • Item Includes:

      • 1 x 12V/2A DC Power Supply
      • 1 x Remote Control
      • 1 x IR Ext RX Cable
      • 5 x Phoenix Plugs for RS232 Cable Termination & L/R Audio Termination
      • 1 x Setup CD
