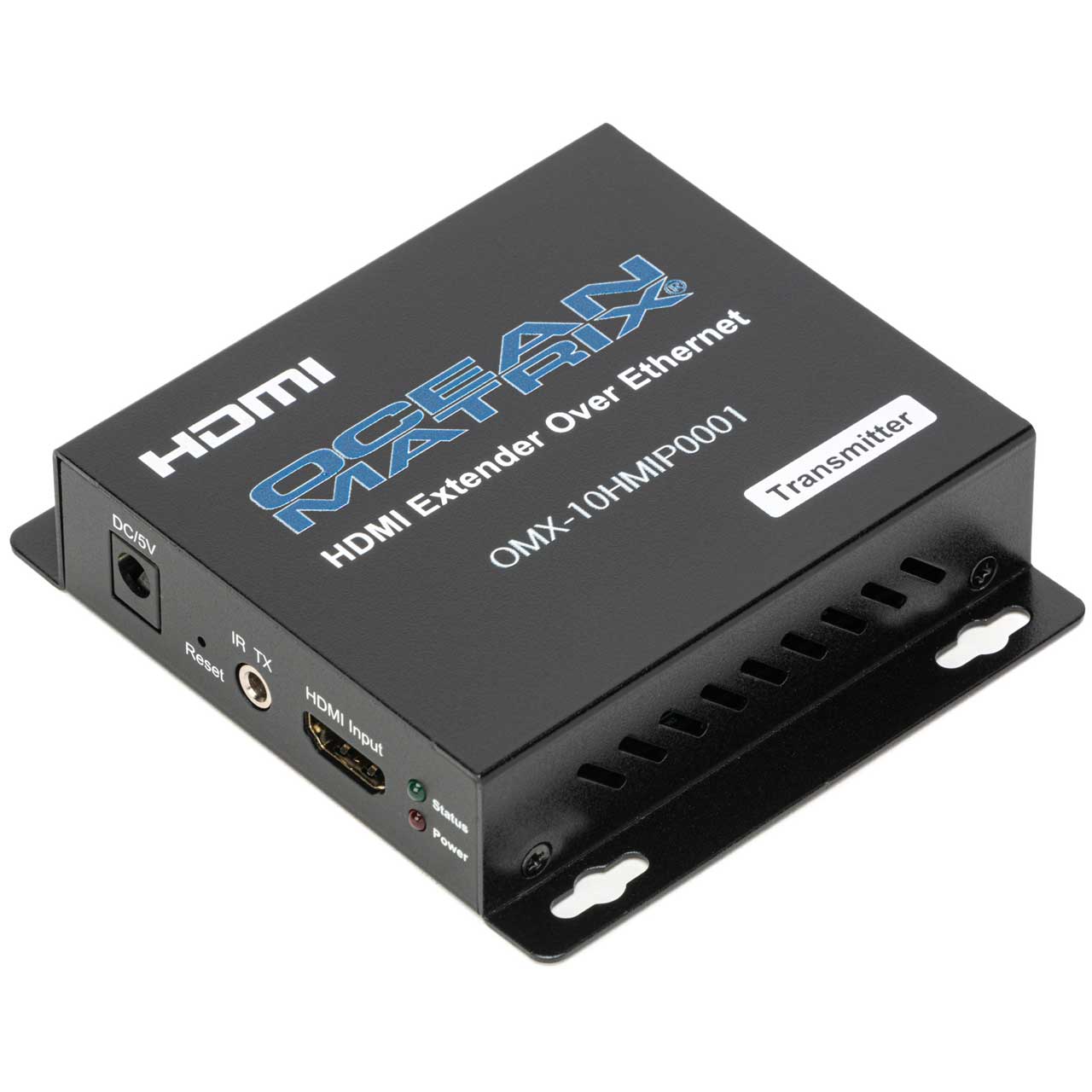

Ocean Matrix OMX-10HMIP0001 1080P HDMI Over IP Extender with IR Transmitter ONLY

ITEM #: OMX-10HMIP0001 MFG #: OMX-10HMIP0001

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$79.95

Our Price:

$69.95

Availability: In Stock
iAvailability Description Popup


    OMX-10HMIP0001 - Overview

    The Ocean Matrix OMX-10HMIP0001 HDMI over IP Extender transmits crystal clear 1080p@60Hz images over your local network in video projection, digital signage, restaurant TV distribution and distance learning applications.

    The transmitter is compatible with off-the-shelf ethernet switches allowing the creation of networked AV in a straight forward plug and play setup. An HTTP server is embedded in each Ocean Matrix 10HMIP0001 Transmitter and 11IPHM0001 Receiver. Users can set IP addresses for the system via a simple web browser interface.

    The system may also be used point-to-point up to 394 feet via CAT5e/6 cable. Wideband IR (38-56kHz) support allows control over video sources and mounting ears offer a complete install package.

    Not Compatible with PoE or EoP devices.

    • Features:

      • Supports up to 1080p video, Plus 2-Channel Audio
      • Plug and Play Operation - No Programming Required for One-to-One Setups
      • Wide-Band IR Control
      • Use Ethernet Switches for Multiple Layered Cascade Applications
      • HDCP Compliant
      • Supports TCP/IP Protocol
      • Black Powder-Coated Steel Cabinet
      • CE and FCC Certified

    • Specifications:

      • Transmission Distance: 394 feet over Cat5e/6
      • Video Format DTV/HDTV:480i/576i/480P/576P/720P/1080P
      • Input Video Signal 0.5-1.0 Volts P-P
      • Input DDC Signal 5 volts p-p(TTL)
      • Support Video Format DTV/HDTV:480i/576i/480P/576P/720P/1080P
      • Video Output HDMI
      • IR Frequency 38kHz-56kHz
      • Power Consumption: 3W
      • Dimensions: 4.08 x 3.68 x 1 inches
      • Weight: 7.76 oz

    • Item Includes:

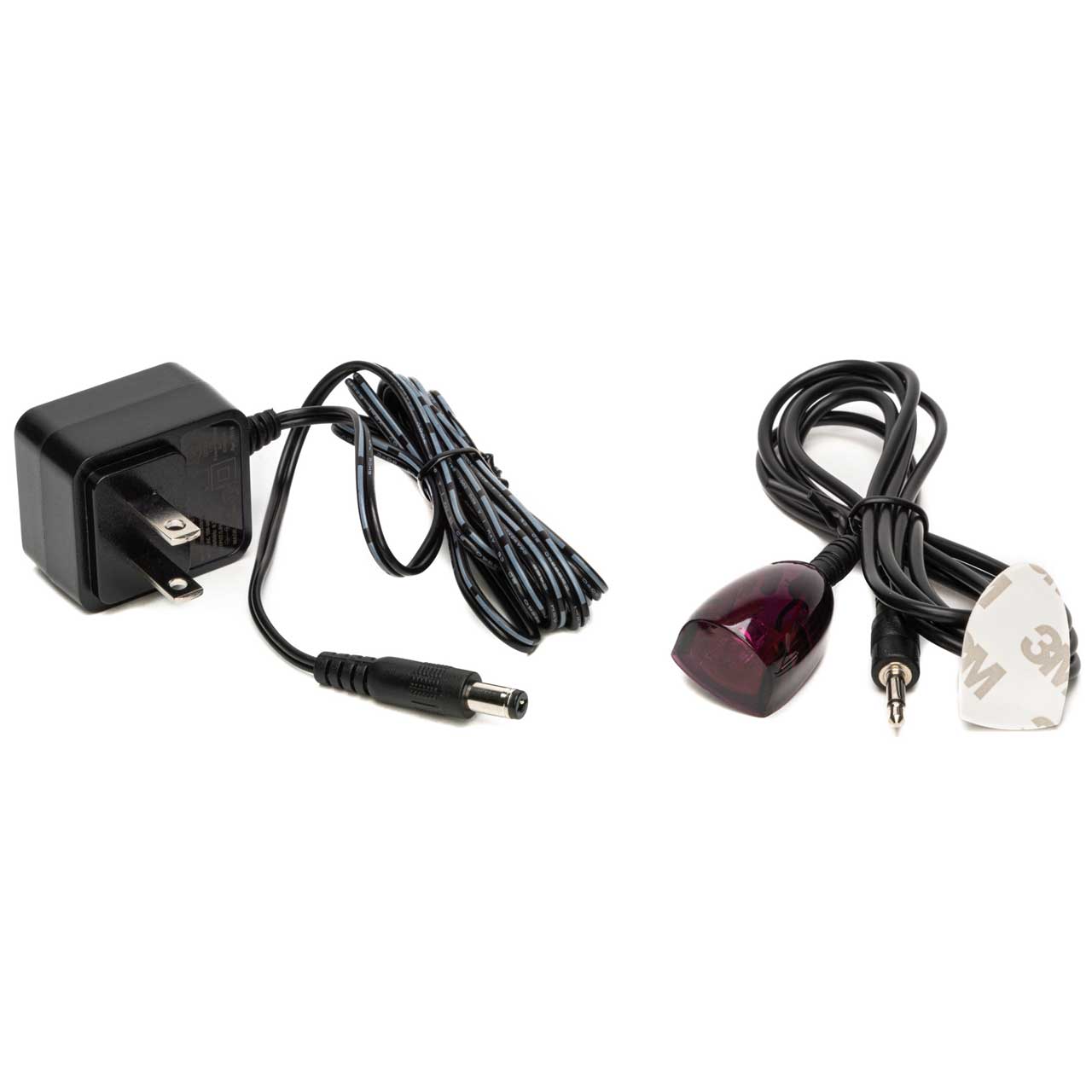

      • 1-5VDC/1A Power Supply, IR-TX and IR-Ext Cables

    • Warranty:

      • 1 Year
