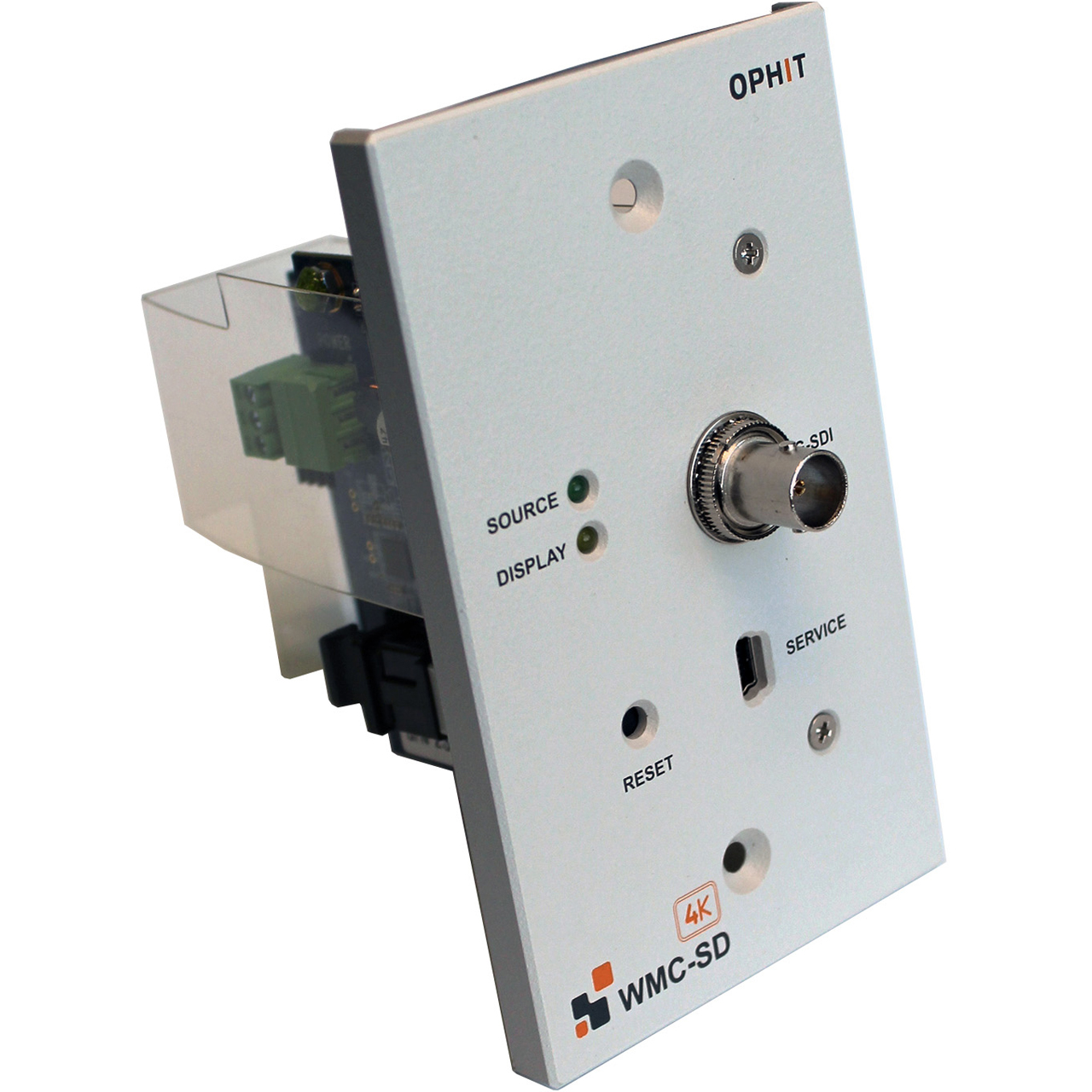

Ophit WMC-SD MPO/MTP-Type Wall Plate Video Signal Extender / Converter - 4K 12G-SDI to HDMI

WMC-SD - Overview

• Features:

  • High Resolution: The WMC-SD converts 12G-SDI TMDS-compatible optical signals to HDMI 2.0 output, delivering a maximum resolution of up to 4K (4096 x 2160) @ 60Hz without signal degradation

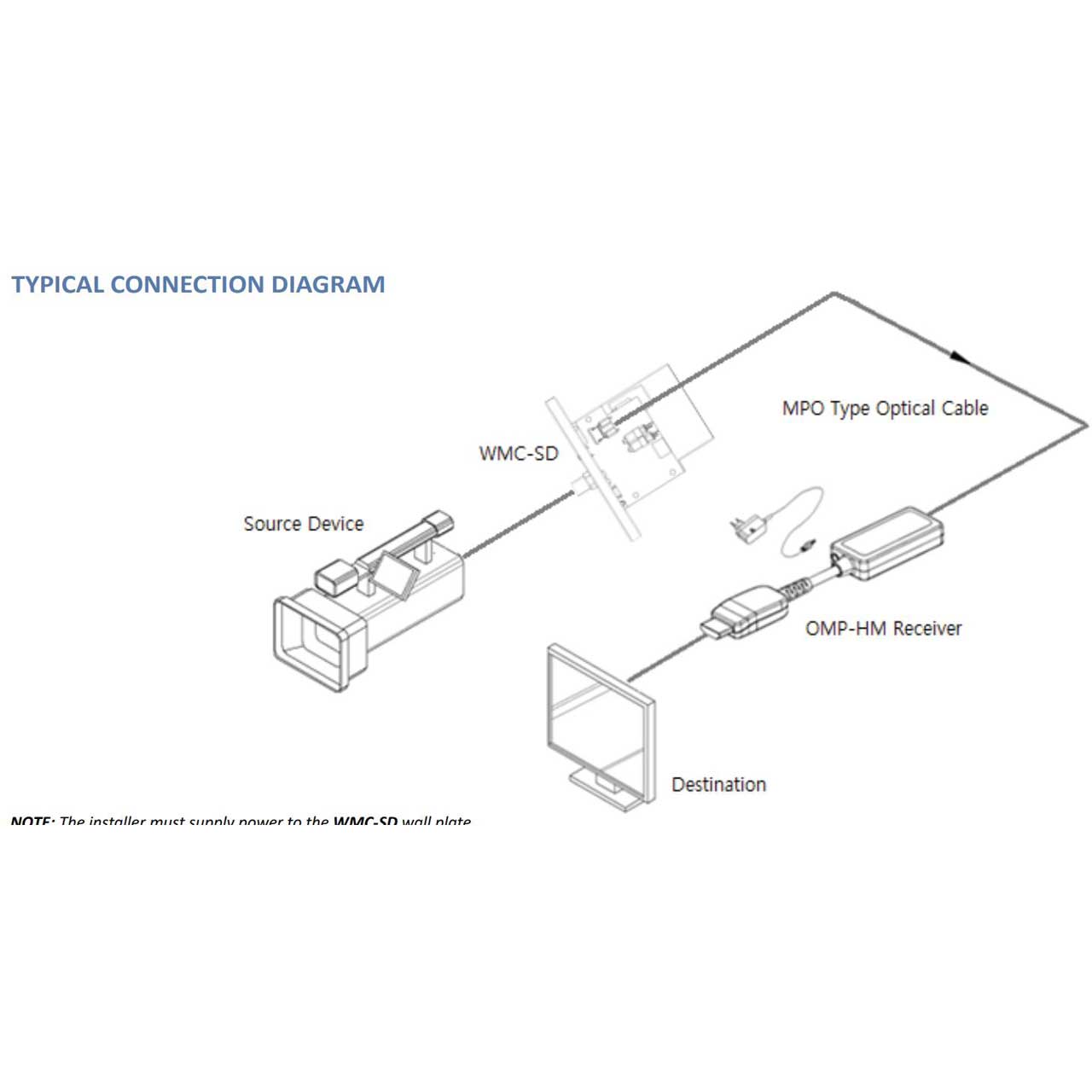

  • Long Transmission Distance: It connects to the OMP-HM-R receiver via an MPO-type optical cable, allowing for uncompressed data transmission up to 100 meters (330 feet)
  • Zero Latency: The WMC-SD transmission has zero latency, making it the best choice for surgical applications such as surgical boom systems in the operating room.

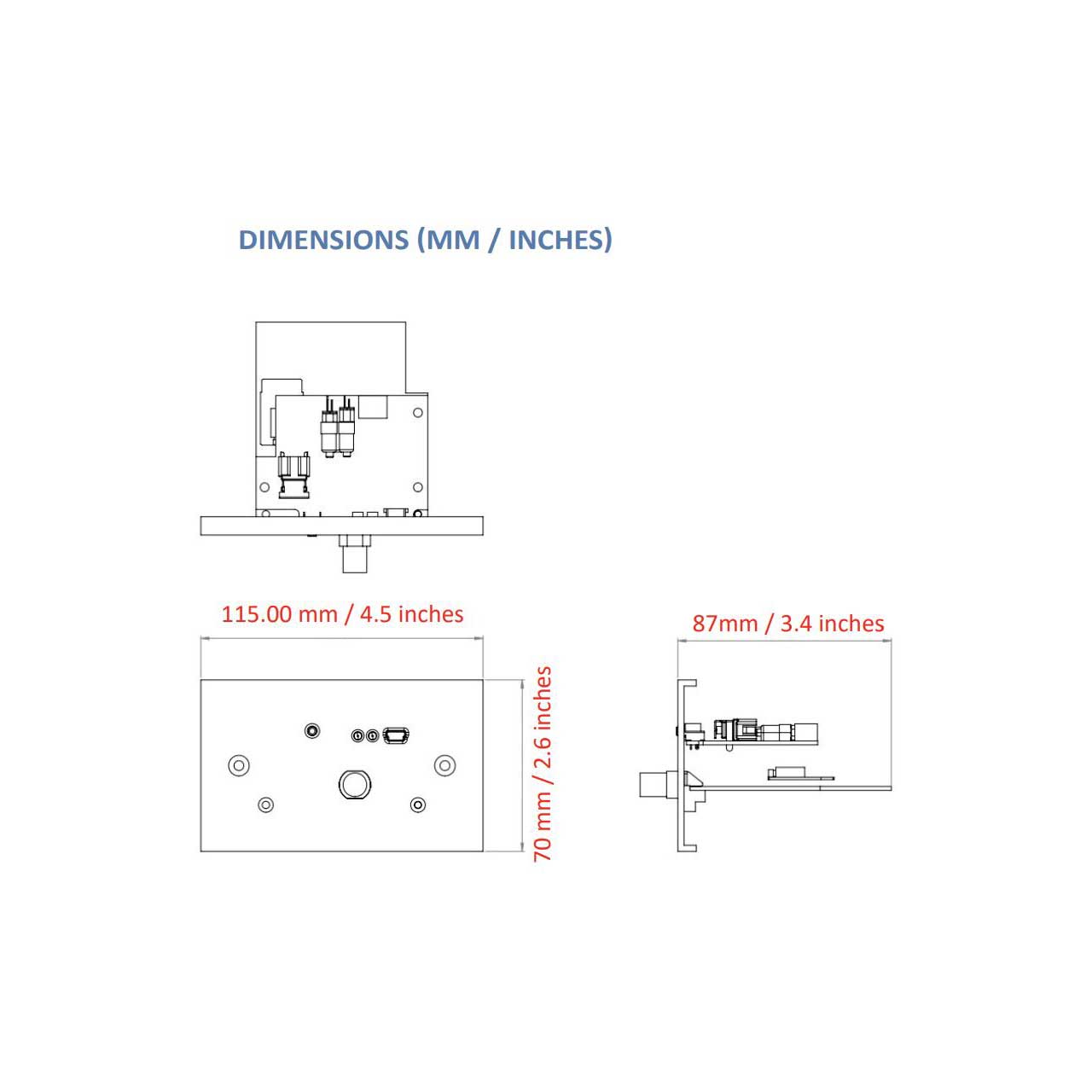

  • Single Gang Enclosure: Specifically designed to be mounted in a single gang enclosure, such as a wall or boom, ensuring easy installation

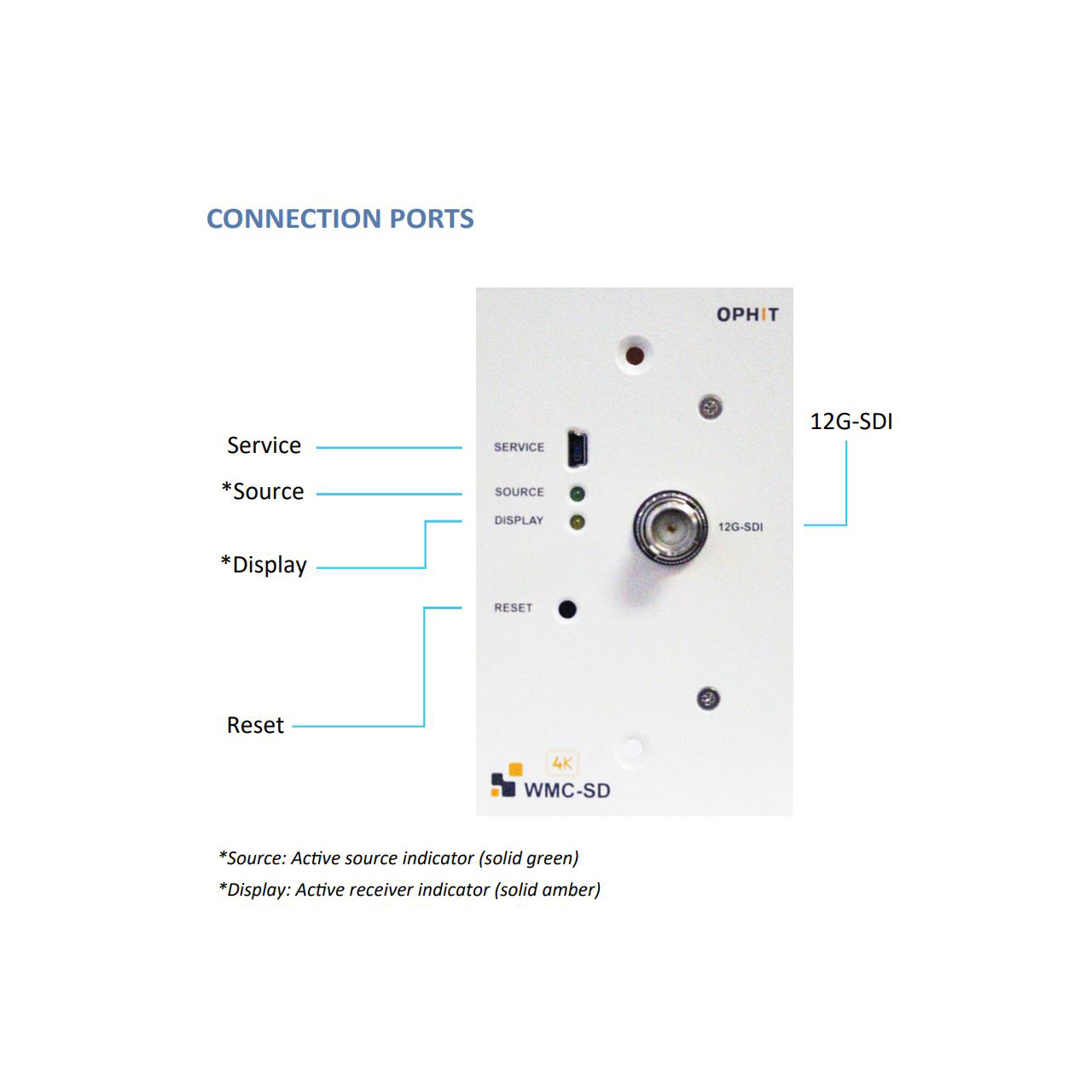

  • LED Indicators; The two LED status lights show the connectivity of input and output signals
  • Versatile: Apart from the OR suite, it is also useful in these applications: Broadcast Studios, Control Rooms, Auditoriums, Live Stages, Medical Imaging, Military, Flight Simulation, and Conference Rooms.


• Specifications:

  • Fiber Cable: MPO/MTP, 8 (or 12)-core, OM3, 50/125µm multi-mode fiber
  • Input Data Rate: Up to 11.88 Gbps (ST020820-1, 12G-SDI)x
  • Output Data Rate: Up to 18 Gbps (HDMI 2.0)
  • Optical Connector: 1x 4 Array 850nm VCSEL, 1x VCSEL, 1 x PD
  • Input Signal / Connector: 1x SDI via BNC Female Connector
  • Output Signal / Connector: 1x MPO-Type (Optical Female Connector)
  • Video Resolution: Up to 4K@60Hz
  • Power Consumption: 1x External Power Supply (DC +5V to +12V)
  • Power Connector: 1x 3.5mm (0.14") Pitch 3-Position Terminal (JIEKT / JK35OR-03P)


• Item Includes:

  • 1x Ophit WMC-SD MPO/MTP-Type Wall Plate Video Signal Extender / Converter - 4K 12G-SDI to HDMI


• GTIN:

  0194400001009
