Osprey 210e PCIe Video Capture Card

ITEM #: OSPREY-210E MFG #: OSPREY 210E

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with Minimum Order Banner

Our Price:

$319.00

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    OSPREY 210E - Overview

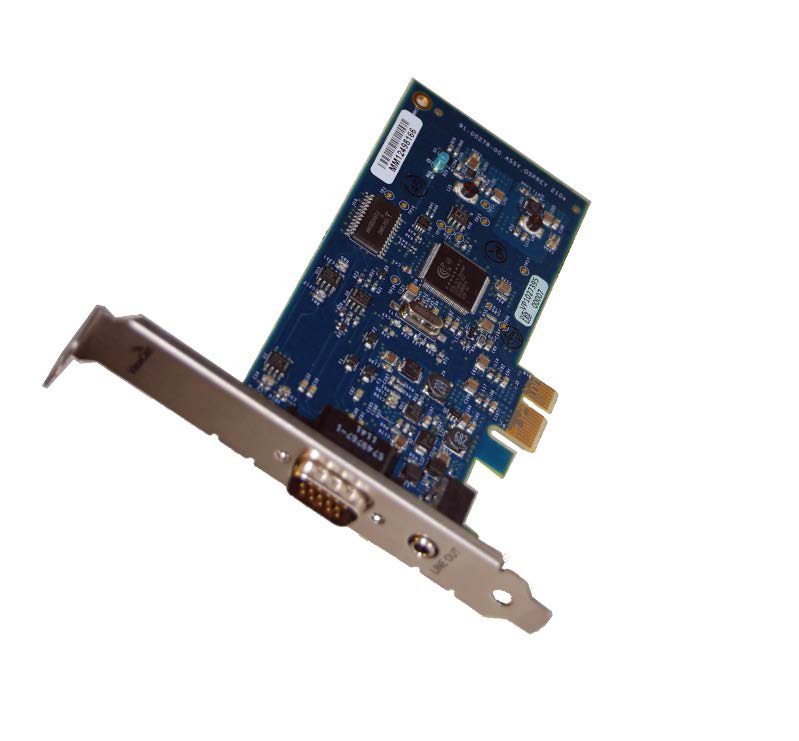

    The Osprey 210e Analogue Video Capture Card is a simple PCIe video interface for capturing and streaming composite, S-video, and unbalanced analogue audio. When used on the Windows platform, the provided driver enables the card to interact with streaming and video-on-demand (VOD) applications written for the Microsoft DirectShow API, such as Silverlight. For Linux users and developers, open source drivers are available from the usual repositories. The included breakout cable has connections for Composite BNC and S-video, and a supplied adapter enables the connection of an RCA composite source. Audio comes into the breakout cable via either stereo RCA or stereo 3.5 mm mini jack.

    • Specifications:

      • Description: Single channel analog audio/video

      • Format:
      • PCIe X1
      • PCIe 1.1

      • Video Input:
      • Composite
      • S-Video

      • Video Connector:
      • Composite (BNC x 1) (RCA adapter included)
      • S-Video (mini-DIN)

      • Video Modes:
      • NTSC/PAL
      • 720 x 480, 29.97, 30/i (NTSC)
      • 852 x 480, 29.97, 30/i (NTSC Wide Screen)
      • 720 x 576, 25/i (PAL)
      • Wide Screen Signaling (WSS)

      • Audio Input: Unbalanced stereo (3.5 mini phono)
      • Audio Output: Unbalanced stereo line (3.5mm)

      • Audio Connector:
      • Unbalanced stereo (RCA x 2)
      • Unbalanced (3.5 mini phono) stereo

      • Driver Support:
      • Microsoft DirectShow
      • Linux

      • Driver based Pre-Processing:
      • Closed Caption extraction/ rendering
      • Logo/bitmap overlay
      • Scaling, cropping, de-interlacing and inverse telecine

    • Item Includes:

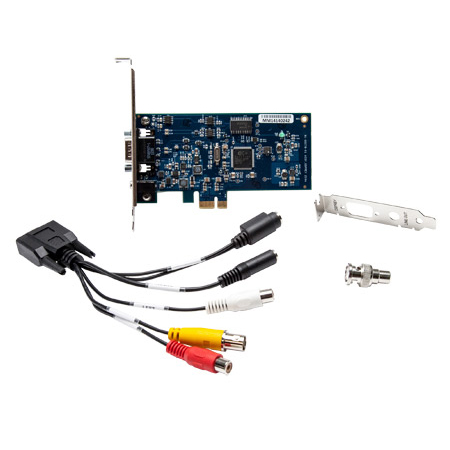

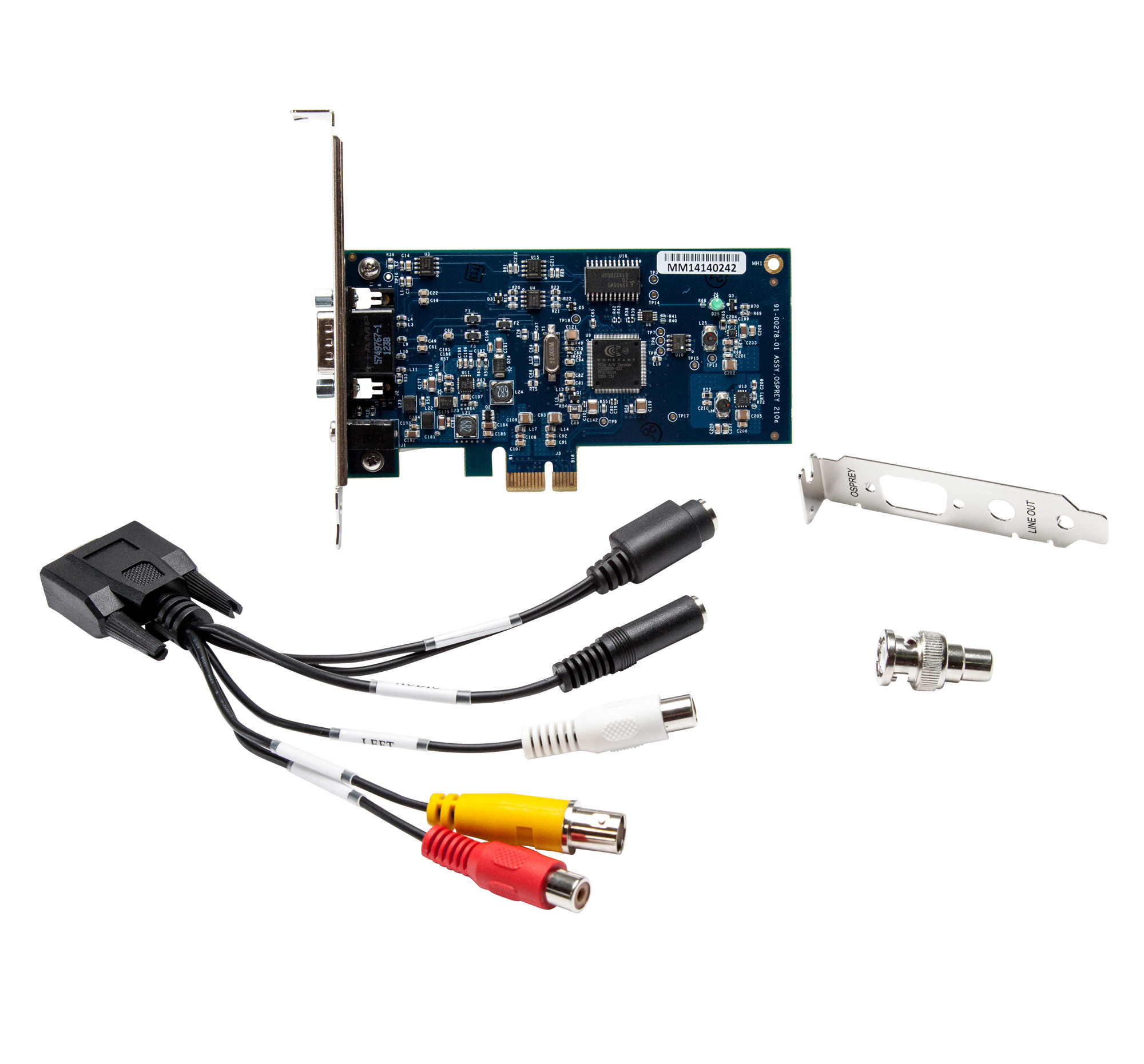

      • Osprey 210e Video Capture Card, Low Profile Adapter, BNC to RCA Adapter, Breakout Cable

    • Warranty:

      • 1 Year Limited Hardware Warranty

    • GTIN:

      0850189006016
