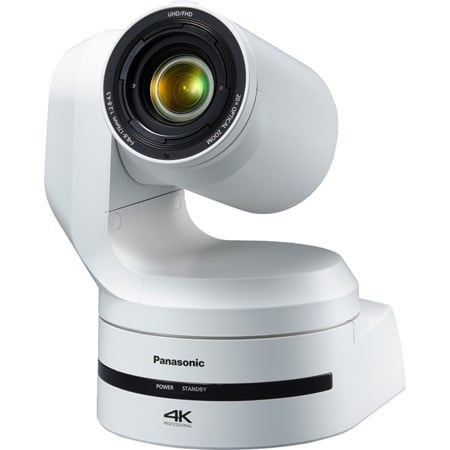

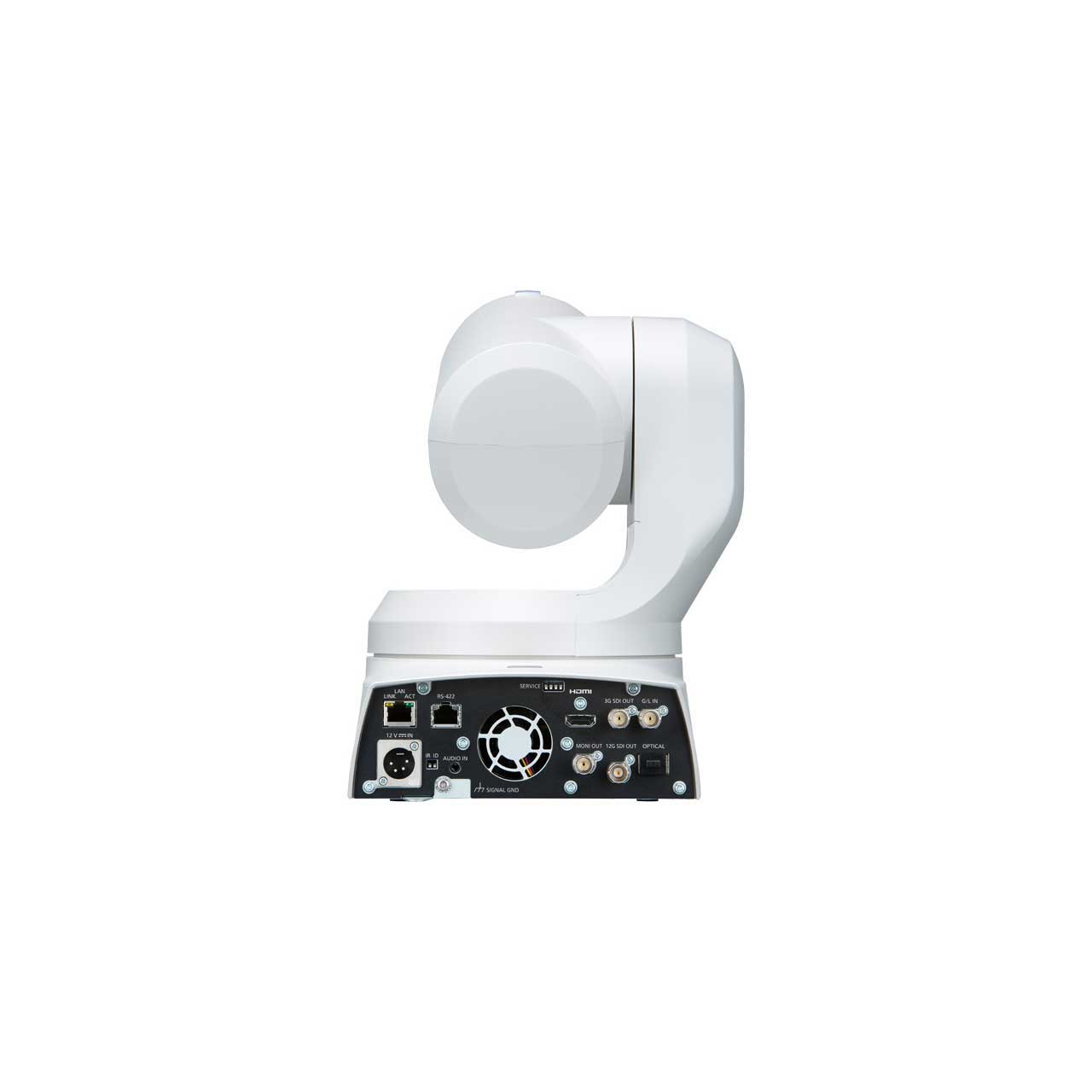

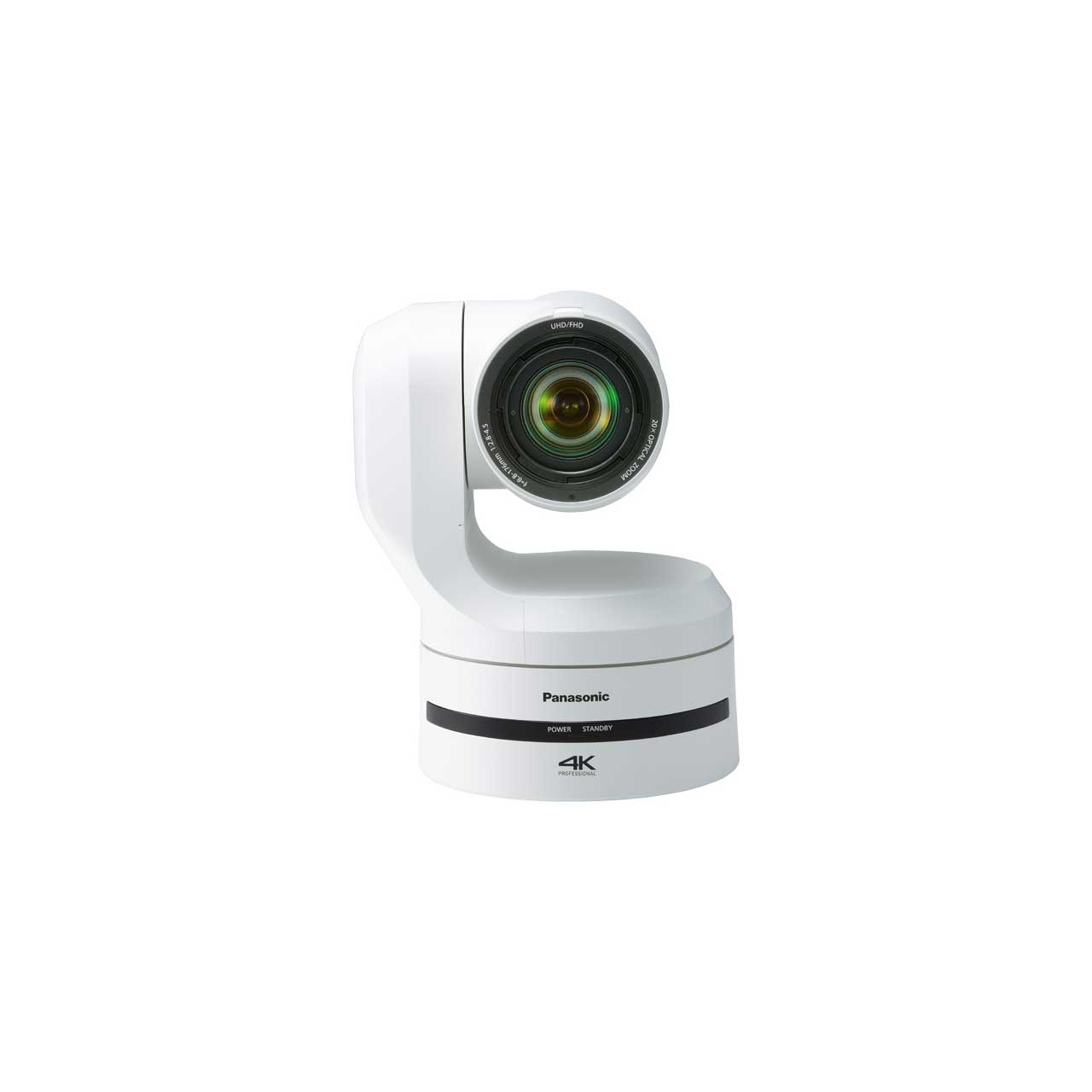

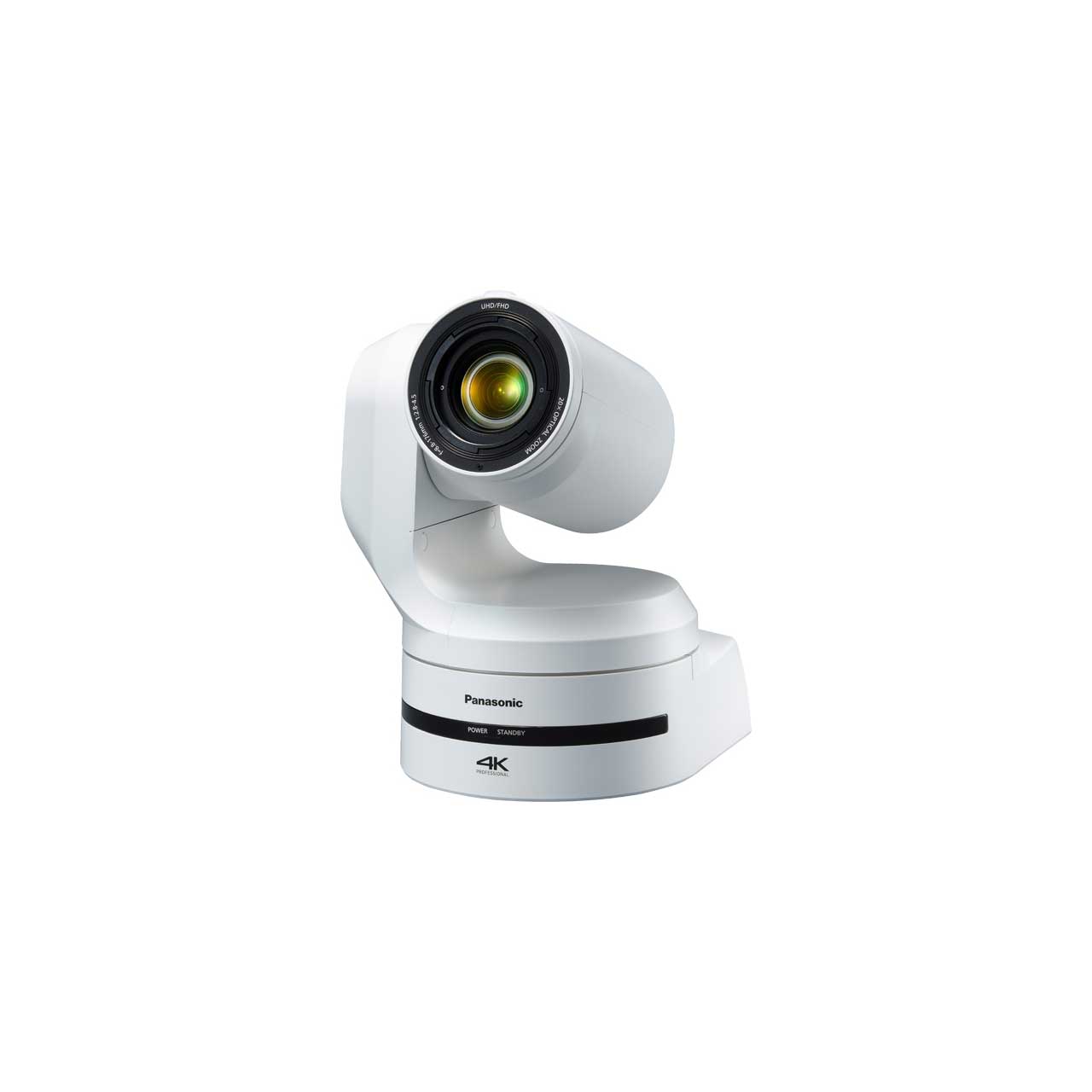

Panasonic AW-UE150W 4K 60p Professional 12G-SDI PTZ Camera - White

ITEM #: PAN-AW-UE150W MFG #: AW-UE150W

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

List Price:

$11,400.00

Our Price:

$9,995.00

Availability: In Stock
iAvailability Description Popup


    AW-UE150W - Overview

    The next-generation PTZ camera from Panasonic is the AW-UE150W which supports high-quality video production in stadiums, lecture halls, churches and other venues. Smooth and high-quality 4K 60p/50p, high-magnification zoom and a wide shooting angle expand the range of the PTZ camera's applications. The camera is equipped with a variety of interfaces and supports simultaneous 4K/HD operation which allows for versatility in current and future production systems.

    *Actual output format is UHD (3840 x 2160) 59.94p/50p.

    High-Quality 4K 60p/50p*1 Shooting
    3840 x 2160 4K output and 59.94p/50p*1 shooting achieve extremely smooth video, even in live sports and other environments containing rapid movement.

    1.0-type MOS Sensor Mounted
    The large 1.0-type MOS sensor enables high sensitivity shooting with low noise. The sensor boasts a light-capturing area that is approximately four times larger than that of the 1/2.3-type sensor to guarantee a wide dynamic range.

    WEB UI Improved
    Camera IP image output, settings and control can be performed using a web browser on a computer connected via an IP network. In addition to PCs and Macs, iPads, iPhones*1, Androids and other mobile devices can be used for operation, and this pursuit of easy-to-use interfaces has enabled smooth camera control from remote locations.

    Incredible Pan and Tilt Performance
    Pan and tilt operate from a minimum speed of 0.08°/s to a maximum of 180°/s in high-speed mode. This is approximately 3 times the speed of our current product*1 for rapid capture of the intended target. Furthermore, a low noise level of NC35 or less has been ensured when operating in normal mode, which is perfect for shooting in quiet environments.

    • Features:

      • High-Quality 4K 60p/50p Shooting
      • 1.0-type MOS Sensor Mounted
      • Optical 20x Zoom / Industry's First 75.1°Horizontal Wide-Angle Shooting
      • HDR (HLG) Support
      • Optical Image Stabilizer (OIS) Loaded
      • Night Mode Support
      • Adaptive Matrix Prevents Color Overloaded from Blue LEDs
      • Incredible Pan and Tilt Performance
      • Cropping Function
      • JPEG Image Saving Function Equipped
      • FreeD Support for Construction of AR/VR Systems
      • Equipped with a Large Tally Lamp
      • WEB UI Improved
      • AW-RP150GJ Connection for Large-Scale Production Systems
      • Multiple Interfaces Supported
      • Direct Broadcast via RTMP (Real-Time Messaging Protocol)
      • NDI | HX Compatibility for Excellent Video Streaming Quality

    • Specifications:

      • General
      • Power Requirements: 12 V DC (10.8 V to 13.2 V), DC 42 V to 57 V (Camera Input, PoE++ power supply)
      • Current Consumption: 4.0 A (XLR IN connector), 1.2 A (PoE++ power supply)
      • Ambient Operating Temperature: 32°F to 104°F
      • Ambient Operating Humidity: 20 % to 90 % (no condensation)
      • Storage Temperature: -4°F to 122°F)
      • Mass: Approx. 4.2 kg (9.24 lb) (excluding mount bracket)
      • Dimensions (WxHxD): 8-3/8 inches x 10-1/2 inches x 8-5/8 inches
      • Finish: AW-UE150WP/AW-UE150WE: Pearl white AW-UE150KP/AW-UE150KE: Black
      • Controller Supported: AW-RP150GJ, AW-RP50*1, AK-HRP1000GJ1, AK-HRP1005GJ1

        Camera Unit
      • Imaging Sensors: 1-type 4K MOSx1
      • Zoom:
        Optical zoom: 20x
        i.Zoom: UHD 24x, FHD 32x
        Digital zoom: 10x
      • Conversion Lens: Not supported
      • Angle of View Range
        Horizontal angle of view: 75.1° (wide) to 4.0° (tele)
        Vertical angle of view: 46.7° (wide) to 2.3° (tele)
        Diagonal angle of view: 82.8° (wide) to 4.6° (tele)
      • Optical Filter: Through, 1/4, 1/16, 1/64, IR through (IR through is used as "Night mode")
      • Focus: Switching between auto and manual
      • Focus Distance
        Entire zooming range: 1000 mm (3.3 ft)
        Wide end: 100 mm (0.33 ft)
      • Color Separation Optical System: 1MOS
      • Standard Sensitivity: F9, 2000 lx (When normal mode is selected)
      • Minimum Illumination: 2lx (F2.8, 59.94p, 50IRE, 42 dB, without accumulation)
      • S/N: 60 dB or more
      • Horizontal Resolution: 1600 TV lines Typ (Center area)
      • Gain Selection: Auto, 0 dB to 36 dB*2
      • Super Gain function equipped : +37 dB to 42 dB
      • Frame Mix: 0 dB, 6 dB, 12 dB, 18 dB, 24 dB
      • Electronic Shutter Speed
        59.94p/59.94i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
        29.97p: 1/30, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
        23.98p/24p: 1/24, 1/48, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
        50p/50i: 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
        25p: 1/25, 1/50, 1/60, 1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/8000, 1/10000
      • Synchro Scan
        59.94p/59.94i: 60.00 Hz to 7200 Hz
        29.97p: 30.00 Hz to 7200 Hz
        23.98p/24p: 24.00 Hz to 7200 Hz
        50p/50i: 50.00 Hz to 7200 Hz
        25p: 25.00 Hz to 7200 Hz
      • Gamma: HD / FILMLIKE1 / FILMLIKE2 / FILMLIKE3/ FILM REC / VIDEO REC / HLG
      • White Balance
        ATW : 3200K, 5600K
        ATW Speed : Normal / Slow / Fast
        AWB : AWB-A / AWB-B
        VAR (selectable between 2000K and 15000K by designating a value)
      • Chroma Amount Variability: OFF, -99 % to 99 %
      • Scene File: Scene1, Scene2, Scene3, Scene4

        Input
      • Input Connector: DC 12 V IN, G/L IN (BNC) BBS (Black Burst Sync), tri-level sync supported

        Output
      • Video Output
        HDMI: HDMI 2.0 standard
        4:2:2/10bit
        -HDCP is not supported.
        -Viera Link is not supported.
      • 12G-SDI OUT: SMPTE 2082-1 standard / 75 &Omega (BNC x 1)
      • 3G-SDI OUT: SMPTE292 / 75 &Omega (BNC x 1) - Level-A/Level-B supported
      • MONI OUT: SMPTE292 / 75 &Omega (BNC x 1)
      • Optical Fiber
        SFP+ standard
        Single Fiber
        -The signal sent is the same as 12G-SDI OUT.
        -This unit does not support input by optical signals

    • GTIN:

      0885170349803
