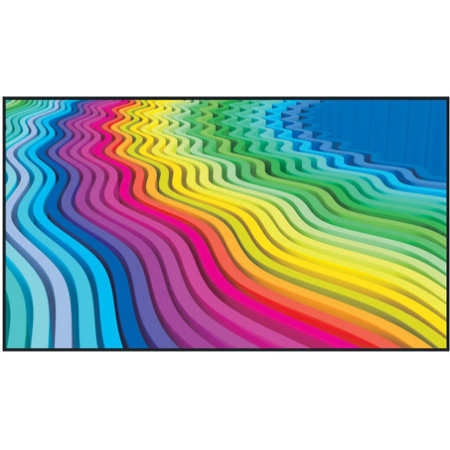

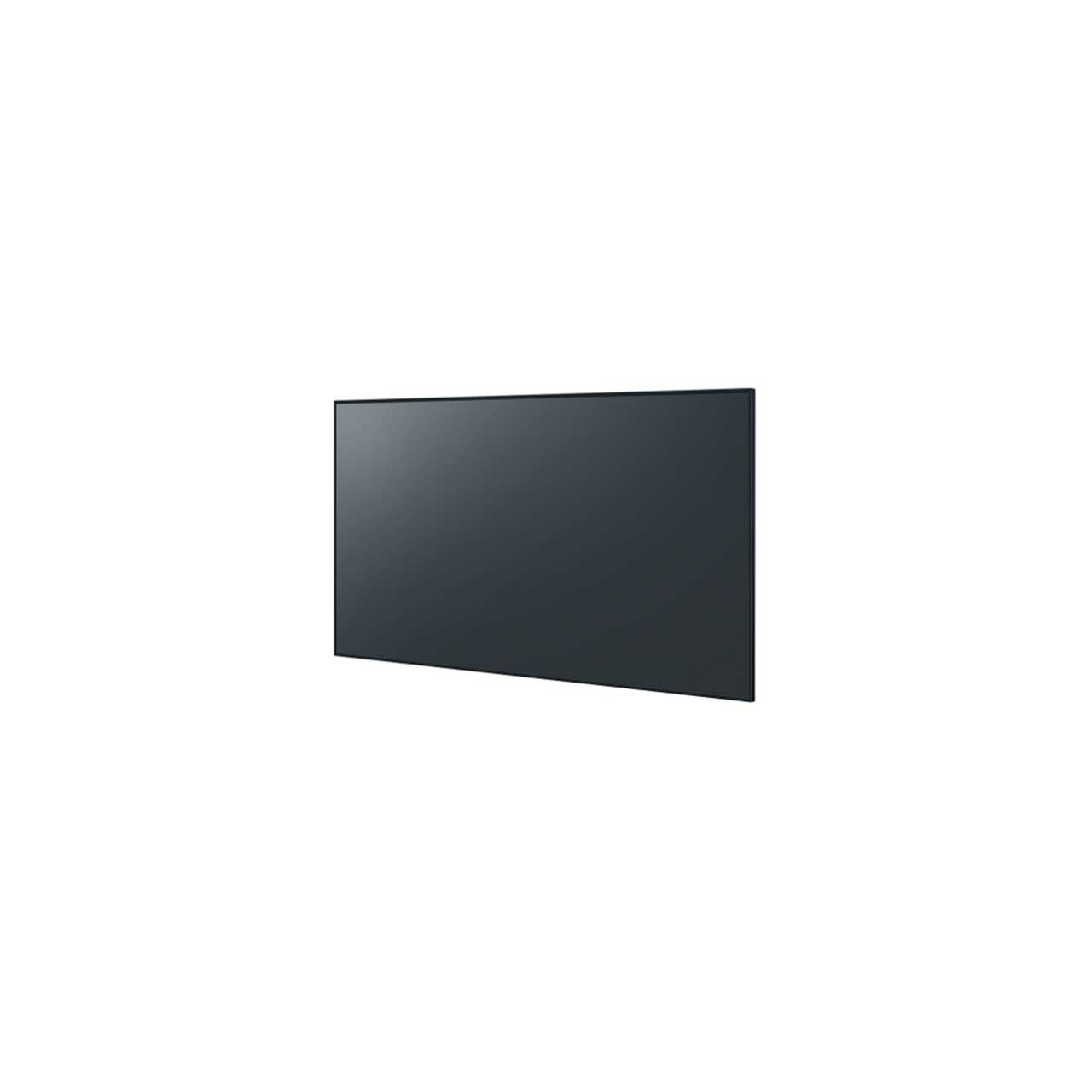

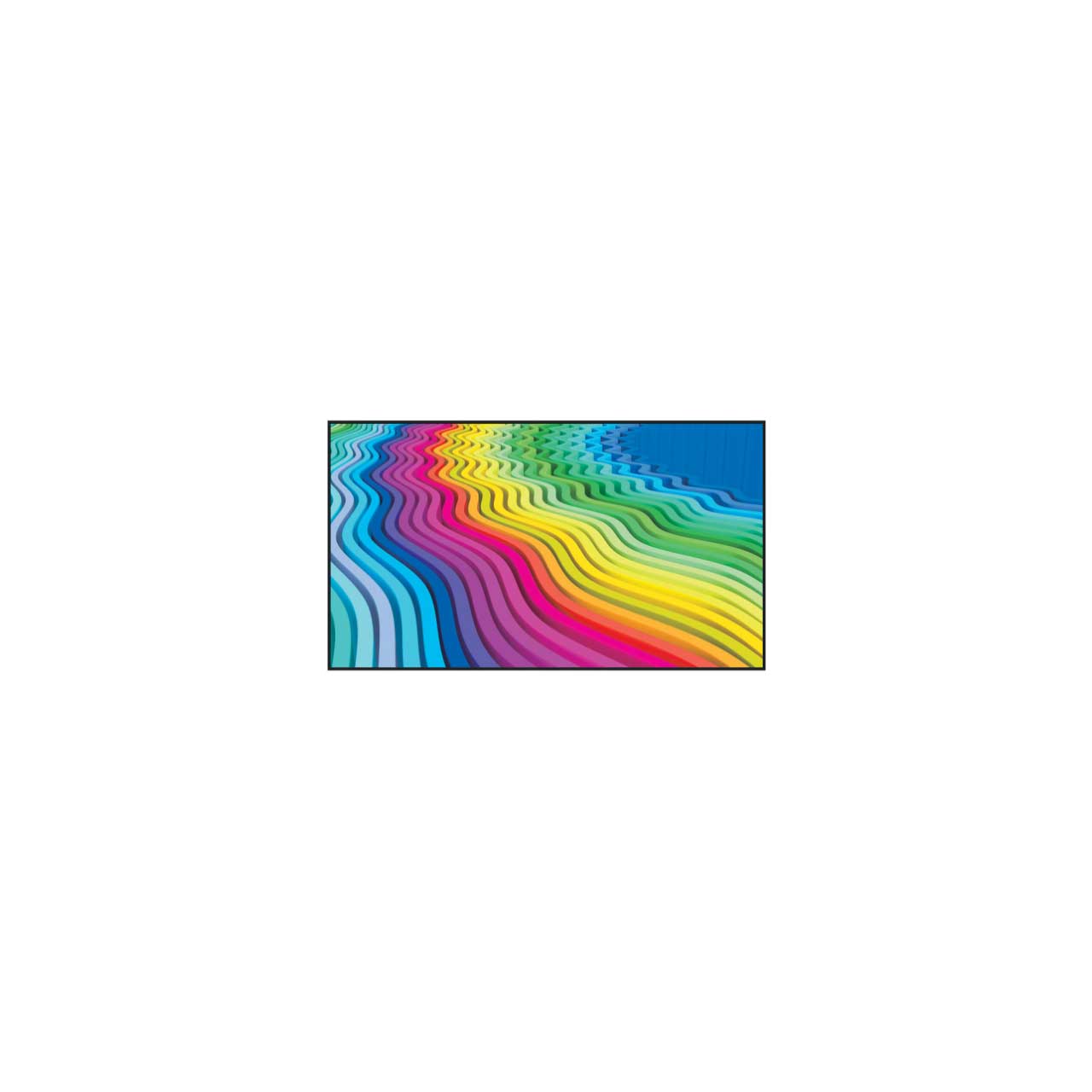

Panasonic TH-50EQ1U 50 Inch Class Entry-Level 4K Digital Display

TH-50EQ1U - Overview

• Features:

  • 50", 350 cd/m²
  • 4k ultra HD resolution delivering the highest detail and image quality. Non-4K sources are also beautifully compensated.
  • Simple signage with built in USB media player. Synchronized playback on multiple displays via USB and LAN.
  • Extensive connectivity features. 4K/60p video input signals via 2 x HDMI. Supports CEC over HDMIr for power on/off.
  • Easy set up and safe operation. Failover and Failback function for any unexpected troubles. Monitoring of multi-displays can be done through the free Multi Monitoring & Control software.


• Specifications:

  • Screen size (diagonal) (inch): 50-inch
  • Screen size (diagonal) (mm): 1257 mm
  • Aspect Ratio: 16:9
  • Panel Type: VA Panel/D-LED
  • Effective display area (W x H) (mm): 1095 x 616 mm
  • Effective display area (W x H) (inch): 43.1 x 24.2 inch
  • Resolution: 3840 x 2160
  • Brightness (typ.): 350 cd/m2
  • Contrast Ratio: 4000:1
  • Response Time: 8 ms (G to G)
  • Terminals HDMI IN: HDMI TYPE-A Connector x 2 (HDCP2.2 supported)
  • Terminals | DVI-D IN/AUDIO IN (L/R): DVI-D 24-pin x 1, DVI Revision 1.0 Compatible (HDCP 1.1 supported) /
    Stereo Mini Jack (M3) x 1 (Shared with Video/PC In)
  • Terminals | PC IN/AUDIO IN (L/R): Mini D-sub 15-pin x 1 (Compatible with DDC 2B) / Stereo Mini Jack (M3) x
    1 (Shared with Video/DVI-D In)
  • Terminals | USB: USB Connector (TYPE A) x 1, DC 5 V/2 A (USB 3.0 supported)
  • Terminals | Serial: D-sub 9-pin x 1 (Input), RS-232C Compatible
  • Terminals | LAN: RJ45 x 1, 10BASE-T/100BASE-TX/1000BASE-T, Compatible with PJLinkT
  • Terminals | IR In/Out: Stereo Mini Jack (M3) x 1 / x 1
  • Built-in Speaker: 20 W [10 W + 10 W]
  • Power Requirements: 110-127 V AC, 50/60 Hz, 220-240 V AC, 50/60 Hz
  • Power consumption: 178 W
  • Power Off Condition: Approx. 0.3 W
  • Standby Condition: Approx. 0.5 W
  • Dimensions (W x H x D) (mm): 1124 x 647 x 70 mm
  • Dimensions (W x H x D) (inch): 44.3 x 25.5 x 2.8 inch
  • Bezel width (mm): 11.9 mm (T/R/L),14.4 mm (B)
  • Bezel width (inch): 0.5 inch (T/R/L), 0.6 inch (B)
  • Weight (kg) Approx.: 14 kg
  • Weight (lbs.): 30.9 lbs.
  • Wall-hanging pitch (mm): 400 x 400 mm VESA Compliant
  • Wall-hanging pitch (inch): 15.8 x 15.8 inch VESA Compliant
  • Orientation: Landscape/Portrait
  • Tilting angle: 0-20 degrees forward/backward with landscape/portrait setting


• GTIN:

  0885170338432
