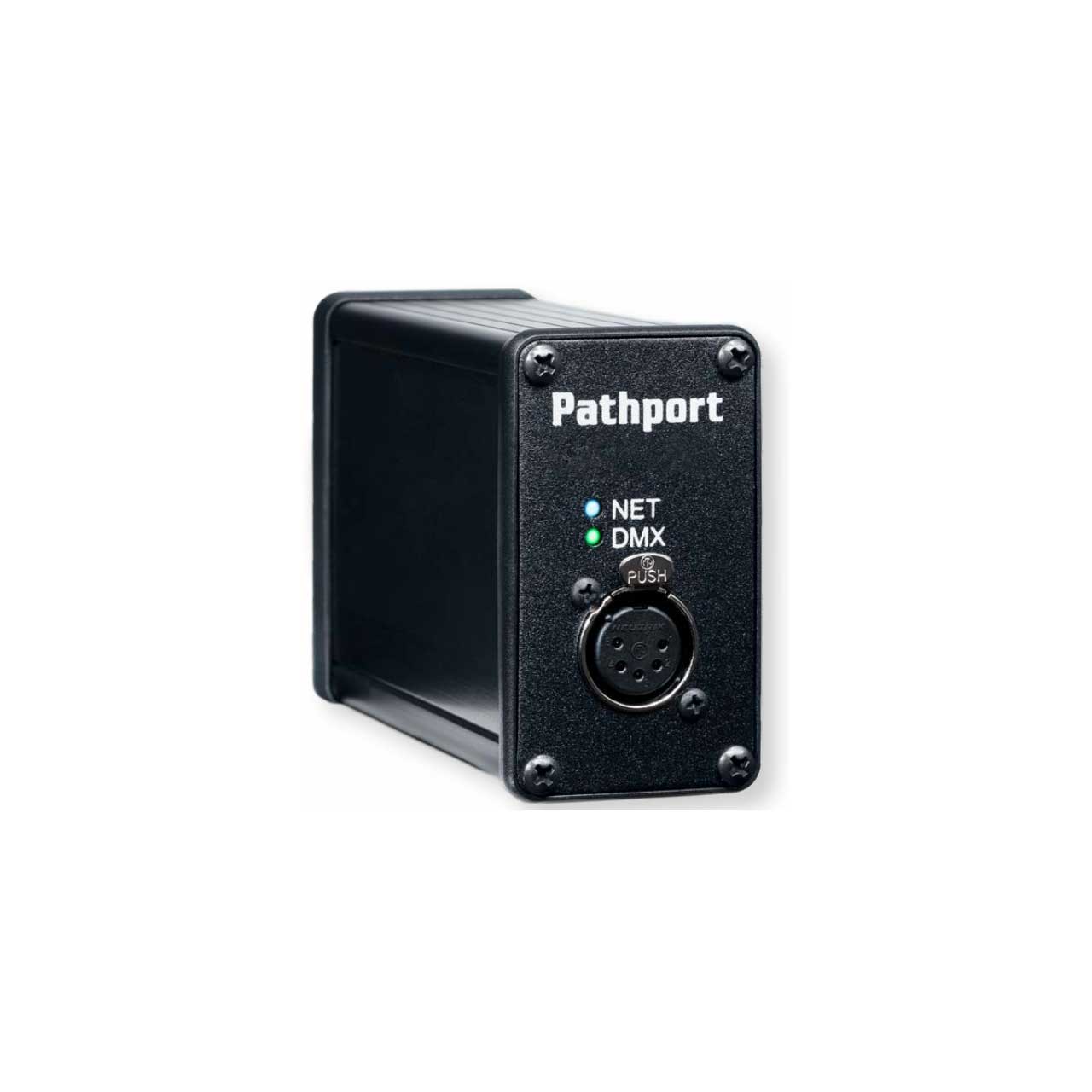

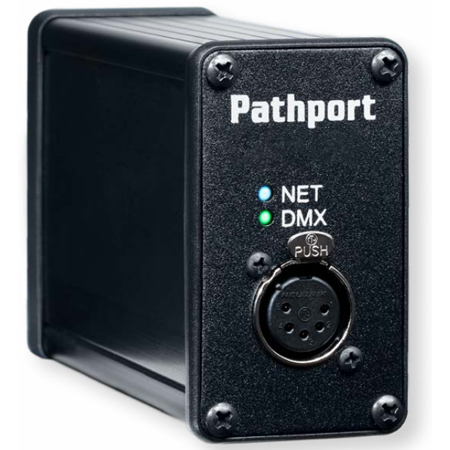

Pathway Connectivity PWPP DT P1 XLRF Pathport DMX Ethernet Gateway - Desktop - 1-Port - XLR 5-Pin Female

PWPP DT P1 XLRF - Overview

• Features:

  • One configurable DMX port
  • 10 Mbps Ethernet port
  • LED Indicators for DMX status and Ethernet link activity
  • DMX output configured as whole universes or custom slot-by-slot patch
  • Map up to eight control sources to each output slot, with merge and/or priority options for each source
  • Acts as E1.20 RDM controller, when used with free Pathscape configuration software or ANSI E1.33 RDMnet compliant controllers
  • User-configurable DMX output speed and signal loss behavior
  • Compact, lightweight but robust aluminum housing
  • Supports the following Ethernet sending and receiving protocols:
  • Pathway ssACN (Secure sACN)
  • E1.31 streaming ACN (sACN)
  • Art-Net
  • Pathport Protocol
  • ShowNet
  • Operates on Power-over-Ethernet (PoE) or auxiliary 24-48VDC input
  • Also available in DIN-mount (PWPP DIN) and Wall-mount (PWPP WM) form factors


• Specifications:

  • Electrical
  • Input Ratings:
    PoE Class 1 device
    24VDC auxiliary power input
    4W maximum power consumption
  • Isolation & Fault Protection: 60V fault protection on DMX port
  • Regulatory Compliance: CE

    Mechanical
  • Dimensions (WxHxD): 1.85 x 3.2 x 5" (46.5 x 81 x 126.5mm)
  • Weight: 1Lbs (0.45kg)

    Environmental
  • Operating Temperature: 14° to 122°F (-10° to 50°C)
  • Relative Humidity: 5 to 95%, non-condensing
  • Standard Compliance: RoHS 2011/65/EU + A1 2015/863

    General
  • Compliance:
    ANSI E1.11 DMX512-A R2013
    ANSI E1.20 RDM - Remote Deice Management
    ANSI E1.31 sACN - Streaming ACN, Art-Net, Strand ShowNet, Pathway ssACN
    ANSI E1.33 RDMnet - RDM over IP
    IEEE 802.3af Power-over-Ethernet
    California Title 1.81.26, Security of Connected Devices


• Warranty:

  • 3-year limited warranty
