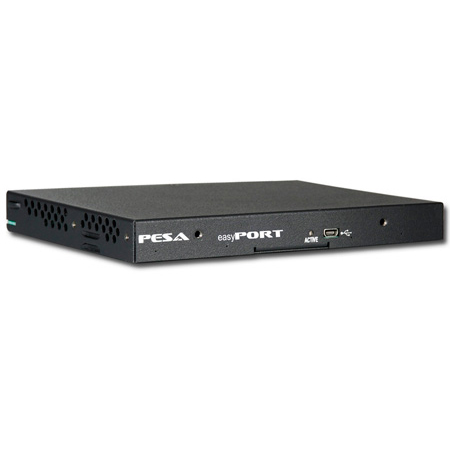

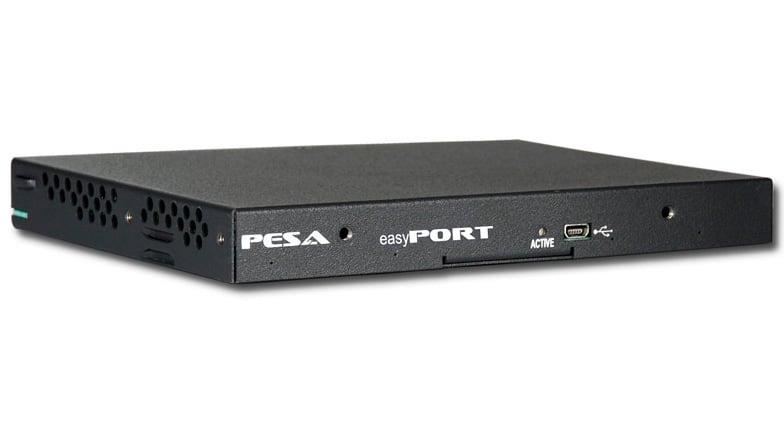

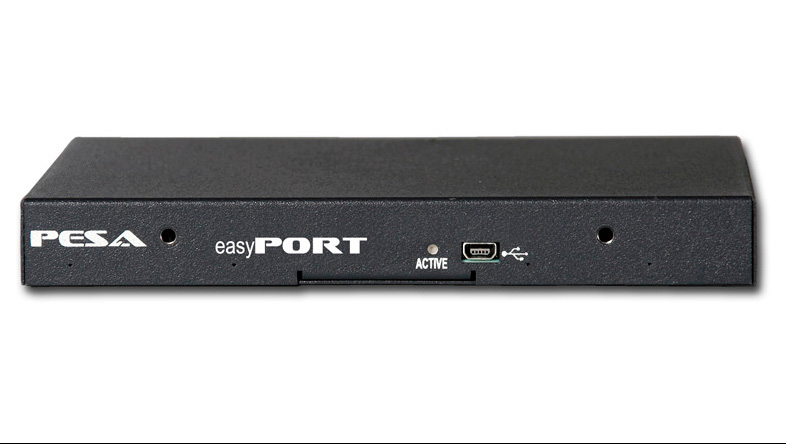

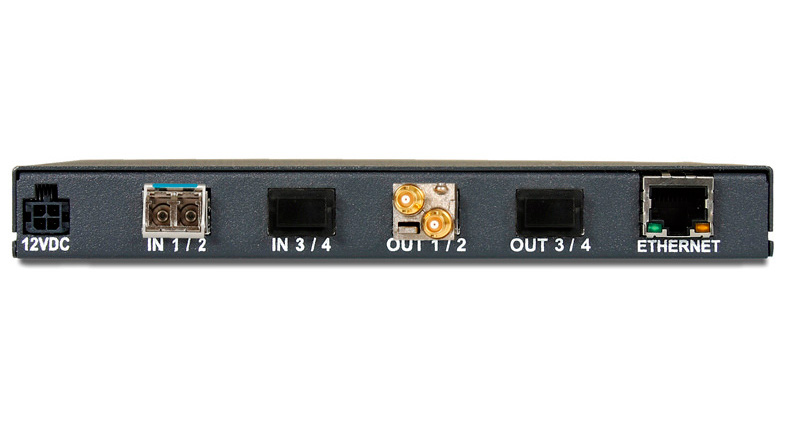

PESA EASY-2FX2DA Easyport - 2 Fiber In To 2 SD Analog Out
  • PESA EASY-2FX2DA Easyport - 2 Fiber In To 2 SD Analog Out
  • PESA EASY-2FX2DA Easyport - 2 Fiber In To 2 SD Analog Out
  • PESA EASY-2FX2DA Easyport - 2 Fiber In To 2 SD Analog Out

Questions? Ask a Markertek Expert:
800-522-2025 Email

PESA EASY-2FX2DA Easyport - 2 Fiber In To 2 SD Analog Out

Item #: PESA-EASY-2FX2DA   •   MFG #: EASY-2FX2DA




Our Price:$2,140.00

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Required Accessories

        Show More

    PESA's easyPORT boxes are multi-format converters that provide a wide range of port options and port density. The easyPORT converters can be configured to support crosspoint switching or conversion for ASI, SDI, HD-SDI, 3G-SDI, HDMI/DVI, and NTSC/PAL. The basic easyPORT includes four SFP type card cages can be populated to fit practically any combination of input and output signals. Each easyPORT comes with a built-in Ethernet port and USB port for easy setup and diagnostics. Up to four easyPORT converters can be loaded in a 1RU frame with support for redundant power. Setup is simple with the supplied GUI interface.


    • Features

      • 4 FIBER SD-SDI inputs
      • 4 BNC: NTSC/PAL outputs
      • Built-in 4X4 Switch
      • Up to 270Mbps
      • Includes setup software and power supply
      • Network & USB control ports
      • Small size : 6.75 W X .825 H X 6.25 D

    • Specifications

      • CONTROL & INTERFACES
      • Network connection 10/100 RJ-45
      • USB mini-USB port
      • Software Cattrax Network GUI
      • Operates with USB or TCP/IP
      • Switching Built-in 4X4 crosspoint
      • MECHANICAL
      • Size (inches) 6.75 W x .825 H x 6.25 D
      • Size (mm) 171.45mm x 20.96mm x 158.75mm
      • OPTIONS
      • Mounting wall bracket for a single chassis
      • 1RU rack mount holds four modules
      • includes power supply and power cables

    • Item Includes

      • EasyPort Extender/Converter
      • 1 SD/HD/3G fiber input SFP
      • 2 high density BNC to standard BNC adapter cable
      • 1 NTSC/PAL output SFP
      • Power supply
      • Software included
      • 1 year warranty
