Broadata Mini-3GHD-T-MS-ST Mini 3G HD-SDI Over Fiber Optic Extender Transmitter
    Questions? Ask a Markertek Expert:
    800-522-2025 Email

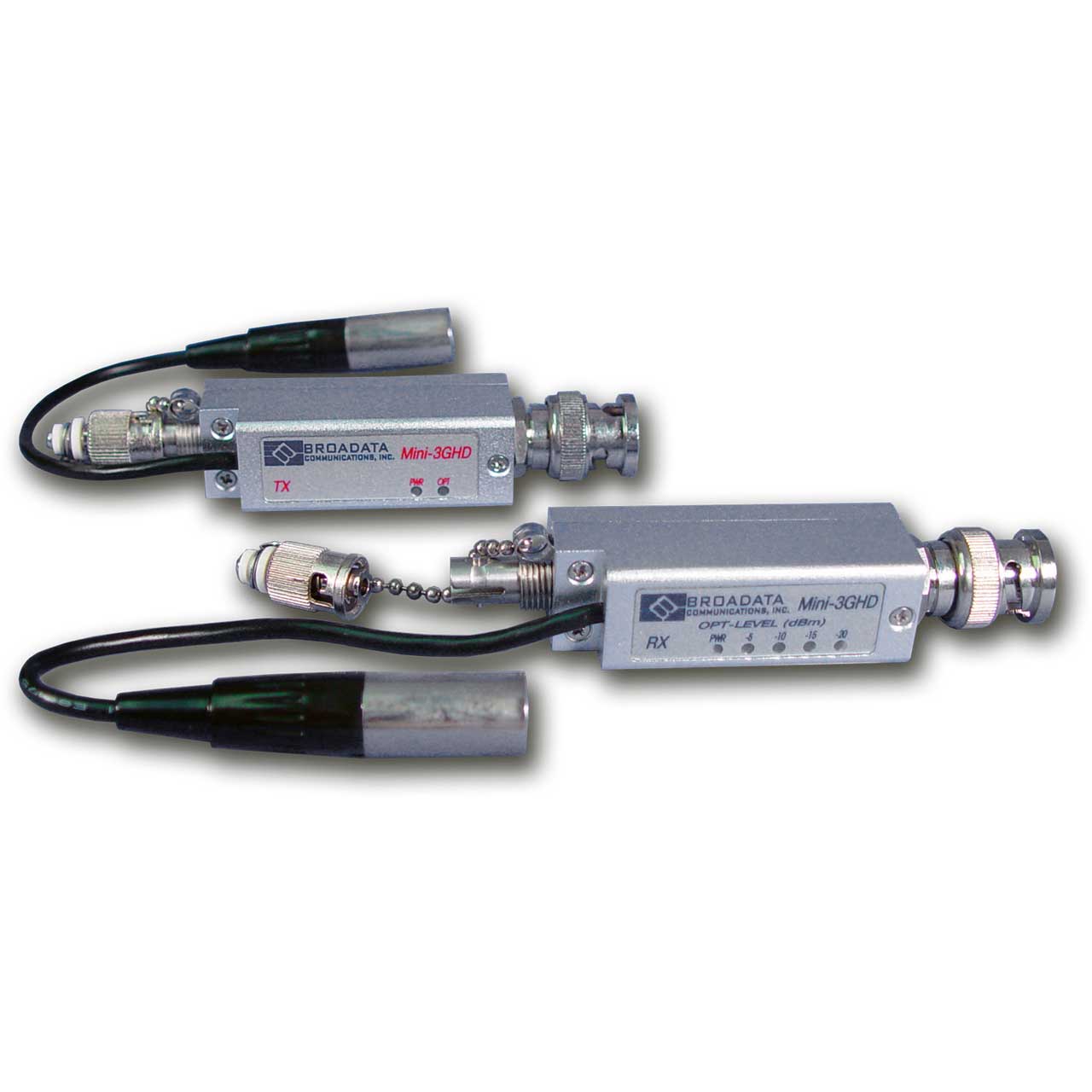

    Broadata Mini-3GHD-T-MS-ST Mini 3G HD-SDI Over Fiber Optic Extender Transmitter

    Item #: MINI-3GHD-T-MSST   •   MFG #: MINI-3GHD-T-MSST







    The Mini-3GHD Series is a miniature, Fiber Optic 3Gb/s SDI Digital Video TransportSystem, supporting the new 1080p 3Gbps SDI format. The standard Mini-3GHD system is designed to transport one (1) channel SMPTE-424M 3Gb/s SDI,SMPTE-292M HD-SDI or SMPTE-259M SDI serial digital video signal over long distance through either single mode or multi-mode fiber with the same model.

    Due to the use of advanced digital fiber optic transmission technology, no user adjustments are required in the Mini-3GHD system, enabling quick setup and trouble-free operation. The Mini-3GHD can handle SDI, DVB-ASI, HD-SDI, 3G-SDI, and many other video formats. The power connector has a latch-locking mechanism, thus no power disruption due to mis-handling problem.

    The Mini-3GHD comes with a rugged, standalone, miniature unit. Panel connectors are provided for digital video (BNC connector) and fiber connection (ST-type for the singlemode and multi-mode version.

    Note: Both transmitter and receiver are required - sold separately. (MINI-3GHD-T-MSST & MINI-3GHD-R-MSST)

    • Features

      • Transport Multi-rate HD-SDI DigitalVideo Over Fiber
      • Reliable Transmission Over Multimodeor Singlemode Fiber
      • Video Pathological Test Code Compliant
      • Latch-Locking Power Connector
      • Same Model Compatible for either Multimode or Singlemode Fiber
      • Remote 3Gb/s SDI Video Transport
      • ENG/EFP 3Gb/s SDI VideoTransmission
      • Pre-production and Post-production3Gb/s SDI Video Links
