Cineroid PG32E Pattern Generator and Converter

ITEM #: PG32E MFG #: CINE-PG32E

  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
free ship

List Price:

$849.00

Our Price:

$845.00

Availability: Temporarily Out of Stock
iAvailability Description Popup


    CINE-PG32E - Overview

    480 x 800 Display

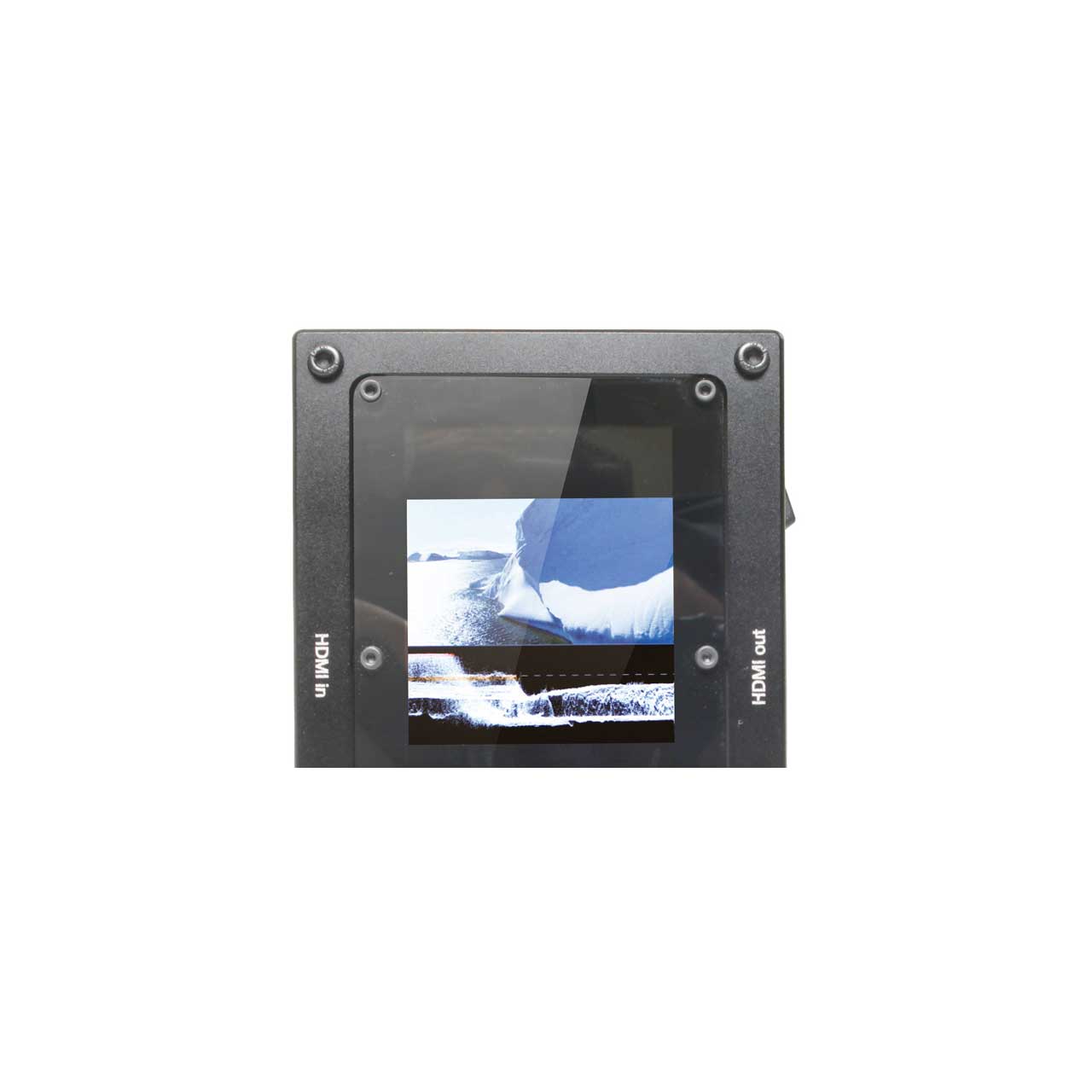

    The Cineroid EVF PG32e is a converter and pattern generator that can be mounted on any video camera with both HDMI and HD-SDI output signals. The EVPG32 features a built-in 3.2" display on the front of the unit. It gives an immediate visual confirmation of the test pattern output and can be used as a simple video confidence monitor.

    Durable metal body
    Housed in an durable aluminium body, the PG32 is designed to be used in all professional shooting environments.

    3G/HD/SD-SDI Converter
    Cineroid's PG32 converts 3G-SDI, dual or single link HD-SDI, or SD-SDI to HDMI v1.3a for driving monitors.

    HDMI / SDI Cable tester
    PG-32e allows installers to quickly test, troubleshoot and verify HDMI and HD-SDI cables with loopout. It also gives an immediate visual confirmation of the cable condition by display.

    Waveform / Vector scope
    Exposure can be monitored using both waveform and vectorscope, both in real time. Three types of waveform are offered; Cr, Cb and Y.

    Progressive to interlaced conversion
    P2I mode is a technique for doubling the perceived frame rate of a video display without consuming extra bandwidth. The interlaced signal contains two fields of a video frame captured at two different times. This enhances motion perception to the viewer, and reduces flicker by taking advantage of the phi phenomenon effect.

    SMPTE Pattern Generator
    PG32 Pattern Generator from Cineroid is a portable video test pattern generator. For production, post-production, broadcast, and AV professionals who need a reference pattern generator to produce reference signals. The PG32 employs 16 internal parameter-based software pattern renderers, supporting thousands of pattern variations.

    CINE-PG32E - Required Accessories

      CINE-PG32E - Recommended Accessories
